- Bently Nevada
- 330701-00-30-10-02-00
- 3300 XL 11 mm Eddy Current Probe
- USA
- 1 meter
- 0.07 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

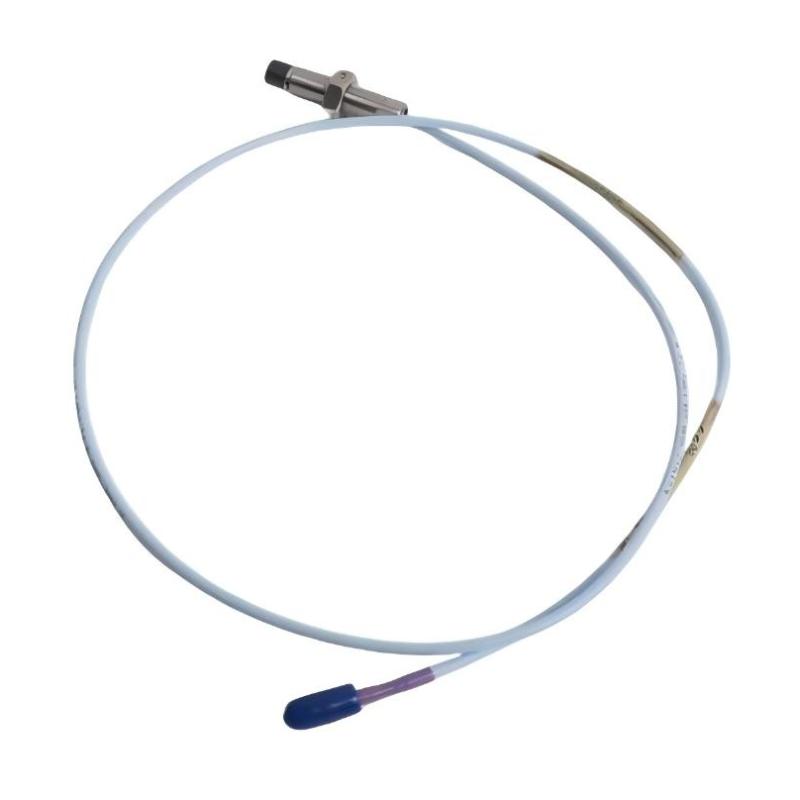

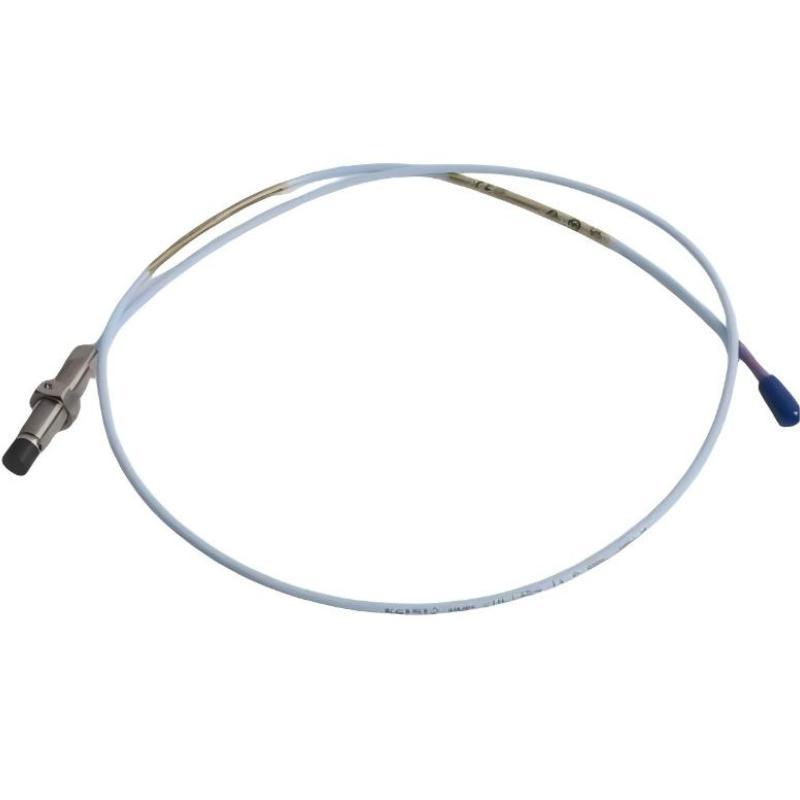

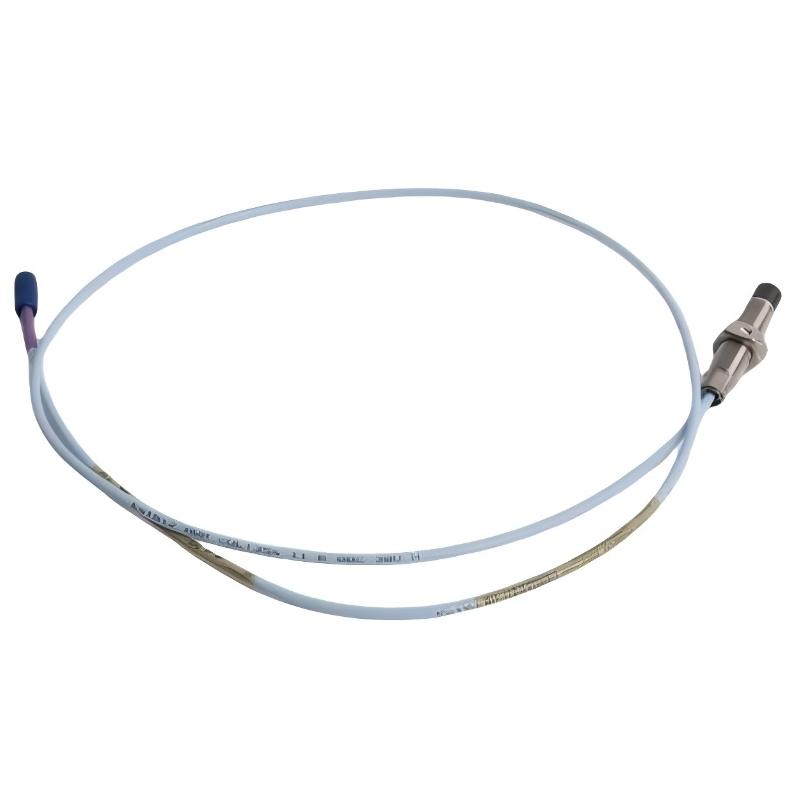

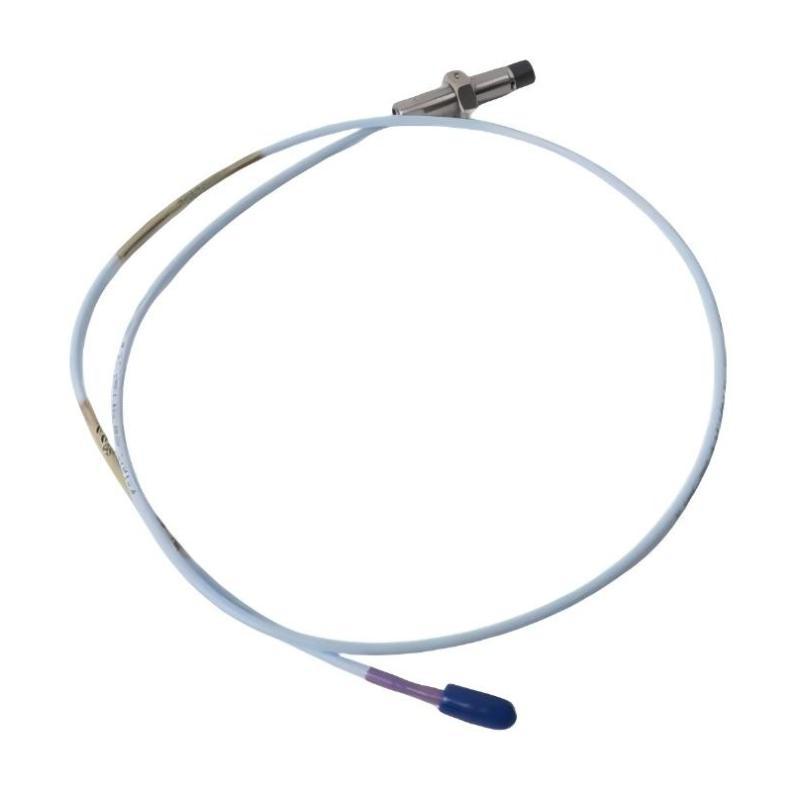

The Bently Nevada 330701-00-30-10-02-00 3300 XL 11 mm Eddy Current Probe is a high-performance industrial proximity sensor designed for accurate rotating machinery condition monitoring, vibration measurement, and equipment protection applications.
This eddy current probe provides non-contact measurement of shaft vibration, radial displacement, and shaft position changes. It is designed for critical industrial equipment where reliable monitoring, stable signal performance, and early fault detection are required.
The Bently Nevada 3300 XL 11 mm Eddy Current Probe uses electromagnetic sensing technology to detect changes in the distance between the probe tip and the rotating shaft surface. The measured displacement signals are transmitted to machinery monitoring systems for vibration analysis, equipment protection, and predictive maintenance.
The 330701-00-30-10-02-00 model features a 1-meter total length configuration, providing a compact installation solution for machinery systems where the sensor and monitoring equipment are installed within a short connection distance.
The Bently Nevada 330701-00-30-10-02-00 configuration includes:
- Product Type: 3300 XL 11 mm Eddy Current Probe
- Model: 330701-00-30-10-02-00
- Application: Rotating Machinery Condition Monitoring
- Sensor Technology: Eddy Current Proximity Measurement
- Function: Shaft Vibration and Displacement Detection
- Total Length: 1 meter
- Weight: 0.07 kg
The Bently Nevada 330701-00-30-10-02-00 provides reliable sensing performance for industrial rotating equipment protection and maintenance systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330701-00-30-10-02-00 |
| Product Type | 3300 XL 11 mm Eddy Current Probe |
| Sensor Type | Eddy Current Proximity Sensor |
| Measurement Method | Non-contact Displacement Measurement |
| Application | Rotating Equipment Monitoring |
| Probe Series | 3300 XL 11 mm |
| Measurement Function | Shaft Vibration and Position Monitoring |
| Cable Length | 1 meter |
| Installation Type | Industrial Machinery Installation |
| Total Length | 1 meter |
| Weight | 0.07 kg |
| Main Function | Machinery Condition Monitoring |
Function and Working Principle
The Bently Nevada 330701-00-30-10-02-00 Eddy Current Probe operates using electromagnetic eddy current sensing technology.
During operation, the probe generates an electromagnetic field around the sensing tip. When the distance between the probe and the rotating shaft changes, the electromagnetic response changes accordingly. The sensor converts these variations into electrical signals representing shaft movement and vibration conditions.
The working process includes:
- Generating an electromagnetic sensing field.
- Detecting changes in the shaft-to-probe gap.
- Converting mechanical displacement into electrical signals.
- Transmitting measurement data to monitoring systems.
- Supporting equipment condition evaluation.
The probe provides measurement functions including:
- Shaft vibration monitoring
- Radial displacement detection
- Rotor position measurement
- Machinery protection support
- Predictive maintenance monitoring
Product Functions
The Bently Nevada 3300 XL 11 mm Eddy Current Probe provides accurate monitoring capabilities for industrial rotating equipment.
| Function | Description |
|---|---|
| Vibration Monitoring | Detects shaft vibration changes during equipment operation |
| Displacement Measurement | Measures shaft movement and position variations |
| Non-contact Sensing | Provides measurement without physical contact |
| Continuous Monitoring | Supports real-time machinery condition analysis |
| Fault Detection Support | Helps identify abnormal equipment operation |
The sensor provides essential data for machinery protection systems and helps improve maintenance efficiency.
Industrial Applications
The Bently Nevada 330701-00-30-10-02-00 is widely used in industries requiring reliable rotating machinery monitoring.
| Industry | Application |
|---|---|
| Power Generation | Turbine vibration monitoring |
| Oil and Gas | Compressor and pump protection |
| Petrochemical | Rotating equipment monitoring |
| Manufacturing | Motor condition monitoring |
| Steel Industry | Heavy machinery protection |
| Energy Industry | Critical equipment supervision |
| Chemical Industry | Process equipment monitoring |
| Marine Industry | Rotating system diagnostics |
Typical applications include:
- Steam turbines
- Gas turbines
- Compressors
- Industrial pumps
- Motors
- Gearboxes
- High-speed rotating machinery
Installation Guide
Installation Preparation
Before installing the Bently Nevada 330701-00-30-10-02-00:
- Confirm compatibility with the monitoring system
- Verify probe model specifications
- Inspect probe and cable condition
- Check installation position
- Prepare required tools
- Ensure safe equipment shutdown procedures
Hardware Installation
Installation steps:
- Shut down the monitored equipment safely.
- Confirm the correct probe mounting location.
- Install the eddy current probe securely.
- Adjust the sensing gap correctly.
- Connect the 1-meter cable.
- Verify signal transmission.
- Perform system testing.
Commissioning
After installation:
- Check probe output signal
- Verify sensing distance
- Confirm monitoring system connection
- Test vibration measurement
- Monitor signal stability
Proper commissioning ensures accurate measurement performance and reliable machinery monitoring.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| No Signal Output | Cable connection failure | Check probe wiring and connections |
| Incorrect Measurement | Incorrect sensing gap | Adjust probe installation position |
| Signal Instability | Electrical interference | Check cable routing and grounding |
| Sensor Alarm | Probe damage or installation issue | Inspect sensor condition |
| High Vibration Reading | Machinery operating problem | Check equipment condition |
| Monitoring System Cannot Detect Probe | Interface connection issue | Verify system compatibility |
Maintenance Recommendations
To maintain reliable operation of the Bently Nevada 330701-00-30-10-02-00:
- Inspect probe condition regularly
- Check cable insulation
- Verify connector condition
- Keep installation area clean
- Prevent mechanical impact
- Perform periodic monitoring checks
Regular maintenance helps maintain measurement accuracy and improve equipment reliability.
System Integration
The Bently Nevada 330701-00-30-10-02-00 Eddy Current Probe can be integrated into industrial machinery monitoring systems.
| System | Application |
|---|---|
| Machinery Protection System | Shaft vibration monitoring |
| Condition Monitoring System | Equipment health evaluation |
| Turbine Monitoring System | Rotor displacement measurement |
| Industrial Control System | Equipment protection |
| Predictive Maintenance System | Fault diagnosis |
The probe provides reliable measurement signals for industrial equipment monitoring and protection.
Key Advantages
- High-precision eddy current sensing technology
- Accurate non-contact measurement
- Reliable shaft vibration monitoring
- Compact 1-meter configuration
- Stable signal performance
- Suitable for critical rotating machinery
- Supports predictive maintenance
- Improves equipment reliability
- Designed for industrial environments
Technical FAQs
What is the Bently Nevada 330701-00-30-10-02-00 used for?
The Bently Nevada 330701-00-30-10-02-00 is an eddy current proximity probe used for measuring shaft vibration, displacement, and position in rotating machinery.
What type of sensor is the 330701-00-30-10-02-00?
It is a 3300 XL 11 mm Eddy Current Probe designed for industrial machinery monitoring applications.
What is the total length of this probe?
The total length is 1 meter.
What is the weight of the Bently Nevada 330701-00-30-10-02-00?
The weight is 0.07 kg.
What equipment can use this probe?
It is suitable for turbines, compressors, pumps, motors, gearboxes, and other critical rotating equipment.
Why are eddy current probes important?
Eddy current probes provide accurate non-contact measurement of shaft movement and vibration, helping detect abnormal operating conditions and improve machinery reliability.
Conclusion
The Bently Nevada 330701-00-30-10-02-00 3300 XL 11 mm Eddy Current Probe is a reliable industrial sensor designed for rotating machinery condition monitoring and protection applications.
With accurate non-contact measurement capability, compact 1-meter configuration, stable signal performance, and durable industrial design, this probe helps improve equipment reliability, support predictive maintenance strategies, and ensure safe operation of critical industrial machinery.
