- Bently Nevada
- 330196-05-30-50-05
- 3300 XL 8 mm ETR Reverse Mount Probe
- USA
- 5 meters
- 1.615 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

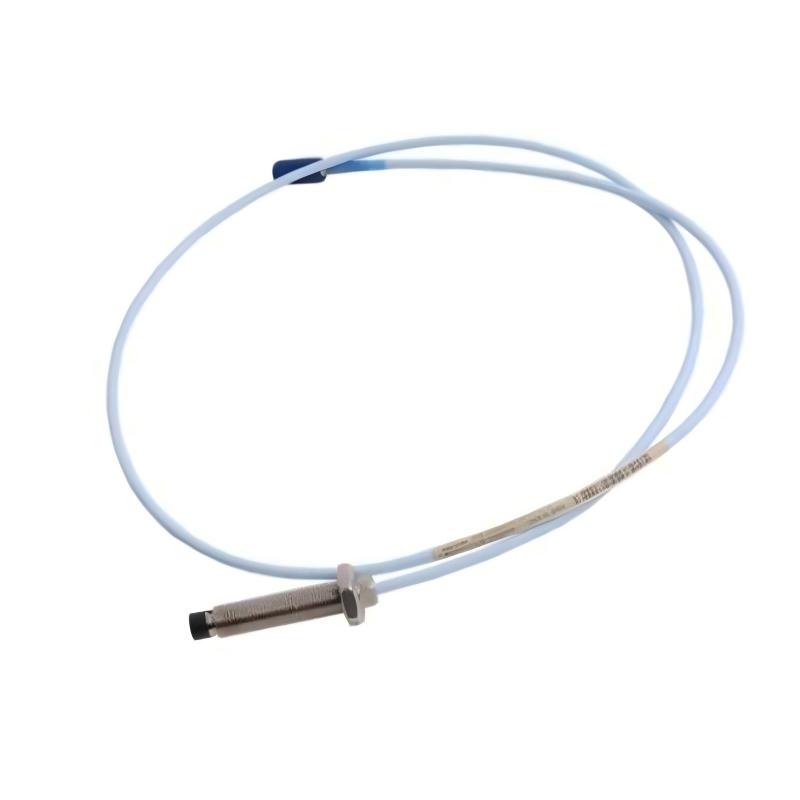

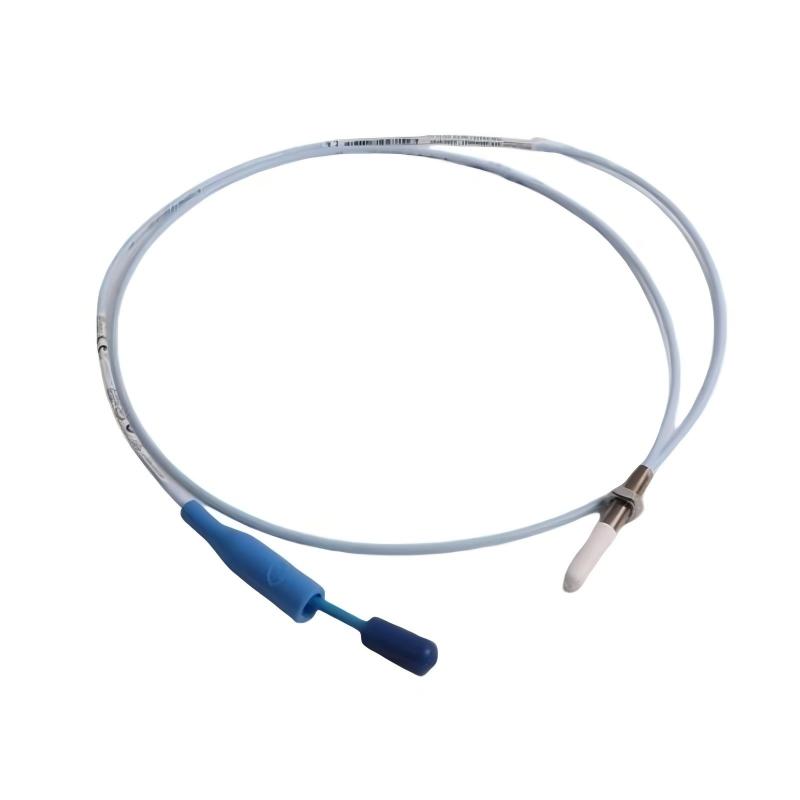

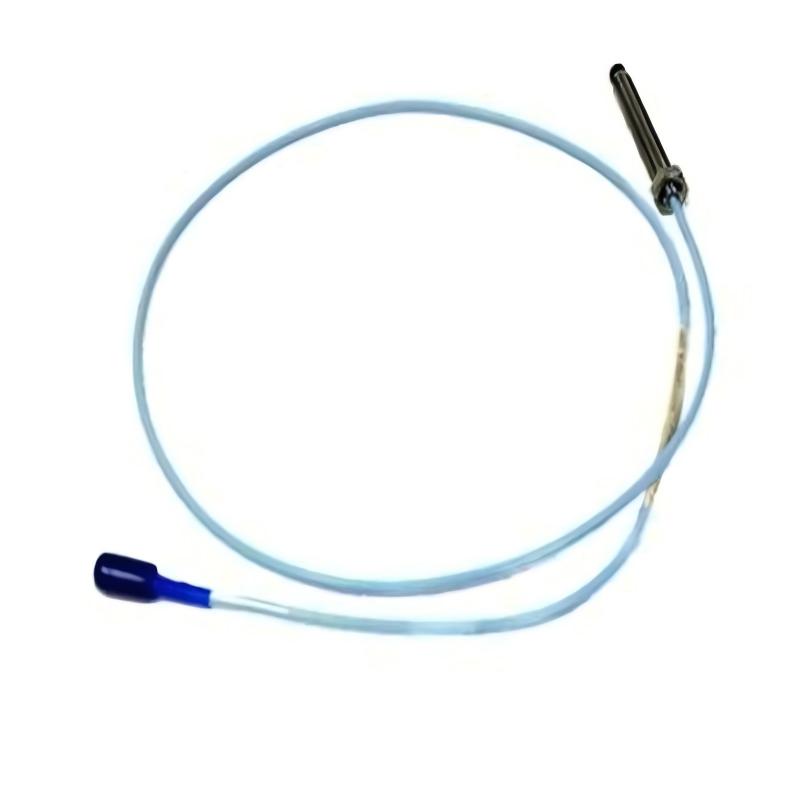

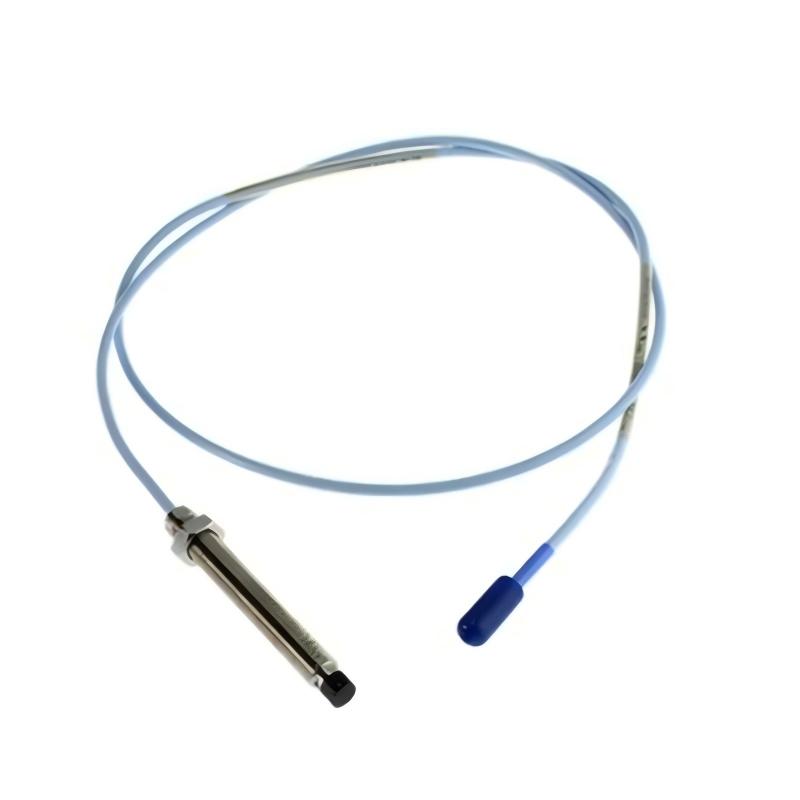

The Bently Nevada 330196-05-30-50-05 3300 XL 8 mm ETR Reverse Mount Probe is a high-precision proximity sensor designed for continuous condition monitoring of critical rotating machinery. It provides accurate non-contact measurement of shaft vibration, displacement, and position, making it an important component in industrial machinery protection and predictive maintenance systems.
As part of the 3300 XL 8 mm Extended Temperature Range (ETR) Reverse Mount Probe series, the Bently Nevada 330196-05-30-50-05 is engineered for applications requiring reliable performance, extended cable length, and flexible installation options in demanding industrial environments.
The probe uses eddy current proximity sensing technology to measure the distance between the probe tip and the rotating shaft surface. Changes in shaft movement are converted into electrical signals, which can be analyzed by monitoring systems to evaluate machine health and detect abnormal operating conditions.
The reverse mount design allows installation in machinery where standard probe mounting methods are difficult due to limited space, mechanical structure restrictions, or special equipment configurations.
The Bently Nevada 330196-05-30-50-05 configuration includes:
- Product Type: 3300 XL 8 mm ETR Reverse Mount Probe
- Probe Diameter: 8 mm
- Thread Type: M10 x 1
- Case Length: 30 mm
- Total Length: 5 meters
- Weight: 1.615 kg
With its extended 5-meter cable length, this proximity probe is suitable for large industrial equipment where the monitoring system is installed away from the measurement point.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330196-05-30-50-05 |
| Product Type | 3300 XL 8 mm ETR Reverse Mount Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 x 1 |
| Case Length | 30 mm |
| Measurement Technology | Eddy Current Proximity Sensing |
| Probe Design | Extended Temperature Range Reverse Mount |
| Installation Type | Reverse Mount Configuration |
| Total Length | 5 meters |
| Weight | 1.615 kg |
| Application | Shaft Vibration and Position Monitoring |
Function and Working Principle
The Bently Nevada 330196-05-30-50-05 operates using eddy current measurement technology, providing accurate shaft monitoring without physical contact.
During operation, the probe generates a high-frequency electromagnetic field around the sensing tip. When the rotating shaft moves closer or farther from the probe, the electromagnetic field changes. These changes are converted into electrical signals proportional to shaft position and vibration.
The measurement process includes:
- Creating an electromagnetic sensing field
- Detecting shaft displacement changes
- Measuring probe-to-shaft distance
- Converting mechanical movement into electrical output
- Sending condition monitoring signals to protection systems
The probe is capable of monitoring:
- Radial shaft vibration
- Axial shaft displacement
- Rotor position changes
- Mechanical clearance variations
- Rotating equipment operating conditions
This allows operators and maintenance engineers to identify potential equipment problems before serious failures occur.
Industrial Applications
The Bently Nevada 330196-05-30-50-05 is widely used in industries requiring reliable monitoring of high-value rotating machinery.
| Industry | Application |
|---|---|
| Power Generation | Turbine vibration monitoring |
| Oil and Gas | Compressor protection |
| Petrochemical | Rotating equipment monitoring |
| Chemical Industry | Critical process machinery protection |
| Manufacturing | Motor and gearbox monitoring |
| Marine Industry | Engine shaft monitoring |
| Energy Industry | Generator condition monitoring |
| Industrial Facilities | Pump and blower protection |
The 5-meter total length design provides additional flexibility for complex equipment layouts and large machinery installations.
Installation Guide
Proper installation is essential for achieving accurate measurement performance.
Installation Preparation
Before installation:
- Confirm M10 x 1 mounting compatibility
- Check the installation location
- Verify shaft surface condition
- Ensure proper probe clearance requirements
Probe Installation
Installation steps:
- Install the probe using the reverse mount configuration.
- Secure the probe firmly in the mounting position.
- Adjust the probe gap according to system requirements.
- Ensure the sensing tip is aligned correctly with the shaft.
System Connection
After mechanical installation:
- Connect the probe cable to the monitoring system
- Verify signal transmission
- Check output stability
- Configure monitoring parameters
Commissioning Verification
During commissioning:
- Confirm probe signal output
- Check vibration measurement values
- Verify alarm settings
- Test system response
Correct installation ensures reliable long-term operation.
Monitoring Functions
The Bently Nevada 330196-05-30-50-05 provides multiple monitoring capabilities.
| Function | Description |
|---|---|
| Shaft Vibration Measurement | Detects abnormal vibration changes |
| Shaft Position Monitoring | Measures displacement movement |
| Non-Contact Detection | Eliminates mechanical sensor wear |
| Continuous Monitoring | Provides real-time equipment condition data |
| Predictive Maintenance Support | Helps identify developing faults |
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| No Signal Output | Cable connection problem | Check wiring and connectors |
| Signal Fluctuation | Incorrect probe gap | Adjust probe position |
| Incorrect Measurement | Poor alignment | Verify installation condition |
| Signal Interruption | Cable damage | Inspect cable routing |
| Abnormal Vibration Reading | Machinery condition change | Check rotating equipment |
Maintenance Recommendations
To maintain stable performance:
- Inspect probe mounting condition regularly
- Check cable and connector status
- Verify measurement signal quality
- Monitor vibration trends
- Perform routine system checks
- Confirm proper probe alignment
Regular maintenance helps improve equipment reliability and extends the service life of monitoring components.
Compatible Systems
| System | Application |
|---|---|
| Bently Nevada 3300 XL Monitoring System | Machinery protection |
| Industrial Vibration Monitoring Systems | Condition monitoring |
| PLC Control Systems | Automation integration |
| DCS Systems | Process monitoring |
| Turbine Protection Systems | Rotating equipment protection |
Key Advantages
- Extended temperature range capability
- Reverse mount installation flexibility
- Accurate eddy current proximity measurement
- M10 x 1 metric thread compatibility
- Long 5-meter cable configuration
- Non-contact shaft measurement
- Reliable operation in industrial environments
- Supports predictive maintenance strategies
- Improves rotating machinery protection
Technical FAQs
What is the Bently Nevada 330196-05-30-50-05 used for?
The Bently Nevada 330196-05-30-50-05 is used for shaft vibration, displacement, and position monitoring in industrial rotating machinery.
What measurement technology does this probe use?
It uses eddy current proximity sensing technology for non-contact measurement.
What is the thread specification of this probe?
The probe uses an M10 x 1 metric thread configuration.
What is the total length of the Bently Nevada 330196-05-30-50-05?
The total length is 5 meters.
What is the weight of the Bently Nevada 330196-05-30-50-05?
The weight is 1.615 kg.
What equipment is this probe suitable for?
It is commonly used in turbines, compressors, generators, pumps, motors, and other critical rotating equipment.
Conclusion
The Bently Nevada 330196-05-30-50-05 3300 XL 8 mm ETR Reverse Mount Probe is a reliable proximity measurement solution designed for industrial machinery monitoring and protection applications.
With extended temperature range capability, M10 x 1 mounting compatibility, reverse installation flexibility, accurate eddy current sensing technology, and a 5-meter total length configuration, this probe provides stable and precise monitoring performance for large rotating equipment.
It is an effective solution for shaft vibration monitoring, displacement measurement, predictive maintenance, and machinery protection in industrial automation and process industries.
