Product Overview

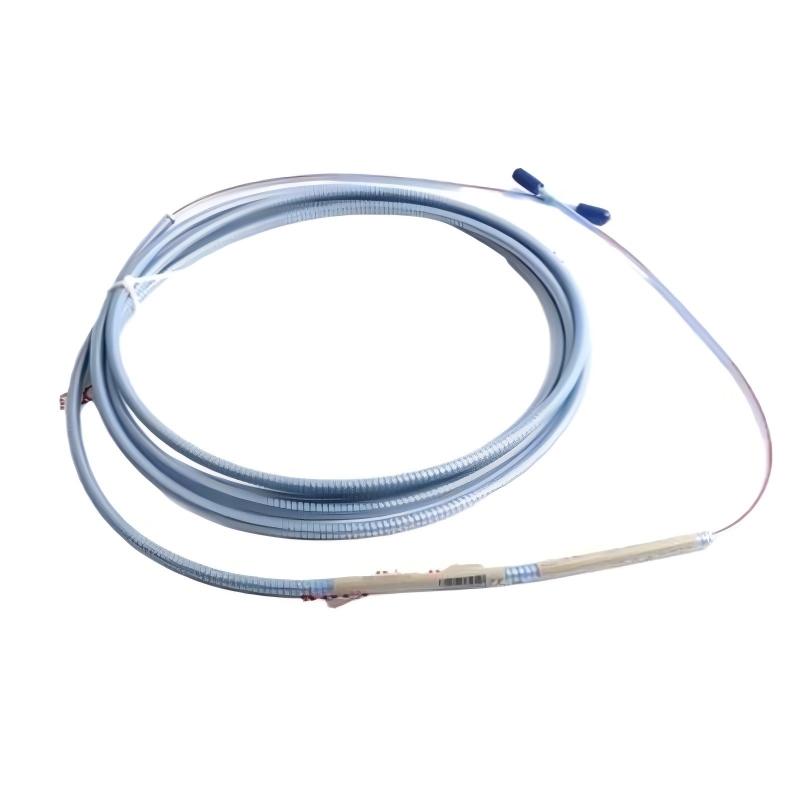

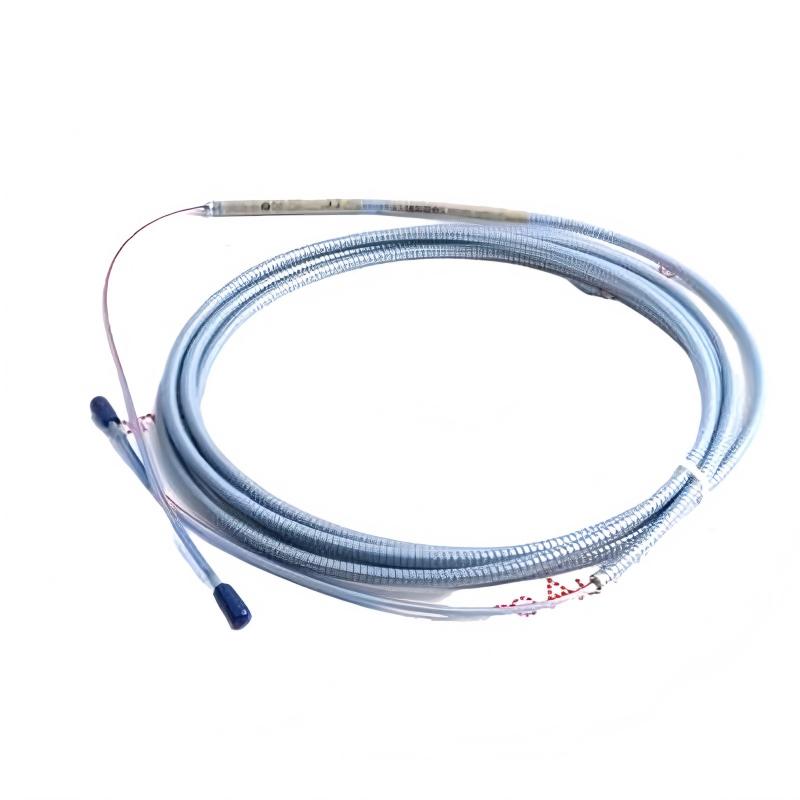

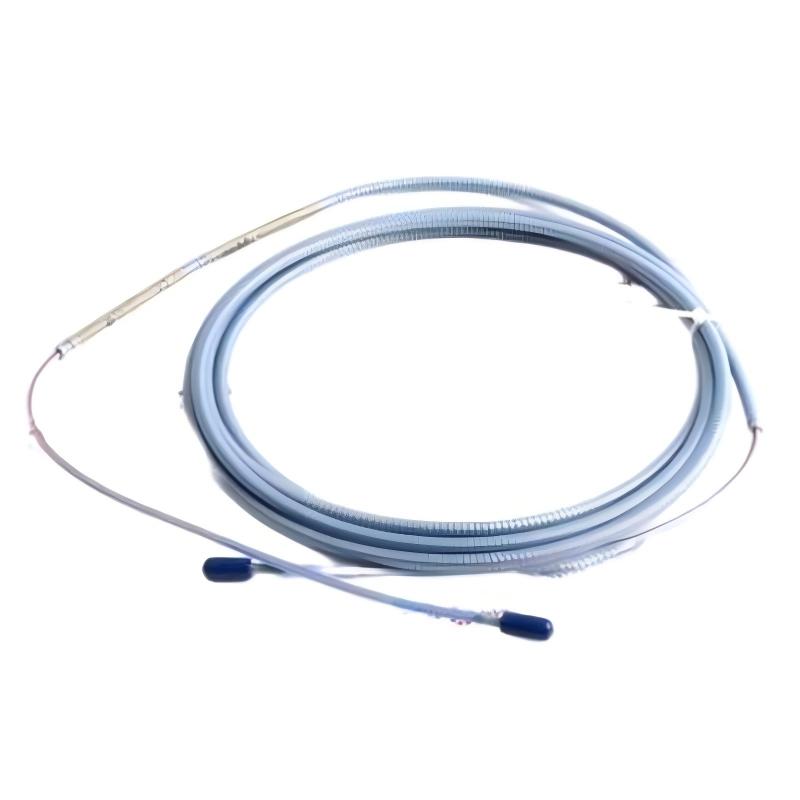

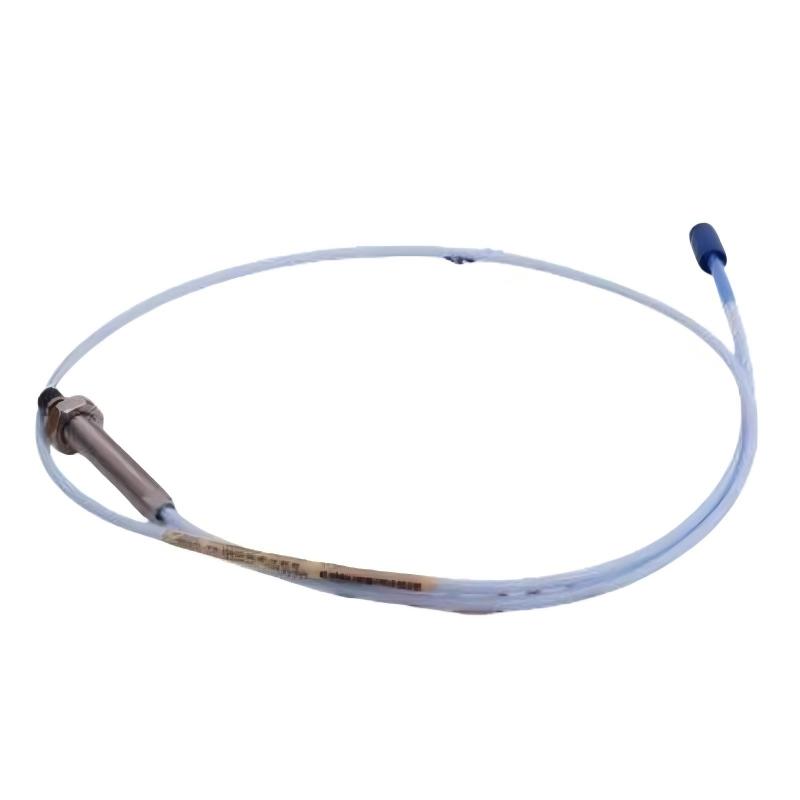

In industrial environments where rotating machinery operates continuously under demanding conditions, accurate vibration and displacement monitoring is essential for equipment protection, operational reliability, and predictive maintenance. The Bently Nevada 330195-02-12-10-CN 3300 XL 8 mm ETR Reverse Mount Probe is a precision proximity probe designed for non-contact measurement of shaft vibration, displacement, and position in critical machinery applications.
The Bently Nevada 330195-02-12-10-CN belongs to the 3300 XL 8 mm Extended Temperature Range (ETR) Reverse Mount Probe series. It is designed for applications that require flexible installation, stable measurement performance, and reliable operation in industrial rotating equipment systems.
This proximity probe uses eddy current sensing technology to accurately measure the distance between the probe tip and the rotating shaft. Changes in shaft position and vibration movement are converted into electrical signals, allowing machinery monitoring systems to evaluate equipment operating conditions.
The reverse mount configuration provides installation advantages in applications where traditional probe mounting methods are limited by equipment structure, restricted space, or special mechanical requirements.
The Bently Nevada 330195-02-12-10-CN configuration includes:
- Product Type: 3300 XL 8 mm ETR Reverse Mount Probe
- Probe Diameter: 8 mm
- Unthreaded Length: 12 mm
- Total Length: 1 meter
This probe is widely used in turbines, compressors, generators, pumps, motors, and other critical rotating machinery requiring continuous condition monitoring.
With a total length of 1 meter and a weight of 0.323 kg, the Bently Nevada 330195-02-12-10-CN provides a reliable and compact solution for industrial machinery protection and predictive maintenance systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330195-02-12-10-CN |
| Product Type | 3300 XL 8 mm ETR Reverse Mount Probe |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy Current Proximity Measurement |
| Probe Design | Extended Temperature Range Reverse Mount |
| Installation Type | Reverse Mount Configuration |
| Unthreaded Length | 12 mm |
| Total Length | 1 meter |
| Application | Shaft Vibration and Position Monitoring |
| Weight | 0.323 kg |
Function and Working Principle
The Bently Nevada 330195-02-12-10-CN operates using eddy current proximity measurement technology to provide accurate non-contact shaft monitoring.
During operation, the probe generates an electromagnetic field around the sensing tip. When the rotating shaft moves closer or farther away from the probe, the electromagnetic field changes. These variations are converted into electrical signals that represent shaft displacement and vibration characteristics.
The working process includes:
- Generating an electromagnetic sensing field
- Detecting changes in shaft position
- Measuring probe-to-shaft clearance
- Converting mechanical movement into electrical output signals
- Transmitting monitoring information to protection systems
The probe can monitor:
- Radial shaft vibration
- Axial shaft displacement
- Rotor position changes
- Mechanical clearance variations
- Rotating equipment operating conditions
This allows maintenance teams to identify abnormal machine conditions early and implement preventive maintenance actions.
Role in Industrial Machinery Protection Systems
The Bently Nevada 330195-02-12-10-CN is an important sensing component in rotating equipment monitoring and protection systems.
It is commonly integrated with:
| System Component | Function |
|---|---|
| Proximity Monitoring System | Processes displacement signals |
| Machinery Protection System | Evaluates equipment health |
| PLC System | Integrates machine status data |
| DCS System | Provides process monitoring |
| Alarm System | Generates equipment warnings |
| Maintenance Software | Supports fault diagnosis |
By providing continuous shaft condition information, the probe helps improve equipment reliability, reduce maintenance costs, and prevent unexpected failures.
Industrial Applications
The Bently Nevada 330195-02-12-10-CN 3300 XL 8 mm ETR Reverse Mount Probe is widely used in industries requiring reliable rotating equipment monitoring.
| Industry | Application |
|---|---|
| Power Generation | Turbine vibration monitoring |
| Oil and Gas | Compressor protection |
| Petrochemical | Rotating machinery monitoring |
| Chemical Industry | Process equipment protection |
| Manufacturing | Motor condition monitoring |
| Marine Industry | Engine and shaft monitoring |
| Energy Systems | Generator protection |
| Industrial Plants | Pump and blower monitoring |
The reverse mount design provides additional flexibility for machines with special installation requirements.
Installation and System Integration
Correct installation is important to achieve accurate measurement performance.
Recommended installation procedures:
- Install the probe using the reverse mount configuration
- Confirm correct mounting position
- Verify probe clearance with the shaft
- Connect the probe to compatible monitoring equipment
- Check signal output stability
- Perform commissioning verification
During commissioning, engineers should verify:
- Probe installation direction
- Shaft gap adjustment
- Signal response quality
- Monitoring system communication
- Alarm settings
- Equipment operating status
Proper installation ensures reliable measurement accuracy and long-term system performance.
Monitoring Functions
The Bently Nevada 330195-02-12-10-CN provides multiple monitoring functions for critical rotating equipment.
| Function | Description |
|---|---|
| Shaft Vibration Monitoring | Detects mechanical vibration changes |
| Position Measurement | Measures shaft displacement |
| Non-Contact Sensing | Prevents mechanical contact wear |
| Continuous Monitoring | Provides real-time equipment information |
| Predictive Maintenance Support | Helps identify potential failures |
These functions make the probe an essential component in industrial machinery protection systems.
Maintenance and Troubleshooting
Regular maintenance helps maintain stable measurement performance.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| No Signal Output | Cable connection issue | Check wiring connections |
| Signal Instability | Incorrect probe clearance | Adjust probe position |
| Incorrect Measurement | Installation alignment problem | Verify mounting condition |
| Signal Loss | Cable or connector fault | Inspect connection system |
| Abnormal Reading | Machinery operating change | Check equipment condition |
Proper maintenance improves system reliability and extends equipment service life.
Compatible Systems
| System | Application |
|---|---|
| Bently Nevada 3300 XL Monitoring System | Machinery protection |
| Industrial Vibration Monitoring Systems | Condition monitoring |
| PLC Control Systems | Equipment data integration |
| DCS Control Systems | Process monitoring |
| Turbine Protection Systems | Rotating equipment safety |
Recommended Related Models
| Model | Type | Application |
|---|---|---|
| Bently Nevada 330195-02-12-05-00 | 3300 XL ETR Reverse Mount Probe | 0.5-meter configuration |
| Bently Nevada 330195-02-12-05-05 | 3300 XL ETR Reverse Mount Probe | Industrial monitoring |
| Bently Nevada 330195-02-12-10-00 | 3300 XL ETR Reverse Mount Probe | 1-meter configuration |
| Bently Nevada 330194 Series | 3300 XL 8 mm Probe | Standard vibration monitoring |
Key Advantages
- Extended temperature range capability
- Reverse mount installation flexibility
- High accuracy shaft displacement measurement
- Non-contact eddy current sensing technology
- Reliable 1-meter total length design
- Suitable for critical rotating machinery
- Supports predictive maintenance strategies
- Improves equipment protection reliability
- Reduces unexpected downtime
Technical FAQs
What is the Bently Nevada 330195-02-12-10-CN used for?
The Bently Nevada 330195-02-12-10-CN is a 3300 XL 8 mm ETR Reverse Mount Probe used for shaft vibration, displacement, and position monitoring in rotating machinery.
What measurement technology does this probe use?
The probe uses eddy current proximity sensing technology for non-contact measurement.
What is the total length of the Bently Nevada 330195-02-12-10-CN?
The total length is 1 meter.
What is the weight of the Bently Nevada 330195-02-12-10-CN?
The weight is 0.323 kg.
What is the main advantage of the reverse mount configuration?
The reverse mount configuration allows flexible installation in machinery where standard probe mounting is difficult.
What equipment can use this proximity probe?
It is commonly used for turbines, compressors, generators, pumps, motors, and other rotating equipment.
Conclusion
The Bently Nevada 330195-02-12-10-CN 3300 XL 8 mm ETR Reverse Mount Probe is a reliable proximity sensing solution designed for industrial rotating machinery monitoring and protection applications.
With extended temperature range capability, reverse mounting flexibility, accurate eddy current sensing technology, and a 1-meter total length configuration, this probe provides stable and precise measurement performance for critical equipment.
For automation engineers, maintenance professionals, and industrial equipment specialists, the Bently Nevada 330195-02-12-10-CN provides an effective solution for shaft vibration monitoring, displacement measurement, predictive maintenance, and machinery protection.
