Overview

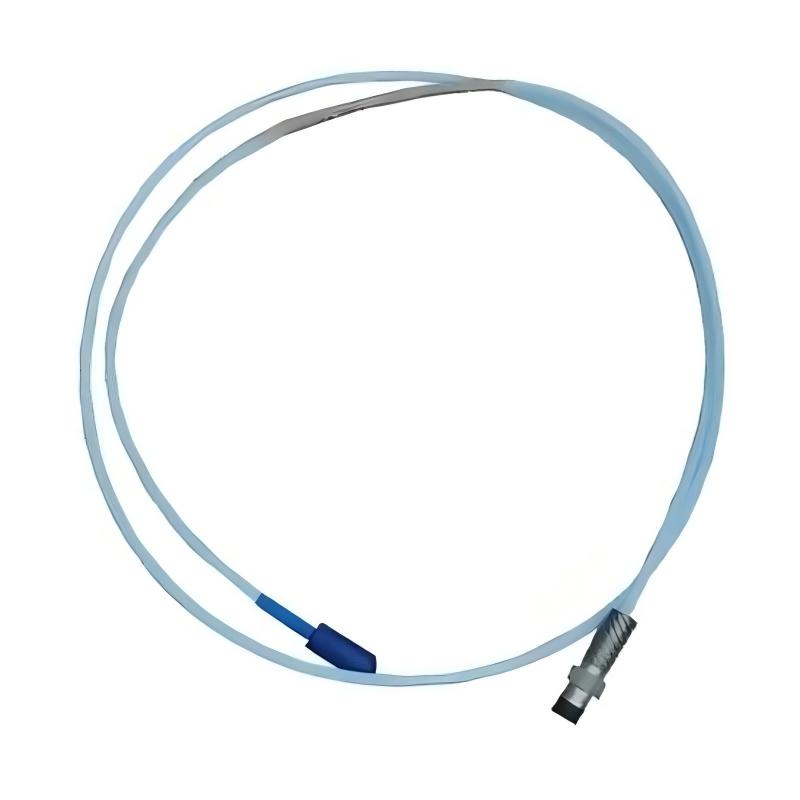

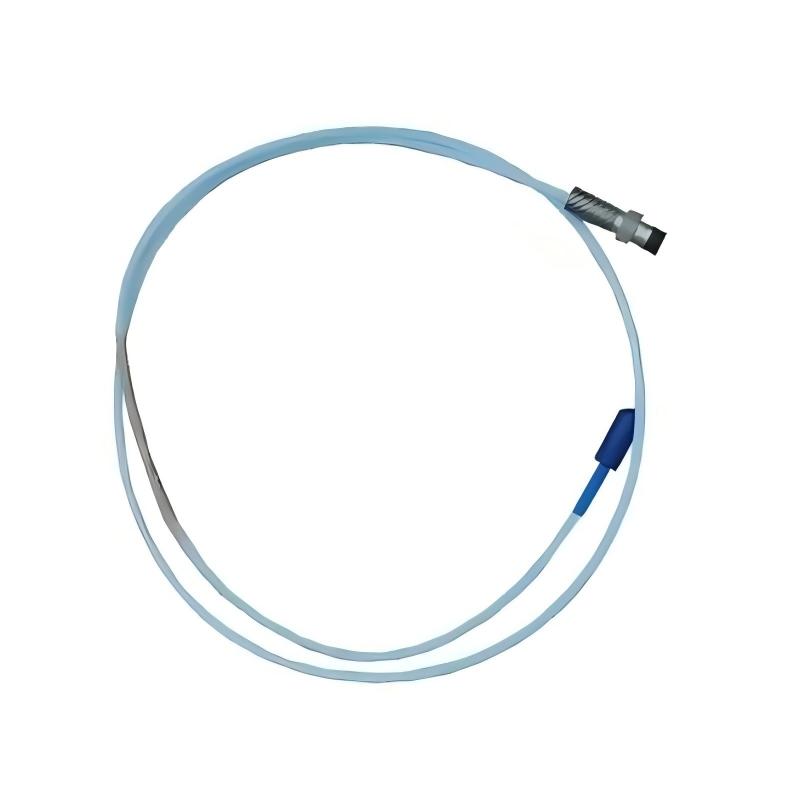

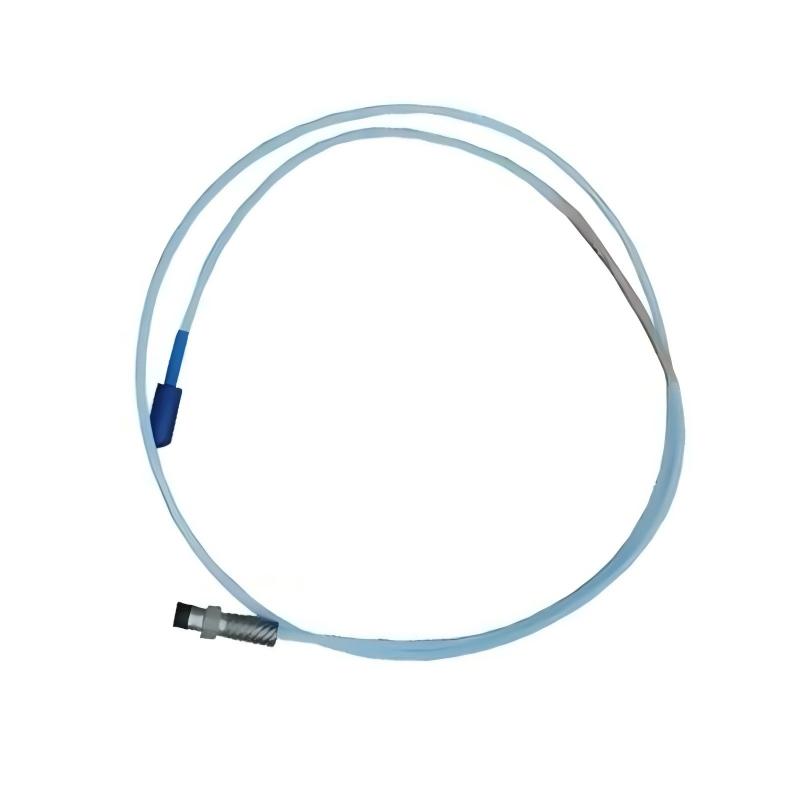

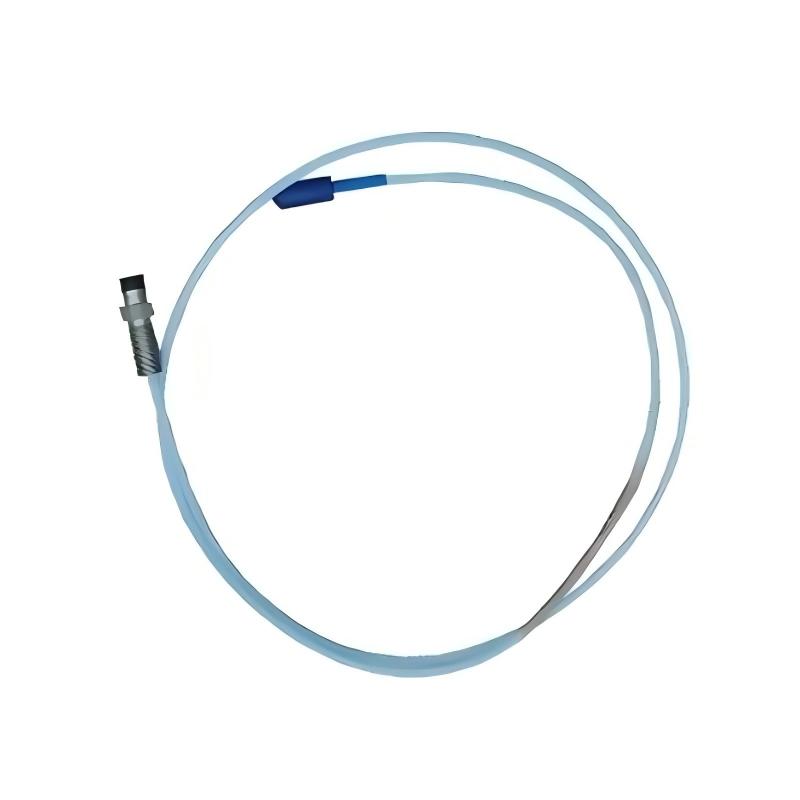

In modern industrial facilities, rotating machinery requires continuous and accurate condition monitoring to maintain safe operation and reduce unexpected equipment failures. The Bently Nevada 330192-10-95-90-CN 3300 XL 8 mm Extended Temperature Range (ETR) Probe is a high-performance eddy current proximity probe designed for precise measurement of shaft vibration, displacement, and position in critical rotating equipment.

The 330192-10-95-90-CN belongs to the 3300 XL 8 mm ETR Probe Series and is engineered for applications that require reliable non-contact measurement performance under demanding industrial conditions. By using eddy current sensing technology, the probe can detect changes in the distance between the probe tip and the rotating shaft, providing accurate operating information for machinery protection and predictive maintenance systems.

The probe is suitable for large rotating equipment where stable monitoring performance is required, including steam turbines, gas turbines, compressors, generators, pumps, and industrial motors. Its extended cable configuration allows flexible installation when the monitoring cabinet is located away from the machine.

With a total length of 9 meters and a weight of 2.907 kg, the Bently Nevada 330192-10-95-90-CN provides reliable signal transmission and long-term operational stability for industrial machinery monitoring applications.

Technical Specifications

Function and Working Principle

The Bently Nevada 330192-10-95-90-CN operates using eddy current proximity measurement technology to monitor the movement and position of rotating shafts.

The probe generates a high-frequency electromagnetic field around the sensing tip. When the conductive surface of the shaft moves closer or farther away from the probe, the electromagnetic field changes. These variations are converted into electrical signals that represent shaft displacement and vibration characteristics.

The working process includes:

• Creating an electromagnetic sensing field
• Detecting the distance between the probe and rotating shaft
• Measuring shaft vibration and displacement
• Converting mechanical movement into electrical signals
• Transmitting condition data to monitoring equipment

Main functions include:

• Radial vibration monitoring
• Axial shaft position measurement
• Rotor displacement detection
• Machinery condition analysis
• Equipment protection monitoring

The non-contact measurement design reduces mechanical wear and allows continuous monitoring during long-term operation.

Role in Industrial Machinery Protection Systems

The Bently Nevada 330192-10-95-90-CN is an important sensing component used in machinery protection and condition monitoring systems. It provides real-time shaft movement information to help identify abnormal operating conditions.

The probe is commonly integrated with:

This combination provides continuous monitoring and protection for critical rotating assets.

Industrial Applications

The Bently Nevada 330192-10-95-90-CN is widely used in industries where rotating equipment reliability is essential.

Its extended temperature capability and long cable length make it suitable for complex industrial environments.

Installation and System Integration

Proper installation ensures accurate measurement performance and reliable monitoring results.

Recommended installation procedures include:

• Install the probe at the correct measurement location
• Maintain proper probe gap adjustment
• Protect cables from mechanical damage
• Keep cables away from strong electromagnetic interference
• Secure all connections properly
• Verify signal output during commissioning

During startup, engineers should check:

• Probe installation position
• Signal stability
• Shaft vibration readings
• Monitoring system communication
• Alarm and protection functions

Correct installation helps maximize measurement accuracy and improves equipment reliability.

Compatible System Components

The Bently Nevada 330192-10-95-90-CN can be integrated with different industrial automation and monitoring components.

These components create a complete machinery health monitoring solution.

Recommended Alternative Models

Key Advantages

• High-precision non-contact shaft measurement
• Reliable 8 mm eddy current sensing technology
• Extended temperature range performance
• 9-meter cable length for flexible installation
• Suitable for critical rotating machinery
• Stable vibration and displacement monitoring
• Supports predictive maintenance strategies
• Improves equipment protection and reliability

Technical FAQs

What is the Bently Nevada 330192-10-95-90-CN used for?

The Bently Nevada 330192-10-95-90-CN is an 8 mm ETR proximity probe used for monitoring shaft vibration, displacement, and position in rotating equipment.

What is the total length of this probe?

The total length of the 330192-10-95-90-CN is 9 meters.

What technology does this probe use?

It uses eddy current proximity sensing technology for accurate non-contact measurement.

Why is a 9-meter cable length used?

The extended cable length allows installation flexibility when the machine and monitoring system are located at different positions.

What equipment can use this probe?

It is commonly used on turbines, compressors, generators, pumps, motors, and other critical rotating machinery.

Conclusion

The Bently Nevada 330192-10-95-90-CN 3300 XL 8 mm ETR Probe is a reliable industrial proximity sensing solution designed for accurate monitoring of critical rotating machinery.

With its advanced eddy current measurement technology, extended temperature range capability, 9-meter total length, and durable industrial design, it delivers stable shaft vibration and displacement monitoring for demanding applications.

For maintenance engineers, automation professionals, and industrial system integrators, the Bently Nevada 330192-10-95-90-CN provides an effective solution for machinery protection, condition monitoring, predictive maintenance, and long-term industrial equipment reliability.
