Product Overview

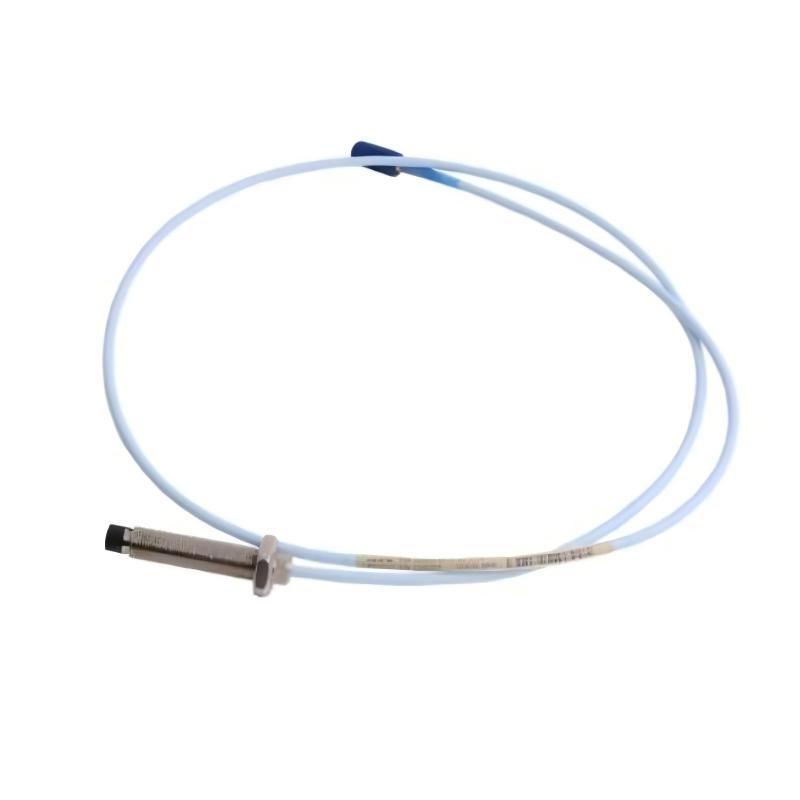

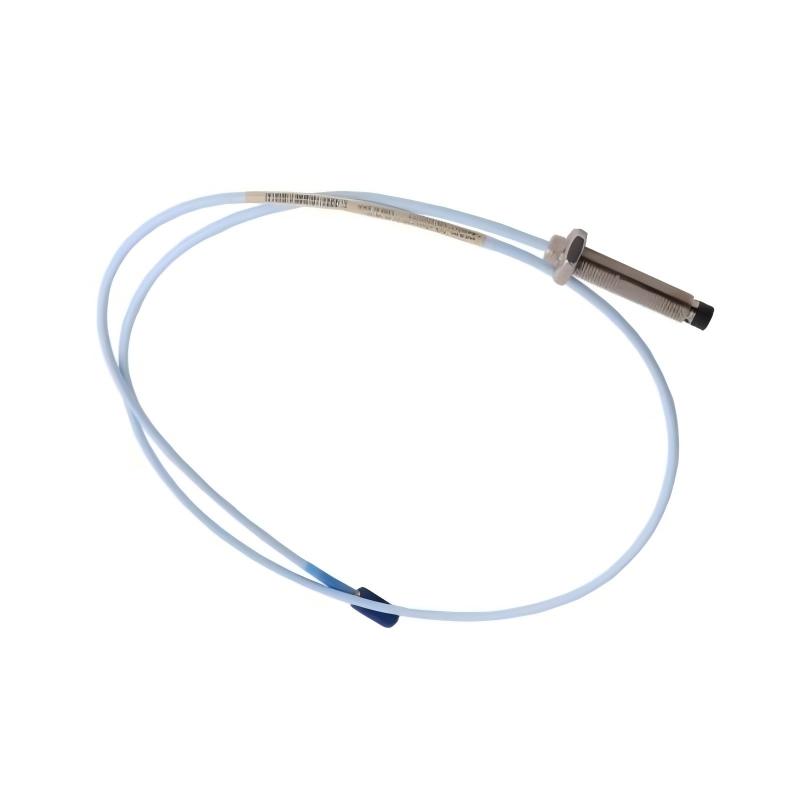

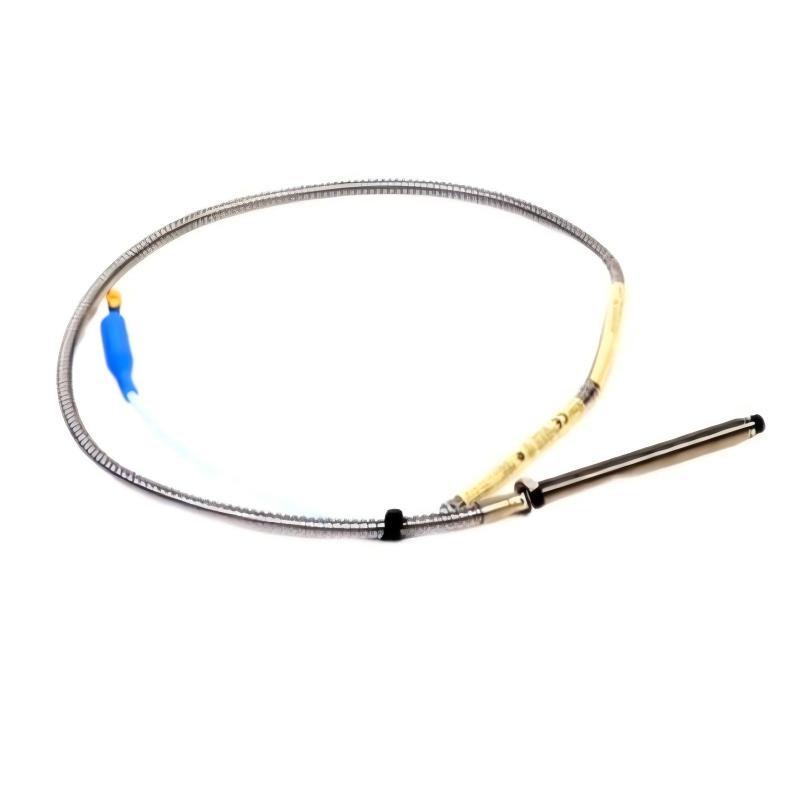

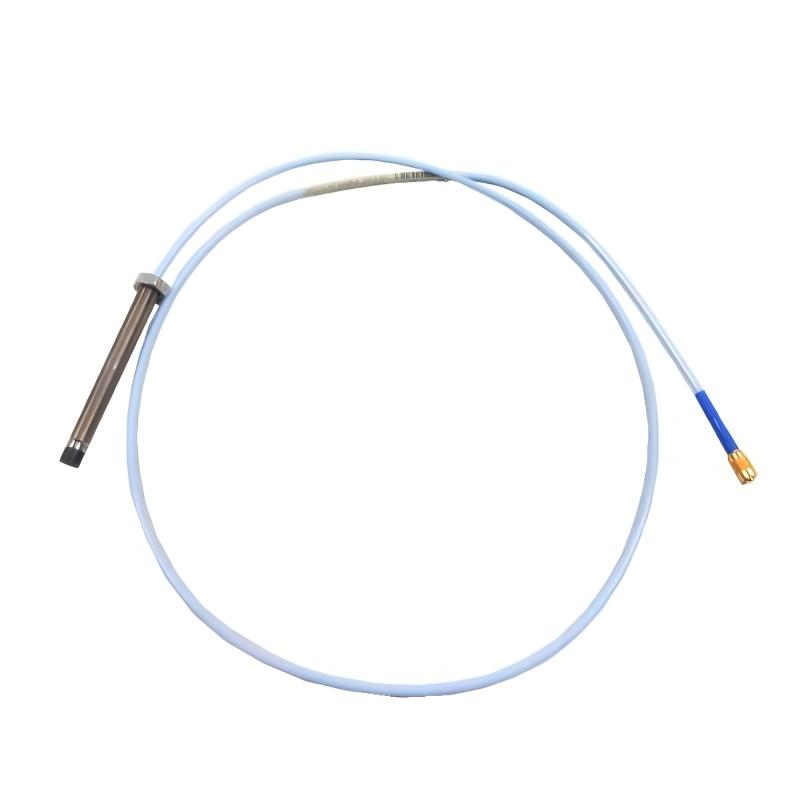

In critical industrial environments, accurate monitoring of rotating machinery is essential for maintaining equipment reliability, reducing unexpected failures, and improving maintenance efficiency. The Bently Nevada 330192-10-80-90-05 3300 XL 8 mm Extended Temperature Range (ETR) Probe is a high-precision eddy current proximity probe designed for continuous measurement of shaft vibration, displacement, and position in large rotating equipment.

The 330192-10-80-90-05 is part of the Bently Nevada 3300 XL 8 mm ETR Probe Series, which is widely used in industrial machinery protection and condition monitoring applications. The probe provides non-contact measurement technology, allowing accurate detection of shaft movement without physical contact between the sensor tip and the rotating component.

This model is designed for applications requiring extended installation distances due to its 9-meter total length configuration. It is suitable for large-scale rotating equipment where sensors are installed near the machine while monitoring systems are located farther away in control cabinets.

With a total length of 9 meters and a weight of 2.907 kg, the Bently Nevada 330192-10-80-90-05 provides reliable signal transmission and stable measurement performance for demanding industrial applications.

Technical Specifications

Function and Working Principle

The Bently Nevada 330192-10-80-90-05 operates based on eddy current proximity sensing technology, which enables precise measurement of rotating shaft movement.

During operation, the probe generates an electromagnetic field around the sensing tip. When the conductive shaft surface changes position relative to the probe, the electromagnetic field changes accordingly. The probe converts these changes into electrical signals that represent shaft displacement and vibration conditions.

The working process includes:

• Generating a high-frequency electromagnetic field
• Detecting the distance between probe tip and shaft surface
• Measuring shaft vibration and displacement changes
• Converting mechanical movement into electrical signals
• Sending measurement data to monitoring systems

Main measurement functions include:

• Radial shaft vibration monitoring
• Axial position measurement
• Rotor displacement detection
• Rotating machinery condition monitoring
• Equipment protection feedback

The non-contact measurement design eliminates mechanical wear and allows continuous operation in industrial environments.

Role in Machinery Protection Systems

The Bently Nevada 330192-10-80-90-05 plays an important role in rotating machinery protection systems by providing accurate shaft condition information.

The probe is typically integrated with:

Through integration with monitoring systems, the probe helps operators identify abnormal machine conditions before serious failures occur.

Industrial Applications

The Bently Nevada 330192-10-80-90-05 is widely used in industries where rotating equipment reliability is critical.

Its extended temperature capability and long cable design make it suitable for complex industrial installations.

Installation and System Integration

Proper installation is important to achieve accurate measurement performance and reliable monitoring results.

Recommended installation procedures include:

• Install the probe in the correct mounting position
• Maintain proper probe gap distance with the shaft
• Protect cable routing from mechanical damage
• Avoid strong electromagnetic interference sources
• Secure all connections properly
• Verify signal output before system operation

During commissioning, engineers should check:

• Probe installation position
• Signal stability
• Shaft measurement accuracy
• Monitoring system communication
• Alarm and protection functions

Correct installation ensures reliable operation and improves machinery protection effectiveness.

Compatible System Components

The Bently Nevada 330192-10-80-90-05 can be combined with multiple industrial monitoring components.

These components create a complete machinery health monitoring solution.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement
• 8 mm sensing technology for accurate shaft monitoring
• Extended temperature range capability
• 9-meter cable length for flexible installation
• Suitable for large industrial equipment
• Reliable vibration and displacement measurement
• Supports predictive maintenance programs
• Improves machinery protection reliability

Technical FAQs

What is the Bently Nevada 330192-10-80-90-05 used for?

The Bently Nevada 330192-10-80-90-05 is an 8 mm ETR proximity probe used for monitoring shaft vibration, displacement, and position in rotating machinery.

What is the total length of this probe?

The total length of the 330192-10-80-90-05 is 9 meters.

What sensing technology does this probe use?

It uses eddy current proximity sensing technology for non-contact measurement of rotating shaft movement.

Why is a 9-meter cable length required?

The extended cable length allows installation where the machine sensor location and monitoring equipment are separated by a longer distance.

What equipment can use this probe?

It is commonly used on turbines, compressors, generators, pumps, motors, and other critical rotating machines.

Conclusion

The Bently Nevada 330192-10-80-90-05 3300 XL 8 mm ETR Probe is a reliable industrial proximity sensing solution designed for accurate monitoring of critical rotating equipment.

With its 8 mm eddy current sensing technology, extended temperature capability, 9-meter total length, and durable industrial design, it provides stable vibration and shaft position measurement for demanding applications.

For maintenance engineers, automation professionals, and industrial system integrators, the Bently Nevada 330192-10-80-90-05 provides an effective solution for machinery protection, condition monitoring, predictive maintenance, and long-term equipment reliability.
