Product Overview

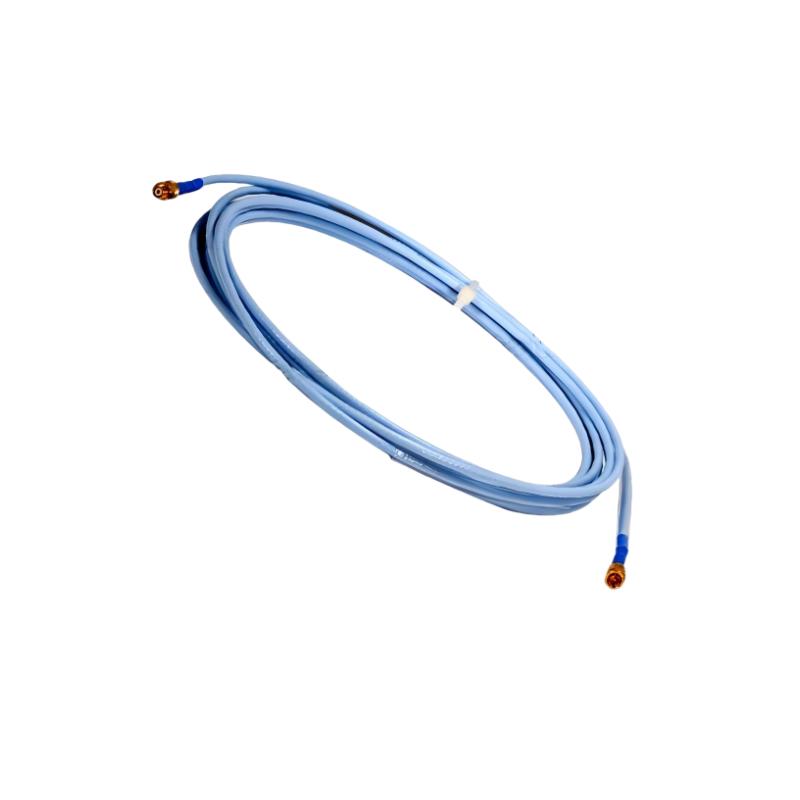

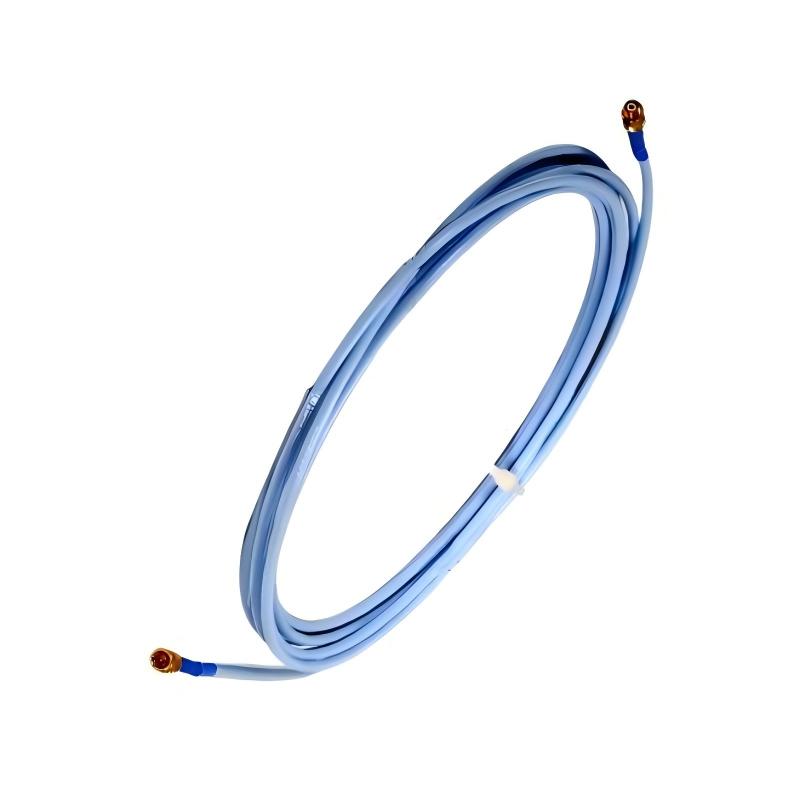

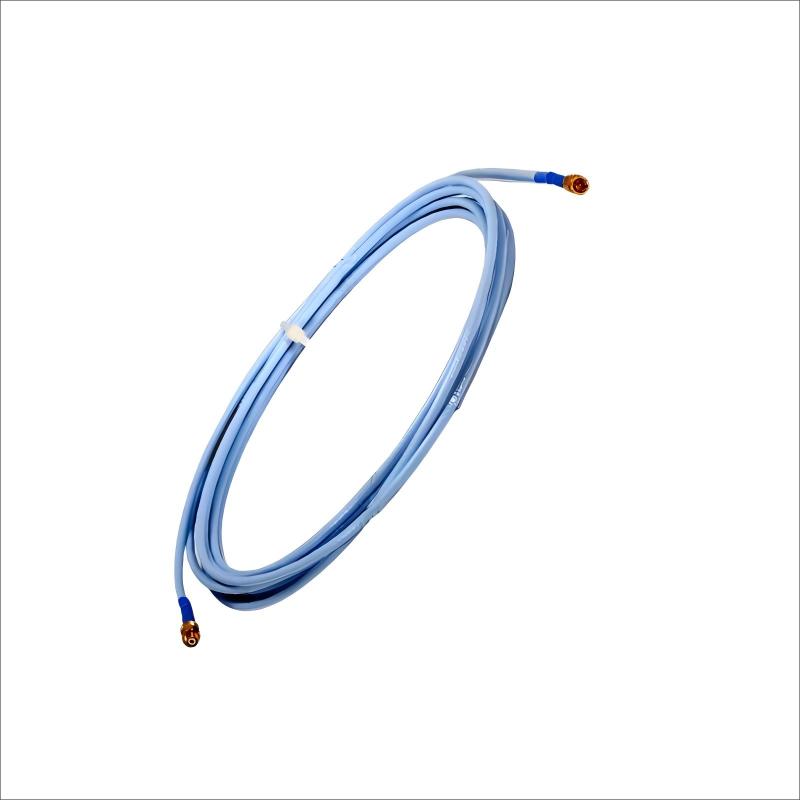

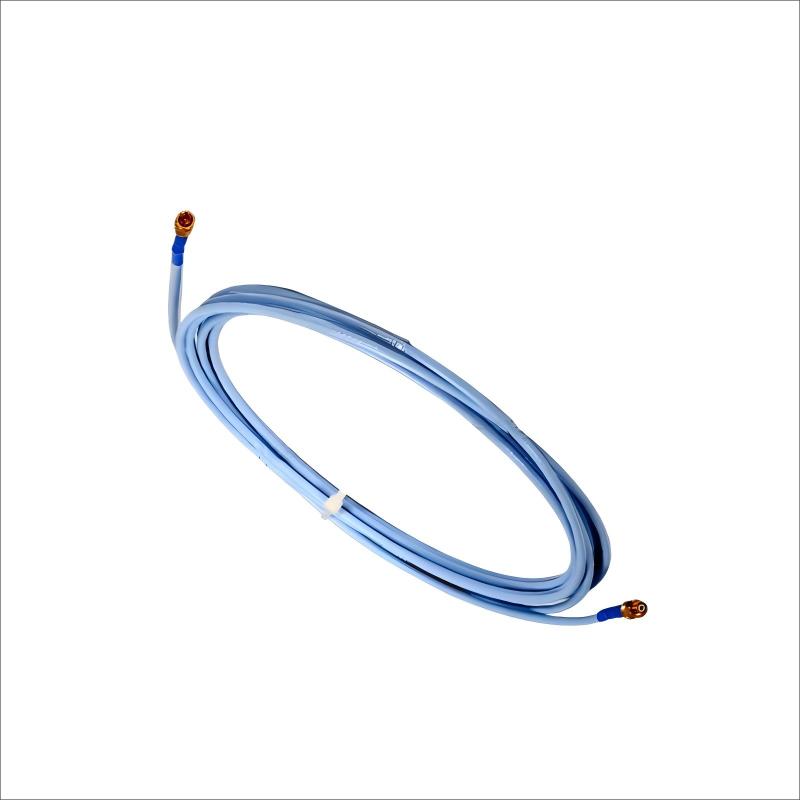

The Bently Nevada 330190-040-00-CN 3300 XL ETR Extension Cable is a high-quality signal extension cable designed for Bently Nevada proximity monitoring systems. It is used to extend the connection distance between proximity probes and monitoring equipment while maintaining reliable signal transmission for accurate vibration and displacement measurements.
The 3300 XL ETR Extension Cable plays an important role in rotating machinery protection systems by ensuring stable communication between the installed proximity sensor and the monitoring interface. It is commonly used in applications where equipment design, installation location, or machinery structure requires additional cable length.
The Bently Nevada 330190-040-00-CN features a cable length of 4 meters and a weight of 0.136 kg. Its flexible cable design allows easier installation in industrial environments while supporting reliable operation of condition monitoring systems.
This extension cable is widely applied in turbines, compressors, generators, motors, pumps, and other critical rotating machinery requiring continuous monitoring of shaft vibration, rotor position, and machine health.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330190-040-00-CN |
| Product Type | 3300 XL ETR Extension Cable |
| Cable Length | 4 meters |
| Weight | 0.136 kg |
| Application | Proximity Probe Signal Extension |
| System Series | 3300 XL Monitoring System |
| Function | Signal Transmission Extension |
| Installation Type | Industrial Machinery Installation |
Product Features
Stable Signal Transmission
The Bently Nevada 330190-040-00-CN provides dependable signal transmission between proximity probes and monitoring equipment.
Main advantages:
- Maintains signal stability
- Supports accurate vibration monitoring
- Reduces installation distance limitations
- Improves system configuration flexibility
Reliable signal transmission is essential for maintaining accurate machinery condition data and ensuring effective equipment protection.
Designed for 3300 XL Monitoring Systems
The extension cable is designed for integration with Bently Nevada 3300 XL proximity monitoring systems.
Typical applications:
- Shaft vibration monitoring
- Rotor displacement measurement
- Machinery protection systems
- Predictive maintenance solutions
It provides a practical solution when the standard proximity probe cable length is not sufficient for the equipment layout.
Flexible 4 Meter Cable Design
The 4-meter cable length provides additional installation convenience.
Benefits:
- Suitable for medium-distance installations
- Supports flexible equipment arrangement
- Simplifies cable routing
- Allows easier monitoring system placement
This length configuration is suitable for industrial machines where sensors and monitoring modules are installed separately.
Durable Industrial Performance
The Bently Nevada 330190-040-00-CN is designed for continuous operation in industrial environments.
Features include:
- Reliable cable structure
- Stable electrical performance
- Long-term connection reliability
- Resistance to common industrial installation challenges
It helps maintain consistent monitoring performance under demanding operating conditions.
Working Principle
The Bently Nevada 330190-040-00-CN functions as an extension connection between the proximity probe and monitoring system.
The signal process includes:
- The proximity probe detects shaft vibration or displacement changes.
- The sensor generates an electrical measurement signal.
- The signal travels through the extension cable.
- The monitoring system receives and processes the data.
- Operators analyze the information for machinery condition evaluation.
A reliable extension cable helps ensure that vibration and displacement signals remain accurate throughout the monitoring chain.
Industrial Applications
Turbine Condition Monitoring
The extension cable is widely used in turbine monitoring applications.
Typical uses:
- Rotor vibration analysis
- Shaft position monitoring
- Turbine protection systems
- Condition-based maintenance
Advantages:
- Reliable sensor connection
- Improved installation flexibility
- Supports continuous machine protection
Compressor Monitoring Systems
The Bently Nevada 330190-040-00-CN is suitable for compressor condition monitoring.
Applications:
- Centrifugal compressors
- Process compressors
- Industrial gas compression equipment
Benefits:
- Stable signal transmission
- Improved equipment monitoring reliability
- Supports predictive maintenance planning
Generator Monitoring Applications
The extension cable can be used in generator monitoring systems.
Typical applications:
- Rotor monitoring
- Vibration measurement
- Equipment protection systems
Benefits:
- Reliable communication between sensors and monitoring equipment
- Improved installation adaptability
Motor and Pump Monitoring
The cable supports industrial motor and pump monitoring applications.
Applications:
- Large rotating motors
- Critical process pumps
- Continuous production equipment
Benefits:
- Maintains measurement signal quality
- Supports early fault detection
- Improves equipment reliability
Installation Guide
Installation Preparation
Before installing the Bently Nevada 330190-040-00-CN, verify:
- Correct cable model
- Compatible proximity probe
- Compatible monitoring system
- Required installation distance
- Suitable cable routing path
Installation Steps
- Confirm the required extension distance.
- Connect the extension cable to the proximity probe.
- Connect the opposite end to the monitoring system.
- Secure the cable along the equipment structure.
- Protect the cable from mechanical stress.
- Verify signal transmission.
- Complete system testing.
Installation Precautions
During installation:
- Avoid sharp cable bends.
- Prevent cable crushing or abrasion.
- Keep cables away from strong electromagnetic interference.
- Ensure connectors are properly tightened.
- Avoid improper cable routing.
Fault Diagnosis and Troubleshooting
No Signal Transmission
Possible causes:
- Loose connection
- Damaged extension cable
- Incorrect installation
- Monitoring system failure
Solutions:
- Check both cable connections
- Inspect cable condition
- Confirm installation configuration
- Test monitoring equipment
Unstable Signal Output
Possible causes:
- Poor connection quality
- Cable damage
- Electrical interference
- Incorrect cable routing
Solutions:
- Check connectors
- Inspect cable insulation
- Improve grounding
- Separate signal cables from interference sources
Incorrect Vibration Data
Possible causes:
- Signal transmission issues
- Sensor connection problems
- Monitoring system configuration errors
Solutions:
- Verify cable compatibility
- Check sensor connections
- Review system settings
- Perform diagnostic testing
Intermittent Signal Loss
Possible causes:
- Loose connectors
- Mechanical cable movement
- Environmental damage
Solutions:
- Secure cable connections
- Inspect installation environment
- Replace damaged cable components if required
Maintenance Recommendations
For reliable long-term performance:
- Inspect cable condition regularly
- Check connection points
- Monitor signal stability
- Protect cable routing areas
- Perform periodic system inspections
Regular maintenance helps maintain accurate measurement signals and improves monitoring system reliability.
Key Advantages
Reliable Signal Extension
Provides stable communication between proximity probes and monitoring systems.
Flexible Installation
The 4-meter cable length supports various industrial equipment layouts.
Improved Monitoring Accuracy
Helps maintain reliable vibration and displacement measurement signals.
Industrial Durability
Designed for continuous use in demanding rotating machinery environments.
Supports Predictive Maintenance
Provides reliable signal transmission required for machinery condition monitoring.
Technical FAQs
What is Bently Nevada 330190-040-00-CN?
It is a 3300 XL ETR Extension Cable used to extend the connection between proximity probes and monitoring systems.
What is the cable length?
The cable length is 4 meters.
What is the weight of Bently Nevada 330190-040-00-CN?
The approximate weight is 0.136 kg.
What equipment uses this extension cable?
It is commonly used in turbines, compressors, generators, motors, pumps, and other rotating machinery monitoring systems.
Why is an extension cable needed?
An extension cable allows greater installation distance between the proximity probe and monitoring equipment while maintaining stable signal transmission.
Conclusion
The Bently Nevada 330190-040-00-CN 3300 XL ETR Extension Cable is a reliable component designed to improve the flexibility and stability of industrial proximity monitoring systems.
With its 4-meter cable length, dependable signal transmission capability, and industrial-grade design, it supports accurate vibration and displacement monitoring for critical rotating equipment.
This extension cable helps enhance machinery protection, improve predictive maintenance efficiency, reduce unexpected downtime, and maintain reliable operation across industrial automation and process industries.
