Product Overview

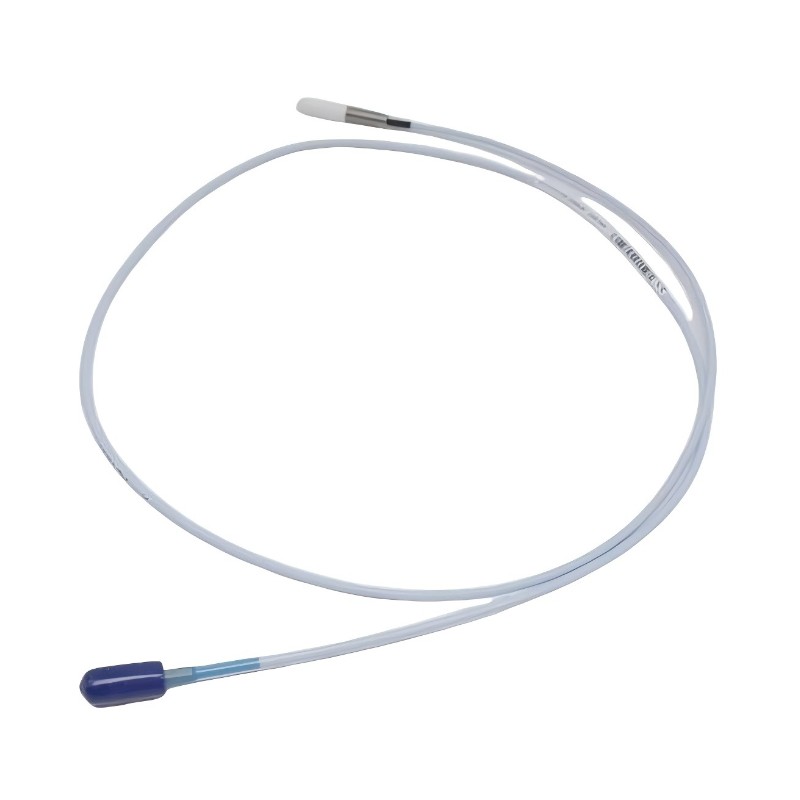

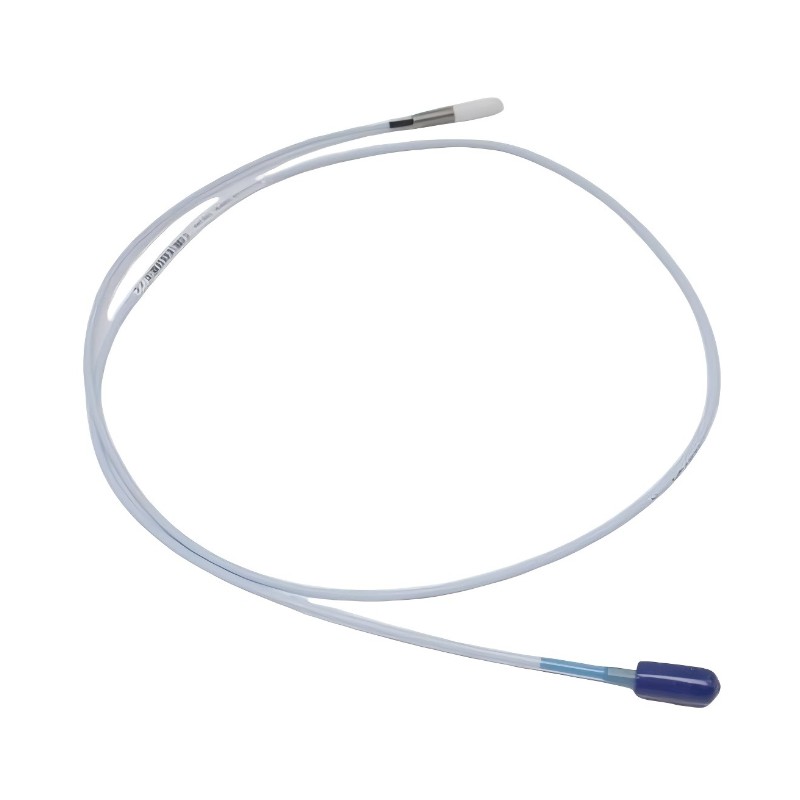

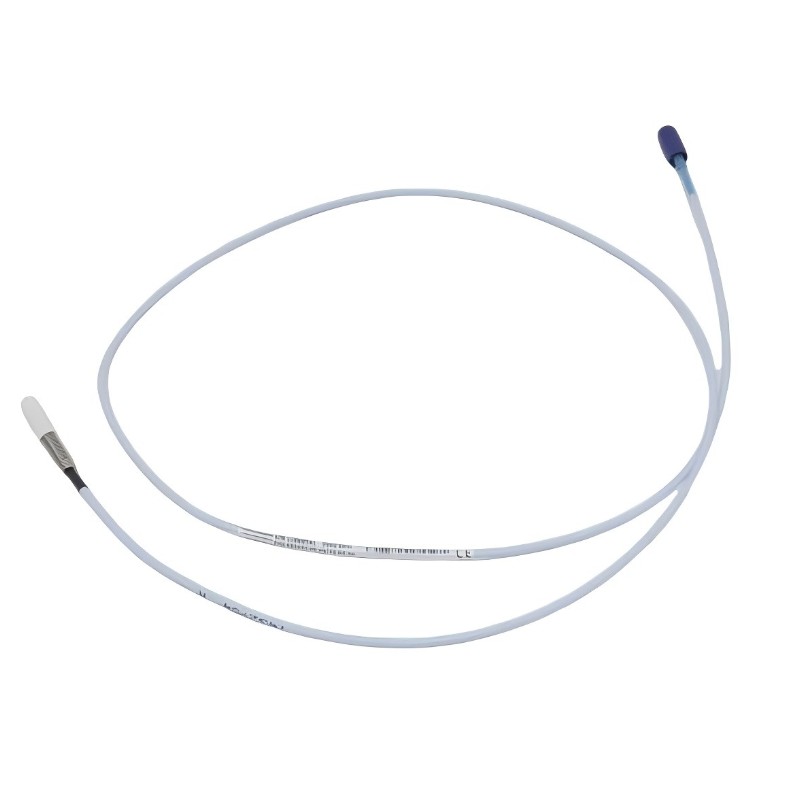

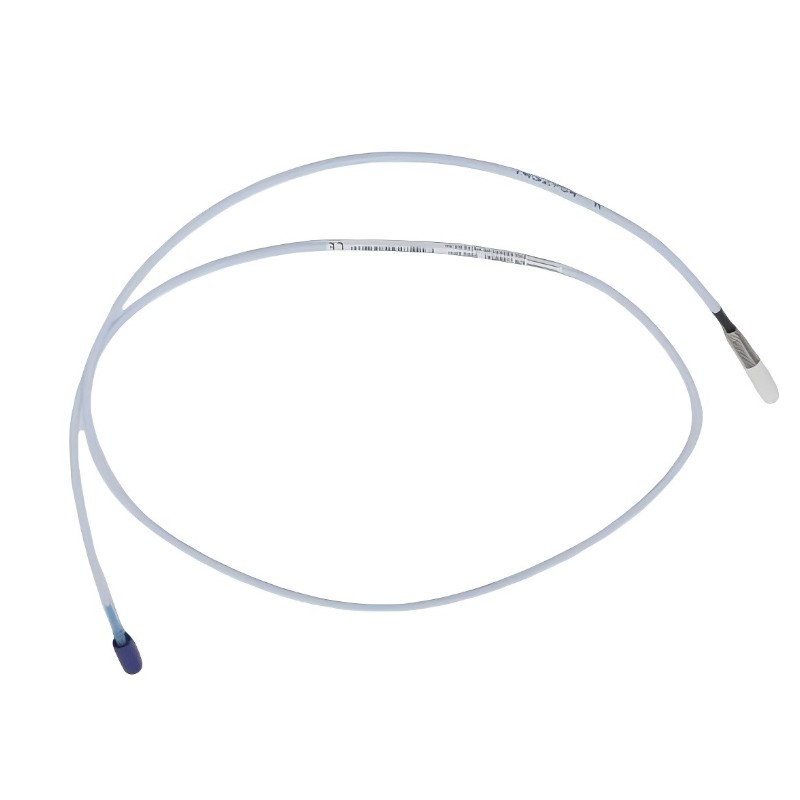

The Bently Nevada 330171-24-32-20-02-05 3300 5 mm Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of shaft vibration, displacement, and position changes in critical rotating machinery.
As an important sensing element in industrial machinery protection systems, this proximity probe provides accurate non-contact measurement between the probe tip and the rotating shaft surface. It is designed to detect small changes in shaft movement and convert them into reliable signals for condition monitoring and equipment protection.
The 330171-24-32-20-02-05 features a 2-meter total length configuration, making it suitable for applications requiring extended installation distance while maintaining stable measurement performance.
This proximity probe is widely used in industrial environments such as power generation, oil and gas processing, petrochemical facilities, and manufacturing plants where rotating equipment reliability is essential.
Typical applications include:
- Steam turbines
- Gas turbines
- Compressors
- Pumps
- Generators
- Industrial motors
- Rotating machinery protection systems
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330171-24-32-20-02-05 |
| Product Series | 3300 5 mm Proximity Probe |
| Product Type | Eddy Current Proximity Probe |
| Measurement Function | Shaft vibration and displacement monitoring |
| Probe Diameter | 5 mm |
| Total Length | 2 meters |
| Cable Length | 2 meters |
| Weight | 0.646 kg |
| Sensor Technology | Eddy current sensing |
| Measurement Method | Non-contact displacement measurement |
| Installation Type | Threaded mounting |
| Thread Type | 1/4-28 UNF |
| Connector Type | Miniature coaxial connector |
| Application | Rotating machinery condition monitoring |
| Operating Environment | Industrial machinery protection systems |
Function and Working Principle
The Bently Nevada 330171-24-32-20-02-05 proximity probe operates using eddy current sensing technology to measure the distance between the probe tip and a conductive rotating shaft.
The sensor generates an electromagnetic field at the probe tip. When the shaft position changes, the electromagnetic field changes accordingly. These variations are converted into electrical signals that represent shaft displacement and vibration movement.
The collected signals are transmitted to monitoring equipment, allowing engineers to analyze machine operating conditions and identify potential mechanical problems.
Non-Contact Measurement Technology
The proximity probe does not require physical contact with the rotating shaft.
This design provides several benefits:
- Prevents mechanical wear
- Supports high-speed operation
- Improves measurement stability
- Reduces maintenance requirements
- Provides continuous monitoring capability
Shaft Vibration Monitoring
The probe continuously measures shaft movement and helps detect abnormal operating conditions.
It can be used for monitoring:
- Rotor vibration
- Shaft displacement
- Mechanical imbalance
- Misalignment
- Rotor position changes
Dynamic and Static Measurement
The sensor can support both dynamic vibration measurement and static shaft position monitoring, making it suitable for comprehensive machinery condition analysis.
Role in Industrial Machinery Monitoring Systems
The Bently Nevada 330171-24-32-20-02-05 plays a critical role in rotating equipment monitoring applications.
It provides important shaft condition information that helps operators and maintenance engineers evaluate equipment performance.
The probe is commonly integrated with:
- Proximity signal processing modules
- Vibration monitoring systems
- Machinery protection systems
- PLC automation systems
- DCS control platforms
- Industrial monitoring networks
Main functions include:
- Real-time machine condition monitoring
- Early detection of mechanical problems
- Equipment protection support
- Predictive maintenance assistance
- Improved operational reliability
Industrial Applications
Steam Turbine Monitoring
Steam turbines require continuous shaft vibration monitoring to ensure safe and reliable operation.
The proximity probe helps detect:
- Rotor vibration changes
- Shaft movement variations
- Mechanical instability
- Abnormal operating conditions
Gas Turbine Systems
Gas turbines operate under demanding conditions and require accurate shaft monitoring.
The probe provides reliable displacement information for machinery protection and maintenance analysis.
Compressor Monitoring
Industrial compressors depend on vibration monitoring to maintain stable operation.
The proximity probe helps identify:
- Rotor imbalance
- Shaft movement changes
- Mechanical wear conditions
- Abnormal vibration patterns
Pump Condition Monitoring
Industrial pumps use proximity probes to monitor shaft movement and improve maintenance efficiency.
Applications include:
- Process pumps
- High-speed pumps
- Critical industrial pumping systems
Generator Monitoring
Generators require reliable shaft position and vibration monitoring to maintain long-term operation stability.
Industrial Motors and Rotating Equipment
The probe can be used on various rotating machines, including:
- Motors
- Turbines
- Compressors
- Pumps
- Generators
Installation and System Integration
Proper installation is important to ensure accurate measurement performance.
Recommended installation procedures include:
- Install the probe at the correct monitoring position
- Ensure proper threaded mounting
- Maintain correct probe alignment
- Connect with compatible monitoring equipment
- Protect cables from mechanical stress
- Verify signal stability during commissioning
During installation, engineers normally check:
| Configuration Item | Purpose |
|---|---|
| Probe Mounting Position | Ensures accurate shaft measurement |
| Probe Gap Adjustment | Provides correct sensing performance |
| Cable Connection | Maintains reliable signal transmission |
| Monitoring Configuration | Defines alarm and protection parameters |
| System Testing | Confirms correct operation |
Compatible System Components
The Bently Nevada 330171-24-32-20-02-05 proximity probe is commonly used with the following components:
| Component | Function |
|---|---|
| Proximitor Sensor | Processes proximity probe signals |
| Extension Cable | Provides installation flexibility |
| Vibration Monitoring Module | Analyzes machine vibration data |
| Machinery Protection System | Provides equipment protection |
| PLC Controller | Integrates monitoring signals |
| DCS System | Supports centralized monitoring |
Related Bently Nevada Accessories and Modules
| Model / Component | Type | Function |
|---|---|---|
| 3300 Proximitor Sensor | Signal Processing Module | Converts probe measurement signals |
| 3300 Extension Cable | Signal Cable | Extends installation distance |
| 3300 Monitoring Module | Protection Module | Provides machinery monitoring |
| 3300 System Components | Monitoring Platform | Complete condition monitoring solution |
| Probe Mounting Accessories | Installation Components | Supports sensor installation |
Recommended Alternative Bently Nevada Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 330171-24-32-20-02-05 | 3300 5 mm Proximity Probe | 2-meter extended length design | Long-distance installation |
| 330171-20-55-05-02-CN | 3300 5 mm Proximity Probe | Compact 0.5-meter configuration | General machinery monitoring |
| 330171-20-40-05-02-05 | 3300 5 mm Proximity Probe | Standard short-length design | Industrial vibration monitoring |
| 330171-15-45-05-11-RU | 3300 5 mm Proximity Probe | Compact installation option | Limited space applications |
| 3300 XL 8 mm Proximity Probe | Proximity Sensor | Larger measurement range | Large rotating equipment |
Key Advantages
Accurate Shaft Measurement
The Bently Nevada 330171-24-32-20-02-05 provides precise vibration and displacement monitoring for critical rotating machinery.
Extended Installation Capability
The 2-meter total length design allows flexible installation in larger equipment layouts.
Reliable Non-Contact Operation
The eddy current sensing principle ensures stable measurement without physical contact with rotating components.
Industrial Grade Durability
Designed for continuous operation in demanding industrial environments.
Supports Predictive Maintenance
Provides important machine condition data to help identify potential equipment issues early.
Wide Industrial Compatibility
Suitable for turbines, compressors, pumps, generators, and other critical rotating machinery.
Technical FAQs
What is the Bently Nevada 330171-24-32-20-02-05 used for?
The Bently Nevada 330171-24-32-20-02-05 is a 3300 5 mm proximity probe used for shaft vibration and displacement monitoring.
How does this proximity probe measure vibration?
It uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft.
What is the total length of this model?
The total length of this proximity probe is 2 meters.
What equipment can use this proximity probe?
It can be installed on turbines, compressors, pumps, generators, motors, and other rotating industrial equipment.
Why are proximity probes important for machinery monitoring?
They provide continuous information about shaft condition, helping improve reliability and reduce unexpected equipment failures.
Conclusion
The Bently Nevada 330171-24-32-20-02-05 3300 5 mm Proximity Probe is a reliable industrial sensor designed for accurate shaft vibration and displacement monitoring.
With its 2-meter extended length configuration, eddy current sensing technology, and stable measurement capability, it provides essential data for machinery protection and predictive maintenance systems.
Used in turbines, compressors, pumps, generators, and industrial automation environments, this proximity probe helps improve equipment reliability, optimize maintenance planning, and enhance operational safety.
For automation engineers, maintenance professionals, and industrial system integrators, the Bently Nevada 330171-24-32-20-02-05 provides a dependable solution for advanced rotating machinery condition monitoring applications.
