Product Overview

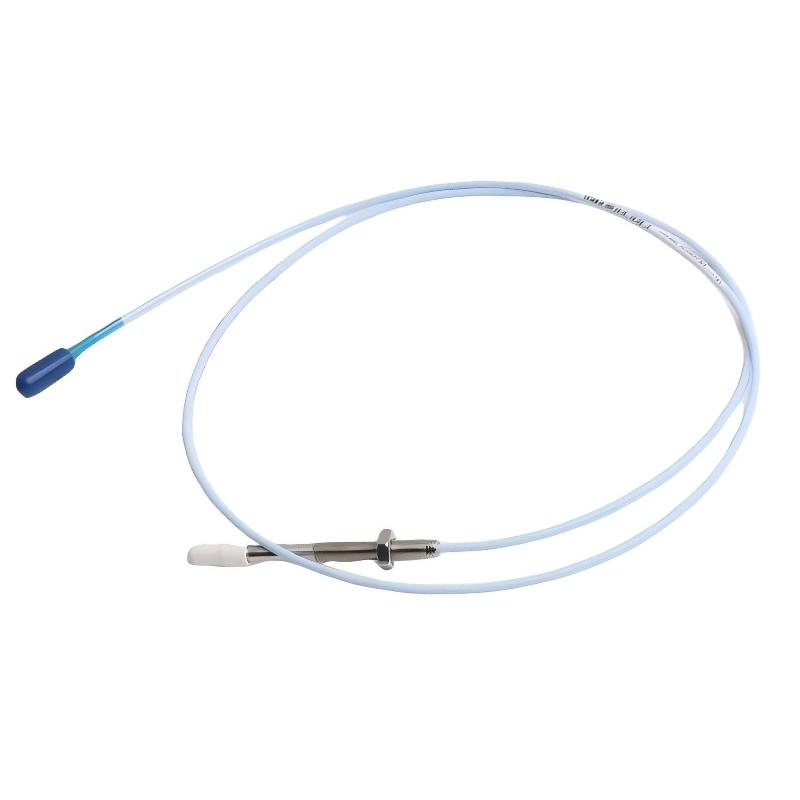

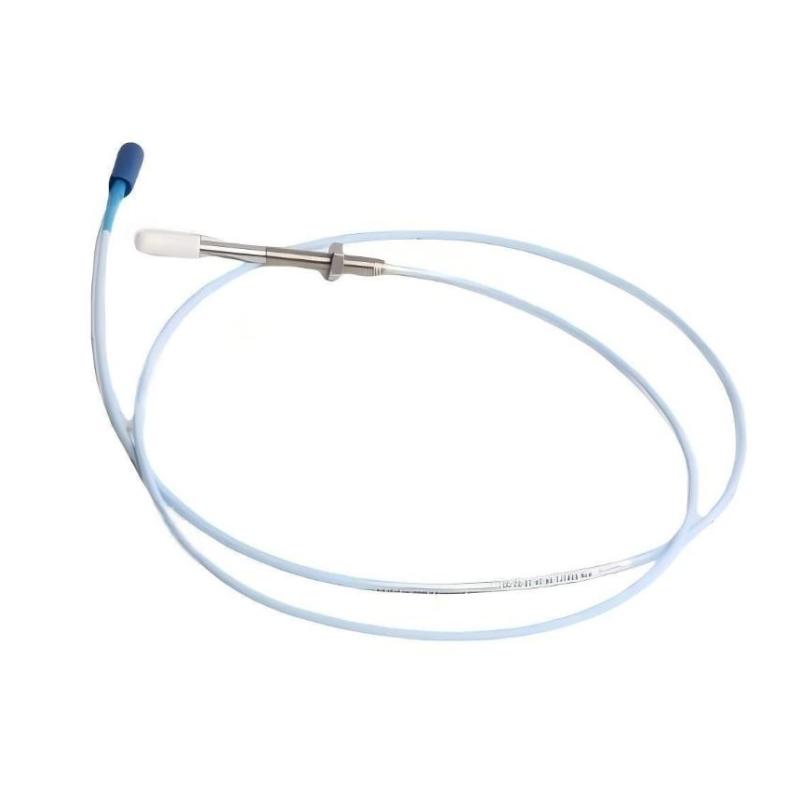

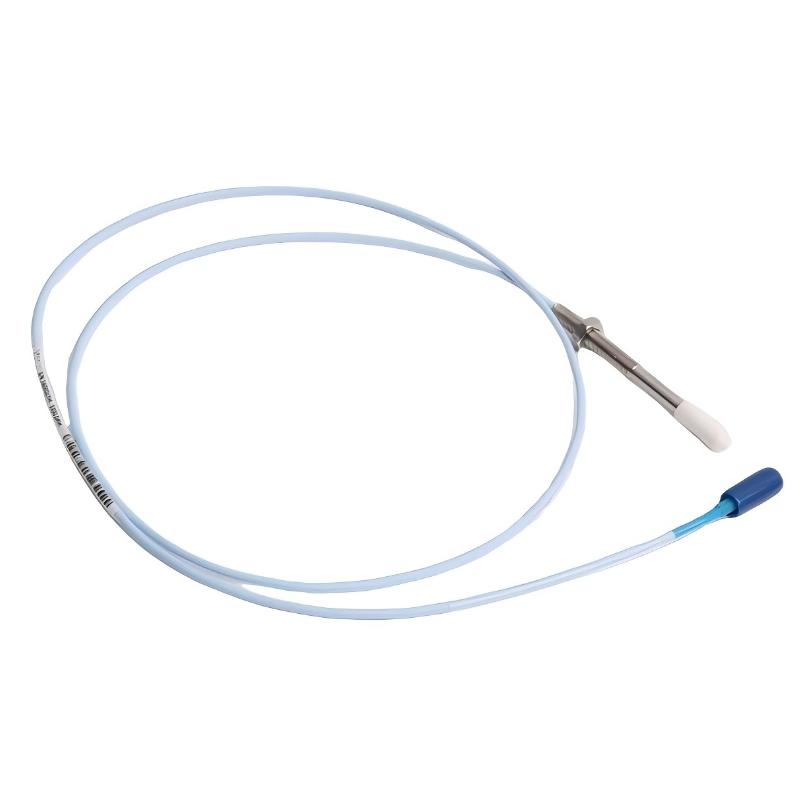

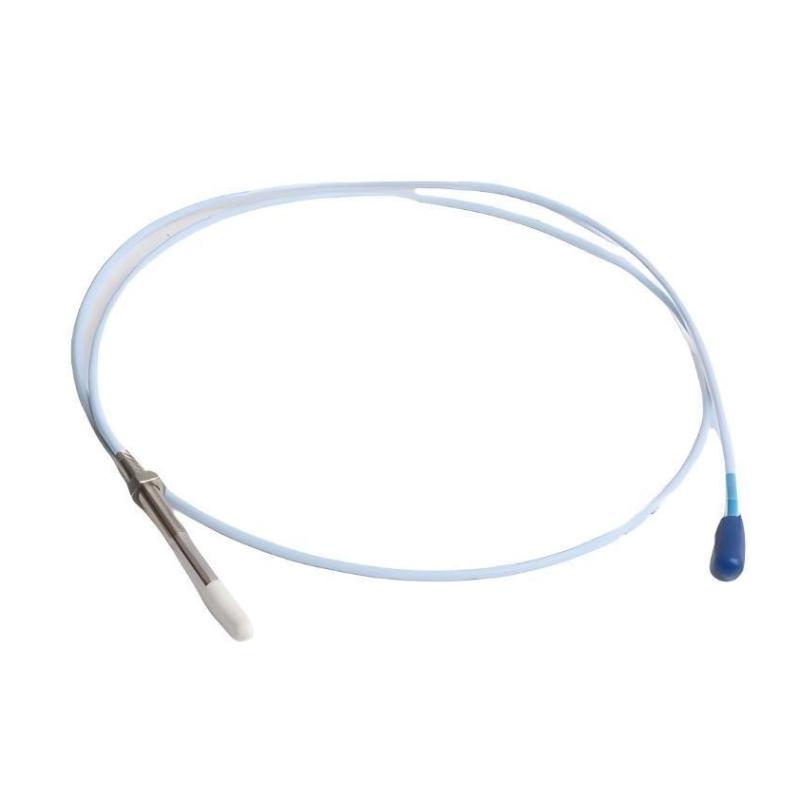

The Bently Nevada 330171-20-40-05-02-05 3300 5 mm Proximity Probe is a precision eddy current sensor designed for continuous monitoring of shaft vibration, displacement, and position changes in critical rotating machinery.

This proximity probe is widely used in industrial condition monitoring systems where accurate and reliable measurement of rotating equipment performance is required. It provides non-contact measurement between the probe tip and the rotating shaft, allowing stable operation in high-speed machinery environments.

By using eddy current sensing technology, the probe can detect very small changes in shaft movement and convert them into electrical signals for monitoring and protection systems. These signals help engineers evaluate machine health, identify abnormal operating conditions, and perform predictive maintenance.

The Bently Nevada 330171-20-40-05-02-05 is commonly installed on steam turbines, gas turbines, compressors, pumps, generators, and other rotating equipment where vibration monitoring and machinery protection are essential.

Technical Specifications

Function and Working Principle

The Bently Nevada 330171-20-40-05-02-05 proximity probe operates based on eddy current measurement technology.

The probe generates an electromagnetic field at the sensing tip. When the distance between the probe and the rotating shaft changes, the electromagnetic field is affected. These changes are converted into electrical signals that represent shaft movement and vibration levels.

The monitoring system analyzes these signals to determine the operating condition of the equipment and provide early warnings of possible mechanical problems.

Non-Contact Measurement Principle

Unlike traditional contact sensors, the proximity probe does not physically touch the rotating shaft.

This provides several advantages:

• Reduced mechanical wear
• Improved measurement stability
• Suitable for high-speed rotating equipment
• Long operational service life
• Reliable performance in harsh industrial environments

Shaft Vibration Detection

The probe continuously monitors shaft movement and helps detect abnormal machine behavior.

Typical monitoring functions include:

• Rotor vibration measurement
• Shaft displacement detection
• Mechanical imbalance identification
• Misalignment monitoring
• Equipment operating condition analysis

Position Monitoring Capability

In addition to vibration measurement, the probe can monitor shaft position changes, making it suitable for machinery protection and operational analysis.

Role in Industrial Machinery Monitoring Systems

The Bently Nevada 330171-20-40-05-02-05 plays an important role in industrial machinery protection and condition monitoring applications.

It is commonly integrated with:

• Proximity signal processing modules
• Vibration monitoring systems
• Machinery protection platforms
• PLC control systems
• DCS automation systems
• Industrial monitoring networks

The probe collects real-time shaft movement information and transfers measurement signals to monitoring equipment.

This helps maintenance teams achieve:

• Continuous machine condition monitoring
• Early fault detection
• Improved maintenance planning
• Reduced unexpected downtime
• Increased equipment reliability

Industrial Applications

Steam Turbine Monitoring

Steam turbines require accurate shaft vibration monitoring to maintain safe and stable operation.

The proximity probe helps detect:

• Rotor vibration changes
• Shaft displacement variations
• Mechanical instability
• Abnormal operating conditions

Gas Turbine Systems

Gas turbines operate at high speeds and require reliable monitoring solutions.

The probe provides accurate shaft movement information for equipment protection and maintenance systems.

Compressor Condition Monitoring

Industrial compressors use proximity probes to monitor rotor movement and identify potential mechanical issues.

Applications include:

• Centrifugal compressors
• Process compressors
• High-speed rotating equipment

Pump Monitoring

Industrial pumps use proximity probes to measure shaft vibration and improve equipment reliability.

Generator Protection

Generators use shaft monitoring sensors to detect rotor movement changes and support stable operation.

Industrial Motors and Rotating Equipment

The probe is suitable for various rotating machines requiring continuous condition monitoring.

Installation and System Integration

Correct installation is essential to achieve accurate measurement performance.

Recommended installation procedures include:

• Install the probe at the correct shaft monitoring location
• Ensure proper mechanical mounting
• Adjust probe position accurately
• Connect with compatible monitoring equipment
• Protect the cable from mechanical damage
• Verify signal stability during commissioning

During system integration, engineers normally check:

Compatible System Components

The Bently Nevada 330171-20-40-05-02-05 proximity probe is commonly used with the following components:

Related Bently Nevada Accessories and Modules

Recommended Alternative Bently Nevada Models

Key Advantages

High Measurement Accuracy

The Bently Nevada 330171-20-40-05-02-05 provides accurate shaft displacement and vibration measurement for critical machinery.

Reliable Non-Contact Operation

The eddy current sensing method allows stable measurement without physical contact with rotating components.

Compact Installation Design

The 0.5-meter total length design is suitable for installations requiring shorter sensor connections.

Industrial Reliability

Designed for continuous operation in demanding industrial environments.

Supports Predictive Maintenance

Provides valuable equipment condition information to help detect problems before major failures occur.

Wide Application Range

Suitable for turbines, compressors, pumps, generators, and industrial rotating machines.

Technical FAQs

What is the Bently Nevada 330171-20-40-05-02-05 used for?

The Bently Nevada 330171-20-40-05-02-05 is a 3300 5 mm proximity probe used for shaft vibration and displacement monitoring.

How does this proximity probe work?

It uses eddy current technology to measure the distance between the probe tip and the rotating shaft without physical contact.

What is the total length of this model?

The total length of this proximity probe is 0.5 meters.

What equipment can use this proximity probe?

It can be used on turbines, compressors, pumps, generators, motors, and other industrial rotating machinery.

Why are proximity probes important?

They provide continuous machine condition information, helping improve equipment reliability and reduce unexpected downtime.

Conclusion

The Bently Nevada 330171-20-40-05-02-05 3300 5 mm Proximity Probe is a reliable industrial sensor designed for accurate shaft vibration and displacement monitoring.

With its eddy current sensing technology, compact 0.5-meter configuration, and stable measurement performance, it provides essential condition monitoring data for machinery protection and predictive maintenance systems.

Used in turbines, compressors, pumps, generators, and industrial automation environments, this proximity probe helps improve equipment reliability, optimize maintenance strategies, and maintain safe industrial operations.

For automation engineers, maintenance professionals, and industrial system integrators, the Bently Nevada 330171-20-40-05-02-05 provides a dependable solution for advanced rotating machinery condition monitoring.
