Product Overview

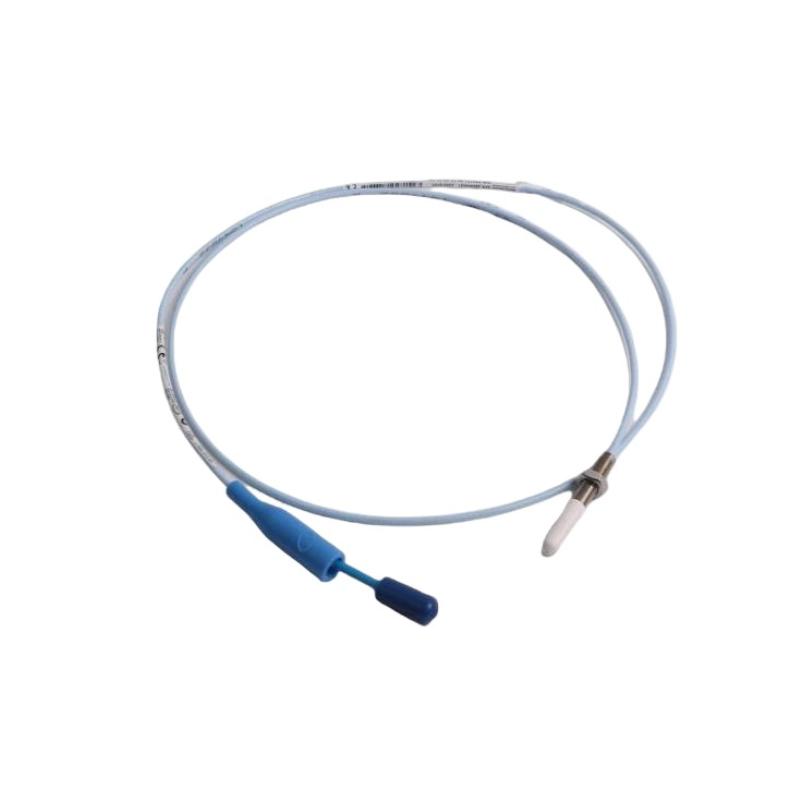

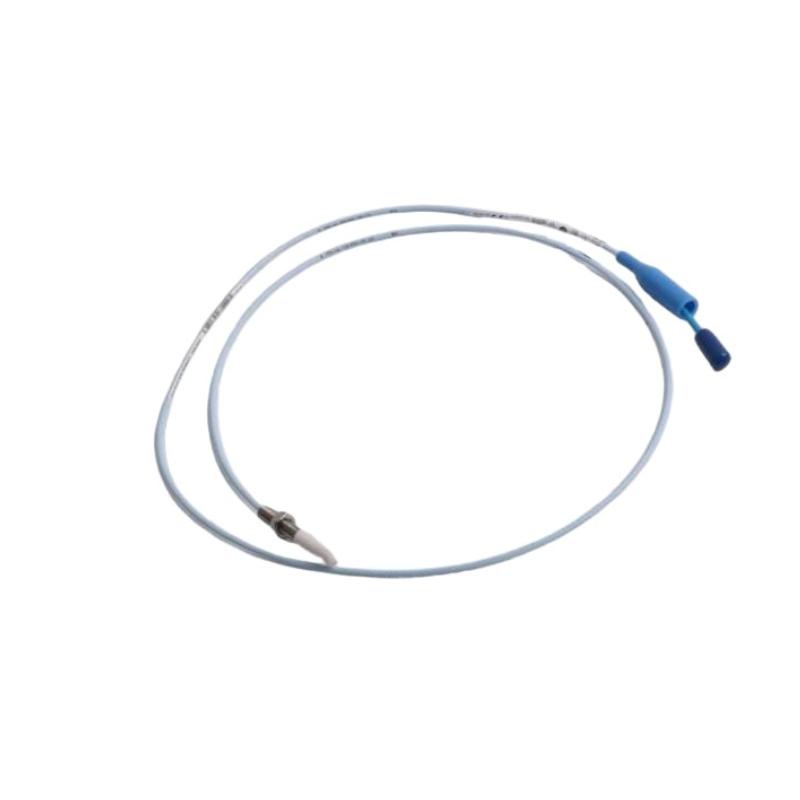

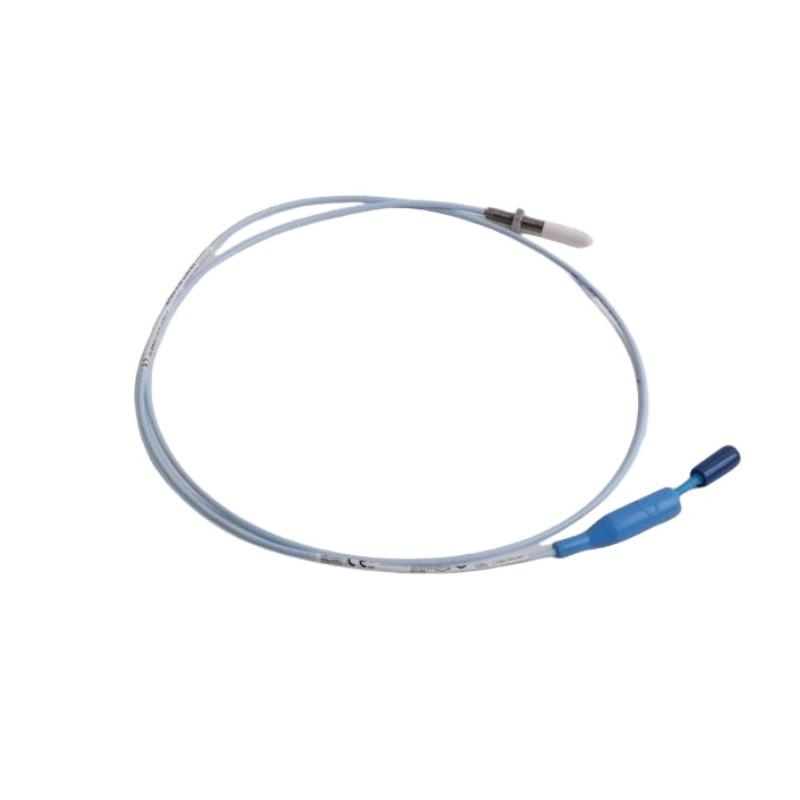

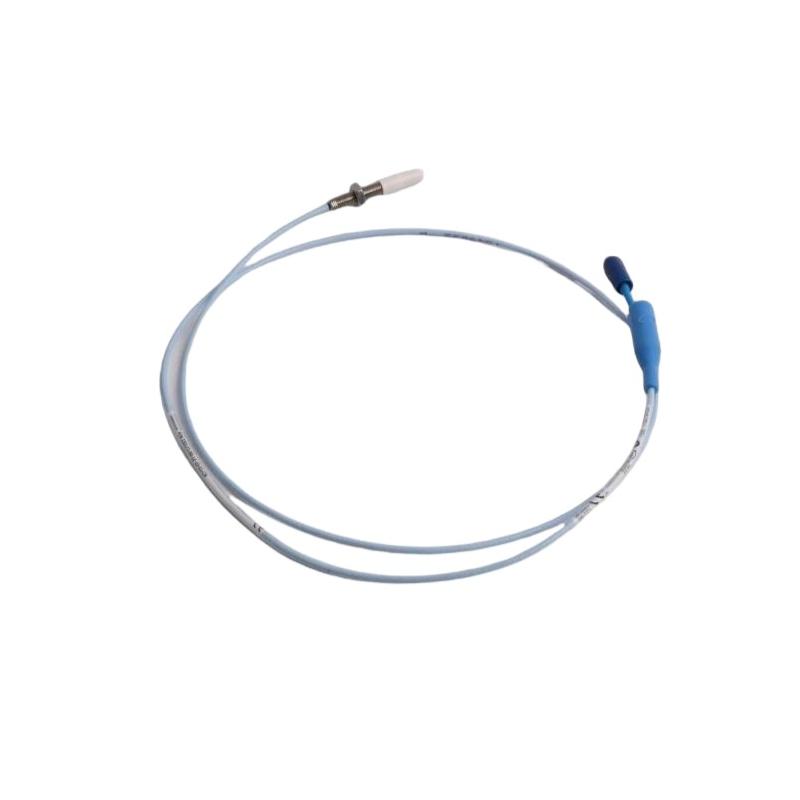

In modern industrial environments, rotating machinery requires continuous monitoring to maintain stable operation, improve equipment reliability, and prevent costly failures. The Bently Nevada 330171-00-26-10-02-05 3300 5 mm Proximity Probe is designed to provide accurate non-contact measurement of shaft vibration, displacement, and position for critical machinery protection applications.

As an important sensing element in industrial condition monitoring systems, this proximity probe uses eddy current sensing technology to measure the distance between the probe tip and the rotating shaft surface. The collected data helps engineers evaluate machinery health, detect abnormal operating conditions, and implement predictive maintenance strategies.

The Bently Nevada 330171-00-26-10-02-05 features a total length of 1 meter, providing a flexible installation solution for applications where the sensor location and monitoring electronics require a moderate connection distance. This configuration is suitable for various rotating equipment layouts while maintaining reliable signal performance.

The probe is widely used in power generation, oil and gas, petrochemical, and industrial manufacturing applications, especially for monitoring turbines, compressors, generators, pumps, and other high-value rotating equipment.

Technical Specifications

Function and Working Principle

The Bently Nevada 330171-00-26-10-02-05 operates based on eddy current proximity sensing technology, allowing precise measurement of rotating shaft movement without physical contact.

The probe generates an electromagnetic field at the sensing tip. When the shaft moves closer or farther away from the probe, the electromagnetic field changes. These changes are converted into electrical signals that represent shaft displacement and vibration conditions.

The main functions include:

• Measuring shaft vibration displacement
• Monitoring radial shaft movement
• Detecting abnormal mechanical conditions
• Providing continuous machinery operating information
• Supporting predictive maintenance and protection strategies

The non-contact design eliminates mechanical friction between the sensor and rotating components, ensuring stable performance and extending service life in demanding industrial environments.

Role in Industrial Machinery Monitoring Systems

The Bently Nevada 330171-00-26-10-02-05 serves as a key measurement component in rotating machinery protection systems.

It is commonly integrated with:

• Proximitor Sensor modules
• Vibration monitoring systems
• Signal processing equipment
• Machinery protection controllers
• Industrial automation platforms

The proximity probe continuously captures shaft displacement information and sends measurement signals to monitoring equipment. These signals allow maintenance teams to analyze vibration trends, identify potential mechanical problems, and take corrective actions before serious equipment damage occurs.

For critical rotating assets, reliable vibration and displacement monitoring plays an essential role in improving operational safety and reducing maintenance costs.

Industrial Applications

The Bently Nevada 330171-00-26-10-02-05 3300 5 mm Proximity Probe is commonly used in industries where rotating machinery reliability is essential.

Power Generation Industry

Typical applications include:

• Steam turbine monitoring
• Gas turbine protection
• Generator vibration monitoring
• Bearing displacement measurement

Oil and Gas Industry

Used for:

• Centrifugal compressors
• Turbo machinery monitoring
• Rotating process equipment
• Pump condition monitoring

Petrochemical Industry

Applied in:

• Refinery rotating machinery
• High-speed compressors
• Continuous production equipment

Industrial Manufacturing

Used for:

• Large industrial motors
• Automated production systems
• Heavy rotating equipment

The 1-meter configuration provides practical installation flexibility for machines where monitoring electronics are positioned at a moderate distance from the sensing point.

Installation and System Integration

Correct installation is important to achieve accurate measurement performance from the Bently Nevada 330171-00-26-10-02-05.

Typical installation procedures include:

• Installing the probe near the rotating shaft surface
• Mounting inside bearing housings or machine casings
• Connecting with compatible monitoring components
• Configuring the monitoring system according to equipment requirements

During installation, engineers should confirm:

• Correct probe mounting position
• Proper sensing gap adjustment
• Secure signal connections
• Stable mechanical positioning
• Correct monitoring configuration

The 1-meter length provides a balanced solution between installation flexibility and signal reliability.

Compatible System Components

The Bently Nevada 330171-00-26-10-02-05 typically works together with the following components:

These components work together to create a complete rotating machinery monitoring and protection system.

Recommended Alternative Models

Key Advantages

• Provides accurate non-contact shaft measurement
• Supports vibration and displacement monitoring
• Suitable for critical rotating equipment protection
• Uses reliable eddy current sensing technology
• Provides stable measurement performance
• Reduces mechanical wear through contactless operation
• Supports predictive maintenance strategies
• Improves machinery reliability and safety

Technical FAQs

What is the Bently Nevada 330171-00-26-10-02-05?

The Bently Nevada 330171-00-26-10-02-05 is a 3300 5 mm Proximity Probe designed for monitoring shaft vibration and displacement in rotating machinery.

What is the main function of this probe?

It measures the distance between the probe tip and the rotating shaft to detect vibration, displacement, and position changes.

Where is this model typically installed?

It is commonly installed on turbines, compressors, generators, pumps, and other industrial rotating equipment.

Does the probe physically touch the shaft?

No. It uses eddy current non-contact sensing technology, allowing continuous monitoring without mechanical contact.

What is the benefit of the 1-meter length?

The 1-meter configuration provides flexible installation for equipment where the probe and monitoring electronics are separated by a moderate distance.

Conclusion

The Bently Nevada 330171-00-26-10-02-05 3300 5 mm Proximity Probe is a dependable industrial sensor designed for accurate rotating machinery condition monitoring.

With its 1-meter configuration, non-contact eddy current sensing technology, and reliable measurement performance, it provides an effective solution for monitoring shaft vibration, displacement, and position in demanding industrial applications.

For power plants, oil and gas facilities, petrochemical industries, and industrial automation systems, this proximity probe helps improve equipment reliability, reduce unexpected downtime, and support safe long-term operation of critical rotating machinery.
