Product Overview

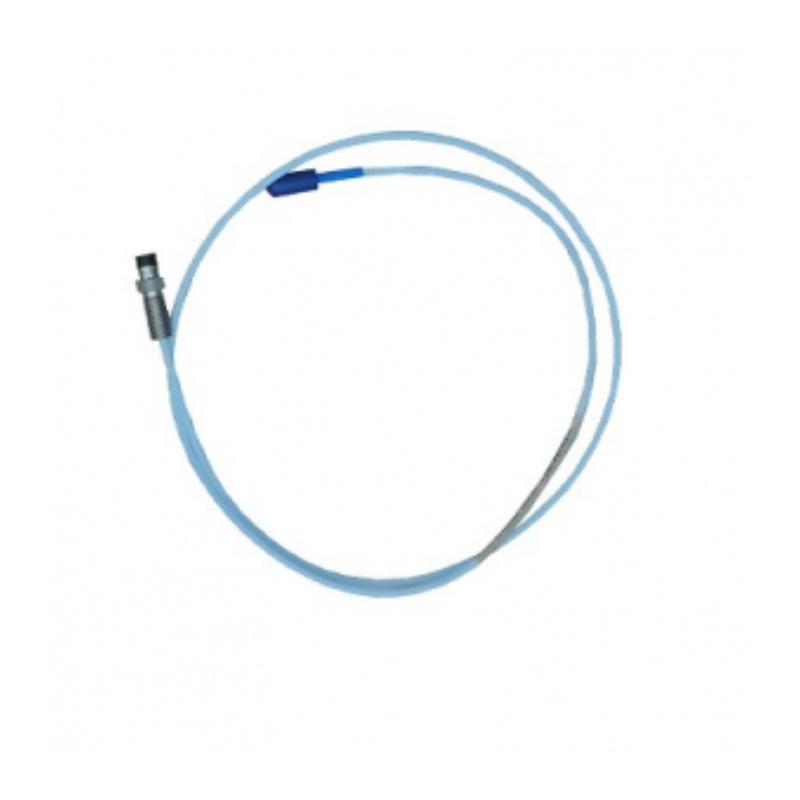

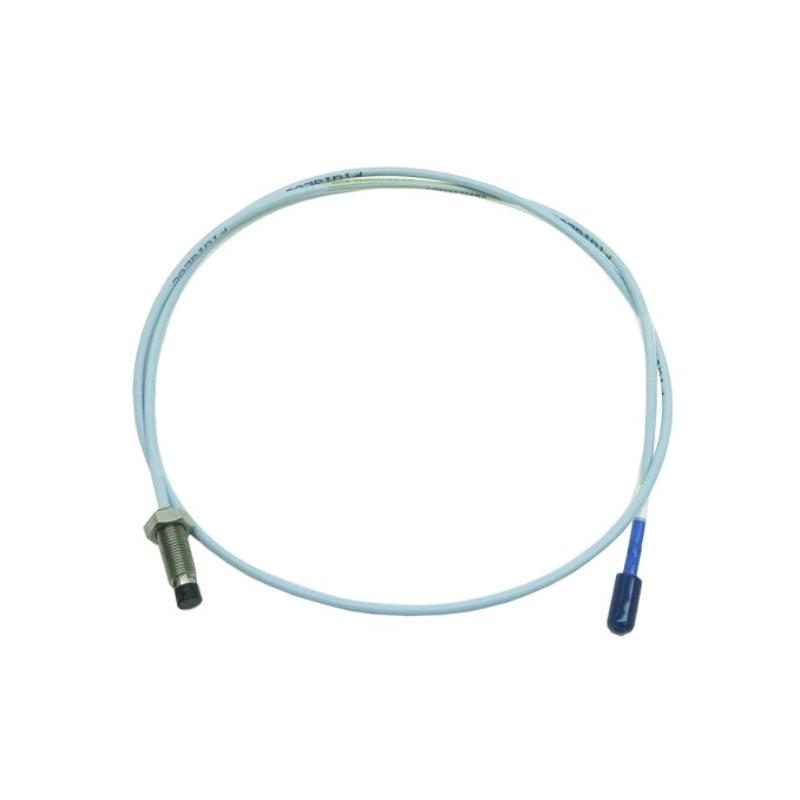

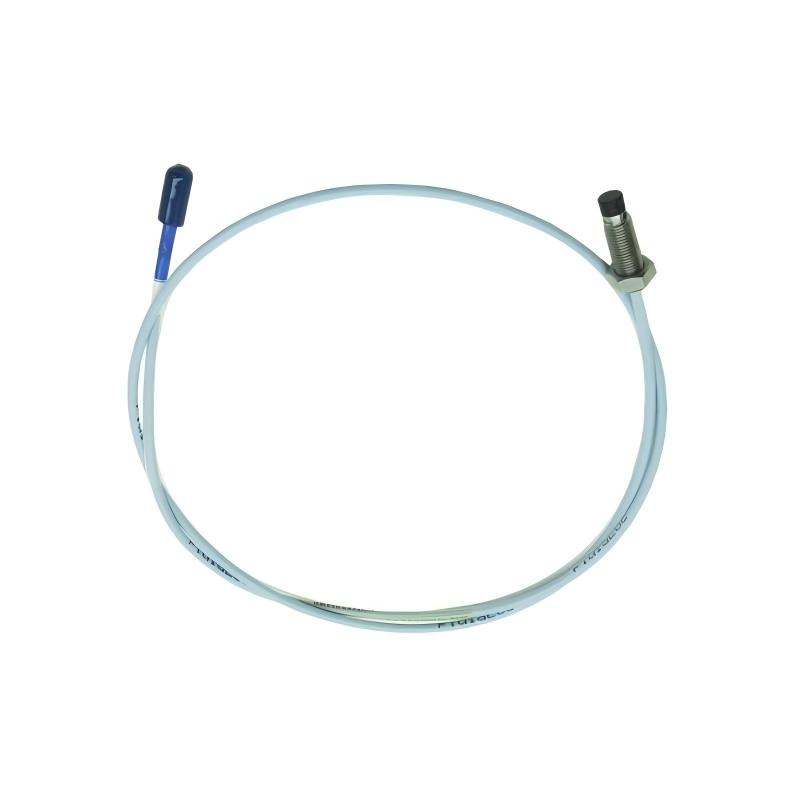

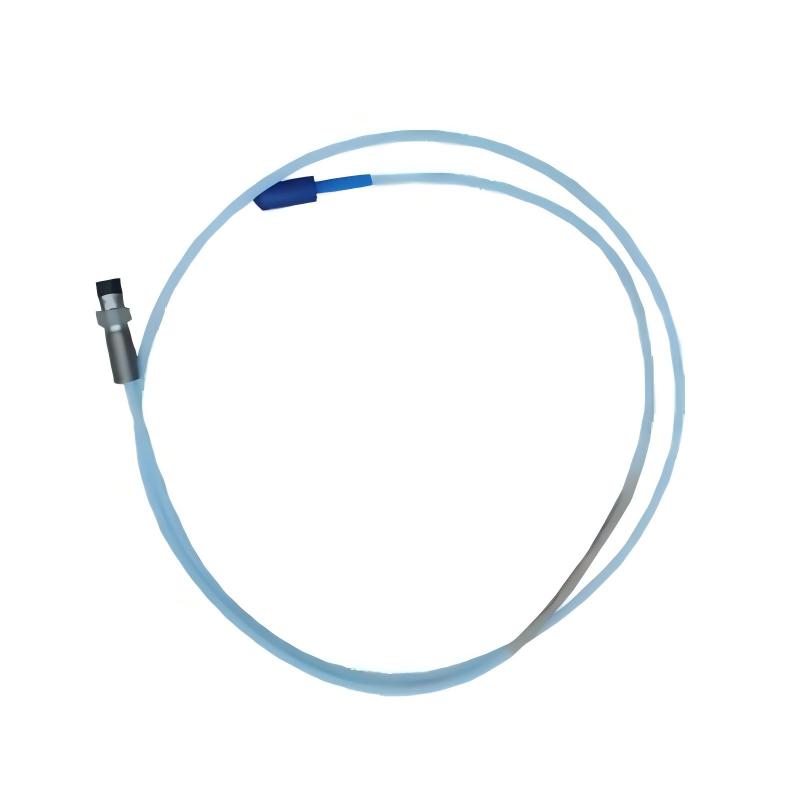

In modern industrial automation and machinery protection applications, accurate monitoring of rotating equipment is essential for maintaining safe operation, reducing maintenance costs, and preventing unexpected equipment failures. The Bently Nevada 330171-00-20-05-02-00 3300 5 mm Proximity Probe is designed for precise non-contact measurement of shaft vibration, displacement, and position in critical rotating machinery.

As an important sensing component in industrial condition monitoring systems, this proximity probe detects the distance between the probe tip and the rotating shaft surface without physical contact. It provides stable and reliable measurement signals that allow engineers to evaluate equipment performance, identify abnormal mechanical conditions, and optimize maintenance schedules.

The Bently Nevada 330171-00-20-05-02-00 features a total length of 0.5 meters, making it suitable for compact machinery installations where the sensor and monitoring electronics are positioned close together. This short-length configuration provides a practical solution for applications requiring limited cable distance while maintaining accurate measurement performance.

The probe is widely used in turbines, compressors, generators, pumps, and other rotating equipment where continuous vibration monitoring and machinery protection are required.

Technical Specifications

Function and Working Principle

The Bently Nevada 330171-00-20-05-02-00 operates using eddy current sensing technology to measure shaft movement and vibration conditions.

The probe generates a high-frequency electromagnetic field at the sensing tip. When the distance between the probe and the rotating shaft changes, the electromagnetic field changes accordingly. These variations are converted into electrical signals that represent shaft displacement and vibration levels.

The main functions include:

• Measuring shaft vibration displacement
• Monitoring shaft position changes
• Detecting abnormal mechanical movement
• Providing continuous machinery condition data
• Supporting predictive maintenance operations

Because the probe operates without direct contact with the rotating shaft, it avoids mechanical wear and provides long-term stability in high-speed machinery applications.

Role in Industrial Machinery Monitoring Systems

The Bently Nevada 330171-00-20-05-02-00 serves as an important sensing element in rotating equipment monitoring and protection systems.

It is commonly integrated with:

• Proximitor Sensor modules
• Signal processing units
• Vibration monitoring equipment
• Machinery protection controllers
• Industrial automation systems

The proximity probe continuously collects shaft displacement information and sends measurement signals to monitoring equipment. These signals help maintenance engineers analyze vibration trends and detect potential issues such as imbalance, misalignment, excessive vibration, or mechanical wear.

For critical rotating machinery, accurate monitoring helps improve equipment reliability and reduce the risk of unexpected shutdowns.

Industrial Applications

The Bently Nevada 330171-00-20-05-02-00 3300 5 mm Proximity Probe is commonly used in industries requiring reliable rotating equipment monitoring.

Power Generation Industry

Typical applications include:

• Steam turbine monitoring
• Gas turbine protection
• Generator vibration analysis
• Bearing condition monitoring

Oil and Gas Industry

Used for:

• Centrifugal compressors
• Turbo machinery monitoring
• Rotating process equipment
• Pump condition monitoring

Petrochemical Industry

Applied in:

• Refinery machinery
• High-speed compressors
• Process equipment monitoring

Industrial Manufacturing

Used for:

• Industrial motors
• Production machinery
• Heavy rotating equipment

The compact 0.5-meter configuration makes this model suitable for installations with limited distance between the monitoring electronics and measurement location.

Installation and System Integration

Proper installation of the Bently Nevada 330171-00-20-05-02-00 is important for achieving accurate measurement results.

Typical installation procedures include:

• Installing the probe near the rotating shaft surface
• Mounting inside bearing housings or machine casings
• Connecting with compatible monitoring components
• Adjusting the probe position according to equipment requirements

During installation, engineers should verify:

• Correct mounting location
• Proper sensing gap adjustment
• Secure cable connection
• Stable mechanical positioning
• Correct monitoring system configuration

The short 0.5-meter length provides a compact installation option for machinery where the monitoring components are located close to the sensing point.

Compatible System Components

The Bently Nevada 330171-00-20-05-02-00 typically works together with the following components:

These components work together to create a complete rotating machinery condition monitoring solution.

Recommended Alternative Models

Key Advantages

• Provides accurate non-contact shaft measurement
• Compact 0.5-meter installation design
• Supports vibration and displacement monitoring
• Uses reliable eddy current sensing technology
• Reduces mechanical wear through contactless operation
• Supports predictive maintenance strategies
• Improves rotating equipment reliability
• Suitable for continuous industrial operation

Technical FAQs

What is the Bently Nevada 330171-00-20-05-02-00?

The Bently Nevada 330171-00-20-05-02-00 is a 3300 5 mm Proximity Probe designed for shaft vibration and displacement monitoring.

What is the main function of this proximity probe?

It measures changes in the distance between the probe tip and the rotating shaft to monitor vibration and mechanical movement.

Where is this model commonly used?

It is commonly used in turbines, compressors, generators, pumps, and industrial rotating machinery.

Does this probe contact the rotating shaft?

No. It uses non-contact eddy current sensing technology, allowing continuous monitoring without physical contact.

What is the advantage of the 0.5-meter configuration?

The compact length is ideal for applications where the monitoring electronics are installed close to the machine measurement point.

Conclusion

The Bently Nevada 330171-00-20-05-02-00 3300 5 mm Proximity Probe is a reliable industrial sensor designed for accurate rotating machinery condition monitoring.

With its compact 0.5-meter configuration, non-contact sensing technology, and stable measurement performance, it provides an effective solution for monitoring shaft vibration, displacement, and position in demanding industrial environments.

For power plants, oil and gas facilities, petrochemical industries, and industrial automation systems, this proximity probe helps improve equipment reliability, reduce maintenance risks, and support safe long-term operation of critical rotating machinery.
