Product Overview — Bently Nevada 330130‑080‑12‑00
Product Introduction

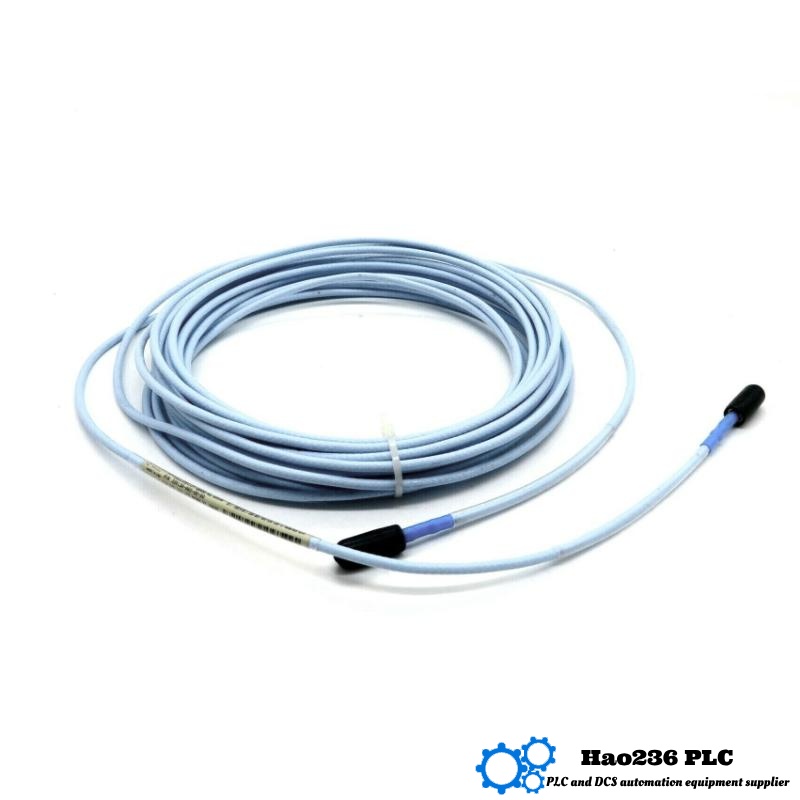

The 330130‑080‑12‑00 is an extension cable used with the 3300 XL 8 mm Proximity Transducer system. It connects the proximity probe to the Proximitor sensor, carrying both static (displacement / gap) and dynamic (vibration) signals. The “080” denotes the cable length (8.0 meters), “12” indicates the cable and connector option (FluidLoc® cable with connector protects), and “00” means no special agency approval suffix.
This cable is critical in extending the sensor to monitor remote or hard‑to‑reach rotating machinery, especially in industrial environments requiring reliable signal transmission under high stress, temperature, and often in oil or fluid‑exposed or otherwise harsh areas.
Technical Specifications
| Parameter | Value / Description |
|---|---|
| Model | 330130‑080‑12‑00 |
| Brand | Bently Nevada |
| Series | 3300 XL Extension Cable (3300 XL Proximity Transducer System) |
| Cable Length | 8.0 meters (≈ 26.2 feet) |
| Weight | 0.272 kg |
| Cable Type & Insulation | 75 Ω triaxial cable, FEP insulated |
| Capacitance (typical) | 69.9 pF/m |
| DC Resistance (Core)** | 1.76 ±0.26 Ω |
| DC Resistance (Jacket)** | 0.53 ±0.11 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Miniature ClickLoc coaxial connectors / connector protector |
| Operating Temperature | ‑52 °C to +177 °C standard |
| High‑temperature Option (ETR)** | Up to +260 °C for ETR option |
| Armor / Protection | Standard non‑armored, connector protector included; optional armor available |
| Pull Strength (CableLoc) | 330 N pull strength |
| Environment & Durability | Designed for industrial environments; good EMI/RFI immunity; reliable over long cable runs; compatible with fluid/exposed installations when using FluidLoc option |
Applications
-
Extending proximity probe signal cables where machinery or structures prevent close mounting of Proximitor sensor
-
Use in turbines, compressors, pumps, motors where the probe is distant from the sensor electronics
-
Keyphasor or speed reference signal connections in rotating machinery monitoring
-
Turbine / compressor bearing displacement or vibration monitoring, especially in oil/fluid‑environment or fluid film bearings
-
Applications in petrochemical, power generation, mining, heavy manufacturing where long cable runs and high ambient temperature are factors
Advantages
-
High fidelity signal transmission over 8 meters while preserving linear dynamic range
-
Fluid‑secure design: “12” variant with connector protector helps prevent oil/fluid ingress
-
Very wide temperature range, particularly if using high temperature option (ETR)
-
High mechanical durability: ClickLoc connectors, CableLoc pull strength, minimal bend radius allow flexible installation without damage
-
Interchangeability with other 3300 / 3300 XL components; backwards compatibility
-
Good electrical characteristics (low capacitance, stable resistance) ensure signal integrity
-
Lightweight but robust; non‑armored base but with optional armor when needed
Brand & Series
-
Brand: Bently Nevada
-
Series: 3300 XL Proximity Transducer System / 3300 XL Extension Cable
Related Models in Same Series or Closely Related
Here are five other models in the same family / similarly functioning extension cables or probe components, with key parameters for comparison.
| Model | Application / Purpose | Cable Length / Key Feature | Dimensions / Weight | Distinguishing Feature |
|---|---|---|---|---|
| 330130‑080‑12‑05 | Same cable length with agency approvals (“05”) | 8.0 meters; FluidLoc cable with protector, approvals | ~ 0.89 kg | Adds approvals; more rugged spec |
| 330130‑080‑13‑00 | Armored + FluidLoc variant with connector protection | 8.0 meters; armor | ~ 0.89 kg | Superior mechanical protection |
| 330130‑080‑10‑00 | FluidLoc cable option without approvals | 8.0 meters; “10” variant | ~ 0.89 kg | Option with FluidLoc but “00” approvals |
| 330130‑070‑12‑00 | 7.0 meter extension version | 7.0 meters length | ~ 0.238 kg | Slightly shorter cable |
| 330190‑080‑00‑00 | ETR high temperature extension cable, non‑armored | 8.0 meters; extended thermal rating | ~ 0.274 kg | Better for very high temp applications |
Popular Peer Models from Same Brand
These are widely used or commonly paired devices/modules in the Bently Nevada / 3300 / 3500 realm.
| Model | Application / Purpose | Form Factor | Approx Weight | Key Uses / Features |
|---|---|---|---|---|
| 330180‑91‑00 | 3300 XL Proximity Sensor with 9.0 meter cable | Probe + built‑in cable | ~ 0.25‑0.35 kg | Used for vibration / displacement + speed |
| 330104‑00‑06‑10‑11‑00 | 8 mm probe, standard mounting | Probe‑type sensor | ~ 0.28 kg | Position & vibration sensing |
| 3500/42M‑01‑00 | Rack‑mounted Proximitor / Machine Condition Monitor | Rack module | ~ 0.45 kg | Whole machine condition monitoring |
| 3500/22M‑01‑01‑00 | Transient Data Interface module | Rack module / communication interface | ~ 0.40 kg | Capturing transient/shock events |
| 330180‑50‑05 | XL 8 mm probe with approvals | Probe + cable housing | ~ 0.40 kg | Rugged, approved, used in harsh settings |
FAQs (QA Style)
-
Q: What does the “12” in 330130‑080‑12‑00 mean?
A: It indicates the cable version includes FluidLoc cable option plus a connector protector, to help prevent fluid leakage or ingress. -
Q: Is the 330130‑080‑12‑00 cable armored?
A: No, as the “00” indicates no agency approval and standard protection; armor is optional in other variants. -
Q: What is the temperature range this cable supports?
A: Standard version is rated from ‑52 °C to +177 °C; optional high‑temperature (ETR) version goes up to +260 °C. -
Q: How much does the cable weigh?
A: Approximately 0.272 kg for the 8 meter non‑armored FluidLoc extension cable. -
Q: What is the capacitance of the cable, and why does it matter?
A: Typical is 69.9 pF/m; lower capacitance helps preserve signal integrity over the cable length. -
Q: What is the mechanical pull strength of connectors / cable?
A: The CableLoc design provides about 330 N pull strength on the connection between probe and cable. -
Q: What is the minimum bend radius?
A: 25.4 mm (1.0 inch); bending tighter may damage the cable or degrade performance. -
Q: Can this cable be used in high‑humidity or fluid exposed environments?
A: Yes, the FluidLoc variant and connector protector help resist fluid exposure; the cable is designed for rugged, industrial environments. -
Q: Is this extension cable interchangeable with older non‑XL 3300 5 mm and 8 mm transducer systems?
A: Yes; it is designed for backward compatibility with older systems for ease of replacement or upgrades. -
Q: Does replacing the cable require recalibration of the system?
A: No; with 3300 XL systems, components (probe, cable, Proximitor sensor) are made to be interchangeable without needing field recalibration.
