Introduction

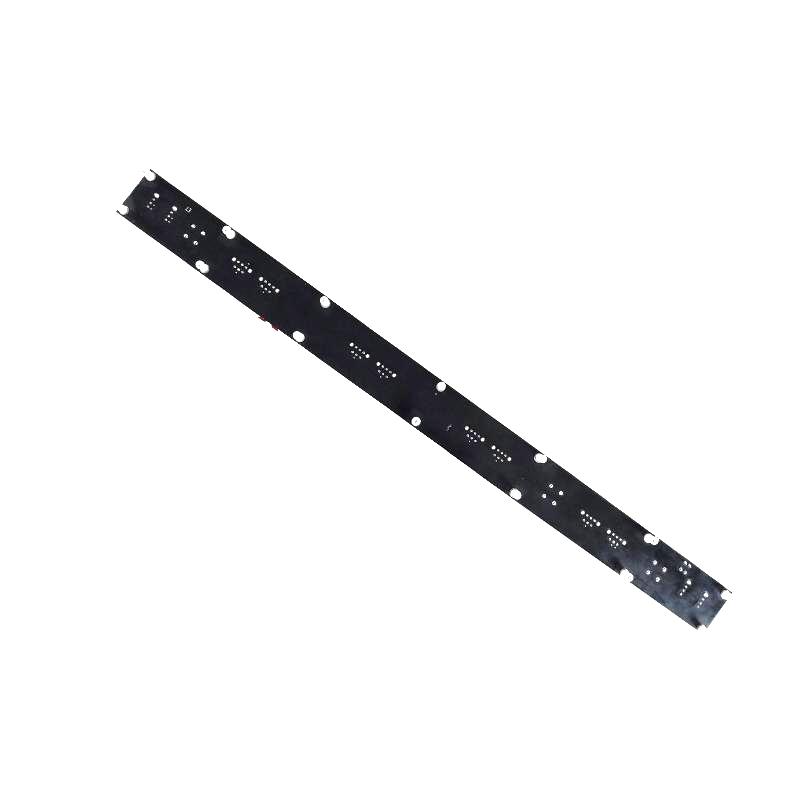

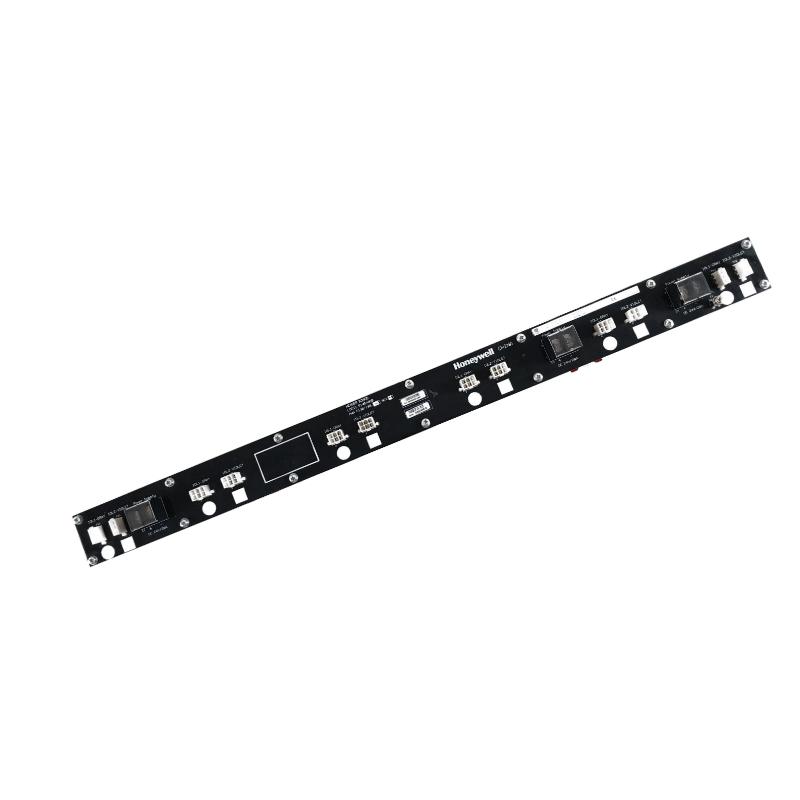

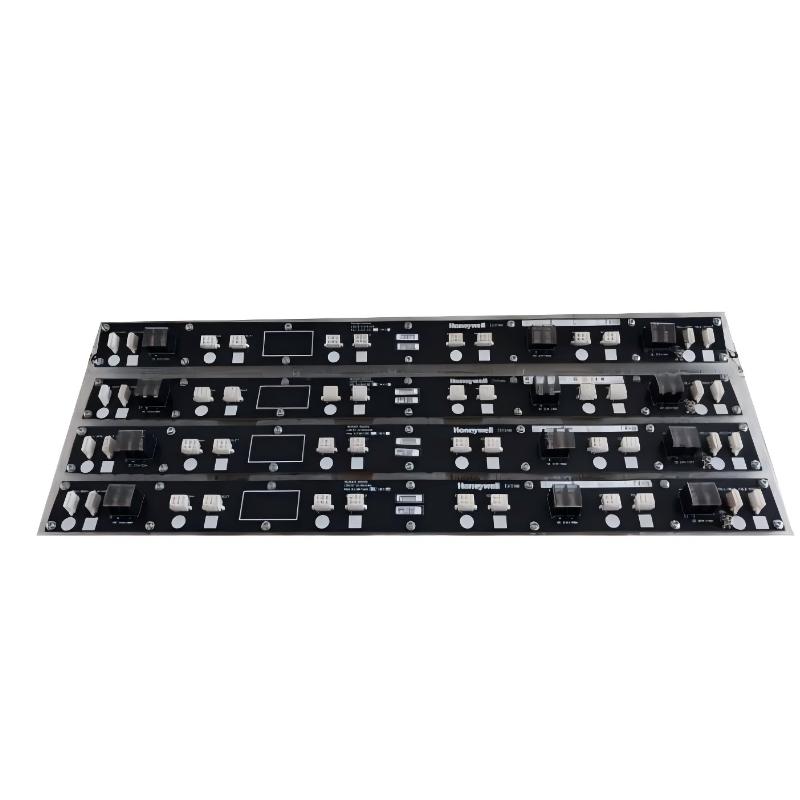

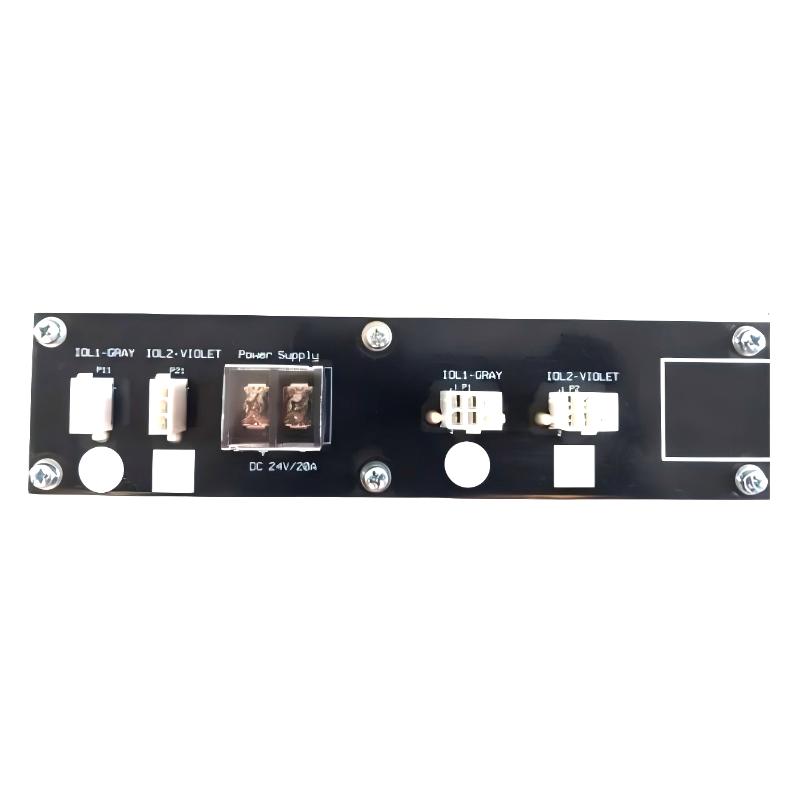

The Honeywell International Inc. 8C‑SHEDA1 Connector Plate (51307186‑175) is an industrial interface component used in Honeywell control systems to support wiring and connectivity between field I/O modules and the system backplane or controller rack. It provides organized connector locations for I/O harnesses, simplifying installation and improving signal integrity in automation cabinets.
With dimensions of 210 × 130 × 30 mm (H × W × D) and a weight of 0.45 kg, this plate is designed to fit into standard control enclosures and I/O racks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 8C‑SHEDA1 |
| Part Number | 51307186‑175 |
| Product Type | Connector Plate |
| Manufacturer | Honeywell |
| Dimensions | 210 × 130 × 30 mm (H × W × D) |
| Weight | 0.45 kg |
| Function | Provides organized connector mounting for I/O wiring |
| Installation | Control cabinet or I/O rack mounting |
| Compatibility | Honeywell Series‑8 / Experion I/O systems |
The connector plate serves as a structured interface where cables, harnesses, and module connectors can be secured during installation, helping ensure robust electrical connections.
Applications
The 8C‑SHEDA1 Connector Plate is commonly used in:
-
Industrial automation control cabinets
-
Distributed control and PLC systems
-
Wiring distribution for I/O modules
-
Signal harness organization and management
-
Panel and rack installations requiring orderly connector layout
It simplifies wiring practices and improves maintenance access for industrial systems.
Advantages
-
Provides organized mounting points for connectors and wiring
-
Enhances signal integrity through reliable connections
-
Reduces installation time and wiring errors
-
Designed for integration in Honeywell automation hardware
-
Solid construction for industrial environments
Technical FAQs
Q1: What is the main purpose of the 8C‑SHEDA1 connector plate?
It provides a mountable interface for organizing connectors and wiring in control cabinets.
Q2: Where is it installed?
In control cabinets or I/O racks alongside Honeywell automation modules.
Q3: Which systems use this connector plate?
Honeywell Series‑8 / Experion I/O and automation systems.
Q4: Why are connector plates important in automation hardware?
They help organize wiring, improve electrical connections, and make maintenance easier.
Q5: What types of cables connect to it?
Field wiring harnesses and module connectors in distributed I/O installations.
