Product Overview

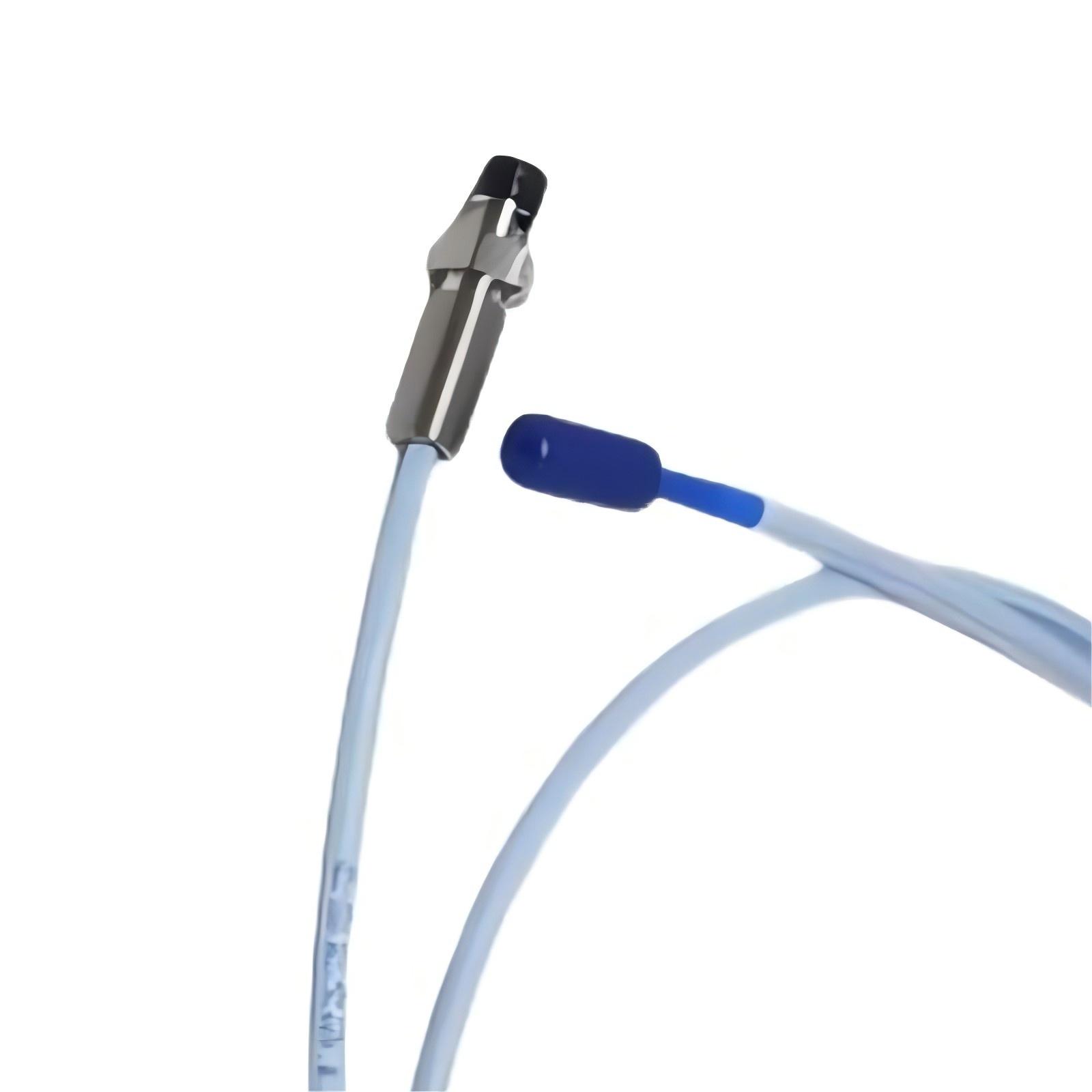

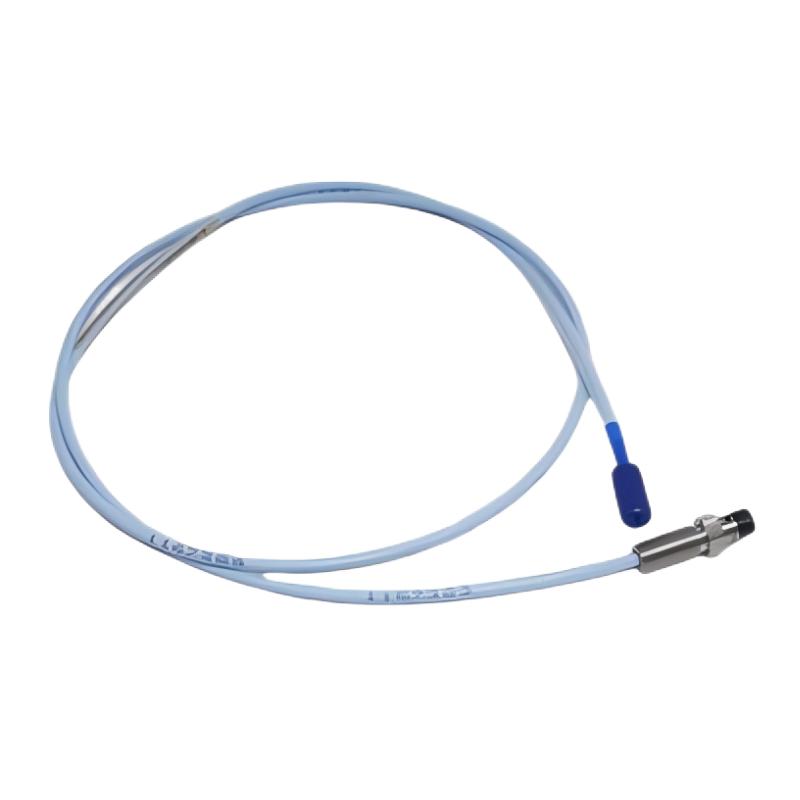

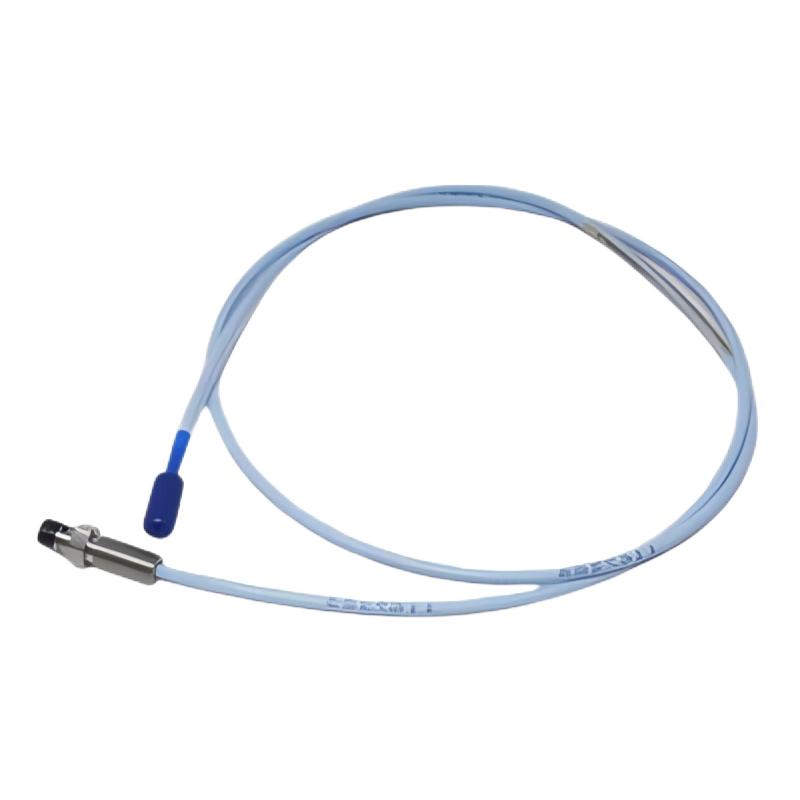

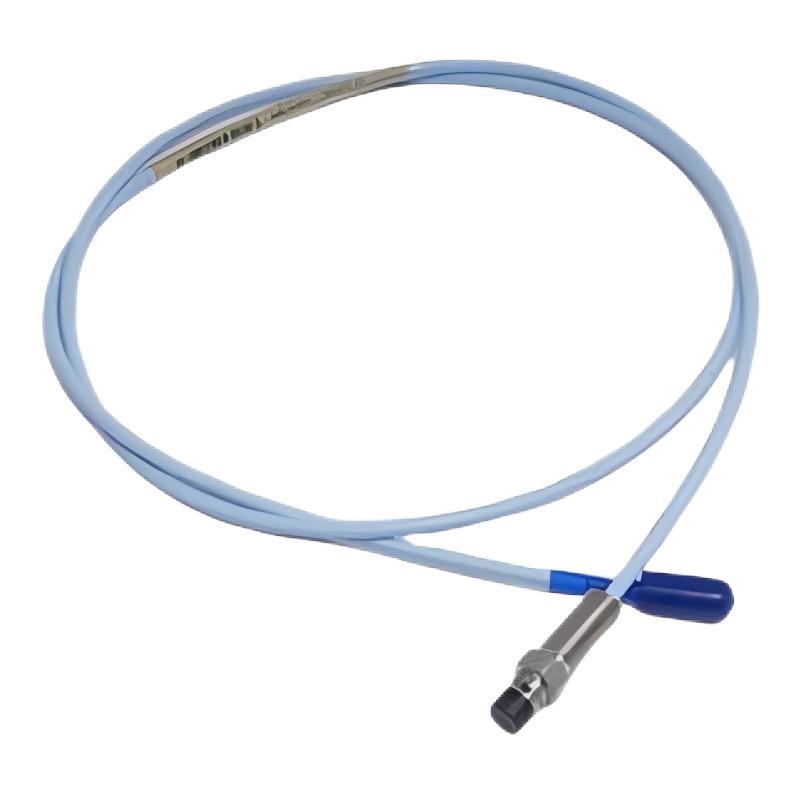

The Bently Nevada 330104-02-15-10-01-00 is a 3300 XL 8 mm eddy-current proximity probe used for shaft vibration and radial displacement monitoring in rotating machinery.

It is part of the Bently Nevada 3300 XL proximity transducer system, widely used in turbines, compressors, pumps, and generators for continuous condition monitoring and machine protection.

This configuration supports a 1-meter system length, making it suitable for medium routing distances between the probe and signal conditioning equipment.

Technical Specifications

Function and Working Principle

The probe operates using the eddy-current principle, where electromagnetic induction is used to measure the distance between the probe tip and a conductive rotating shaft.

Operating Principle

1. Probe generates a high-frequency electromagnetic field
2. Eddy currents are induced in the shaft surface
3. Distance variation modifies signal response
4. Output voltage represents displacement and vibration

$x\propto V$

Where displacement (x) is proportional to the output voltage (V).

Key Functions

• Measures shaft vibration and radial displacement
• Provides continuous real-time machine condition monitoring
• Detects early mechanical issues such as:
  • Imbalance
  • Misalignment
  • Bearing wear
  • Shaft instability
• Supports machine protection and shutdown systems

System Role

This probe is part of a complete 3300 XL proximity measurement chain:

• Proximity probe (sensor head)
• Extension cable
• Proximitor sensor (signal conditioning module)

Together, they form a calibrated system used for:

• Vibration monitoring
• Shaft position measurement
• Machinery protection inputs

Industrial Applications

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Generators
• Industrial fans
• Petrochemical rotating machinery
• Power generation systems

Installation Guidelines

• Installed near rotating shaft surface
• Requires precise air-gap calibration
• Must maintain rigid mechanical alignment
• 1-meter system length requires proper shielding and grounding
• EMI protection is essential for signal stability
• Must be calibrated with matched system components

⚠️ Incorrect installation or mismatched components may lead to inaccurate vibration readings.

Compatible System Components

• Bently Nevada 3300 XL Proximitor sensors
• 3300 XL extension cables
• 3300 / 3500 monitoring systems
• Junction boxes and termination modules
• Industrial vibration monitoring systems

Recommended Alternative Models

Key Advantages

• High-precision shaft vibration measurement
• Stable performance in industrial environments
• Proven eddy-current sensing technology
• Compatible with API 670 systems
• Reliable long-term operation
• Supports predictive maintenance strategies

Technical FAQs

Q1: What does this probe measure?
It measures shaft vibration and radial displacement in rotating machinery.

Q2: Is it a standalone device?
No, it must be used with a Proximitor sensor and extension cable system.

Q3: Why is system configuration important?
Because probe, cable, and Proximitor must be matched for accurate calibration and signal output.

Q4: Where is it commonly used?
In turbines, compressors, pumps, generators, and other industrial rotating equipment.

Conclusion

The Bently Nevada 330104-02-15-10-01-00 3300 XL 8 mm Proximity Probe is a reliable eddy-current sensor designed for 1-meter system configurations. It provides accurate vibration and displacement monitoring, supporting machine protection and predictive maintenance in critical industrial environments.
