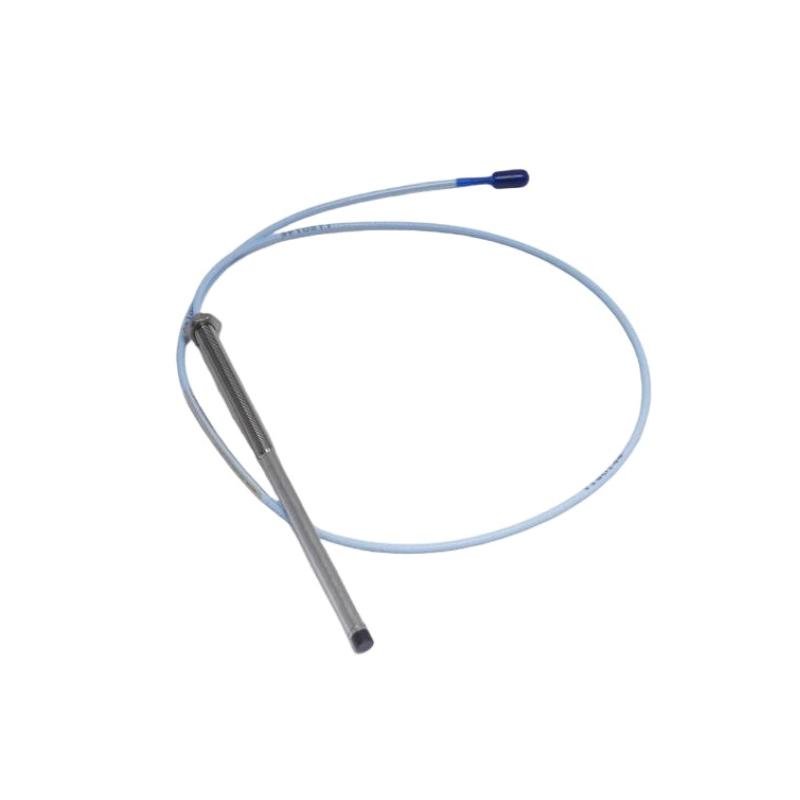

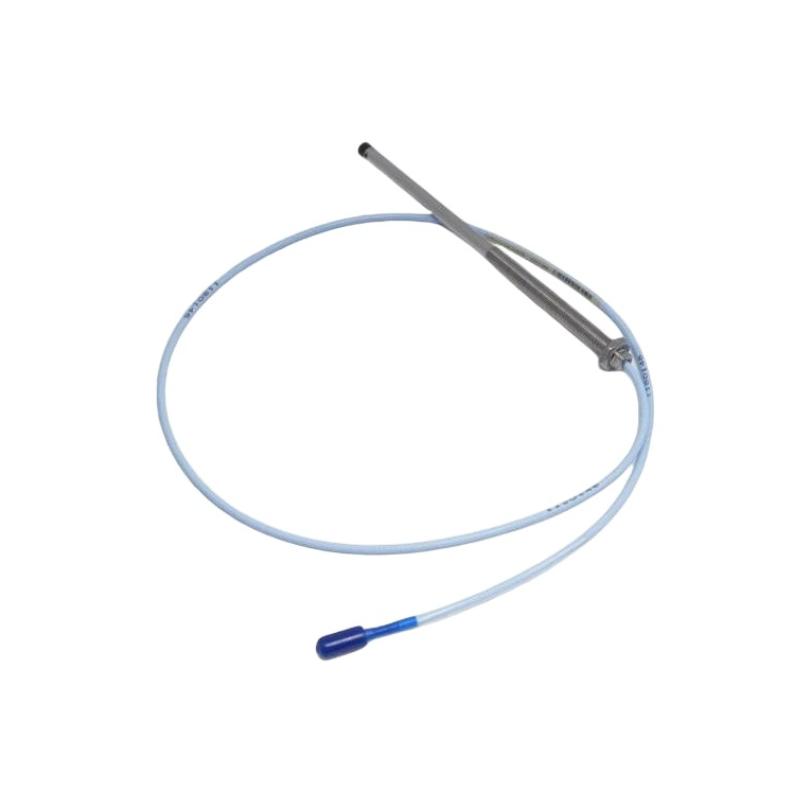

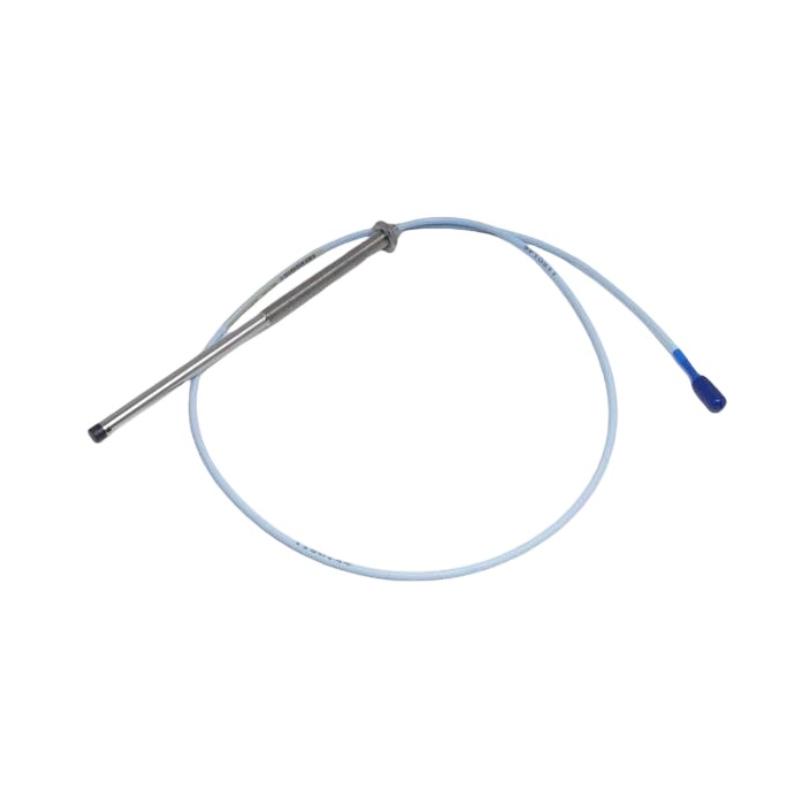

Bently Nevada 330104‑00‑10‑05‑02‑05
In‑Depth Product Overview (3300 XL 8 mm Proximity Probe Series)
1. Product Introduction
The 330104‑00‑10‑05‑02‑05 is a precision engineering proximity probe intended for industrial condition monitoring of rotating machinery. It belongs to the 3300 XL 8 mm proximity probe series, a family of non‑contact sensors designed to reliably measure vibration and shaft displacement in a wide range of heavy‑duty applications.
This device uses eddy current technology to sense the distance between its probe tip and a conductive surface, such as a machine shaft. The motion of the shaft causes changes in the electromagnetic field at the probe tip, which are translated into a stable electrical signal. This signal is then used by monitoring systems to analyze machine health, detect early fault conditions, and trigger alarms or protection actions when thresholds are exceeded.
The specific configuration of this model includes a standard 5‑meter cable and industrial connector assembly, identified in the model code as “05” at the end. The “10” section of the model code also indicates an optimized internal calibration and frequency response suitable for typical industrial installations.
Engineered for harsh environments, the 330104‑00‑10‑05‑02‑05 is built to endure mechanical vibration, moisture, dust, and wide temperature ranges without degradation in performance.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330104‑00‑10‑05‑02‑05 |
| Series | 3300 XL 8 mm |
| Sensing Principle | Eddy current (non‑contact) |
| Probe Diameter | 8 mm |
| Measurement Range | 0–5 mm |
| Sensitivity | Approx. 7.87 V/mm |
| Linear Range | ±2 mm |
| Frequency Response | 0–10 kHz |
| Typical Accuracy | ±0.1 % of full scale |
| Operating Temperature | ‑40 °C to +85 °C |
| Storage Temperature | ‑50 °C to +100 °C |
| Cable Length | 5 m |
| Connector Type | Industrial coaxial assembly |
| Mounting Thread | M10 × 1 |
| Probe Tip Material | Stainless steel |
| Housing Material | Stainless steel |
| Protection Rating | IP67 |
| Dimensions (Approx.) | 150 × 100 × 20 mm |
| Weight | approx. 0.75 kg ( ) |
3. Product Applications
The 330104‑00‑10‑05‑02‑05 proximity probe is intended for use in industrial machinery where real‑time vibration and displacement monitoring is essential for maintaining machine reliability and preventing unplanned outages.
Primary industrial applications include:
• Large steam and gas turbines used in power generation
• Centrifugal compressors in process plants
• Industrial pumps in water, oil, and chemical industries
• Electric motors and alternators
• Gearboxes and high‑speed shafts
Functional uses:
• Radial vibration measurement for imbalance detection
• Shaft axial displacement and clearance monitoring
• Rotor position tracking for dynamic analysis
• Indication of misalignment, looseness, or resonance conditions
• Input for machine protection trip actions
This proximity probe is often integrated with condition monitoring systems, allowing engineers to establish trend data, alarm thresholds, and automated protective actions.
4. Product Advantages
Stable and Accurate Measurement:
The probe delivers precise and repeatable analog signals, enabling reliable condition assessment.
Non‑Contact Operation:
Non‑contact sensing avoids mechanical wear and extends service life.
Industrial‑Grade Construction:
Robust stainless steel tip and housing withstand harsh industrial conditions including vibration, dust, moisture, and thermal cycling.
Flexible Installation:
Standard 5 m cable length provides flexibility in probe placement relative to monitoring hardware without significant signal degradation.
Environmental Resilience:
Designed to maintain performance under a broad temperature range and in environments with oil mist and airborne contaminants.
Wide Compatibility:
Integrates seamlessly with 3300 XL series machinery health monitoring and protection systems.
5. Brand & Series
• Brand: Bently Nevada
• Series: 3300 XL Series
• Product Category: Proximity Probe / Eddy Current Sensor
The 3300 XL series is widely recognized in industrial applications for delivering reliable, high‑accuracy condition monitoring data that supports predictive maintenance and protection schemes for rotating machinery.
6. Recommended Models (Same Series / Related)
| Model | Description | Key Parameters |
|---|---|---|
| 330104‑00‑08‑50‑02‑05 | Standard 8 mm probe | Range: 8 mm; Cable: 5 m; Weight: 0.65 kg ( ); Dimensions: 150×100×20 mm |
| 330104‑00‑09‑10‑02‑05 | Extended range probe | Range: 10 mm; Cable: 5 m; Weight: 0.75 kg ( ); Dimensions: 150×100×20 mm |
| 330104‑00‑09‑15‑01‑00 | High clearance version | Range: 15 mm; Cable: 1 m; Weight: 0.7 kg ( ); Dimensions: 150×100×20 mm |
| 330104‑01‑08‑15‑02‑05 | Extended cable version | Range: 8 mm; Cable: 8 m; Weight: 0.7 kg ( ); Dimensions: 150×100×20 mm |
| 330104‑00‑08‑90‑02‑05 | Long cable variant | Range: 8 mm; Cable: 9 m; Weight: 0.75 kg ( ); Dimensions: 150×100×20 mm |
7. Recommended Popular Models (Same Brand)
| Model | Type | Key Parameters |
|---|---|---|
| 330103‑00‑05‑10‑02‑00 | 5 mm proximity probe | Range: 5 mm; Temp: ‑40 °C to +85 °C; Weight: 0.5 kg ( ); Dimensions: 140×90×20 mm |
| 330104‑00‑07‑10‑01‑05 | Standard 8 mm probe | Range: 8 mm; Cable: 5 m; Weight: 0.55 kg ( ); Dimensions: 150×100×20 mm |
| 330105‑02‑12‑10‑02‑00 | Large gap probe | Range: 12 mm; Temp: ‑40 °C to +100 °C; Weight: 0.7 kg ( ); Dimensions: 150×100×20 mm |
| 330130‑040‑02‑00 | Extension cable | Length: 4 m; Temp: ‑40 °C to +85 °C; Weight: 0.4 kg ( ); Cross‑section: compact cable |
| 330180‑90‑00 | Signal proximitor sensor | Analog output: 4–20 mA; Temp: ‑40 °C to +85 °C; Weight: 0.8 kg ( ); Size: 180×120×60 mm |
8. FAQ (Q&A Format)
Q1: What is the primary function of this proximity probe?
A: It measures vibration and shaft displacement without physical contact.
Q2: What does the “10” in the model number indicate?
A: It signifies an industrial calibration and configuration optimized for general machinery monitoring.
Q3: What is the measurement range of this probe?
A: It measures displacement up to 5 mm from the probe tip.
Q4: Can this probe operate in harsh environments?
A: Yes, it is designed to withstand vibration, high temperatures, oil mist, and contaminants.
Q5: Does the sensor need to touch the shaft?
A: No, it uses eddy current technology and functions without contact.
Q6: What types of machinery can use this probe?
A: Steam turbines, compressors, pumps, generators, and gearboxes commonly use this probe.
Q7: How is the proximity probe installed?
A: It is mounted near the shaft with a controlled gap to ensure accurate measurements.
Q8: What maintenance is needed?
A: Minimal maintenance is required, primarily periodic inspection and calibration.
Q9: What is the expected service life?
A: With proper installation and usage, it offers long‑term reliable operation.
Q10: Is it compatible with monitoring systems?
A: Yes, it integrates with 3300 XL series condition monitoring and protection systems.
