Product Overview

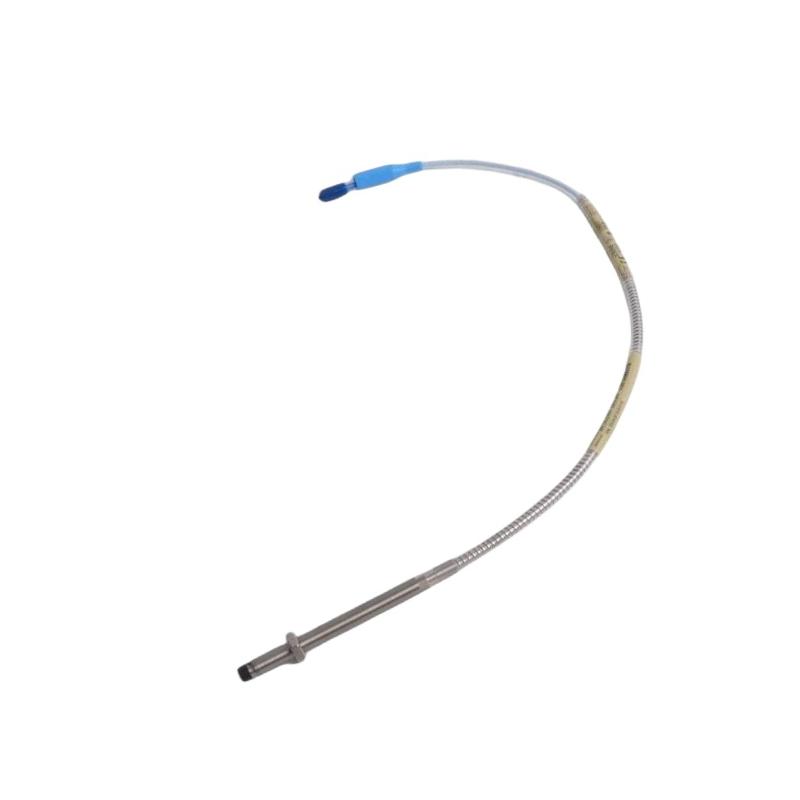

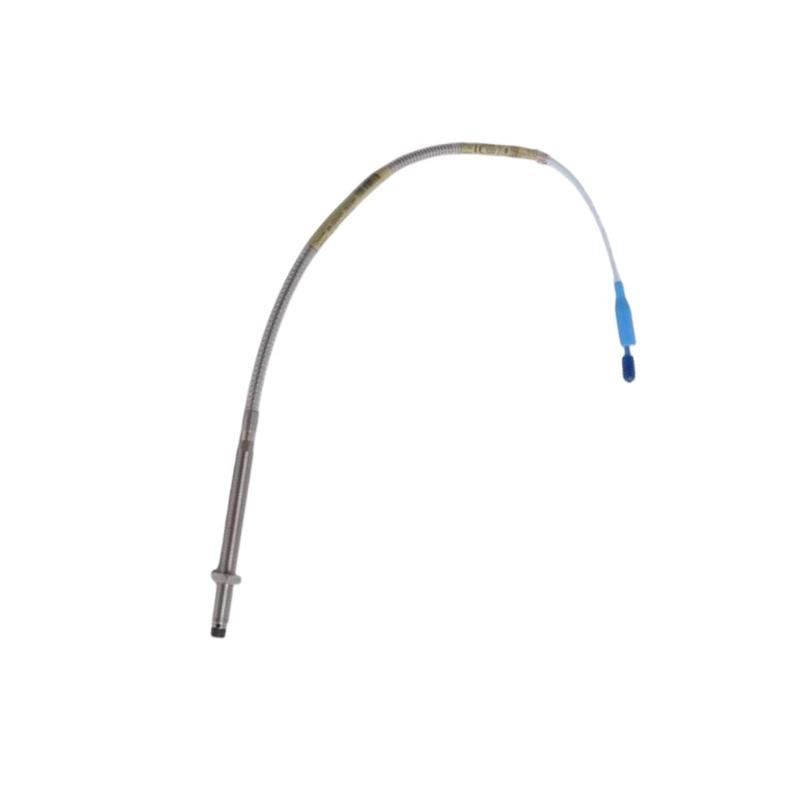

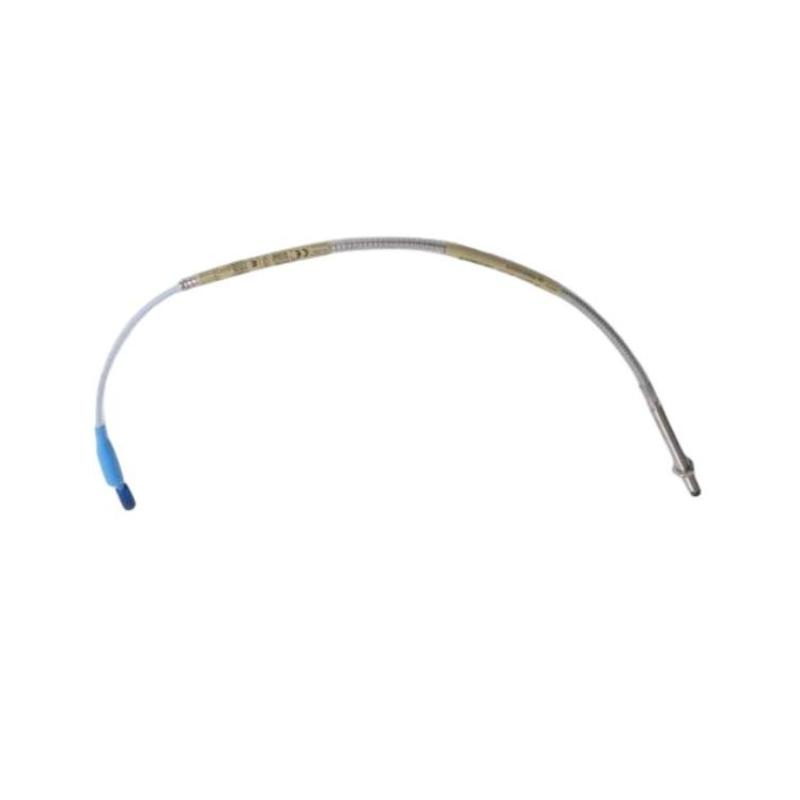

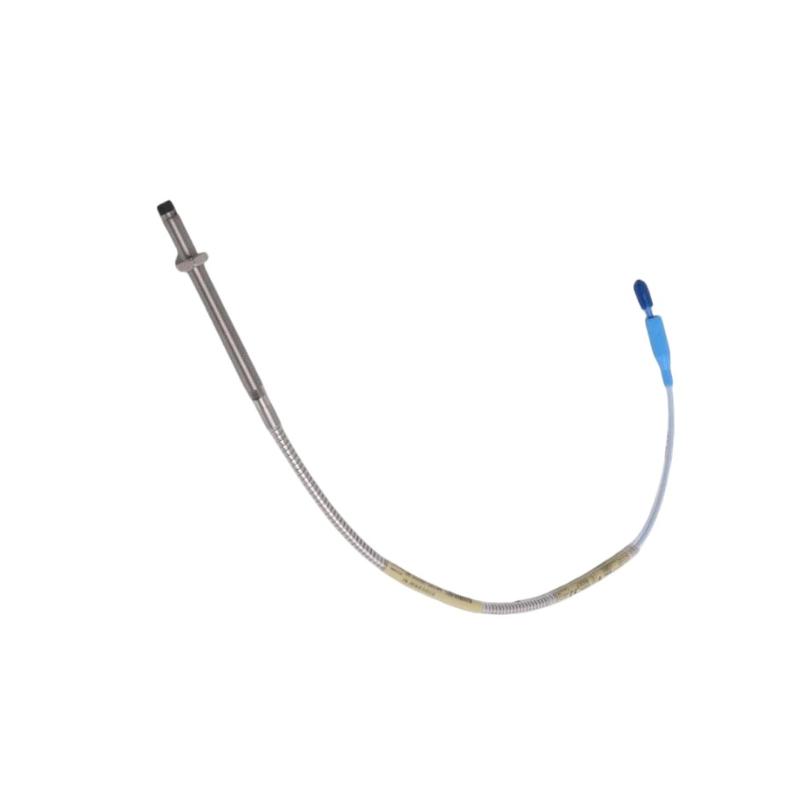

The Bently Nevada 330104-00-10-05-01-05 is a 3300 XL 8 mm eddy-current proximity probe used for shaft vibration and radial displacement measurement in rotating machinery.

It is part of the Bently Nevada 3300 XL proximity transducer system, commonly applied in turbines, compressors, pumps, and generators for continuous condition monitoring and machine protection.

This configuration is a 0.5-meter system length probe assembly, suitable for compact installations with short routing requirements between the probe and signal conditioning equipment.

Technical Specifications

Function and Working Principle

The probe operates using the eddy-current principle, where electromagnetic induction is used to measure the distance between the probe tip and a conductive rotating shaft.

Operating Principle

1. Probe generates a high-frequency electromagnetic field
2. Eddy currents are induced in the shaft surface
3. Distance variation modifies signal response
4. Output voltage represents displacement and vibration

$x\propto V$

Where displacement (x) is proportional to the output voltage (V).

Key Functions

• Measures shaft vibration and radial displacement
• Provides continuous machinery health monitoring
• Detects early mechanical faults such as:
  • Imbalance
  • Misalignment
  • Bearing wear
  • Shaft instability
• Supports machine protection and automatic shutdown systems

System Role

This probe is part of a complete 3300 XL proximity measurement chain:

• Proximity probe (sensor head)
• Extension cable
• Proximitor sensor (signal conditioning module)

Together, they form a calibrated system used for:

• Vibration monitoring
• Shaft position measurement
• Machinery protection inputs

Industrial Applications

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Generators
• Industrial fans
• Petrochemical rotating machinery
• Power generation systems

Installation Guidelines

• Installed close to rotating shaft surface
• Requires precise air-gap calibration
• Must maintain rigid mechanical alignment
• Short routing (0.5 m) reduces EMI exposure but still requires shielding
• Proper grounding is essential
• Must be calibrated as part of complete system configuration

⚠️ Incorrect installation or mismatched system components may lead to inaccurate vibration readings.

Compatible System Components

• Bently Nevada 3300 XL Proximitor sensors
• 3300 XL extension cables
• 3300 / 3500 monitoring systems
• Junction boxes and termination modules
• Industrial condition monitoring systems

Recommended Alternative Models

Key Advantages

• High-precision vibration and displacement measurement
• Compact system design (0.5 m configuration)
• Stable eddy-current sensing performance
• Compatible with API 670 systems
• Reliable long-term operation
• Supports predictive maintenance strategies

Technical FAQs

Q1: What does this probe measure?
It measures shaft vibration and radial displacement in rotating machinery.

Q2: Is it a standalone device?
No, it must be used with a Proximitor sensor and extension cable system.

Q3: Why is calibration important?
Because the probe must be matched with system components for accurate vibration readings.

Q4: Where is it commonly used?
In turbines, compressors, pumps, and other critical rotating machinery.

Conclusion

The Bently Nevada 330104-00-10-05-01-05 3300 XL 8 mm Proximity Probe is a compact eddy-current sensor designed for reliable vibration monitoring in short-distance installations. It ensures accurate displacement measurement and supports machine protection and predictive maintenance in industrial environments.
