Product Overview

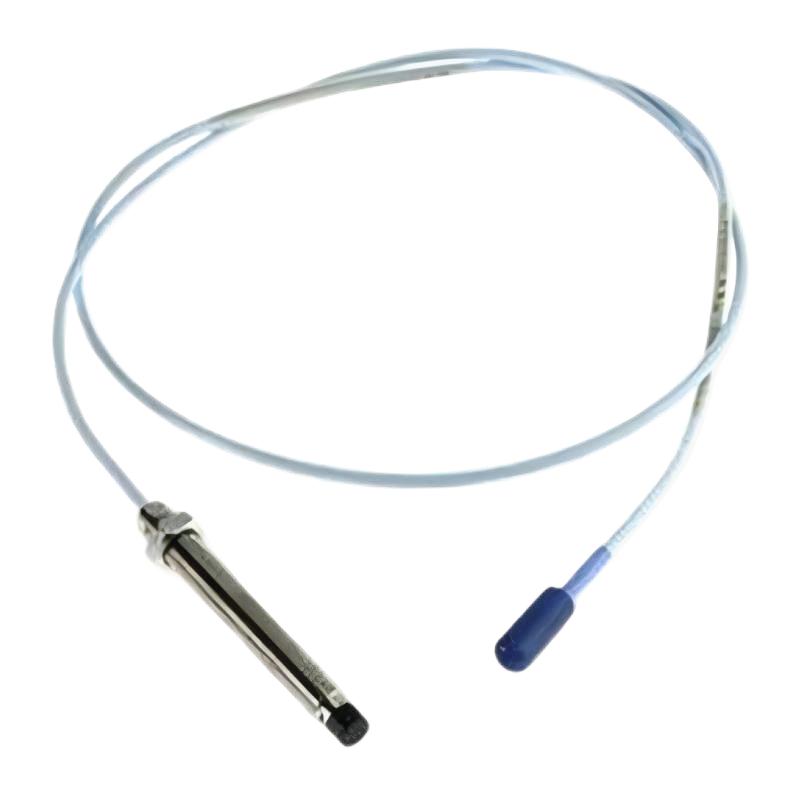

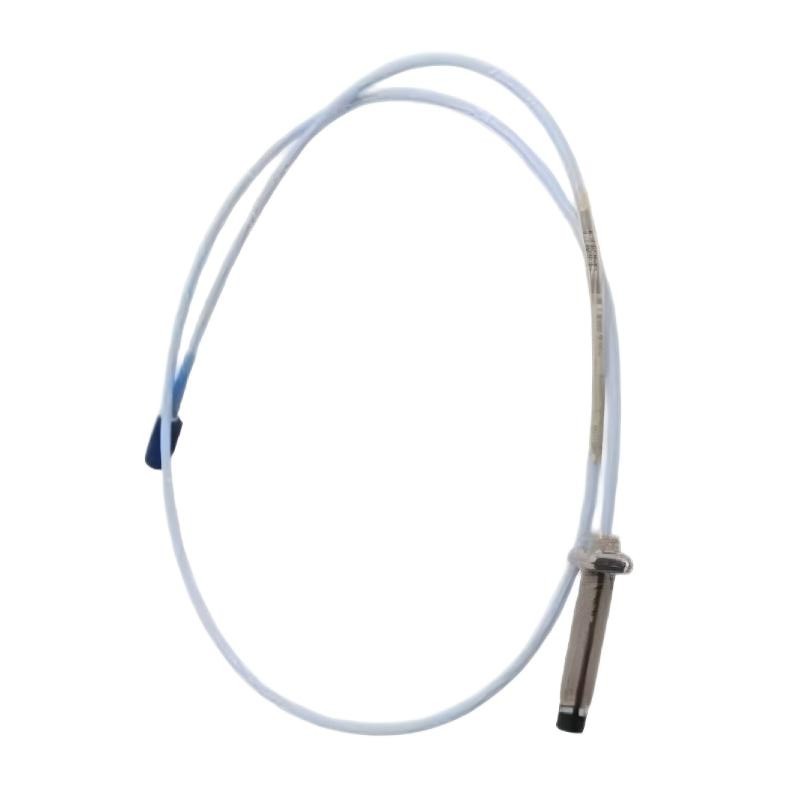

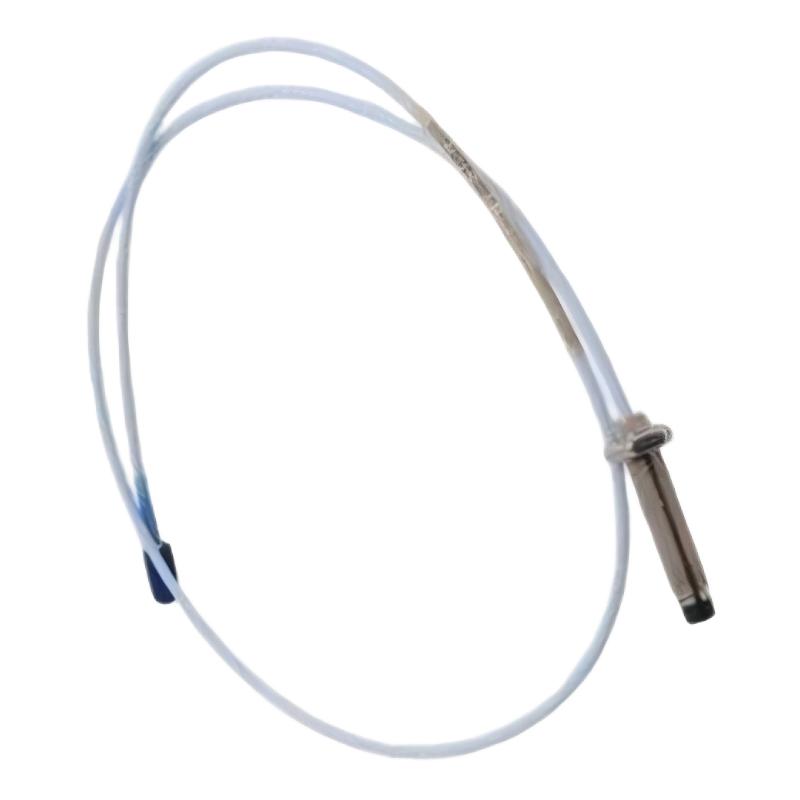

The Bently Nevada 330102-40-12-90-02-05 is a 3300 XL 8 mm eddy-current proximity probe system designed for shaft vibration and displacement measurement in rotating machinery.

It is part of the Bently Nevada 3300 XL proximity transducer family, widely used in turbines, compressors, pumps, and generators for continuous condition monitoring and machine protection.

This configuration supports a 9-meter total system length, intended for large installations where the probe location is far from the signal conditioning equipment.

Technical Specifications

Function and Working Principle

The probe operates using the eddy-current principle, where changes in distance between the probe tip and a conductive target (shaft) are converted into electrical signals.

Operating Principle

1. Probe generates a high-frequency electromagnetic field
2. Eddy currents are induced in the shaft surface
3. Distance variation changes signal response
4. Output voltage represents displacement and vibration

$x\propto V$

Where displacement (x) is proportional to the conditioned output voltage (V).

Key Functions

• Measures shaft vibration and radial displacement
• Provides real-time monitoring of rotating machinery condition
• Detects early mechanical issues such as:
  • Imbalance
  • Misalignment
  • Bearing wear
  • Shaft instability
• Supports machine protection and shutdown systems

System Role

This probe is part of a complete 3300 XL proximity measurement chain:

• Proximity probe (sensor head)
• Extension cable
• Proximitor sensor (signal conditioning module)

Together, they form a calibrated system used for:

• Vibration monitoring
• Shaft position measurement
• Machinery protection inputs

Industrial Applications

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Generators
• Industrial fans
• Petrochemical rotating machinery
• Power generation systems
• Large-scale industrial rotating assets with long cable routing distances

Installation Guidelines

• Installed close to rotating shaft surface
• Requires precise air-gap calibration
• Must maintain rigid mechanical alignment
• Long cable routing (9 m) increases importance of:
  • Proper shielding
  • Grounding integrity
  • EMI protection
• Must be calibrated as part of complete system configuration

⚠️ Longer system lengths increase sensitivity to noise and installation errors, requiring careful commissioning.

Compatible System Components

• Bently Nevada 3300 XL Proximitor sensors
• 3300 XL extension cables (matched calibration required)
• 3300 / 3500 monitoring systems
• Junction boxes and termination modules
• Industrial condition monitoring and protection systems

Recommended Alternative Models

Key Advantages

• High-accuracy vibration and displacement measurement
• Suitable for long-distance installations (9 m system length)
• Proven eddy-current sensing technology
• Compatible with API 670 monitoring systems
• Reliable performance in continuous operation
• Supports predictive maintenance strategies in large industrial assets

Technical FAQs

Q1: What does this probe measure?
It measures shaft vibration and radial displacement in rotating machinery.

Q2: Why is system length important?
Because probe, cable, and Proximitor must be calibrated together, especially for long distances like 9 meters.

Q3: Is it a standalone device?
No, it must be used with a Proximitor sensor and extension cable system.

Q4: Where is it typically used?
Large turbines, compressors, generators, and heavy industrial rotating equipment.

Conclusion

The Bently Nevada 330102-40-12-90-02-05 3300 XL 8 mm Proximity Probe is a long-distance (9-meter) eddy-current sensing solution designed for reliable vibration and displacement monitoring in large-scale industrial systems. It ensures accurate machine protection and supports predictive maintenance in critical rotating equipment.
