Product Overview

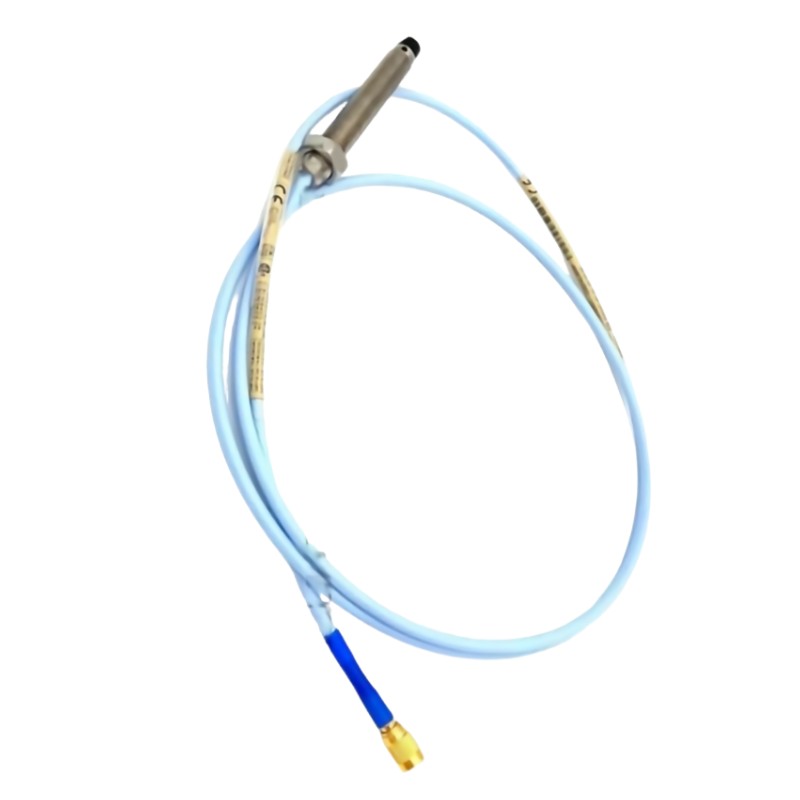

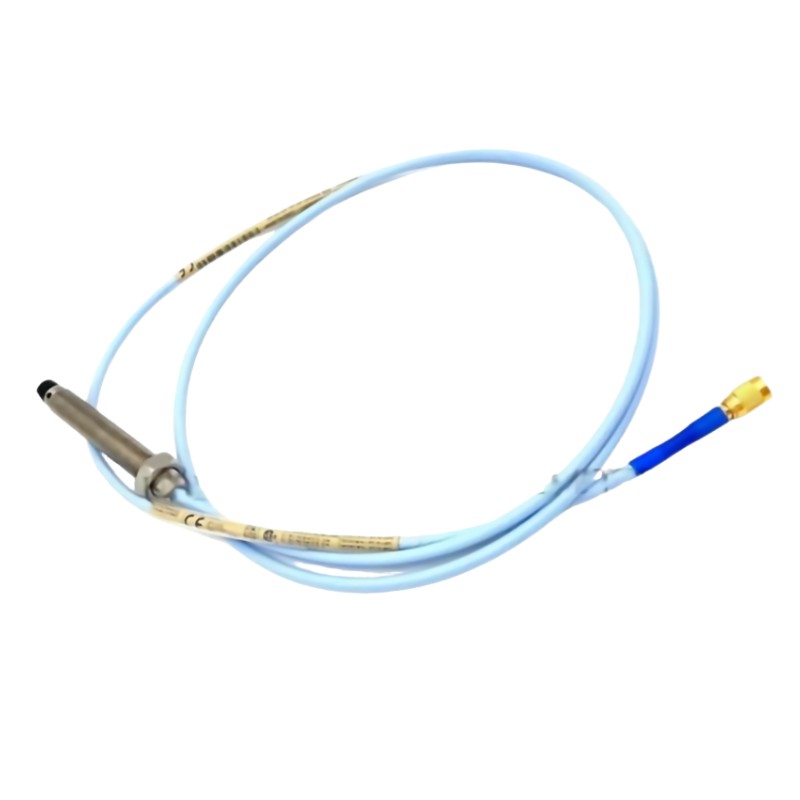

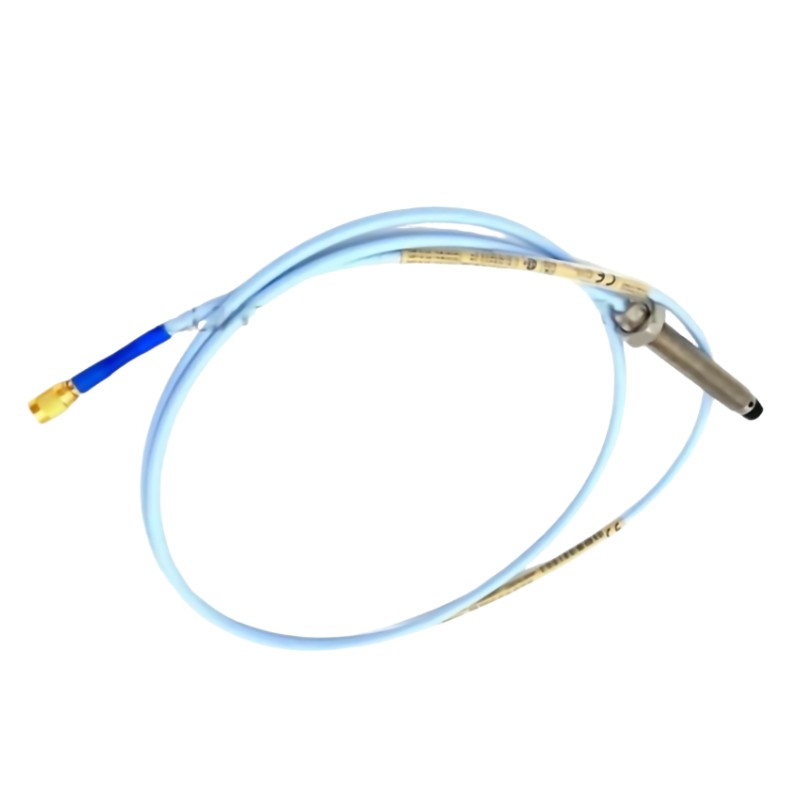

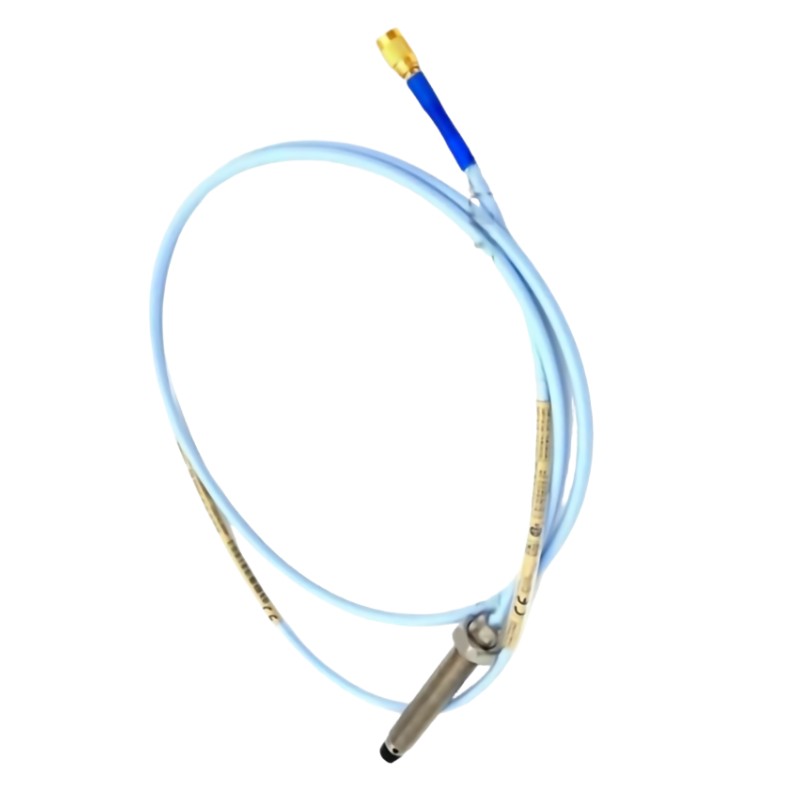

The Bently Nevada 330101-08-20-10-02-00 is a 3300 XL 8 mm eddy-current proximity probe used in vibration and shaft displacement monitoring systems for rotating machinery.

It is part of the Bently Nevada 3300 XL proximity transducer system, designed for continuous condition monitoring and machine protection in turbines, compressors, pumps, and other critical industrial assets.

Technical Specifications

Function and Working Principle

The probe operates using the eddy-current principle, where changes in distance between the probe tip and a conductive target (shaft) are converted into electrical signals.

Operating Principle

1. Probe generates a high-frequency electromagnetic field
2. Eddy currents are induced in the shaft surface
3. Distance changes affect signal strength
4. Output voltage represents displacement/vibration

$x\propto V$

Where displacement (x) is proportional to the conditioned output voltage (V).

Key Functions

• Measures shaft vibration and radial displacement
• Provides real-time condition monitoring of rotating machinery
• Detects early mechanical issues such as:
  • Imbalance
  • Misalignment
  • Bearing wear
  • Shaft instability
• Supports machine protection and shutdown systems

System Role

This probe is part of a complete 3300 XL proximity measurement chain:

• Proximity probe (sensor head)
• Extension cable
• Proximitor sensor (signal conditioning module)

Together, they form a calibrated system used for:

• Vibration monitoring
• Shaft position measurement
• Machinery protection inputs

Industrial Applications

• Steam turbines
• Gas turbines
• Compressors
• Pumps
• Generators
• Industrial fans
• Petrochemical rotating machinery
• Power generation systems

Installation Guidelines

• Mounted close to rotating shaft surface
• Requires precise air-gap calibration
• Must maintain rigid mechanical alignment
• Cable routing should avoid EMI sources
• Proper shielding and grounding required
• Must be calibrated as part of complete system configuration

⚠️ Incorrect installation or mismatched system components can lead to inaccurate readings.

Compatible System Components

• Bently Nevada 3300 XL Proximitor sensors
• 3300 XL extension cables
• 3300 / 3500 monitoring systems
• Junction boxes and termination modules
• Condition monitoring and protection systems

Recommended Alternative Models

Key Advantages

• High-accuracy shaft vibration measurement
• Stable performance in harsh industrial environments
• Proven eddy-current sensing technology
• Compatible with API 670 monitoring systems
• Reliable long-term operation
• Supports predictive maintenance strategies

Technical FAQs

Q1: What does this probe measure?
It measures shaft vibration and radial displacement.

Q2: Is it a standalone device?
No, it requires a Proximitor sensor and extension cable.

Q3: Why is system configuration important?
Because probe, cable, and Proximitor must be matched for correct calibration.

Q4: What industries use it?
Power generation, oil & gas, petrochemical, and heavy rotating machinery industries.

Conclusion

The Bently Nevada 330101-08-20-10-02-00 3300 XL 8 mm Proximity Probe is a precision eddy-current sensor used for critical machinery monitoring. It delivers accurate shaft vibration and displacement data, supporting safe operation, early fault detection, and predictive maintenance in industrial rotating equipment.
