- Bently Nevada
- 330101-02-24-10-02-05
- 3300 XL 8 mm Proximity Probe
- USA
- 1 meter
- 0.323 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 16
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

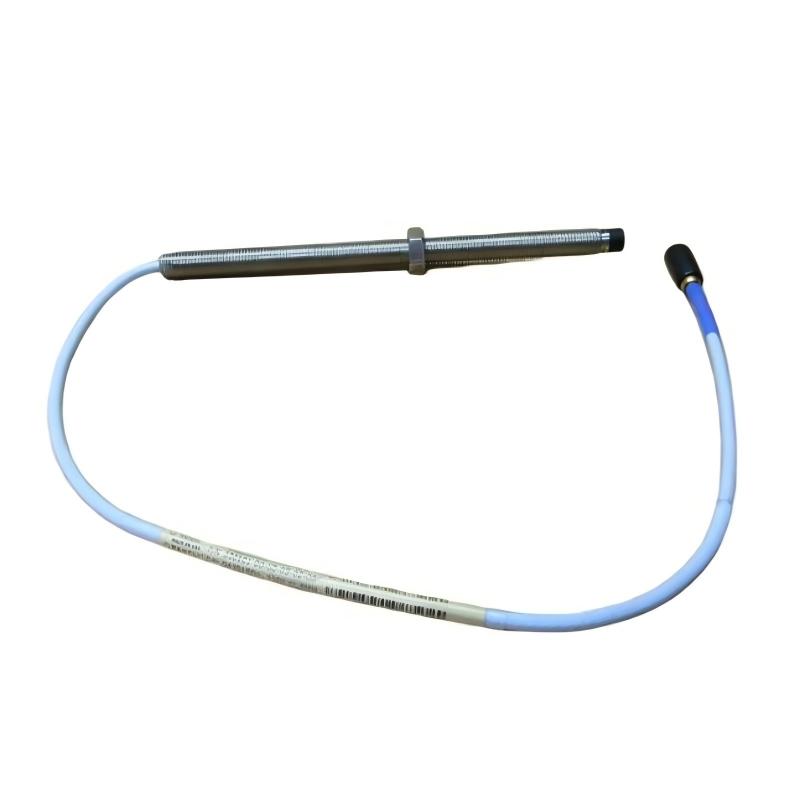

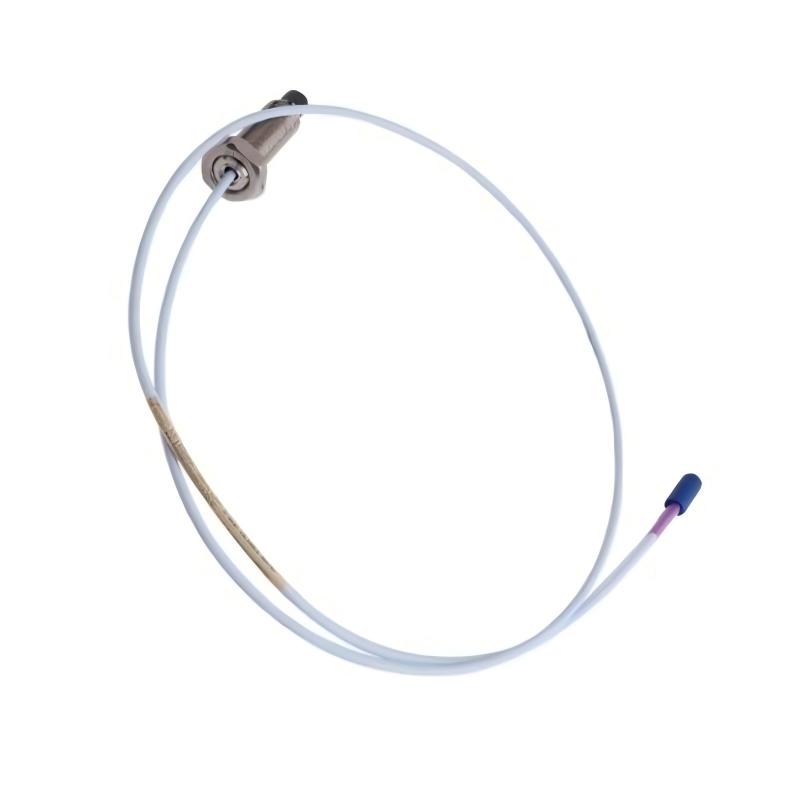

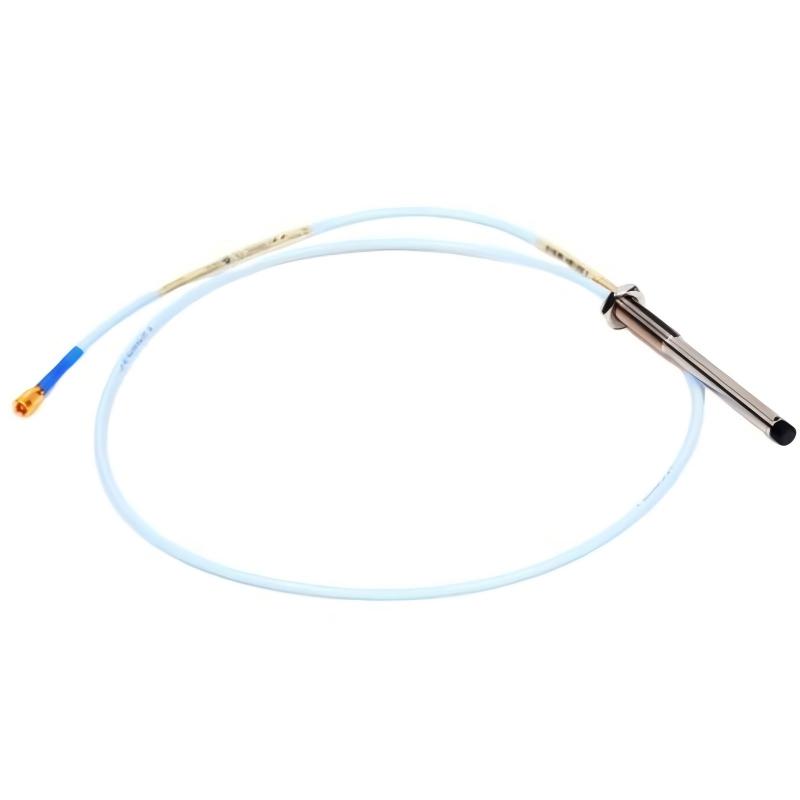

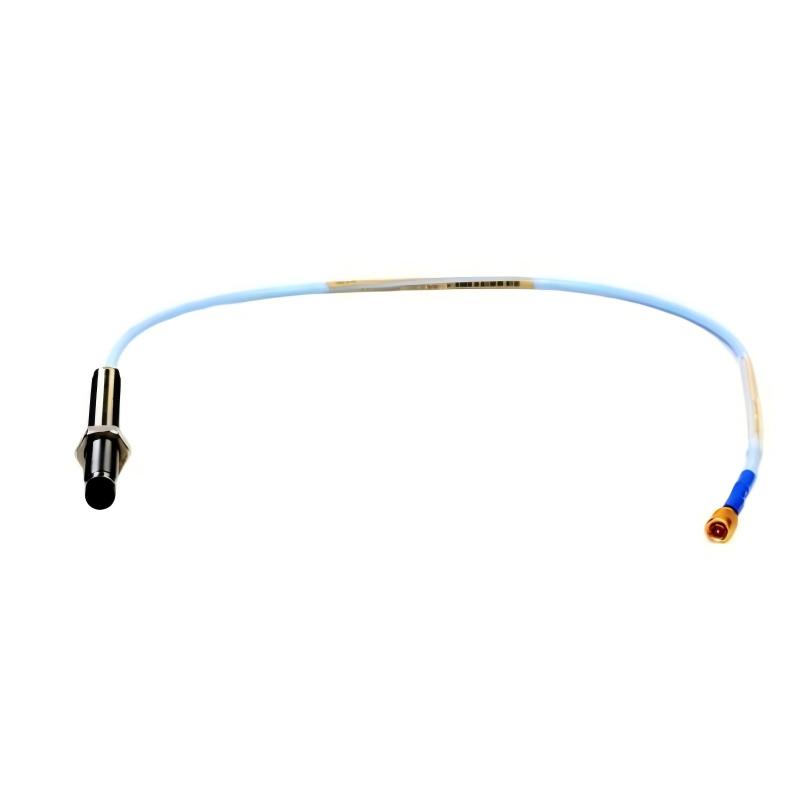

The Bently Nevada 330101-02-24-10-02-05 3300 XL 8 mm Proximity Probe is a precision non-contact sensor developed for machinery protection, vibration monitoring, and condition-based maintenance applications. As part of the trusted 3300 XL 8 mm Proximity Transducer System, this probe is designed to accurately monitor shaft vibration, shaft position, runout, and displacement in critical rotating machinery.
With a 1-meter total length, the probe offers an excellent balance between installation flexibility and signal stability, making it suitable for a wide variety of industrial monitoring systems. Its rugged industrial construction ensures dependable operation in demanding environments where continuous machine monitoring is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-02-24-10-02-05 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Total Length | 1 meter |
| Weight | 0.323 kg |
| Measurement Type | Non-contact displacement monitoring |
| Output Signal | Analog displacement signal |
| System Compatibility | 3300 XL Transducer Systems |
| Mounting Method | Threaded installation |
| Application | Shaft vibration and position monitoring |
Function and Working Principle
The 330101-02-24-10-02-05 utilizes advanced eddy current sensing technology to measure the distance between the probe tip and a conductive target surface without physical contact.
The operating process includes:
- Generating a high-frequency electromagnetic field at the sensing tip
- Inducing eddy currents on the shaft or conductive target surface
- Detecting changes in the electromagnetic field caused by target movement
- Converting these variations into proportional electrical signals
- Delivering displacement and vibration data to the monitoring system
This non-contact measurement method provides exceptional accuracy while eliminating sensor wear.
Role in Machinery Protection Systems
The probe serves as a critical sensing component within machinery monitoring and protection systems.
Common monitoring functions include:
- Shaft vibration measurement
- Radial displacement monitoring
- Axial position measurement
- Rotor dynamic analysis
- Shaft runout detection
- Continuous machinery condition monitoring
The data generated by the probe enables maintenance teams to identify developing issues before they result in equipment damage or unplanned downtime.
Industrial Applications
The Bently Nevada 330101-02-24-10-02-05 is widely used in:
- Steam turbines
- Gas turbines
- Industrial compressors
- Centrifugal pumps
- Electric motors
- Generators
- Gearboxes
- Rotating process equipment
Its 1-meter configuration makes it suitable for standard machinery monitoring installations across various industries.
Installation and System Integration
Proper installation is essential for achieving accurate measurements and reliable long-term performance.
Recommended installation practices include:
- Maintaining the correct probe gap during commissioning
- Ensuring rigid and secure probe mounting
- Protecting cable assemblies from excessive vibration and stress
- Using compatible extension cables and Proximitor sensors
- Following calibration procedures specified for the monitoring system
Correct installation helps maximize monitoring accuracy and operational reliability.
Compatible System Components
The 330101-02-24-10-02-05 is typically used together with:
- Bently Nevada 3300 XL Proximitor Sensors
- 3300 XL Extension Cables
- Machinery Protection System Modules
- Vibration Monitoring Systems
- Condition Monitoring Platforms
- Industrial Diagnostic Equipment
These components form a complete machinery protection and condition monitoring solution.
Recommended Alternative Models
| Model | Series | Key Feature | Application |
|---|---|---|---|
| 330101-02-24-10-02-05 | 3300 XL 8 mm | 1-meter configuration | Standard machinery monitoring |
| 330101-00-65-10-02-05 | 3300 XL 8 mm | Standard monitoring version | Rotating equipment protection |
| 330101-00-15-15-02-05 | 3300 XL 8 mm | 1.5-meter configuration | Extended installation distance |
| 330101-00-32-05-01-05 | 3300 XL 8 mm | Compact 0.5-meter design | Space-constrained installations |
| 330103 Series | 3300 XL 8 mm | Alternative probe configuration | Specialized monitoring systems |
Key Advantages
- High-accuracy non-contact measurement
- Proven eddy current sensing technology
- 1-meter configuration for versatile installation
- Excellent long-term measurement stability
- Compatible with complete 3300 XL monitoring systems
- Supports predictive maintenance programs
- Reliable performance in harsh industrial environments
- Helps reduce unexpected machinery failures
Technical FAQs
What is the primary function of the 330101-02-24-10-02-05?
It is designed to measure shaft vibration, displacement, and position in rotating machinery using non-contact eddy current sensing technology.
Can this probe be used independently?
No. It must operate as part of a complete 3300 XL transducer system that includes a Proximitor sensor and extension cable.
What equipment typically uses this probe?
It is commonly installed on turbines, compressors, pumps, motors, generators, and other critical rotating machinery.
Why is non-contact measurement beneficial?
Non-contact sensing eliminates mechanical wear while providing highly accurate and repeatable monitoring over long operating periods.
Conclusion
The Bently Nevada 330101-02-24-10-02-05 3300 XL 8 mm Proximity Probe is a dependable industrial sensor designed for accurate vibration and displacement monitoring in critical rotating equipment. With its 1-meter total length, rugged construction, and advanced eddy current technology, it delivers reliable performance for machinery protection and condition monitoring applications.
As part of the proven 3300 XL monitoring platform, this probe supports predictive maintenance strategies, improves equipment reliability, and helps ensure safe and efficient operation across a wide range of industrial environments.
