Product Overview

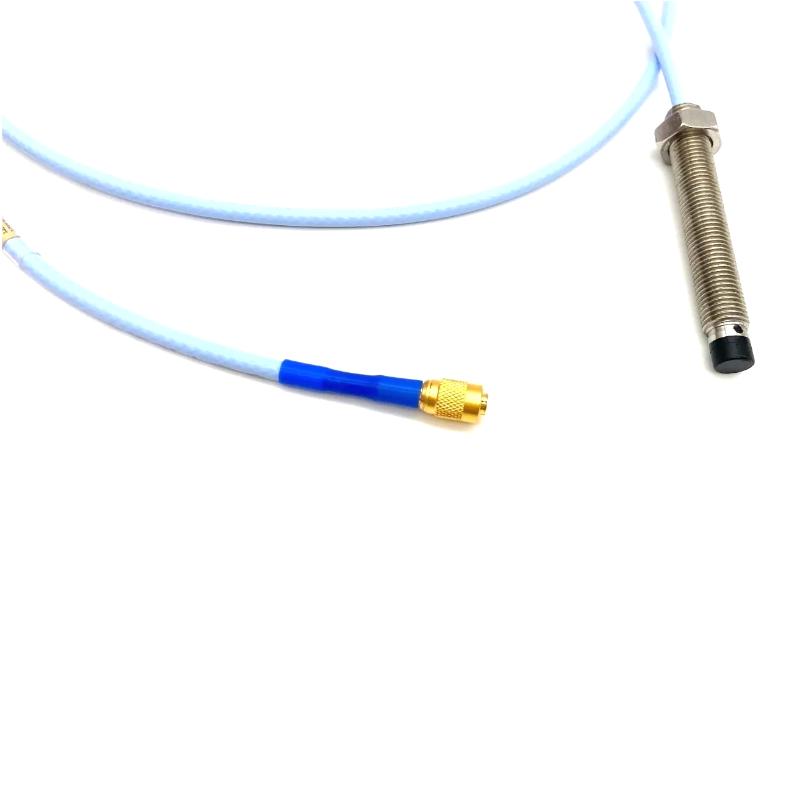

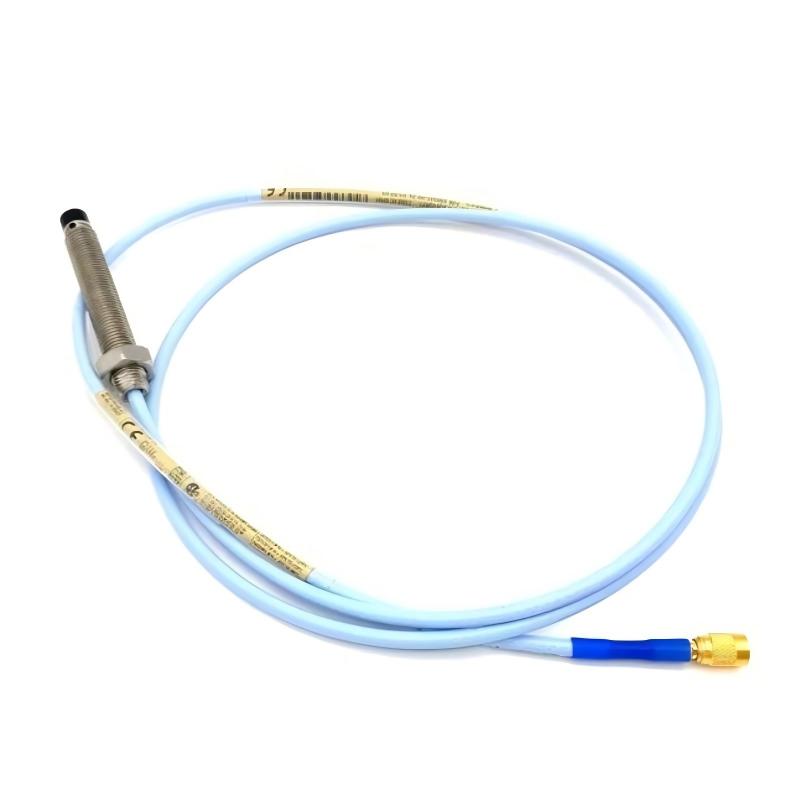

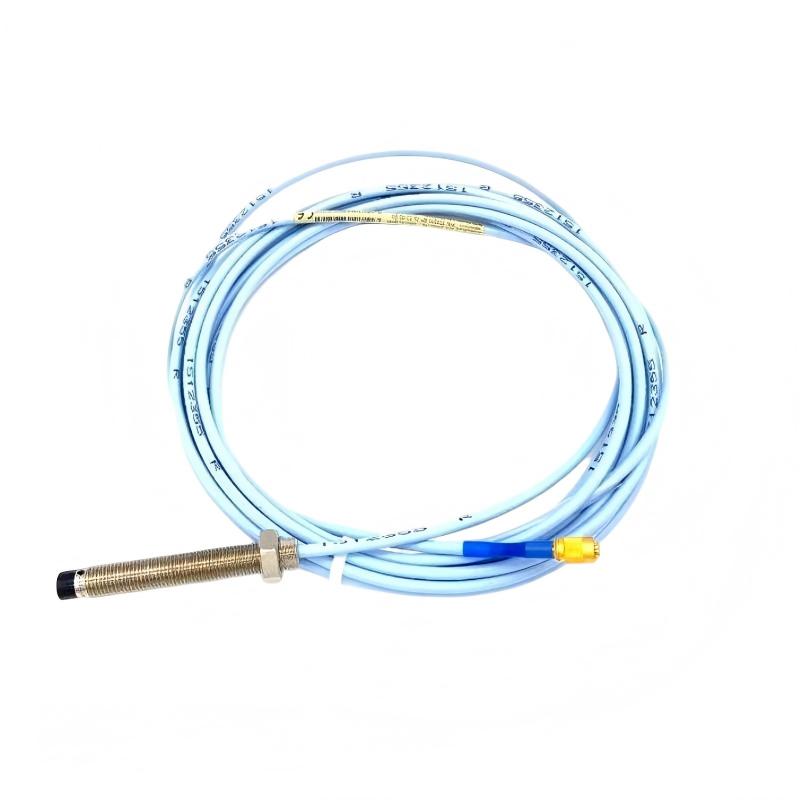

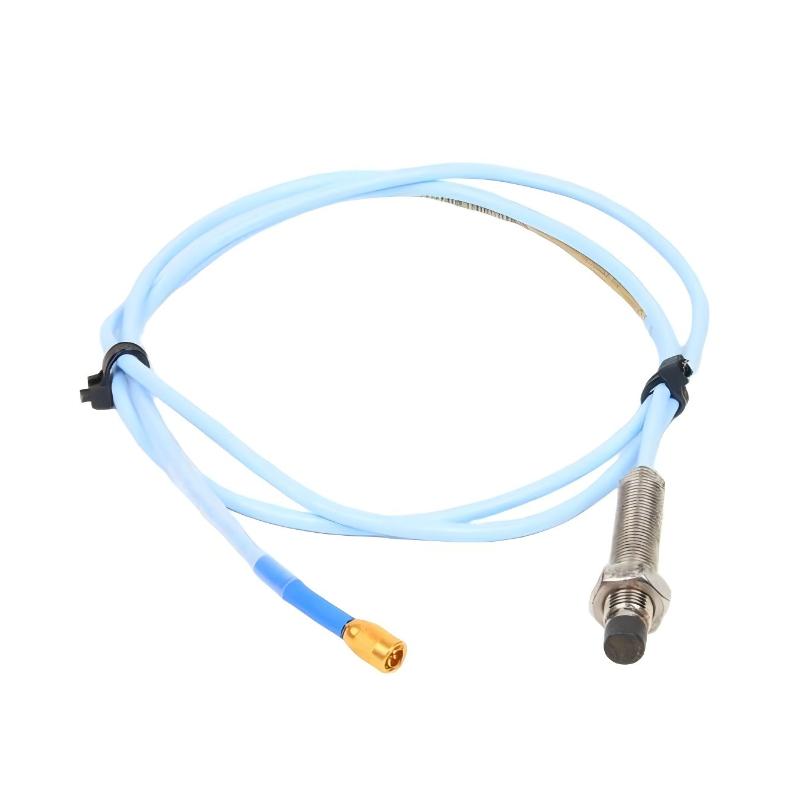

The Bently Nevada 330101-0024-01-0205 3300 XL 8 mm Proximity Probe is a high-precision non-contact sensor designed for continuous machinery condition monitoring and protection applications. As part of the industry-proven 3300 XL 8 mm Transducer System, this probe provides accurate measurements of shaft vibration, shaft position, runout, and displacement in rotating machinery.
Engineered for demanding industrial environments, the probe utilizes advanced eddy current sensing technology to deliver reliable performance in critical equipment monitoring systems. It is widely used in predictive maintenance programs and machinery protection systems across various industrial sectors.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-0024-01-0205 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Total Length | Optional |
| Weight | 0.323 kg |
| Measurement Type | Non-contact displacement monitoring |
| Output Signal | Analog displacement signal |
| System Compatibility | 3300 XL Monitoring Systems |
| Installation Method | Threaded mounting installation |
| Application | Vibration and position monitoring |
Function and Working Principle
The 330101-0024-01-0205 operates using eddy current technology to measure the distance between the probe tip and a conductive target surface without physical contact.
Its operating principle includes:
- Generating a high-frequency electromagnetic field at the probe tip
- Inducing eddy currents on a conductive target surface
- Detecting changes in electromagnetic field strength caused by target movement
- Converting these variations into proportional electrical signals
- Delivering accurate displacement and vibration measurements to the monitoring system
This technology enables highly accurate and repeatable measurements while eliminating mechanical wear.
Role in Machinery Monitoring Systems
The probe serves as a key sensing component within machinery protection and condition monitoring systems.
Common monitoring functions include:
- Radial vibration measurement
- Axial position monitoring
- Shaft displacement detection
- Rotor dynamic analysis
- Runout monitoring
- Continuous machinery condition assessment
The collected data helps maintenance teams identify developing faults before equipment damage occurs.
Industrial Applications
The Bently Nevada 330101-0024-01-0205 is commonly used in:
- Steam turbine monitoring systems
- Gas turbine protection systems
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Generators
- Gearboxes
- Process industry rotating equipment
Its high reliability makes it suitable for mission-critical machinery operating under continuous service conditions.
Installation and System Integration
Proper installation is essential for achieving accurate measurements and reliable system performance.
Recommended installation practices include:
- Maintaining the specified probe gap during commissioning
- Ensuring rigid probe mounting
- Protecting cable assemblies from excessive vibration
- Using compatible extension cables and Proximitor sensors
- Following system calibration procedures
Correct installation improves measurement accuracy and long-term operational stability.
Compatible System Components
The 330101-0024-01-0205 is typically used with:
- Bently Nevada 3300 XL Proximitor Sensors
- 3300 XL Extension Cables
- Machinery Protection System Modules
- Vibration Monitoring Systems
- Condition Monitoring Platforms
- Industrial Diagnostic Equipment
Together, these components create a complete machinery monitoring solution capable of detecting and preventing equipment failures.
Recommended Alternative Models
| Model | Series | Key Feature | Application |
|---|---|---|---|
| 330101-0024-01-0205 | 3300 XL 8 mm | Optional length configuration | Flexible machinery installations |
| 330101-00-15-10-01-00 | 3300 XL 8 mm | 1 meter total length | Standard monitoring systems |
| 330101-00-15-15-02-05 | 3300 XL 8 mm | 1.5 meter total length | Extended installation requirements |
| 330101-00-12-50-01-05 | 3300 XL 8 mm | Long-distance configuration | Remote mounting applications |
| 330103 Series | 3300 XL 8 mm | Alternative probe configuration | Specialized machinery monitoring |
Key Advantages
- High-precision non-contact measurement
- Proven eddy current sensing technology
- Excellent resistance to industrial environmental conditions
- Supports continuous machinery monitoring
- Compatible with complete 3300 XL monitoring systems
- Suitable for critical rotating equipment protection
- Supports predictive maintenance strategies
- Long operational service life
Technical FAQs
What is the primary function of the 330101-0024-01-0205?
It is designed to monitor shaft vibration, displacement, and position in rotating machinery using non-contact eddy current sensing technology.
Can the probe be used independently?
No. It operates as part of a complete 3300 XL transducer system that includes a Proximitor sensor and extension cable.
Why is the total length listed as optional?
This configuration allows flexibility for different machinery layouts and installation requirements.
What types of equipment commonly use this probe?
It is widely used on turbines, compressors, motors, generators, pumps, and other critical rotating assets.
Conclusion
The Bently Nevada 330101-0024-01-0205 3300 XL 8 mm Proximity Probe is a reliable industrial sensing solution designed for accurate vibration and displacement monitoring in critical rotating machinery. Featuring advanced eddy current technology, optional length flexibility, and compatibility with the 3300 XL monitoring platform, it provides dependable performance for machinery protection and condition monitoring applications.
For engineers and maintenance professionals, this probe delivers the accuracy, reliability, and long-term stability required to support predictive maintenance programs and maximize equipment availability.
