Product Overview

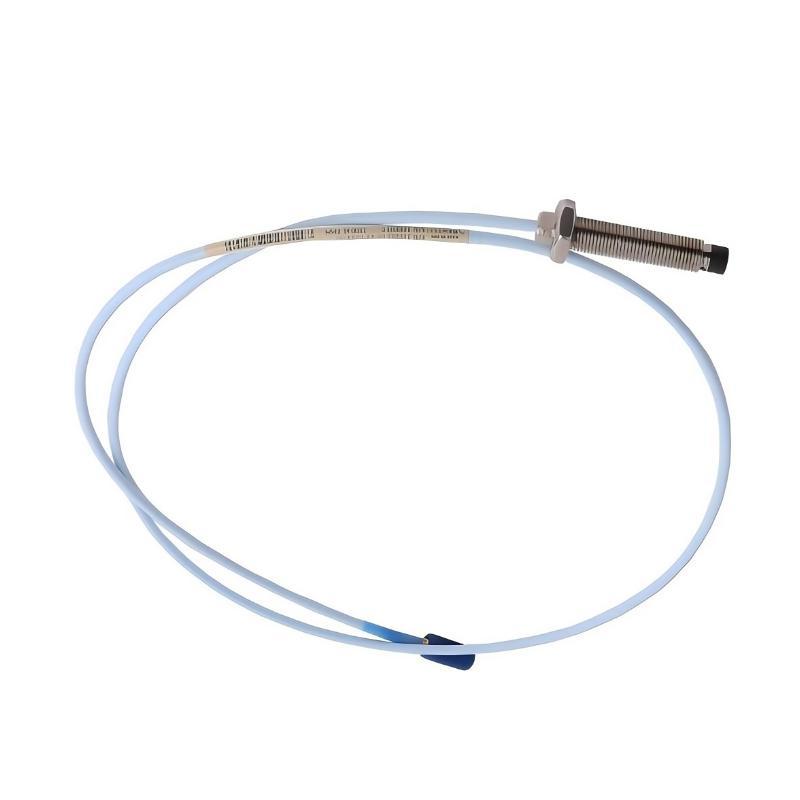

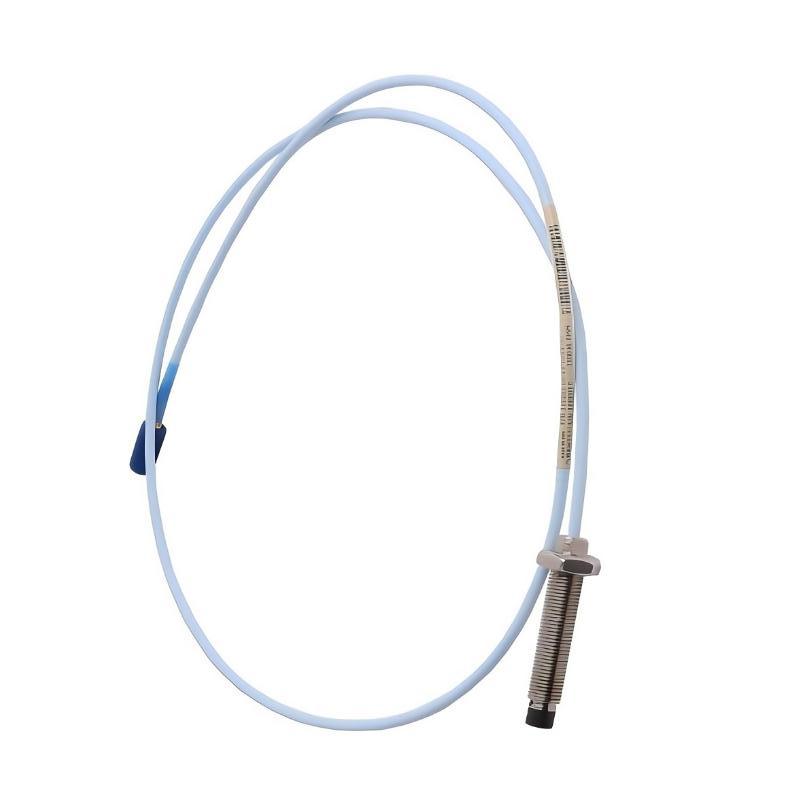

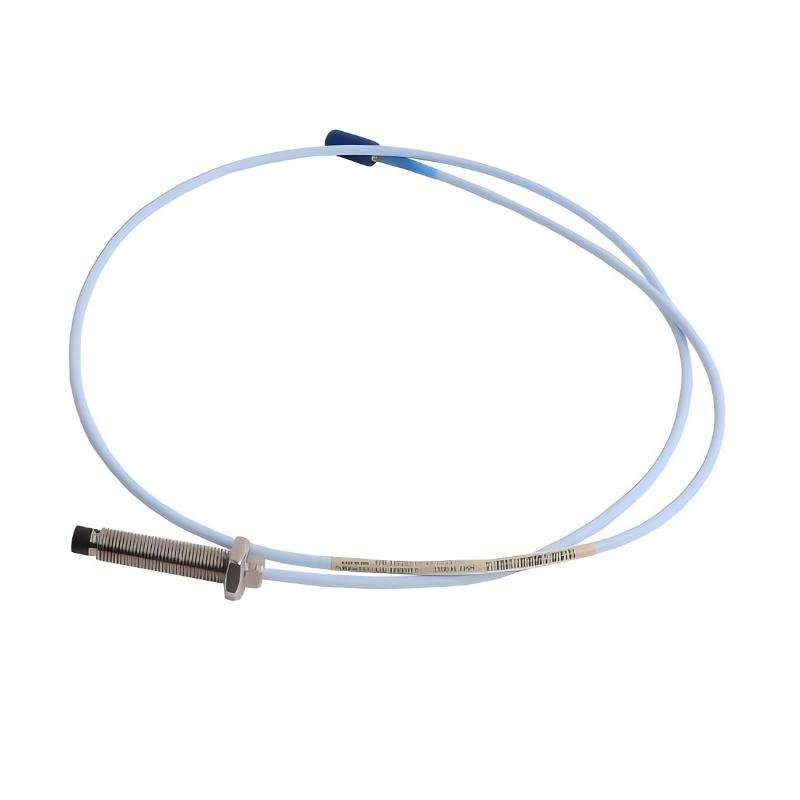

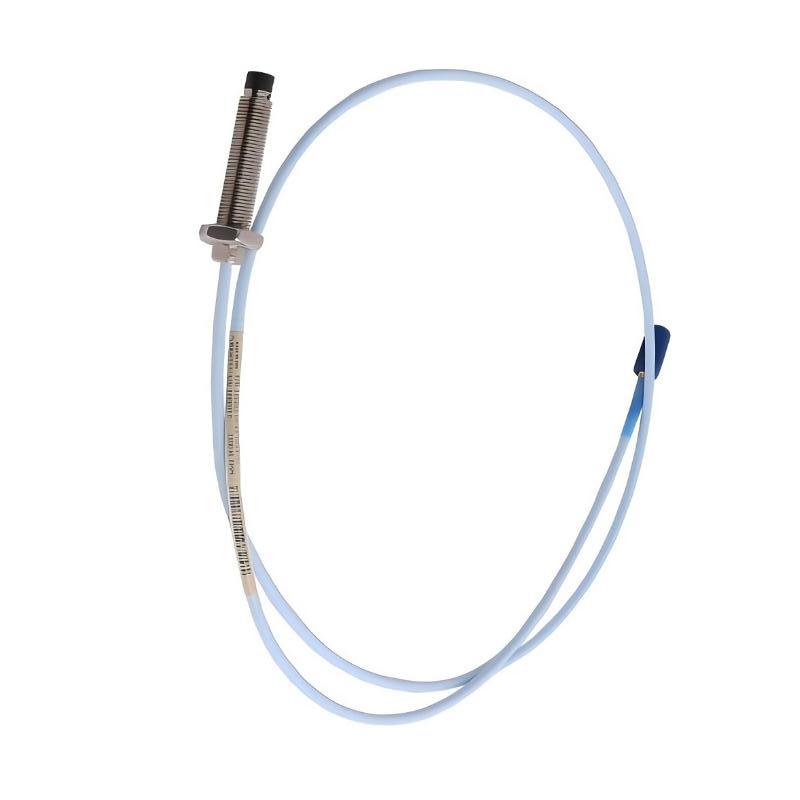

The Bently Nevada 330101-00-32-05-01-05 3300 XL 8 mm Proximity Probe is a high-precision non-contact sensor designed for continuous machinery condition monitoring and protection. As a member of the 3300 XL 8 mm Proximity Transducer System, this probe provides accurate measurements of shaft vibration, shaft position, runout, and dynamic displacement in critical rotating equipment.
With a compact 0.5-meter total length, this model is particularly suitable for installations where space is limited and short cable routing is required. Its robust industrial design ensures reliable operation in demanding environments, making it a preferred choice for machinery protection systems worldwide.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-32-05-01-05 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Technology | Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Total Length | 0.5 meters |
| Weight | 0.162 kg |
| Measurement Type | Non-contact displacement monitoring |
| Output Signal | Analog displacement signal |
| System Compatibility | 3300 XL Transducer Systems |
| Installation Method | Threaded mounting installation |
| Application | Vibration and shaft position monitoring |
Function and Working Principle
The 330101-00-32-05-01-05 utilizes eddy current sensing technology to measure the distance between the probe tip and a conductive target surface without physical contact.
The operating process includes:
- Generating a high-frequency electromagnetic field from the probe tip
- Creating eddy currents on the target shaft surface
- Detecting variations in the electromagnetic field caused by shaft movement
- Converting these variations into electrical output signals
- Delivering displacement and vibration information to the monitoring system
This non-contact measurement method provides excellent accuracy while eliminating mechanical wear.
Role in Machinery Protection Systems
The probe functions as a critical sensing element within machinery condition monitoring and protection systems.
Typical monitoring functions include:
- Shaft vibration measurement
- Radial displacement monitoring
- Axial position detection
- Rotor dynamic analysis
- Runout monitoring
- Continuous machine health assessment
The generated data enables operators to identify potential mechanical issues before equipment failure occurs.
Industrial Applications
The Bently Nevada 330101-00-32-05-01-05 is commonly used in:
- Steam turbines
- Gas turbines
- Industrial compressors
- Centrifugal pumps
- Electric motors
- Generators
- Gearboxes
- Rotating process equipment
Its compact configuration makes it particularly suitable for installations with limited mounting space.
Installation and System Integration
For maximum measurement accuracy, proper installation practices should be followed.
Recommended installation procedures include:
- Maintaining the correct probe gap during commissioning
- Securing the probe to a rigid mounting surface
- Protecting cables from excessive vibration and mechanical stress
- Using compatible extension cables and Proximitor sensors
- Performing system calibration according to monitoring requirements
Proper installation helps ensure long-term stability and reliable monitoring performance.
Compatible System Components
The 330101-00-32-05-01-05 is typically used with:
- Bently Nevada 3300 XL Proximitor Sensors
- 3300 XL Extension Cables
- Machinery Protection System Modules
- Vibration Monitoring Systems
- Condition Monitoring Platforms
- Industrial Diagnostic Equipment
Together, these components provide a complete machinery monitoring solution.
Recommended Alternative Models
| Model | Series | Key Feature | Application |
|---|---|---|---|
| 330101-00-32-05-01-05 | 3300 XL 8 mm | Compact 0.5-meter length | Limited-space installations |
| 330101-00-15-10-01-00 | 3300 XL 8 mm | 1-meter configuration | Standard monitoring systems |
| 330101-00-15-15-02-05 | 3300 XL 8 mm | 1.5-meter configuration | Extended installations |
| 330101-00-12-50-01-05 | 3300 XL 8 mm | Long-length version | Remote mounting applications |
| 330103 Series | 3300 XL 8 mm | Alternative probe design | Specialized machinery systems |
Key Advantages
- Compact 0.5-meter configuration
- High-accuracy non-contact measurement
- Advanced eddy current sensing technology
- Excellent long-term stability
- Supports predictive maintenance programs
- Compatible with complete 3300 XL monitoring systems
- Reliable operation in harsh industrial environments
- Helps reduce unplanned machinery downtime
Technical FAQs
What is the primary function of the 330101-00-32-05-01-05?
It is designed to monitor shaft vibration, displacement, and position in rotating machinery using non-contact eddy current sensing technology.
Why is the 0.5-meter configuration beneficial?
The shorter length is ideal for compact installations where equipment space and cable routing are limited.
Can the probe be used independently?
No. It must operate as part of a complete 3300 XL transducer system with a Proximitor sensor and compatible extension cable.
What equipment typically uses this probe?
It is commonly installed on turbines, compressors, motors, pumps, generators, and other critical rotating machinery.
Conclusion
The Bently Nevada 330101-00-32-05-01-05 3300 XL 8 mm Proximity Probe is a compact and highly reliable sensor designed for precision vibration and displacement monitoring in industrial rotating equipment. With its 0.5-meter total length, robust construction, and proven eddy current technology, it delivers dependable performance in space-constrained machinery installations.
As part of the trusted 3300 XL monitoring platform, this probe helps improve equipment reliability, supports predictive maintenance strategies, and contributes to the safe and efficient operation of critical industrial assets.
