Product Overview

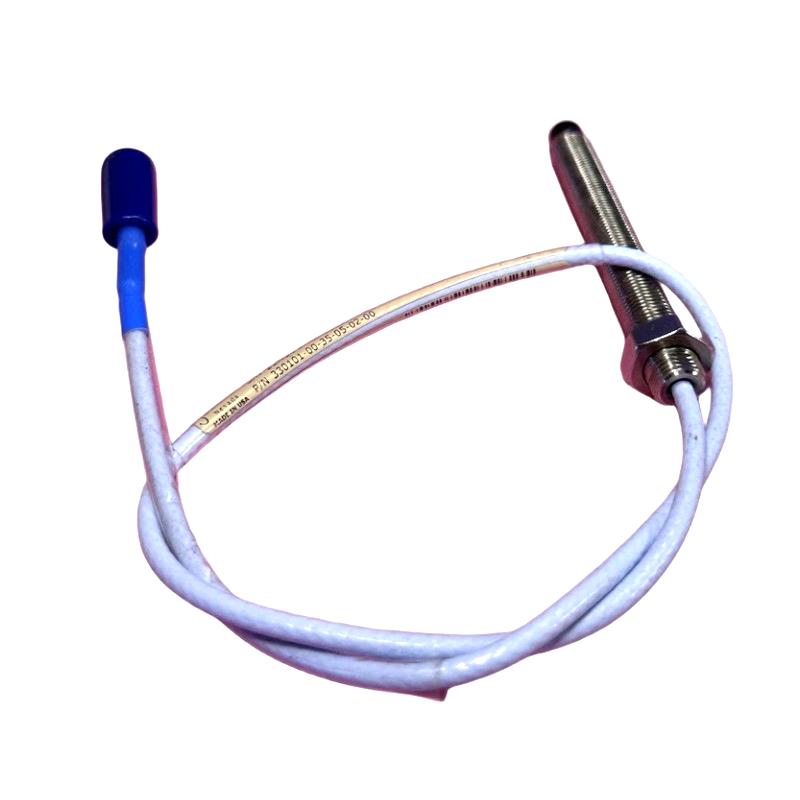

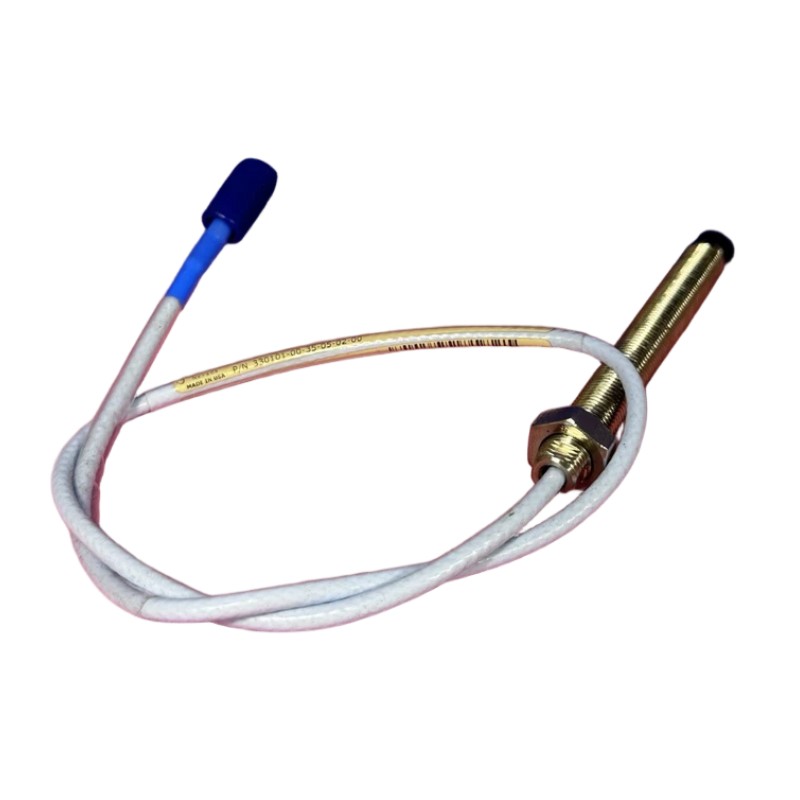

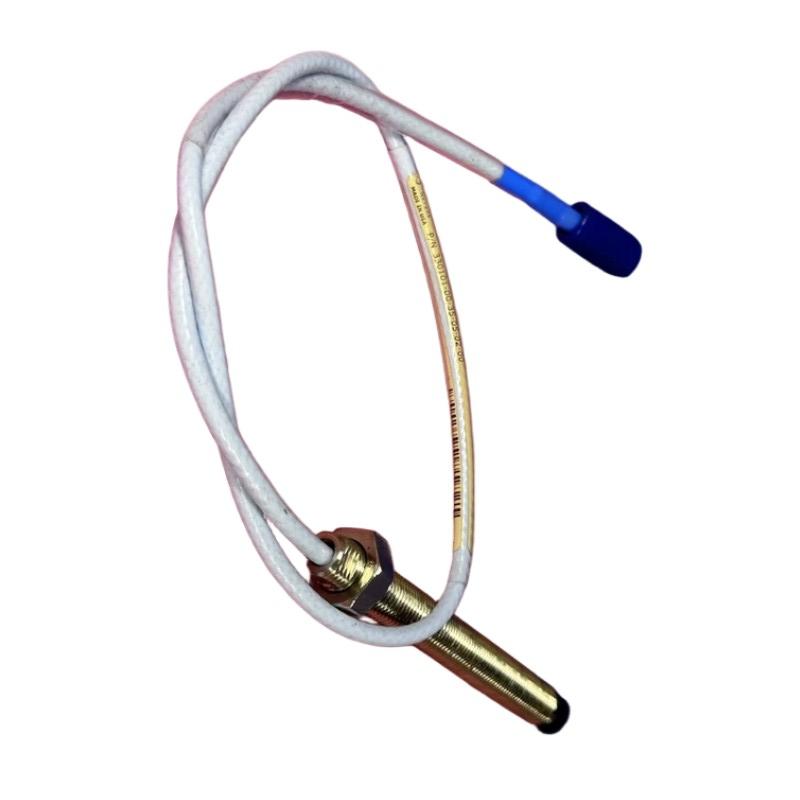

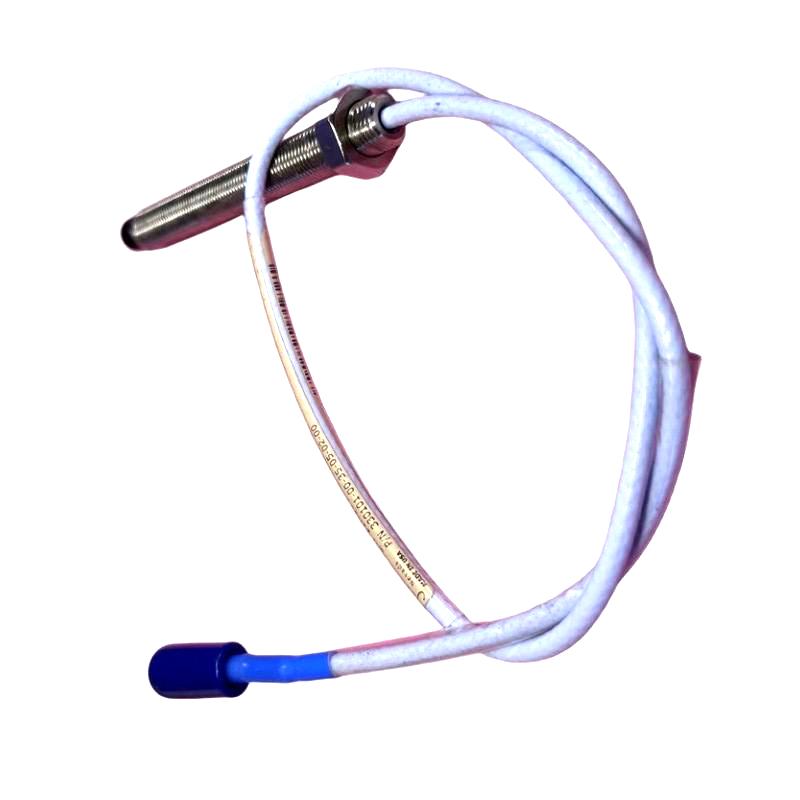

The Bently Nevada 330101-00-31-15-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement sensor designed for machinery protection and condition monitoring applications. As part of the trusted 3300 XL 8 mm Transducer System, this probe delivers precise measurements of shaft vibration, shaft position, eccentricity, and dynamic displacement in rotating equipment.

Utilizing advanced eddy current sensing technology, the probe provides accurate real-time monitoring without physical contact with the target surface. It is widely used in critical industrial machinery where equipment reliability and predictive maintenance are essential.

Technical Specifications

Function and Working Principle

The 330101-00-31-15-02-05 operates using eddy current technology to continuously measure the distance between the probe tip and a conductive target surface.

The sensing process includes:

• Generating a high-frequency electromagnetic field at the probe tip
• Inducing eddy currents on the rotating shaft surface
• Detecting changes in the electromagnetic field caused by shaft movement
• Converting these changes into proportional electrical signals
• Delivering accurate displacement and vibration data to the monitoring system

Because measurement is completely non-contact, the probe offers exceptional reliability and long service life.

Role in Machinery Protection Systems

The probe functions as a primary sensing element within industrial machinery monitoring systems.

Common monitoring applications include:

• Radial shaft vibration measurement
• Axial position monitoring
• Shaft displacement analysis
• Rotor dynamic monitoring
• Eccentricity detection
• Continuous machine condition assessment

These measurements help maintenance personnel detect developing mechanical issues before they result in costly failures.

Industrial Applications

The Bently Nevada 330101-00-31-15-02-05 is commonly used in:

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Industrial pumps
• Electric motors
• Generators
• Gearboxes
• Process plant rotating equipment

Its proven reliability makes it ideal for critical machinery operating in continuous industrial processes.

Installation and System Integration

To achieve optimal performance, proper installation practices should be followed.

Recommended installation guidelines include:

• Maintaining the correct probe gap during setup
• Securing the probe firmly to prevent mounting movement
• Protecting cable assemblies from excessive vibration and stress
• Using compatible extension cables and Proximitor sensors
• Performing calibration according to system requirements

Proper installation ensures accurate measurements and long-term operational stability.

Compatible System Components

The 330101-00-31-15-02-05 is typically integrated with:

• Bently Nevada 3300 XL Proximitor Sensors

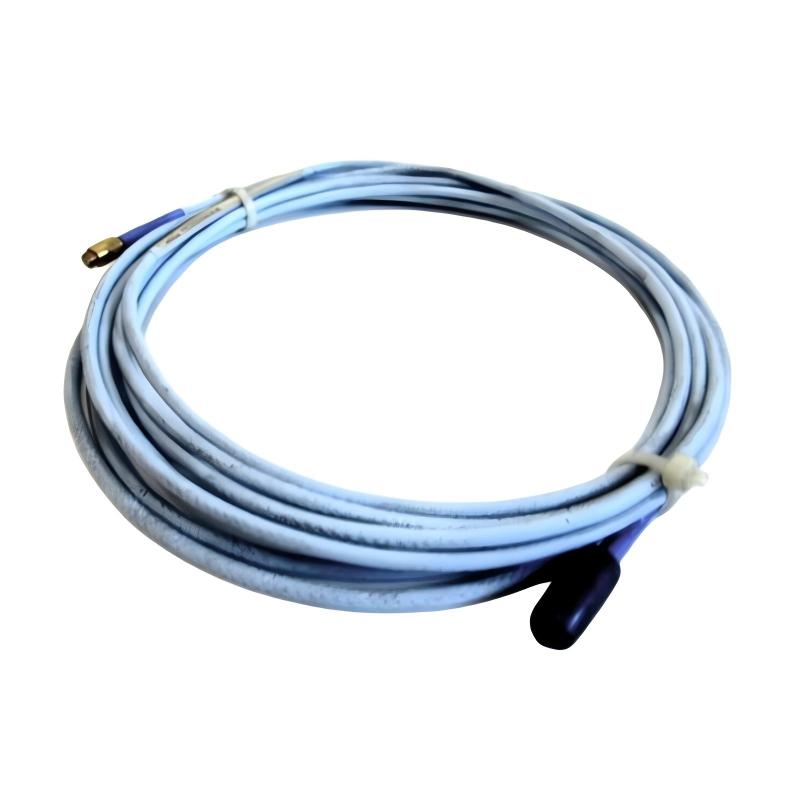

• 3300 XL Extension Cables
• Machinery Protection System Modules
• Vibration Monitoring Systems
• Condition Monitoring Platforms
• Industrial Diagnostic Equipment

Together, these components form a complete machinery monitoring solution.

Recommended Alternative Models

Key Advantages

• High-accuracy non-contact measurement
• Advanced eddy current sensing technology
• Excellent long-term stability
• Suitable for continuous industrial operation
• Supports predictive maintenance programs
• Fully compatible with 3300 XL monitoring systems
• Reliable performance in demanding environments
• Helps reduce unplanned equipment downtime

Technical FAQs

What is the primary function of the 330101-00-31-15-02-05?

It is used to measure shaft vibration, displacement, and position in rotating machinery through non-contact eddy current sensing technology.

Can this probe operate by itself?

No. It must be used as part of a complete 3300 XL transducer system, including an extension cable and Proximitor sensor.

What machinery is commonly monitored using this probe?

It is typically installed on turbines, compressors, pumps, motors, generators, and other critical rotating equipment.

Why is non-contact measurement important?

Non-contact sensing eliminates physical wear while providing highly accurate and repeatable measurements throughout the equipment lifecycle.

Conclusion

The Bently Nevada 330101-00-31-15-02-05 3300 XL 8 mm Proximity Probe is a precision industrial sensor engineered for accurate vibration and displacement monitoring in critical rotating machinery. With its 1.5-meter configuration, proven eddy current technology, and compatibility with the 3300 XL monitoring platform, it delivers dependable performance for machinery protection and condition monitoring applications.

For industrial operators seeking reliable predictive maintenance and equipment protection solutions, this proximity probe remains a trusted choice for maximizing machinery availability and operational efficiency.
