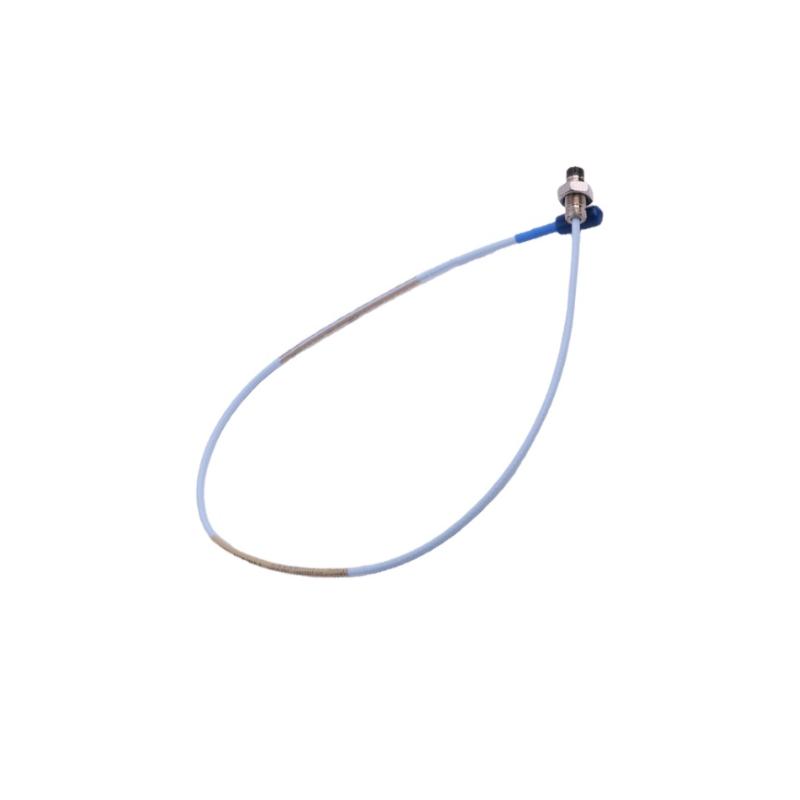

Bently Nevada 330101-00-16-05-02-05 Proximity Probe
1. Product Overview
-
Brand: Bently Nevada
-
Series: 3300 XL 8 mm Proximity Transducer System
-
Model Number: 330101-00-16-05-02-05
-
Type: Eddy-current proximity probe
-
Purpose: Designed to measure precise shaft vibration, displacement, and position in rotating machinery for condition monitoring and preventive maintenance.
-
Industry Usage: Power generation, petrochemical, oil & gas, manufacturing, marine, and other heavy industries.
2. Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-16-05-02-05 |
| Probe Type | Eddy-current proximity sensor |
| Series | 3300 XL 8 mm |
| Case Length | 1.6 in (40.6 mm) |
| Cable Length | 2.0 m (6.56 ft) |
| Connector Type | Miniature Coaxial ClickLoc |
| Measurement Range | 0.25 mm to 2.3 mm |
| Sensitivity | Approx. 7.87 V/mm ±5% |
| Linearity | ±0.025 mm (±1 mil) |
| Electrical Resistance | Approx. 7.45 Ω (1 m cable) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Probe Tip Temperature | Up to +218°C (+425°F) |
| Sealing System | Viton® O-ring for pressure sealing |
| Humidity Resistance | Less than 3% ASF change at 93% humidity |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Weight | 0.32 kg (0.71 lbs) |
| Dimensions | Diameter 8 mm; Length 40.6 mm |
3. Product Description
The 330101-00-16-05-02-05 is a precision eddy-current proximity probe from the Bently Nevada 3300 XL series. It is engineered for continuous, non-contact measurement of shaft vibration and displacement in demanding industrial applications. The probe’s robust stainless steel housing and PPS tip provide resistance to chemical, thermal, and mechanical stresses, while the extended 2-meter cable supports flexible installation.
Ideal for detecting early-stage machinery faults, this probe aids in predictive maintenance, helping avoid unplanned downtime and costly repairs. The precise linear output makes it a trusted component in high-performance monitoring systems worldwide.
4. Applications
-
Power Generation: Monitoring turbines, generators, and motors for vibration and displacement.
-
Oil & Gas: Condition monitoring of compressors, pumps, and other rotating equipment.
-
Petrochemical: Ensuring operational stability of mixers, pumps, and rotary machinery.
-
Manufacturing: Vibration monitoring for heavy motors, gearboxes, blowers, and fans.
-
Marine: Shaft vibration and position monitoring in propulsion and auxiliary machinery.
-
Research & Testing: Precise vibration measurement in R&D environments and test rigs.
5. Advantages
-
High Accuracy: ±0.025 mm linearity ensures precise displacement measurement.
-
Robust Design: Stainless steel and PPS construction withstand harsh environments.
-
Wide Temperature Range: Operates reliably from -52°C to +177°C, with the probe tip tolerating up to +218°C.
-
Secure Sealing: Viton® O-ring sealing protects against moisture and contaminants.
-
Extended Cable Length: 2-meter cable facilitates versatile installation setups.
-
Reliable Signal: Shielded cable and ClickLoc connector ensure noise-free signal transmission.
-
Non-Contact Measurement: Prevents mechanical wear and extends machinery life.
6. Related Models — Same Series (3300 XL)
| Model | Case Length | Cable Length | Connector Type | Measurement Range | Weight |
|---|---|---|---|---|---|
| 330101-00-16-05-02-05 | 1.6 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-16-10-02-05 | 1.6 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-16-10-02-00 | 1.6 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.30 kg |
| 330101-00-12-20-02-05 | 1.2 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-12-20-02-00 | 1.2 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.30 kg |
7. Popular Models from the Same Brand
| Model | Type | Function | Key Features |
|---|---|---|---|
| 330180-50-00 | Proximitor | Signal Conditioner | Converts probe signals into standardized outputs |
| 330180-X1-05 | Proximitor | Signal Conditioner | High reliability with broad input range |
| 6200-00-20-05-00 | Vibration Monitor | Machinery Protection | Multi-channel, advanced fault diagnostics |
| 6200-00-15-01-00 | Vibration Monitor | Condition Monitoring | Compact design, cost-effective |
| 19011-02-01 | Temperature Sensor | Thermal Monitoring | Fast response, rugged design |
8. FAQ (Questions & Answers)
Q1: What is the measurement range of the 330101-00-16-05-02-05?
A1: The probe measures shaft displacement from 0.25 mm to 2.3 mm.
Q2: What type of connector does this probe use?
A2: It uses the miniature coaxial ClickLoc connector, known for its secure connection and easy installation.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, the probe operates between -52°C to +177°C, with the probe tip able to withstand up to +218°C.
Q4: What is the typical cable length supplied with this model?
A4: This model comes with a 2-meter (approximately 6.56 feet) cable.
Q5: What industries commonly use this proximity probe?
A5: It is widely used in power generation, petrochemical, oil and gas, manufacturing, and marine sectors for machinery condition monitoring.
Q6: How does the probe help prevent machine failure?
A6: By continuously monitoring shaft vibration and displacement, it detects early signs of wear or misalignment, allowing maintenance before catastrophic failure.
Q7: Is the probe suitable for harsh industrial environments?
A7: Yes, it features a stainless steel case and a durable PPS tip, designed to resist chemicals, vibration, and mechanical damage.
Q8: How accurate is the displacement measurement?
A8: The probe offers ±0.025 mm linearity, ensuring highly precise and reliable measurements.
Q9: What maintenance does the probe require?
A9: Generally, it requires minimal maintenance, mostly periodic inspection for cable integrity and cleanliness of the sensing tip.
Q10: Can the probe be integrated with existing monitoring systems?
A10: Yes, it is compatible with most condition monitoring and vibration analysis systems, especially those designed for the Bently Nevada 3300 XL series.
