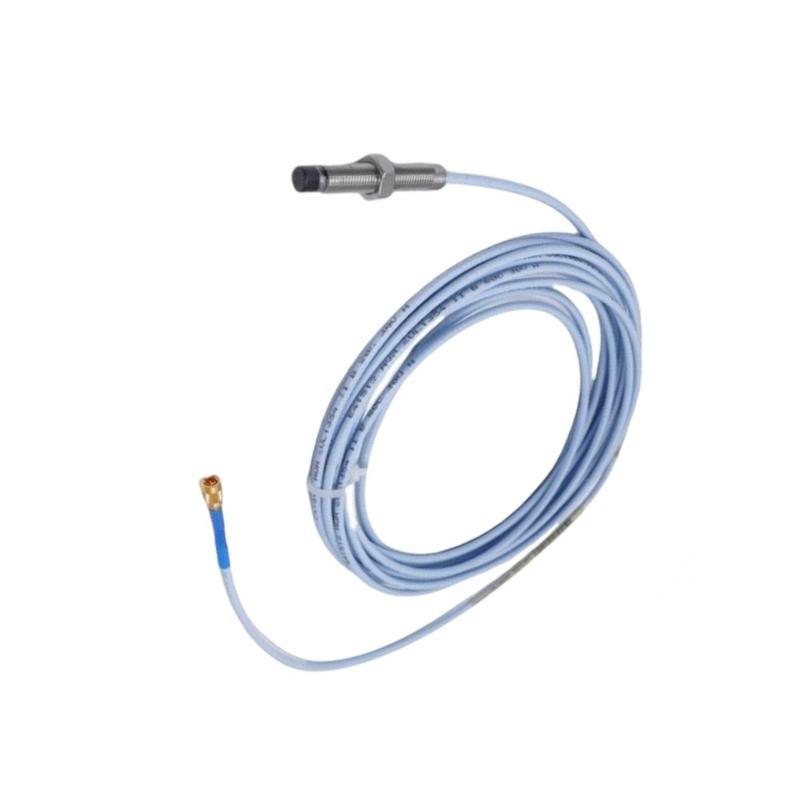

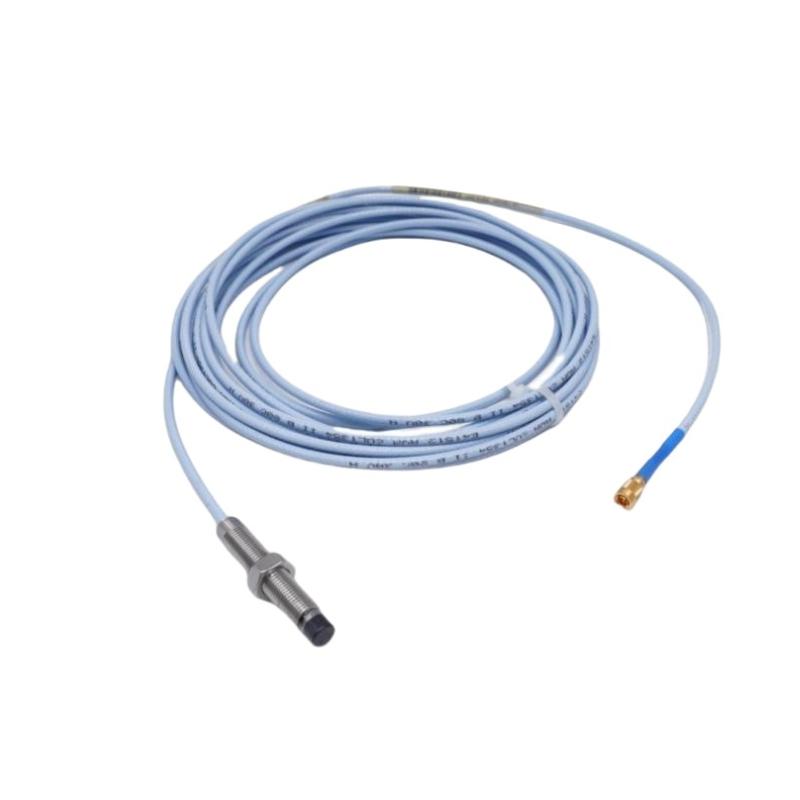

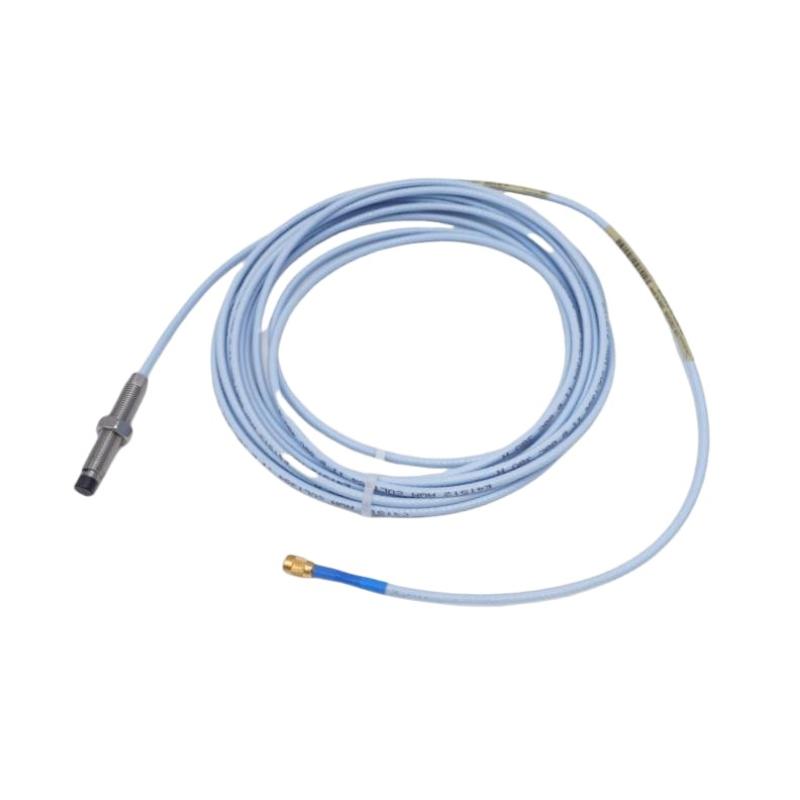

Bently Nevada 330101-00-15-20-02-05 Proximity Probe
1. Product Overview
-
Brand: Bently Nevada
-
Series: 3300 XL 8 mm Proximity Transducer System
-
Model Number: 330101-00-15-20-02-05
-
Type: Eddy-current proximity probe
-
Purpose: Designed to measure precise shaft vibration, displacement, and position in rotating machinery for condition monitoring and preventive maintenance.
-
Industry Usage: Power generation, petrochemical, oil & gas, manufacturing, marine, and other heavy industries.
2. Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-15-20-02-05 |
| Probe Type | Eddy-current proximity sensor |
| Series | 3300 XL 8 mm |
| Case Length | 1.5 in (38.1 mm) |
| Cable Length | 2.0 m (6.56 ft) |
| Connector Type | Miniature Coaxial ClickLoc |
| Measurement Range | 0.25 mm to 2.3 mm |
| Sensitivity | Approx. 7.87 V/mm ±5% |
| Linearity | ±0.025 mm (±1 mil) |
| Electrical Resistance | Approx. 7.45 Ω (1 m cable) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Probe Tip Temperature | Up to +218°C (+425°F) |
| Sealing System | Viton® O-ring for pressure sealing |
| Humidity Resistance | Less than 3% ASF change at 93% humidity |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Weight | 0.32 kg (0.71 lbs) |
| Dimensions | Diameter 8 mm; Length 38.1 mm |
3. Product Description
The 330101-00-15-20-02-05 is a precision eddy-current proximity probe from the Bently Nevada 3300 XL series. It is engineered for continuous, non-contact measurement of shaft vibration and displacement in demanding industrial applications. The probe’s robust stainless steel housing and PPS tip provide resistance to chemical, thermal, and mechanical stresses, while the extended 2-meter cable supports flexible installation.
Ideal for detecting early-stage machinery faults, this probe aids in predictive maintenance, helping avoid unplanned downtime and costly repairs. The precise linear output makes it a trusted component in high-performance monitoring systems worldwide.
4. Applications
-
Power Generation: Monitoring turbines, generators, and motors for vibration and displacement.
-
Oil & Gas: Condition monitoring of compressors, pumps, and other rotating equipment.
-
Petrochemical: Ensuring operational stability of mixers, pumps, and rotary machinery.
-
Manufacturing: Vibration monitoring for heavy motors, gearboxes, blowers, and fans.
-
Marine: Shaft vibration and position monitoring in propulsion and auxiliary machinery.
-
Research & Testing: Precise vibration measurement in R&D environments and test rigs.
5. Advantages
-
High Accuracy: ±0.025 mm linearity ensures precise displacement measurement.
-
Robust Design: Stainless steel and PPS construction withstand harsh environments.
-
Wide Temperature Range: Operates reliably from -52°C to +177°C, with the probe tip tolerating up to +218°C.
-
Secure Sealing: Viton® O-ring sealing protects against moisture and contaminants.
-
Extended Cable Length: 2-meter cable facilitates versatile installation setups.
-
Reliable Signal: Shielded cable and ClickLoc connector ensure noise-free signal transmission.
-
Non-Contact Measurement: Prevents mechanical wear and extends machinery life.
6. Related Models — Same Series (3300 XL)
| Model | Case Length | Cable Length | Connector Type | Measurement Range | Weight |
|---|---|---|---|---|---|
| 330101-00-15-20-02-05 | 1.5 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-15-20-02-00 | 1.5 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.30 kg |
| 330101-00-15-10-02-05 | 1.5 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-15-10-02-00 | 1.5 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.30 kg |
| 330101-00-12-20-02-05 | 1.2 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
7. Popular Models from the Same Brand
| Model | Type | Function | Key Features |
|---|---|---|---|
| 330180-50-00 | Proximitor | Signal Conditioner | Converts probe signals into standardized outputs |
| 330180-X1-05 | Proximitor | Signal Conditioner | High reliability with broad input range |
| 6200-00-20-05-00 | Vibration Monitor | Machinery Protection | Multi-channel, advanced fault diagnostics |
| 6200-00-15-01-00 | Vibration Monitor | Condition Monitoring | Compact design, cost-effective |
| 19011-02-01 | Temperature Sensor | Thermal Monitoring | Fast response, rugged design |
8. FAQ (Questions & Answers)
Q1: What is the measurement range of the 330101-00-15-20-02-05?
A1: The probe measures shaft displacement from 0.25 mm to 2.3 mm, suitable for most industrial monitoring needs.
Q2: What type of connector does this model use?
A2: It features a miniature coaxial ClickLoc connector for secure and reliable electrical connections.
Q3: Is the probe compatible with existing monitoring systems?
A3: Yes, it integrates seamlessly with Bently Nevada 3300 XL series monitoring systems and similar industrial vibration monitors.
Q4: What is the operating temperature range for this probe?
A4: It operates from -52°C to +177°C, with the probe tip capable of withstanding temperatures up to +218°C.
Q5: How long is the cable supplied with this probe?
A5: This model comes with a 2-meter long cable, allowing flexible installation.
Q6: What materials are used in the probe construction?
A6: The probe case is made of stainless steel (AISI 303/304), and the probe tip is made from Polyphenylene Sulfide (PPS).
Q7: How much does the probe weigh?
A7: It weighs approximately 0.32 kg (0.71 lbs).
Q8: How accurate are the displacement measurements?
A8: The probe provides a linearity of ±0.025 mm, ensuring precise measurements.
Q9: Can this probe be used in hazardous environments?
A9: While designed for industrial environments, usage in hazardous areas should be confirmed for compliance with safety standards.
Q10: How is the probe sealed against contaminants?
A10: A Viton® O-ring provides sealing against moisture, dust, and pressure fluctuations.
