Product Overview

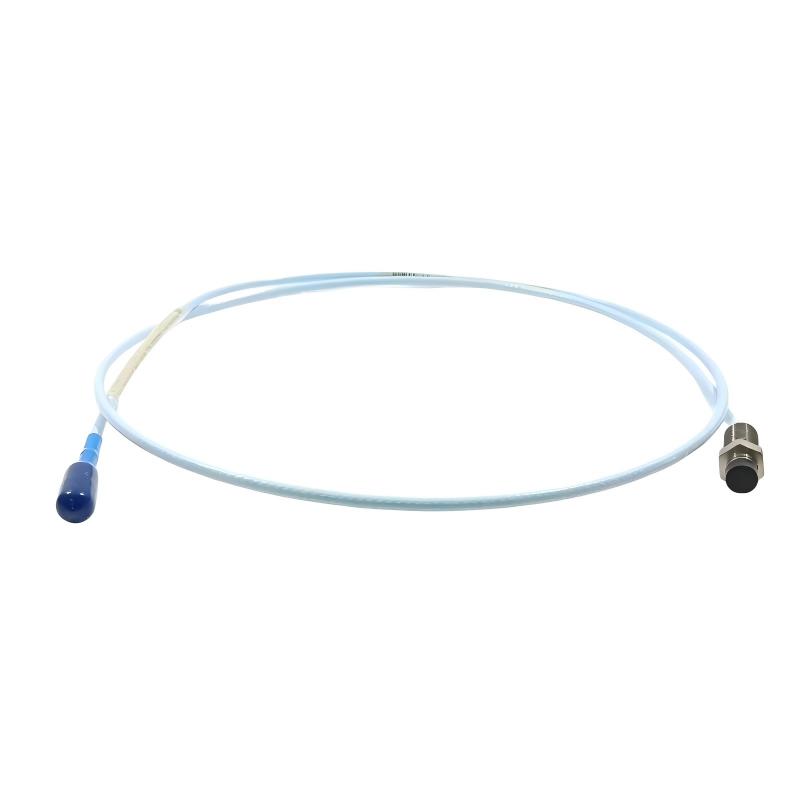

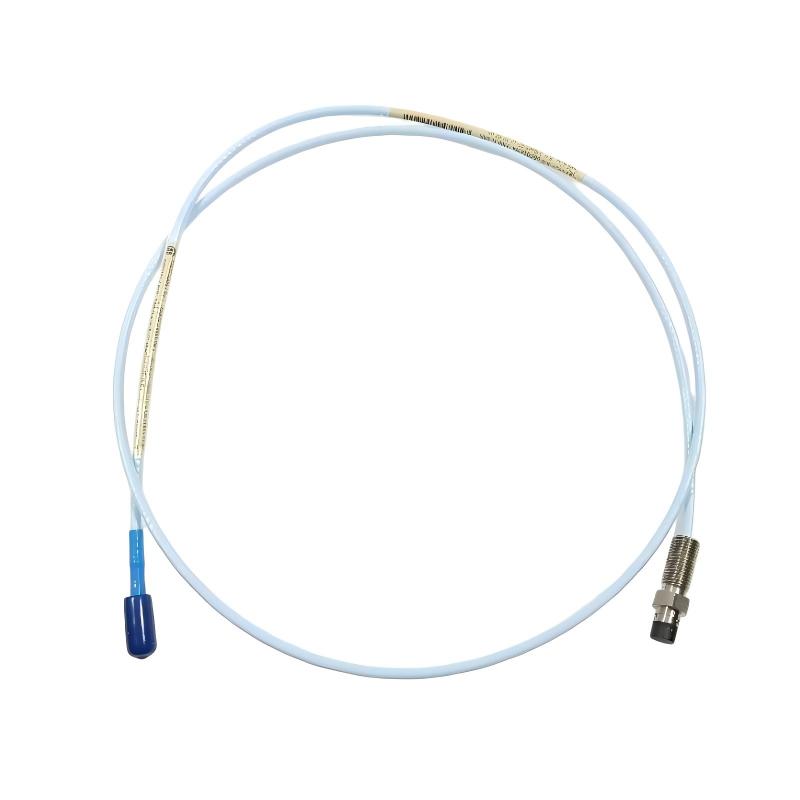

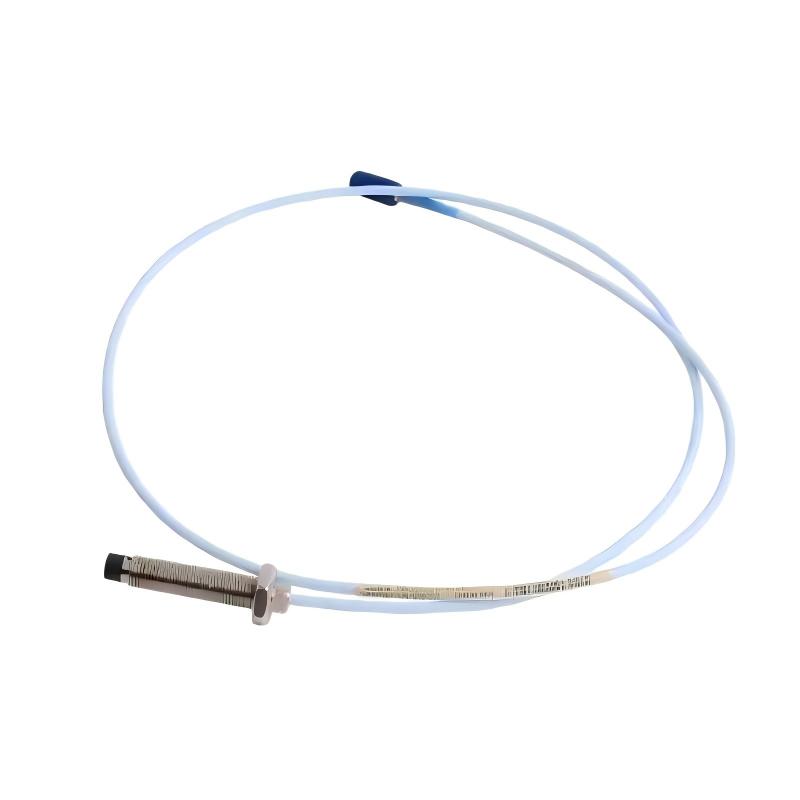

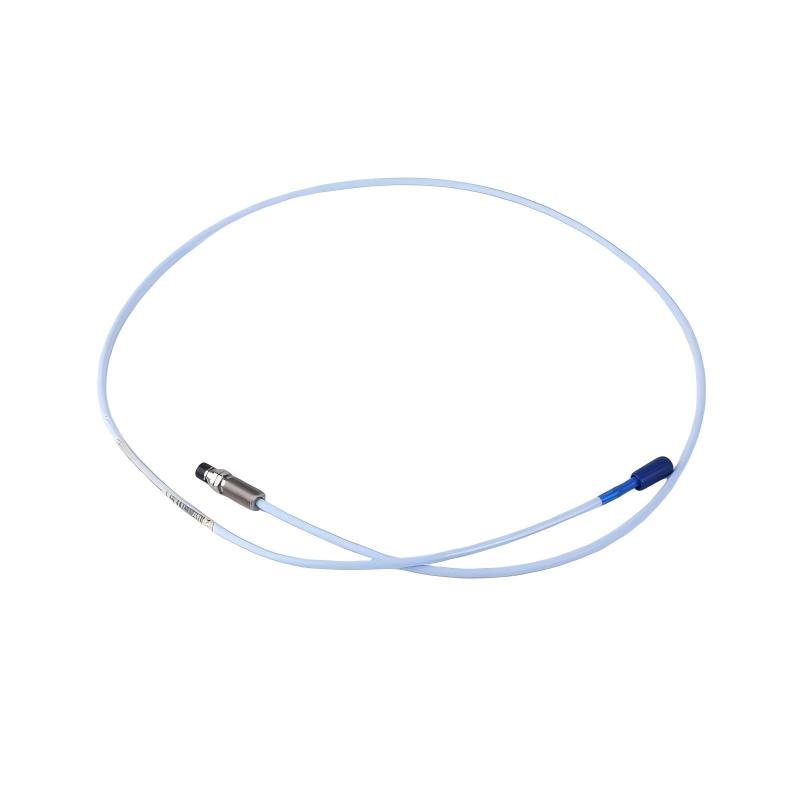

The Bently Nevada 330101-00-15-15-02-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement sensor designed for continuous machinery condition monitoring. As part of the renowned 3300 XL 8 mm proximity transducer system, this probe delivers precise measurements of shaft vibration, radial displacement, axial position, and other critical machine parameters.

Designed for demanding industrial environments, the probe provides reliable monitoring of rotating equipment and supports predictive maintenance programs that help reduce downtime and improve equipment reliability.

Technical Specifications

Function and Working Principle

The 330101-00-15-15-02-05 utilizes eddy current technology to accurately measure the distance between the probe tip and a conductive target surface.

Operating process:

• The probe generates a high-frequency electromagnetic field.
• A conductive shaft or rotating component enters the sensing field.
• Eddy currents are induced on the target surface.
• Variations in the target distance alter the electromagnetic field strength.
• The system converts these changes into an electrical signal representing displacement.

This non-contact measurement method provides highly accurate monitoring without mechanical wear.

Role in Machinery Protection Systems

The probe serves as a critical sensing element in industrial machinery protection systems.

Typical monitoring functions include:

• Shaft vibration measurement
• Radial shaft displacement monitoring
• Axial position measurement
• Differential expansion monitoring
• Rotor dynamic analysis
• Continuous machine condition assessment

The collected data enables operators to identify abnormal conditions before equipment failure occurs.

Industrial Applications

The Bently Nevada 330101-00-15-15-02-05 is commonly deployed in:

• Steam turbines
• Gas turbines
• Centrifugal compressors
• Industrial pumps
• Electric motors
• Gearboxes
• Generators
• Process machinery

These applications require highly reliable vibration monitoring to protect critical assets and maintain operational efficiency.

Installation and System Integration

For optimal performance, the probe should be installed according to machinery monitoring specifications.

Installation recommendations include:

• Maintaining the proper probe gap during setup
• Ensuring secure mounting to minimize measurement errors
• Protecting cables from excessive mechanical stress
• Using compatible extension cables and Proximitor sensors
• Following calibration procedures specified for the monitoring system

Correct installation ensures measurement accuracy and long-term system stability.

Compatible System Components

The 330101-00-15-15-02-05 is typically integrated with:

• Bently Nevada 3300 XL Proximitor Sensors
• 3300 XL Extension Cables
• Machinery Protection Systems
• Vibration Monitoring Modules
• Condition Monitoring Platforms
• Industrial Diagnostic Systems

Together, these components create a complete machinery monitoring solution.

Recommended Alternative Models

Key Advantages

• High-accuracy non-contact displacement measurement
• Proven eddy current sensing technology
• Excellent long-term stability
• Suitable for continuous operation
• Compatible with complete 3300 XL monitoring systems
• Supports predictive maintenance programs
• Reliable performance in harsh industrial environments
• Reduces risk of unexpected machinery failures

Technical FAQs

What is the primary function of the 330101-00-15-15-02-05?

It is used to measure shaft vibration and displacement in rotating machinery using non-contact eddy current sensing technology.

Can the probe operate independently?

No. It is designed to function as part of a complete 3300 XL transducer system that includes an extension cable and a Proximitor sensor.

What equipment is commonly monitored with this probe?

It is widely used on turbines, compressors, pumps, motors, generators, and other critical rotating assets.

Why is non-contact measurement important?

Non-contact sensing eliminates mechanical wear and allows highly accurate monitoring of moving equipment over extended periods.

Conclusion

The Bently Nevada 330101-00-15-15-02-05 3300 XL 8 mm Proximity Probe is a dependable industrial monitoring sensor engineered for accurate shaft vibration and displacement measurement. With its 1.5-meter configuration, robust construction, and proven eddy current technology, it delivers the performance required for critical machinery protection applications.

As an integral component of the 3300 XL monitoring platform, this probe helps improve equipment reliability, enhance predictive maintenance strategies, and support safe, efficient operation across a wide range of industrial sectors.
