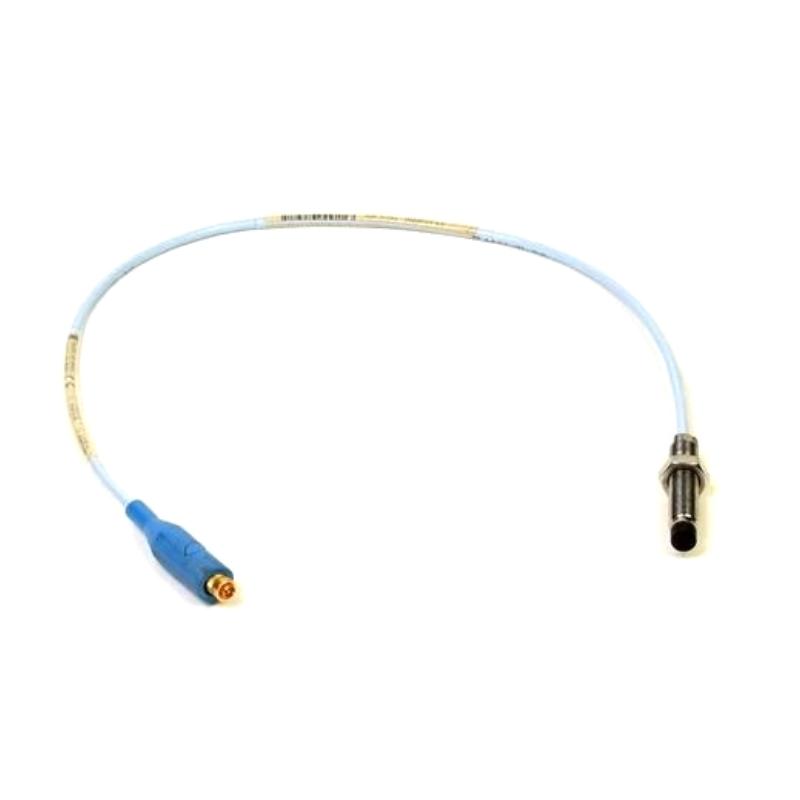

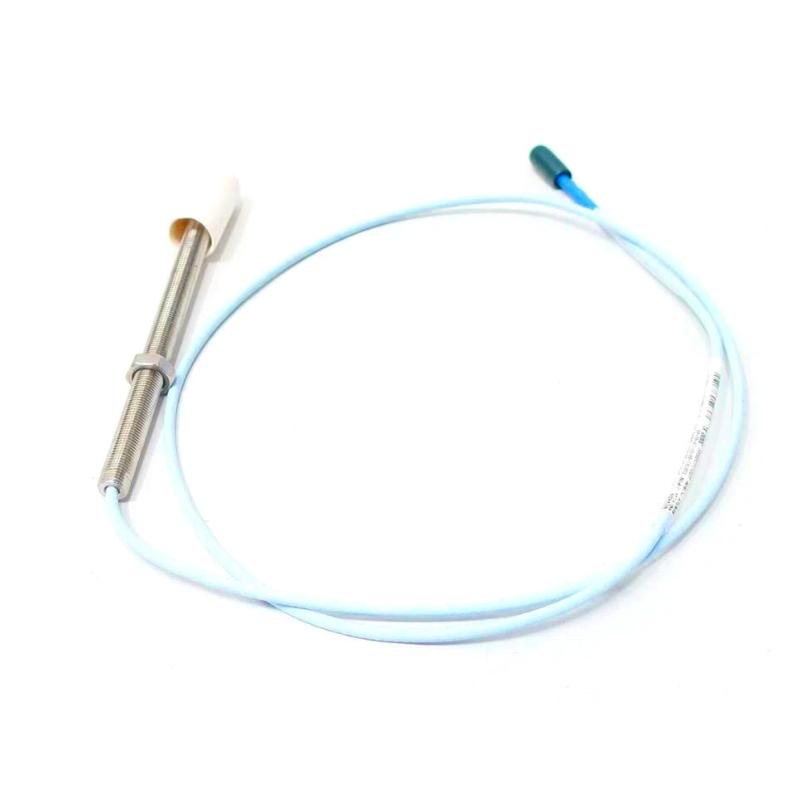

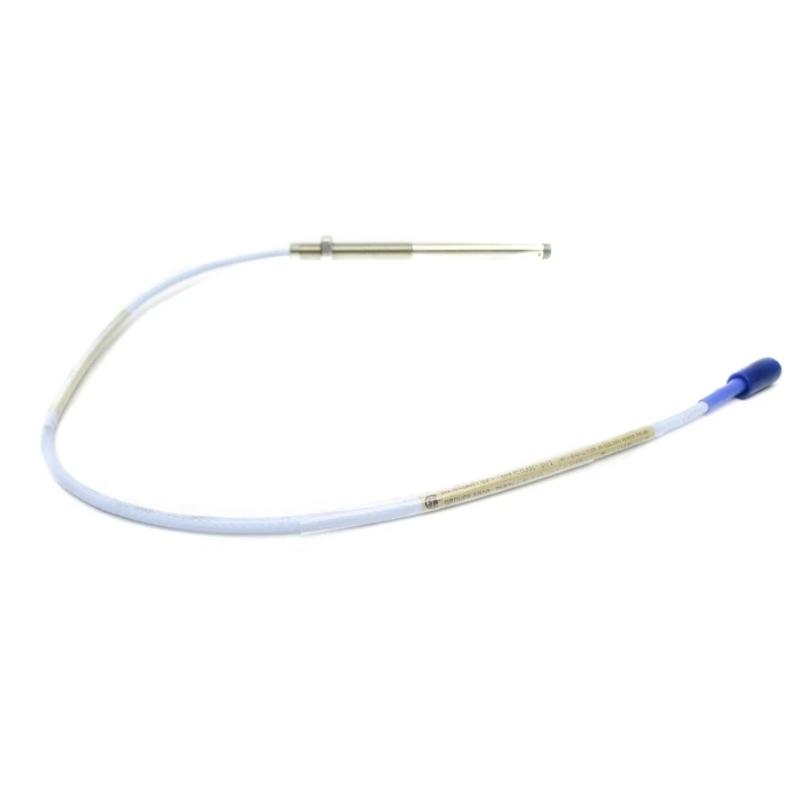

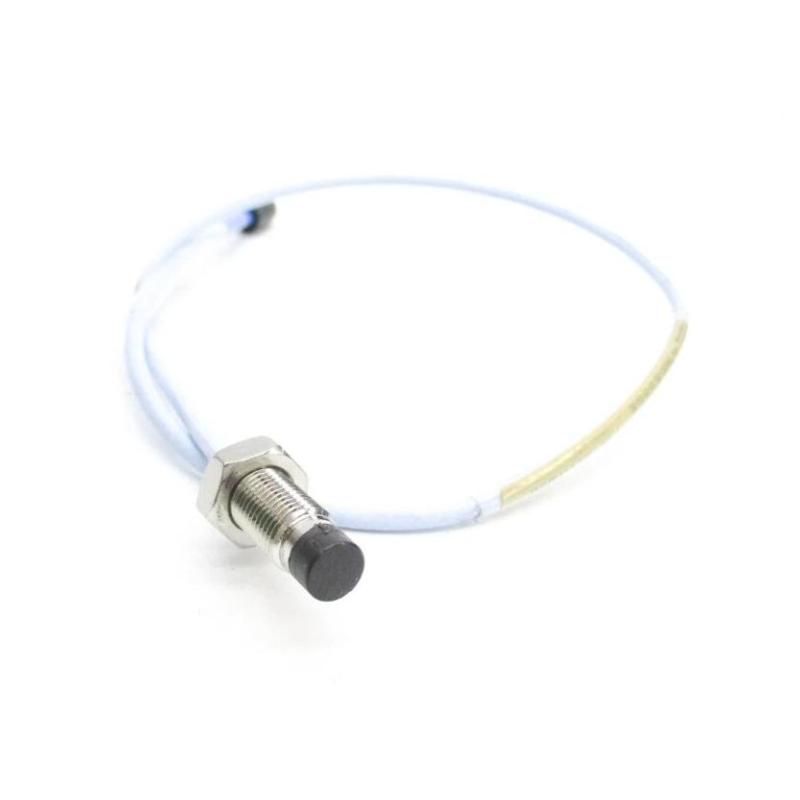

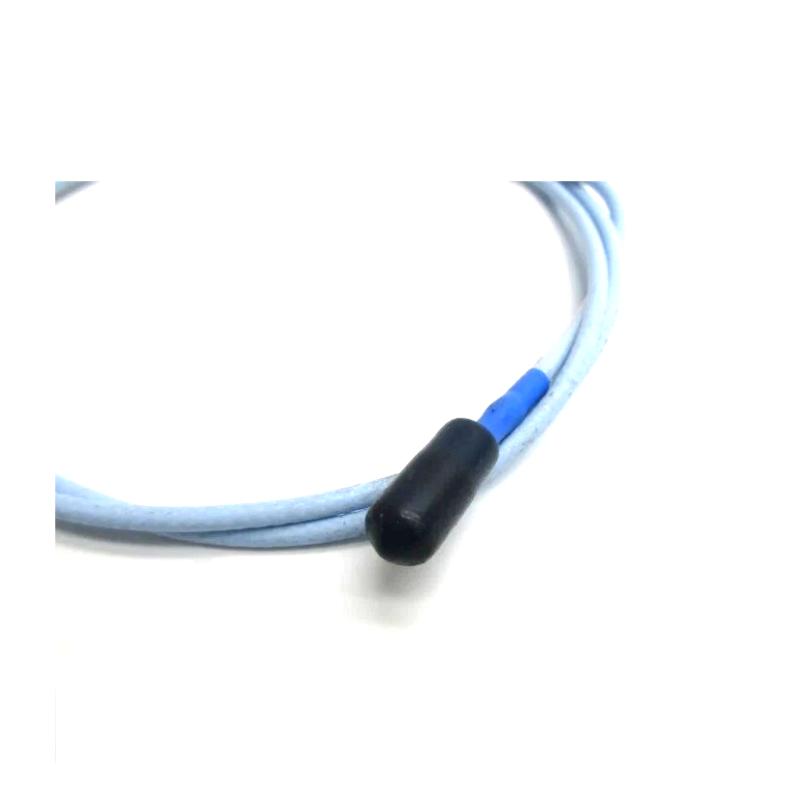

Bently Nevada 330101-00-15-10-02-05 Proximity Probe
1. Product Overview
-
Brand: Bently Nevada
-
Series: 3300 XL 8 mm Proximity Transducer System
-
Model Number: 330101-00-15-10-02-05
-
Type: Eddy-current proximity probe
-
Purpose: Measures shaft vibration, displacement, and position of rotating machinery with high precision for condition monitoring and predictive maintenance.
-
Industries: Power generation, oil & gas, petrochemical, manufacturing, marine, and heavy industrial machinery.
2. Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-15-10-02-05 |
| Probe Type | Eddy-current proximity sensor |
| Series | 3300 XL 8 mm |
| Case Length | 1.5 in (38.1 mm) |
| Cable Length | 2.0 m (6.56 ft) |
| Connector Type | Miniature Coaxial ClickLoc |
| Measurement Range | 0.25 mm to 2.3 mm |
| Sensitivity | Approximately 7.87 V/mm ±5% |
| Linearity | ±0.025 mm (±1 mil) |
| Electrical Resistance | Approx. 7.45 Ω (1 m cable) |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Operating Temperature | -52°C to +177°C (-62°F to +350°F) |
| Extended Temperature | Probe tip up to +218°C (+425°F) |
| Sealing System | Viton® O-ring for pressure sealing |
| Humidity Resistance | Less than 3% ASF change at 93% humidity |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Weight | 0.32 kg (0.71 lbs) |
| Dimensions | Diameter 8 mm; Length 38.1 mm |
3. Product Description
The 330101-00-15-10-02-05 proximity probe is engineered for reliable and precise measurement of shaft vibration and displacement in industrial rotating machinery. Utilizing eddy-current technology, it enables non-contact sensing to avoid wear and tear, providing continuous data crucial for condition-based maintenance.
This model features a 2.0-meter cable suitable for installations where extended cable length is required. Its stainless steel housing and PPS probe tip provide strong resistance to mechanical wear, chemical corrosion, and elevated temperatures, making it ideal for demanding industrial environments.
4. Applications
-
Power Generation: Monitoring turbine shafts and generators for vibration and displacement to avoid unexpected failures.
-
Oil & Gas: Monitoring compressors, pumps, and turbines in upstream and downstream processes.
-
Petrochemical Industry: Condition monitoring for mixers, pumps, and rotary equipment.
-
Manufacturing: Vibration and position sensing for motors, gearboxes, and blowers.
-
Marine Industry: Shaft monitoring in propulsion systems and auxiliary machinery.
-
R&D & Testing: Precision vibration measurement in experimental setups and test rigs.
5. Advantages
-
High Accuracy: Delivers precise shaft displacement measurements with ±0.025 mm linearity.
-
Durability: Stainless steel construction with a PPS tip resists corrosion and mechanical damage.
-
Wide Temperature Range: Can operate reliably between -52°C and +177°C, with the probe tip enduring up to +218°C.
-
Robust Sealing: Viton® O-ring ensures protection against dust, moisture, and pressure variations.
-
Extended Cable Length: 2.0 m cable offers flexibility for installations requiring longer reach.
-
Electromagnetic Interference (EMI) Protection: Shielded cable design minimizes noise for stable signal transmission.
-
Non-Contact Sensing: Extends the life of machinery by avoiding physical contact with rotating parts.
6. Related Models — Same Series (3300 XL)
| Model | Case Length | Cable Length | Connector Type | Measurement Range | Weight |
|---|---|---|---|---|---|
| 330101-00-15-10-02-05 | 1.5 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-15-10-02-00 | 1.5 in | 1.0 m | ClickLoc | 0.25–2.3 mm | 0.30 kg |
| 330101-00-15-05-02-05 | 1.5 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-15-05-02-00 | 1.5 in | 0.5 m | ClickLoc | 0.25–2.3 mm | 0.30 kg |
| 330101-00-12-10-02-05 | 1.2 in | 2.0 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
7. Other Popular Bently Nevada Models
| Model | Type | Function | Key Features |
|---|---|---|---|
| 330180-50-00 | Proximitor | Signal Conditioner | Converts probe signals into standardized outputs |
| 330180-X1-05 | Proximitor | Signal Conditioner | High reliability with broad input range |
| 6200-00-20-05-00 | Vibration Monitor | Machinery Protection | Multi-channel, advanced fault diagnostics |
| 6200-00-15-01-00 | Vibration Monitor | Condition Monitoring | Compact design, cost-effective |
| 19011-02-01 | Temperature Sensor | Thermal Monitoring | Fast response, rugged design |
8. FAQ (Continued)
Q2: What kind of connector does this probe use?
A2: It uses a miniature coaxial ClickLoc connector, which ensures secure and reliable connections.
Q3: Can this probe withstand harsh industrial environments?
A3: Yes, with a stainless steel case and PPS probe tip, it is resistant to corrosion, mechanical wear, and high temperatures up to +177°C (probe tip up to +218°C).
Q4: How long is the cable attached to this probe?
A4: This model comes with a 2.0-meter (6.56 feet) cable.
Q5: Is the probe compatible with standard monitoring systems?
A5: Yes, it’s designed to be compatible with standard Bently Nevada 3300 XL monitoring systems and other industrial proximity monitoring devices.
Q6: What is the weight and size of this proximity probe?
A6: It weighs approximately 0.32 kg (0.71 lbs), with an 8 mm diameter and 38.1 mm (1.5 inch) case length.
Q7: How precise is the displacement measurement?
A7: It offers ±0.025 mm linearity, providing high accuracy for vibration and displacement monitoring.
Q8: What is the operating temperature range?
A8: The operating temperature ranges from -52°C to +177°C (-62°F to +350°F), with the probe tip tolerating up to +218°C (+425°F).
Q9: Can this probe be used in explosive or hazardous locations?
A9: It is designed for industrial environments but should be verified for compliance with specific hazardous location certifications before use.
Q10: How is the probe sealed against moisture and contaminants?
A10: It features a Viton® O-ring sealing system that protects against dust, moisture, and pressure variations.
