Product Overview

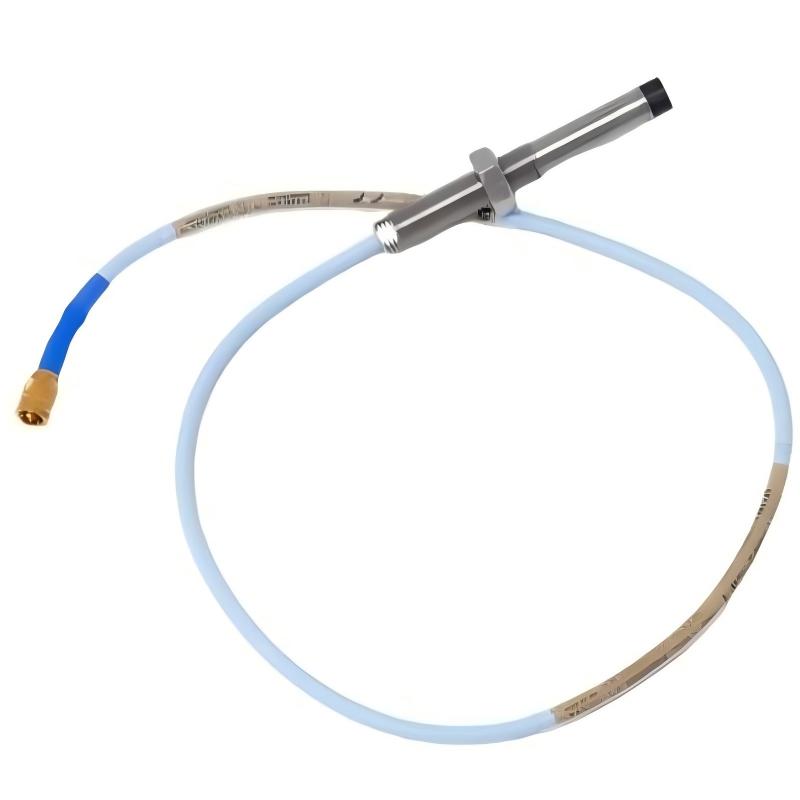

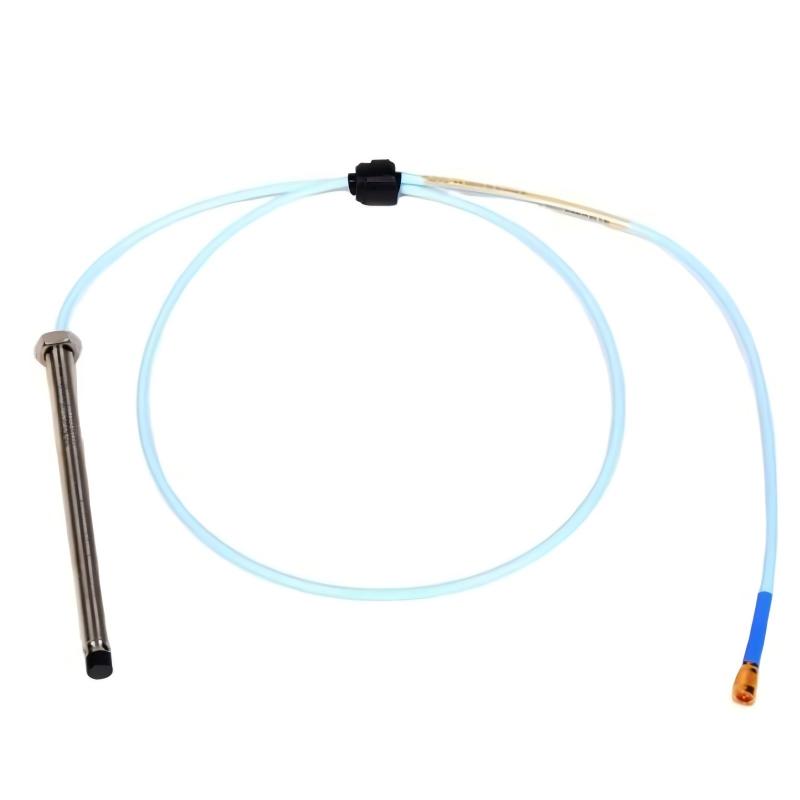

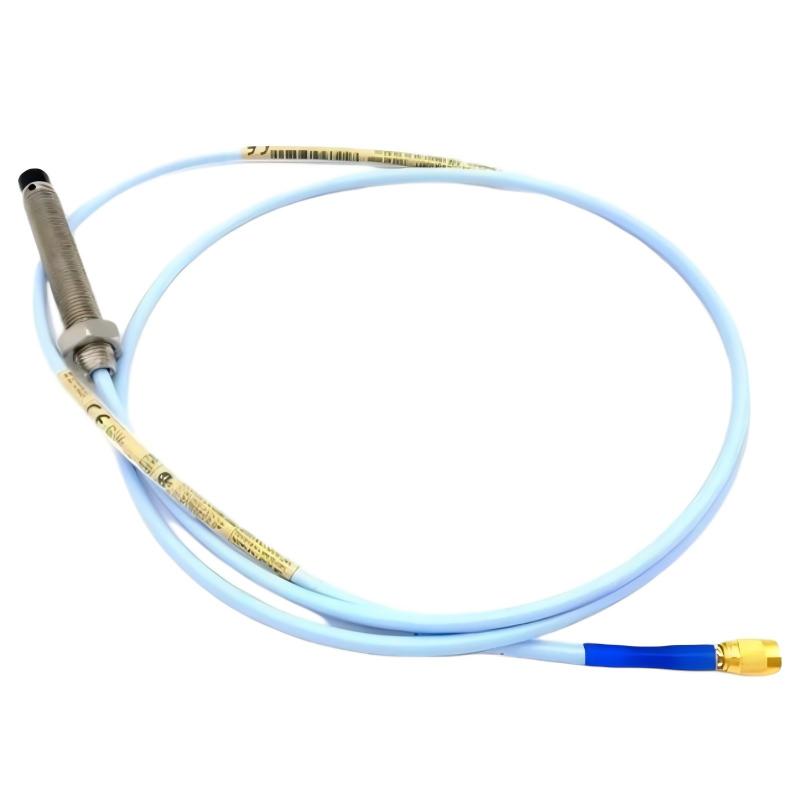

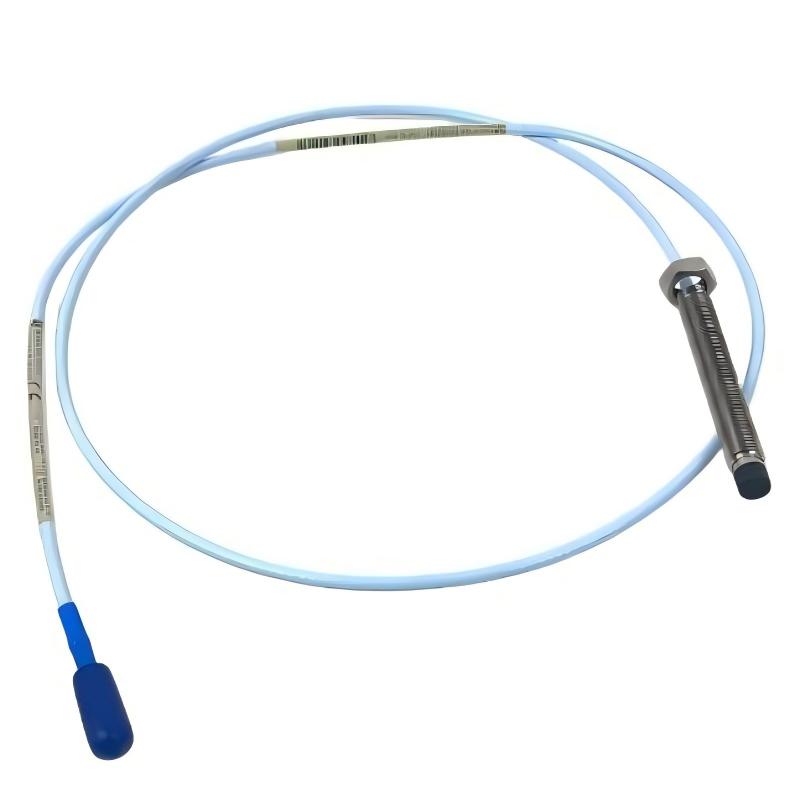

The Bently Nevada 330101-00-15-10-01-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor used in industrial machinery monitoring systems. It is part of the 3300 XL 8 mm proximity transducer system, which is widely used for vibration, shaft position, and machinery condition monitoring in critical rotating equipment.

This probe works together with an extension cable and a Proximitor sensor to provide accurate, non-contact measurement of shaft displacement and vibration in turbines, compressors, pumps, and other rotating machines.

Technical Specifications

Function and Working Principle

The 3300 XL 8 mm proximity probe operates based on eddy current measurement technology.

It works as follows:

• The probe generates a high-frequency electromagnetic field
• When a conductive target (such as a rotating shaft) approaches the probe tip, eddy currents are induced
• The strength of the field changes depending on the distance to the target
• This change is converted into a voltage signal proportional to the gap

$V\propto d$

Where the output voltage changes proportionally with the distance between probe and shaft surface.

This allows the system to measure both:

• Static shaft position
• Dynamic vibration behavior

Role in Industrial Monitoring Systems

This probe is a core component of the Bently Nevada machinery protection system, typically installed in critical rotating equipment.

It is commonly used for monitoring:

• Turbines
• Compressors
• Pumps
• Motors
• Gearboxes
• Generators

It provides real-time data used for:

• Vibration analysis
• Shaft displacement monitoring
• Machine condition protection
• Predictive maintenance systems

System Integration Components

The 330101-00-15-10-01-00 probe must be used as part of a complete system, including:

• 3300 XL Proximitor Sensor (signal conditioning unit)
• 3300 XL Extension Cable (signal transmission line)
• Monitoring system / vibration monitor module

Together, these components form a complete proximity measurement chain.

Industrial Applications

This model is widely used in industries requiring high-reliability machinery monitoring:

• Oil and gas refineries
• Power generation plants
• Petrochemical processing
• Marine propulsion systems
• Heavy manufacturing industries
• Compressor and turbine stations

It is especially critical in environments where continuous operation and machine protection are required.

Installation Considerations

Proper installation is essential for accurate measurement:

• Maintain correct probe gap alignment with shaft surface
• Avoid mechanical stress on probe tip
• Ensure stable mounting to reduce vibration interference
• Use correct extension cable length matching system configuration
• Follow OEM calibration requirements for optimal accuracy

Incorrect installation can significantly affect signal linearity and monitoring reliability.

Compatible System Components

This probe is typically paired with:

• Bently Nevada 3300 XL Proximitor Sensor series
• 3300 XL extension cables (matched length versions)
• Machinery protection and vibration monitoring modules
• Rack-based condition monitoring systems

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement
• Stable performance in harsh industrial environments
• Supports vibration and displacement monitoring
• Fully compatible with 3300 XL system architecture
• Suitable for critical rotating machinery protection
• Strong long-term reliability in continuous operation

Technical FAQs

What is the main function of the 330101-00-15-10-01-00 probe?
It measures shaft vibration and position using eddy current technology.

Is it used alone?
No, it must be used with a Proximitor sensor and extension cable.

Where is it commonly installed?
On rotating machinery such as turbines, compressors, and pumps.

What type of signal does it output?
A voltage signal proportional to the distance between probe and target surface.

Conclusion

The Bently Nevada 330101-00-15-10-01-00 3300 XL 8 mm Proximity Probe is a critical industrial sensor used for high-accuracy vibration and position monitoring in rotating machinery. Its eddy current-based measurement technology, combined with the 3300 XL system architecture, ensures reliable performance in demanding industrial environments.

It plays an essential role in machinery protection, predictive maintenance, and operational safety across modern industrial systems.
