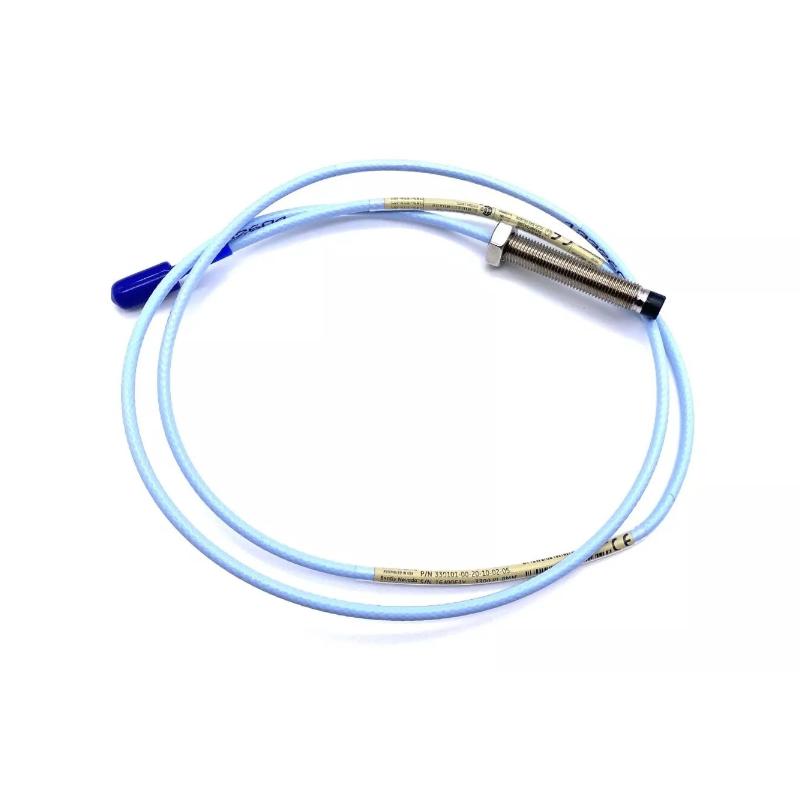

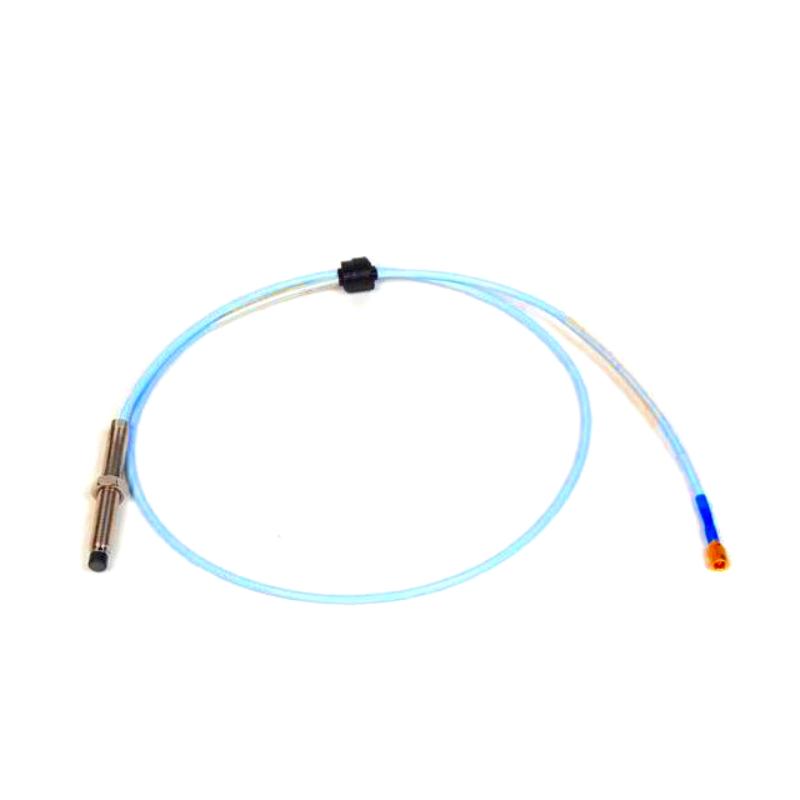

🔧 Bently Nevada 330101-00-14-15-02-05
Detailed Product Specification | Technical Overview | Model Comparison | FAQs | Marketing Copy
1. Product Overview
Brand: Bently Nevada
Series: 3300 XL Series – 8mm Proximity Transducer System
Function: Non-contact eddy-current proximity sensor for monitoring shaft vibration, displacement, position, and phase in rotating machinery.
Applications: Industrial condition monitoring and protection systems, specifically for turbines, compressors, pumps, and other high-speed rotating equipment.
2. Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330101-00-14-15-02-05 |
| Probe Type | Eddy-current proximity probe |
| Series | 3300 XL 8 mm |
| Housing Length | 1.4 in (35.6 mm) |
| Cable Length | 1.5 m |
| Cable/Connector Type | ClickLoc miniature coaxial |
| Probe Diameter | 8 mm |
| Thread Length | 0.0 in |
| Linear Range | ~0.25 mm to 2.3 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Recommended Gap Voltage | ~–9 Vdc (for 1.27 mm gap) |
| DC Resistance | ~7.59 Ω |
| Operating Temperature | –52°C to +177°C (standard); up to +218°C (tip), +260°C (cable) with high-temp option |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Case Material | Stainless Steel (303/304) |
| Cable Capacitance | ~69.9 pF/m |
| Response Time | <1 ms |
| Non-linearity | <±0.025 mm (typical) |
| Weight | 0.323 kg |
| Shipping Weight | Approx. 2 kg |
| Certifications | CSA, ATEX, IECEx (Suffix 05 variant) |
3. Product Description
The 330101-00-14-15-02-05 is a non-contact proximity probe that operates on the eddy current principle. It measures the relative movement of a conductive target, typically a rotating shaft, with very high precision and reliability.
The sensor consists of a probe, an extension cable, and a proximitor (signal conditioner), all of which form a fully calibrated system. It is engineered for demanding environments where high-temperature resilience, signal integrity, and mechanical durability are paramount.
4. Applications
-
Power generation – Steam and gas turbines, generators
-
Oil & gas – Compressors, pumps, and turbo-expanders
-
Chemical plants – Reactors, mixers, fans
-
Marine – Main propulsion shafts, turbines
-
Mining and industrial – Motors, blowers, gearboxes
-
Aerospace / R&D – Test stands, turbines, high-speed rotors
5. Advantages
-
High Accuracy & Repeatability
Ensures precise shaft displacement and vibration measurements under all operating conditions. -
Wide Temperature Range
Can operate in extreme temperatures with optional high-temperature variants. -
Rugged and Durable
Built from corrosion-resistant stainless steel and PPS tip materials for long service life. -
Noise Immunity
Exceptional EMI shielding and low-signal drift ensure stability in electrically noisy environments. -
Modular Configuration
Multiple cable lengths, connectors, and probe body sizes support flexible installation. -
Hazardous Area Certifications
Available in certified versions for explosive or hazardous environments (ATEX, CSA, IECEx). -
Maintenance Friendly
Easily replaceable components reduce downtime during probe or cable replacement.
6. Related Models – Same Series (3300 XL)
| Model | Case Length | Cable Length | Connector Type | Measurement Range | Weight |
|---|---|---|---|---|---|
| 330101-00-14-15-02-05 | 1.4 in | 1.5 m | ClickLoc | 0.25–2.3 mm | 0.323 kg |
| 330101-00-14-05-02-00 | 1.4 in | 0.5 m | ClickLoc | 0.25–2.3 mm | 0.32 kg |
| 330101-00-20-10-02-05 | 2.0 in | 1.0 m | ClickLoc | 0.25–2.3 mm | ~0.33 kg |
| 330101-00-12-10-02-05 | 1.2 in | 1.0 m | ClickLoc | 0.25–2.3 mm | ~0.32 kg |
| 330101-00-40-10-02-00 | 4.0 in | 1.0 m | ClickLoc | 0.25–2.3 mm | ~0.34 kg |
| 330101-00-32-10-02-05 | 3.2 in | 1.0 m | ClickLoc | 0.25–2.3 mm | ~0.33 kg |
7. Other Popular Bently Nevada Models
| Model | Type | Function | Key Features |
|---|---|---|---|
| 330180-50-00 | Proximitor | Signal Conditioner | Converts probe signal into monitor-compatible voltage |
| 330180-X1-05 | High-Performance Proximitor | Advanced Conditioning | Low-noise, wide dynamic range |
| 330100-50-0 | Proximitor Module | Transducer System | For 5mm/8mm probes, part of 3300 system |
| 3300 XL (Standard) | 8mm Probe | Universal Probe | Robust design, multiple thread/cable options |
| 3300 XL 5/8in | Probe | Larger Diameter Version | Used for larger shaft measurement applications |
8. FAQs (Q&A Format)
Q1: What is the maximum measurable distance of this probe?
A: The linear measuring range is approximately 0.25 mm to 2.3 mm. Beyond that, the signal may become nonlinear or unreliable.
Q2: What is the recommended gap voltage?
A: A typical recommended gap voltage is around –9 Vdc, corresponding to a 1.27 mm (50 mils) shaft gap.
Q3: How much temperature can it withstand?
A: Standard probe handles up to +177°C. With high-temp options, the tip can withstand +218°C and cables up to +260°C.
Q4: Does cable capacitance affect signal quality?
A: Yes. Higher capacitance can reduce signal fidelity. The standard cable has around 69.9 pF/m capacitance.
Q5: Is it easy to replace if the probe fails?
A: Yes. Thanks to modular design, the probe can be replaced separately. Re-calibration of the gap is recommended.
Q6: Can it work in oily or wet conditions?
A: Yes. The probe is sealed and designed for industrial environments. FluidLoc cable options enhance sealing against fluids.
Q7: Is it suitable for high-vibration machines?
A: Absolutely. It is built to endure high-G vibration and shock in turbines and compressors.
Q8: How can I detect a faulty probe?
A: Look for signal drift, noisy outputs, or incorrect gap voltage. Cross-test with a known-good probe if possible.
Q9: Is this model certified for hazardous environments?
A: Yes. The suffix “05” version comes with certifications like ATEX, CSA, and IECEx for hazardous area use.
Q10: Why are there price differences for the same model online?
A: Differences can arise from certification versions, high-temp options, cable/connectors, supplier markup, and whether it’s OEM or aftermarket.
