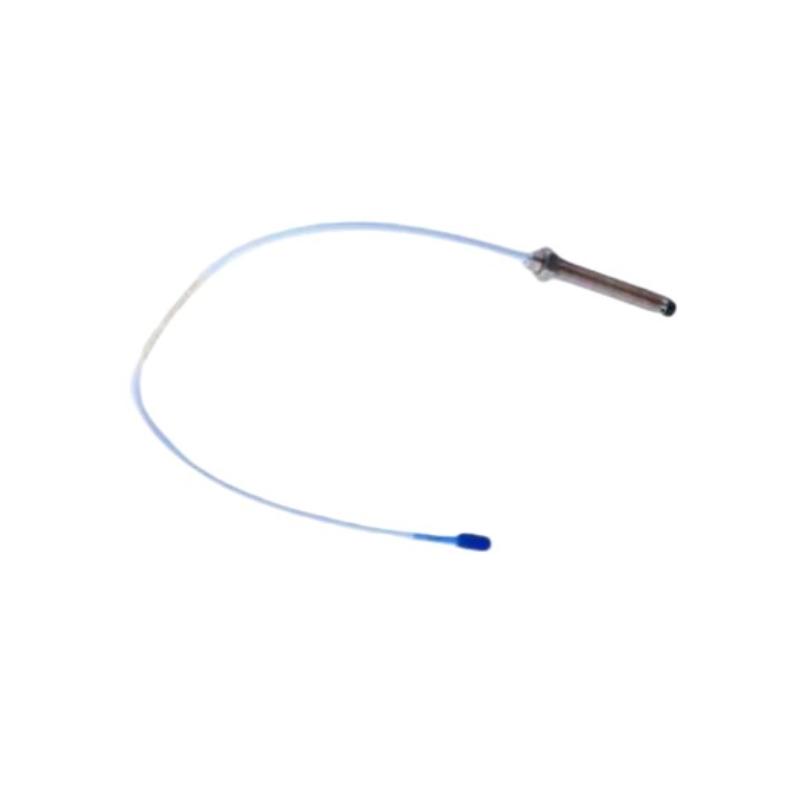

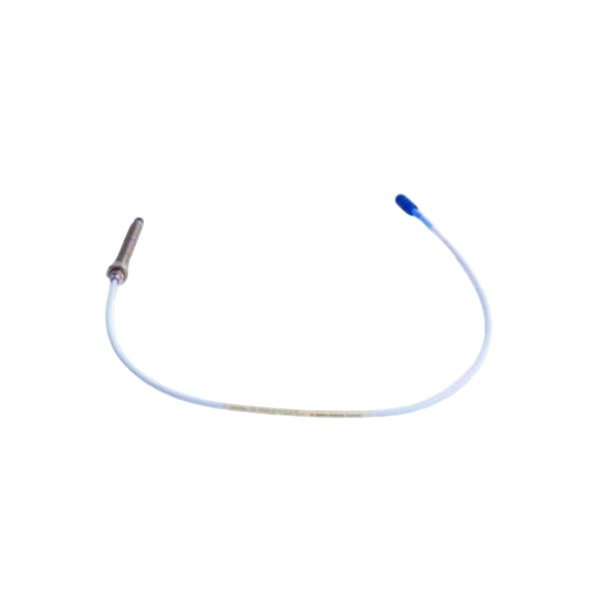

Bently Nevada 330101‑00‑14‑10‑10‑02‑05 Proximity Probe
Technical Specifications
| Feature | Specification |
|---|---|
| Model | 330101‑00‑14‑10‑10‑02‑05 |
| Series | 3300 XL 8 mm Proximity Probe Series |
| Probe Body Length (case) | 1.4 inch (≈ 35.6 mm) |
| Cable Length | 10 → 1.0 m (standard cable) |
| Connector Type | 02 → Miniature coaxial ClickLoc connector |
| Mounting Thread | 3/8‑24 UNF (standard for 8 mm series) |
| Agency / Certification | 05 → Certified version (CSA/ATEX/IECEx) |
| Measurement Range (typ.) | ≈ 0.25 to 2.3 mm linear range (≈10‑90 mils) — typical for 8 mm 3300 XL series |
| Scale Factor / Sensitivity | ~200 mV/mil (≈7.87 V/mm) ±5% |
| DC Resistance (1 m cable) | ~7.59 Ω ±0.50 Ω |
| Operating Temperature | –52 °C to +177 °C (standard rating) |
| Weight | ~0.323 kg (for the probe + cable) |
| Materials | Tip: PPS Plastic; Housing: Stainless Steel 303/304 |
| Sealing / Features | TipLoc moulding, CableLoc pull‑strength, sealed assembly for industrial use |
Note: Some values (e.g., linear range) reflect the typical spec of the 3300 XL 8 mm series and may be subject to variant tolerances.
Product Introduction
The 330101‑00‑14‑10‑10‑02‑05 is a high‑precision industrial proximity probe from the 8 mm diameter 3300 XL product line. It is engineered to provide non‑contact monitoring of shaft vibration and displacement in critically rotating machinery, such as turbines, compressors and large motors. Its robust stainless steel construction, PPS tip, and certified design (ATEX/IECEx/CSA) allow deployment in harsh environments, including high temperature, dust, moisture and hazardous atmospheres.
The “14” in the model code indicates a 1.4‑inch case (longer than the normal 1.2‑inch variants), offering extra clearance or mounting flexibility. The “10” indicates a standard 1.0 metre cable length, while “02” denotes the ClickLoc interface and “05” indicates the certified version. This combination gives a balance of standard cable, enhanced mechanical length, and full certification—ideal for installations where a certified probe with standard cable length is preferred, and where mounting depth or clearance is slightly greater.
Applications
-
Condition monitoring of rotating machinery: turbines, pumps, compressors, motors.
-
Shaft displacement and vibration measurement as part of health‑monitoring or predictive‑maintenance systems.
-
Retrofits and upgrades in existing 3300 XL monitoring arrays where certified probes are required.
-
Installations in harsh or classified environments (temperature extremes, dust, moisture, hazardous zones).
-
Monitoring for faults such as rotor imbalance, misalignment, bearing wear, shaft drift or clearance changes.
Advantages
-
Certified for Hazardous Areas: With ATEX/IECEx/CSA certification (“05” variant), it supports safe use in classified zones.
-
Extended Case Length: The 1.4‑inch case provides mounting flexibility while maintaining standard interfaces.
-
High Sensitivity: ~200 mV/mil gives high resolution to detect subtle movements early.
-
Robust Construction: PPS tip plus stainless steel housing ensure durability and long lifetime in harsh environments.
-
Standard Compatibility: Mounting thread, interface and series alignment guarantee compatibility with existing 3300 XL modules and systems.
-
Reliable Installation: ClickLoc connector ensures secure connection and ease of installation & maintenance.
Brand & Series
-
Brand: Bently Nevada
-
Series: 3300 XL (8 mm Proximity Probe Series)
Recommended Related Models (Same Series or Closely Related)
| Model | Cable Length | Case Length | Certification | Weight (kg) |
|---|---|---|---|---|
| 330101‑00‑14‑10‑02‑00 | 1.0 m | 1.4 in | non‑certified | ~0.323 |
| 330101‑00‑12‑10‑02‑05 | 1.0 m | 1.2 in | certified | ~0.323 |
| 330101‑00‑12‑15‑02‑05 | 1.5 m | 1.2 in | certified | ~0.330 |
| 330101‑00‑14‑15‑02‑05 | 1.5 m | 1.4 in | certified | ~0.330 |
| 330101‑00‑11‑10‑02‑05 | 1.0 m | 1.1 in | certified | ~0.320 |
Recommended Popular Models from the Same Brand
| Model | Description | Key Feature | Weight (kg) |
|---|---|---|---|
| 330101‑00‑12‑10‑01‑05 | Baseline 8 mm, 1.2‑in case, 1.0 m cable, certified | Standard certified model | ~0.323 |
| 330101‑00‑13‑10‑02‑05 | 1.3‑inch case, 1.0 m cable, certified | Slightly longer case | ~0.323 |
| 330101‑00‑60‑10‑02‑CN | 8 mm series, 1.0 m cable, “60” family variant | Wider range installation | ~0.323 |
| 330101‑00‑12‑05‑01‑00 | 1.2‑in case, 0.5 m cable, non‑certified | Short cable version | ~0.320 |
| 330101‑00‑11‑15‑02‑05 | 1.1‑in case, 1.5 m cable, certified | Compact case, long cable | ~0.330 |
FAQ – 10 Questions (QA Format)
Q1: What does the code “14” signify in the model number?
A1: It signifies a probe body (case) length of 1.4 inches, providing extra mounting clearance compared to shorter case versions.
Q2: What is the measurement (linear) range of this probe?
A2: The typical linear range is ~0.25 to 2.3 mm (10 to 90 mils) for the 8 mm 3300 XL series, enabling precise shaft displacement monitoring.
Q3: Does this model require special certification for hazardous areas?
A3: Yes—this “05” variant is certified for hazardous areas (CSA/ATEX/IECEx), so it can be used in classified zones.
Q4: What is the standard cable length for this model?
A4: The cable length is 1.0 metre (indicated by “10” in the model code).
Q5: What thread size does this probe use for mounting?
A5: It uses a 3/8‑24 UNF threaded mount, standard for 8 mm 3300 XL probes.
Q6: How heavy is the probe including its cable?
A6: Approximately 0.323 kg is the typical weight of the complete assembly.
Q7: What materials are used for the tip and housing?
A7: The tip is made of PPS plastic; the housing (body) is stainless steel 303/304.
Q8: What is the operating temperature range for this probe?
A8: It is rated for –52 °C to +177 °C, suitable for demanding industrial environments.
Q9: Is the connector type specialized or standard?
A9: It uses the ClickLoc miniature coaxial connector (“02” designator), which is standard in the 3300 XL family for secure and reliable connection.
Q10: Can this probe be used as a direct replacement in existing 3300 XL systems?
A10: Yes—because it shares the same interface, mounting thread and electrical characteristics, it can often replace other 3300 XL probes without major system changes, provided the mounting length (case) is suitable.
