Product Overview

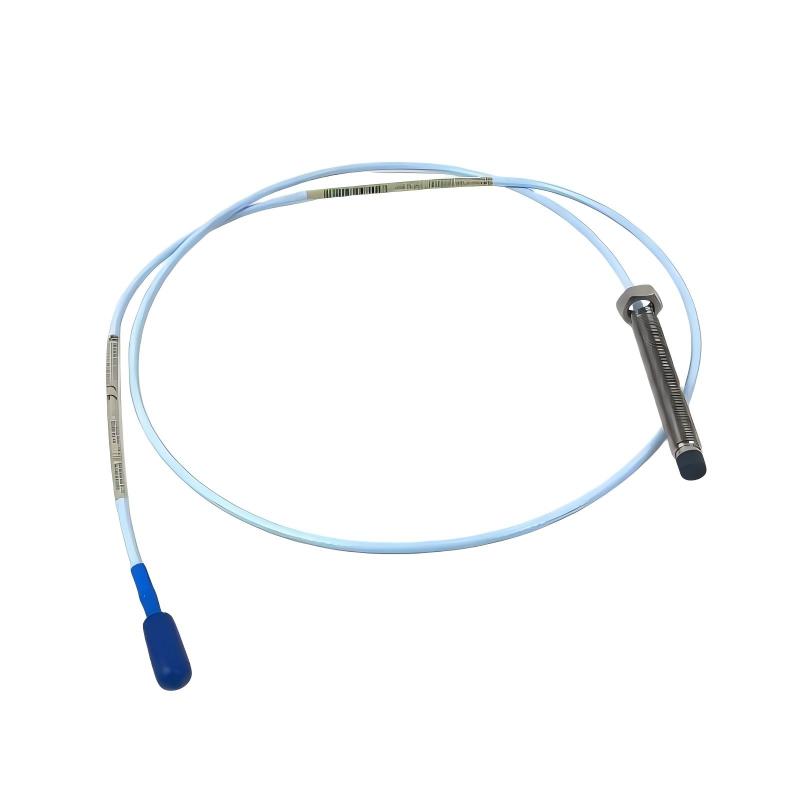

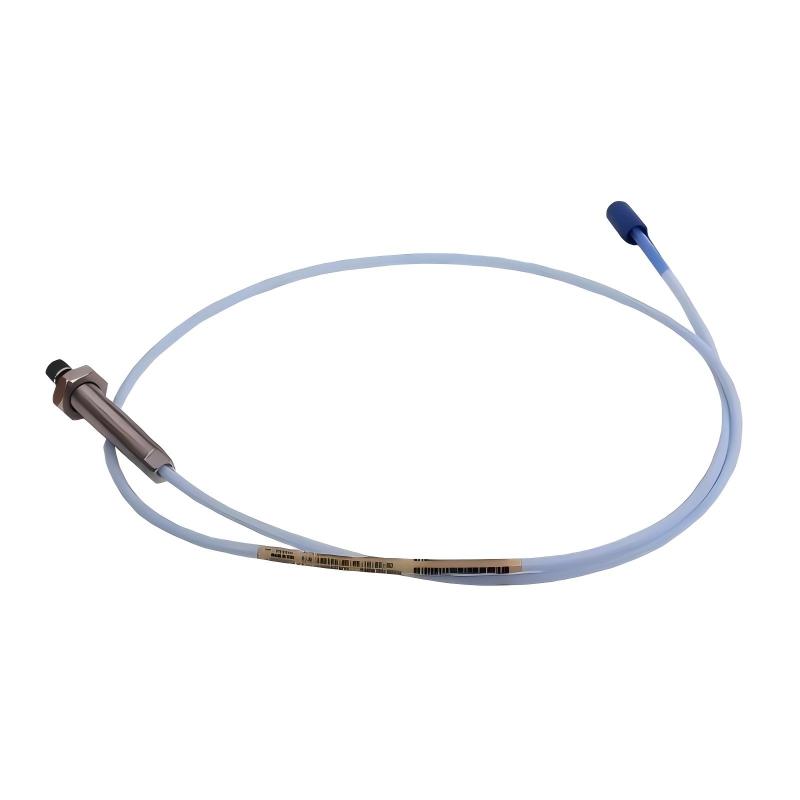

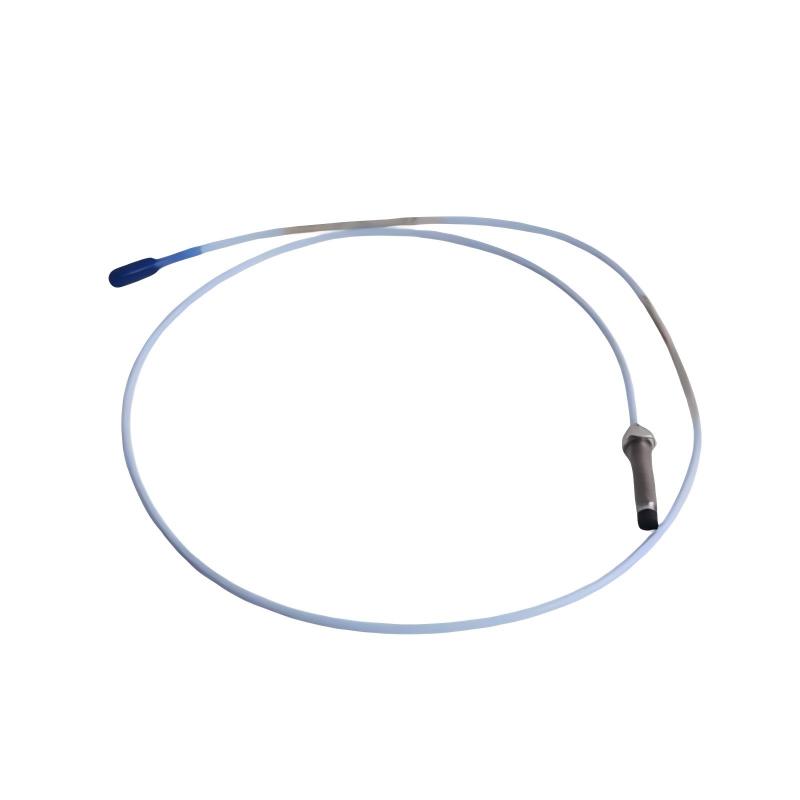

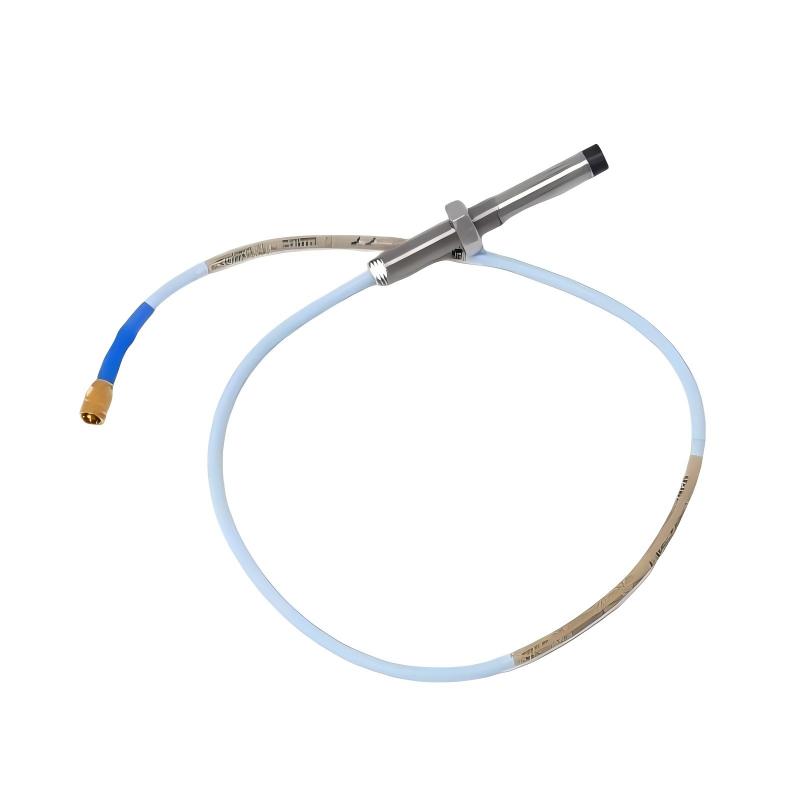

The Bently Nevada 330101-00-12-10-02-01 3300 XL 8 mm Proximity Probe is a non-contact sensor designed for continuous machinery condition monitoring in industrial environments. As part of the trusted 3300 XL Series, this proximity probe provides precise measurement of shaft vibration, position, and rotational movement in critical rotating equipment.

Engineered for reliability and long-term stability, the probe is widely used in predictive maintenance and machinery protection systems. Its advanced sensing technology helps operators detect equipment abnormalities early, reducing downtime and improving overall system reliability.

Technical Specifications

Function and Working Principle

The 3300 XL 8 mm Proximity Probe operates using eddy current sensing technology to monitor the distance between the probe tip and a conductive target surface.

Its operating process includes:

• Generating a high-frequency electromagnetic field at the probe tip
• Detecting changes caused by shaft movement or displacement
• Converting these changes into electrical signals
• Providing continuous feedback for machinery monitoring systems

Because the probe operates without physical contact, it delivers highly accurate measurements while minimizing mechanical wear and maintenance requirements.

Role in Industrial Control Systems

The 330101-00-12-10-02-01 serves as a critical sensing component within machinery protection and condition monitoring systems.

It is commonly used to monitor:

• Radial shaft vibration
• Axial shaft position
• Rotor movement
• Rotational speed
• Mechanical displacement

By continuously tracking machine behavior, the probe enables maintenance personnel to identify developing faults before they become serious equipment failures.

Industrial Applications

The 3300 XL 8 mm Proximity Probe is widely used in:

• Steam turbine monitoring systems
• Gas turbine protection systems
• Centrifugal compressor monitoring
• Industrial pump condition monitoring
• Power generation facilities
• Oil and gas processing plants
• Petrochemical production systems
• Heavy industrial rotating machinery

Its high measurement accuracy makes it ideal for critical asset monitoring applications.

Installation and System Integration

Proper installation is essential to achieve reliable measurement performance.

Typical installation practices include:

• Mounting the probe close to the monitored shaft surface
• Maintaining the correct sensing gap
• Routing cables away from electrical interference sources
• Connecting the probe to compatible extension cables and monitoring electronics
• Performing system calibration during commissioning

Correct installation helps ensure accurate measurements and long-term operational stability.

Compatible System Components

The 330101-00-12-10-02-01 is commonly used together with:

• 3300 XL Proximitor Sensors
• 3300 XL Extension Cables
• Vibration Monitoring Systems
• Machinery Protection Systems
• Turbine Supervisory Instrumentation Systems
• Condition Monitoring Platforms

Together, these components provide comprehensive machinery health monitoring and protection capabilities.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement technology
• Accurate vibration and position monitoring
• Excellent long-term measurement stability
• Suitable for continuous industrial operation
• Durable construction for demanding environments
• Supports predictive maintenance programs
• Reduces unplanned equipment downtime
• Compatible with 3300 XL monitoring systems

Technical FAQs

What is the primary function of the 330101-00-12-10-02-01?
It is used to measure shaft vibration, position, and displacement in rotating machinery.

Does the probe require physical contact with the monitored surface?
No. It uses non-contact eddy current sensing technology.

Where is this probe commonly installed?
It is typically installed on turbines, compressors, pumps, motors, and other rotating equipment.

Can it be integrated into machinery protection systems?
Yes. It is specifically designed for use within machinery monitoring and protection platforms.

Conclusion

The Bently Nevada 330101-00-12-10-02-01 3300 XL 8 mm Proximity Probe is a reliable sensing solution for industrial machinery monitoring applications. Utilizing advanced non-contact eddy current technology, it provides accurate vibration and position measurements that support predictive maintenance and equipment protection strategies.

Its robust design, dependable performance, and compatibility with the 3300 XL transducer system make it an essential component for maintaining the reliability and efficiency of critical rotating machinery across a wide range of industrial sectors.
