Product Overview

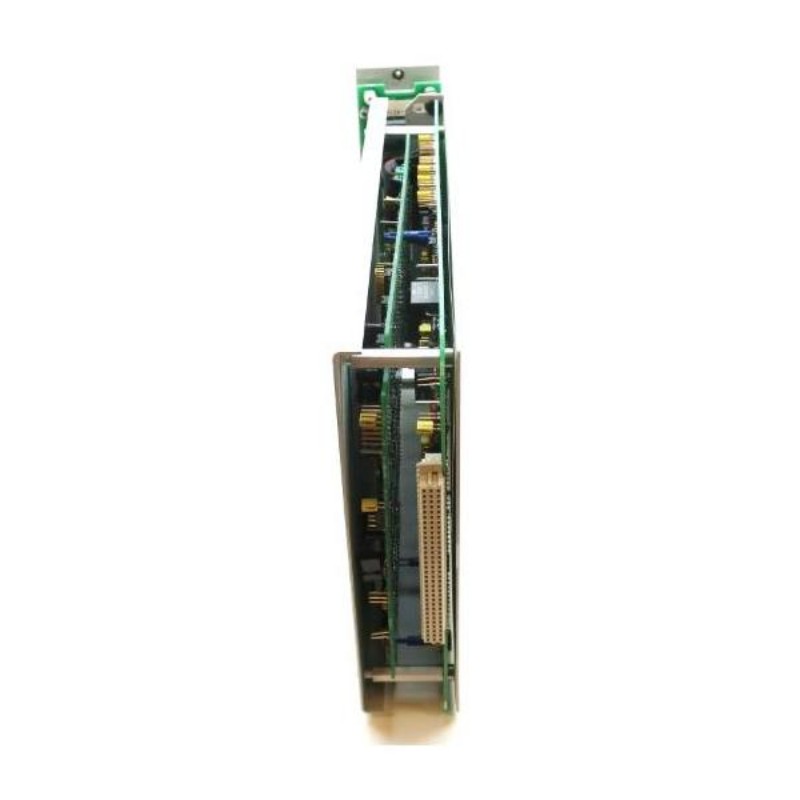

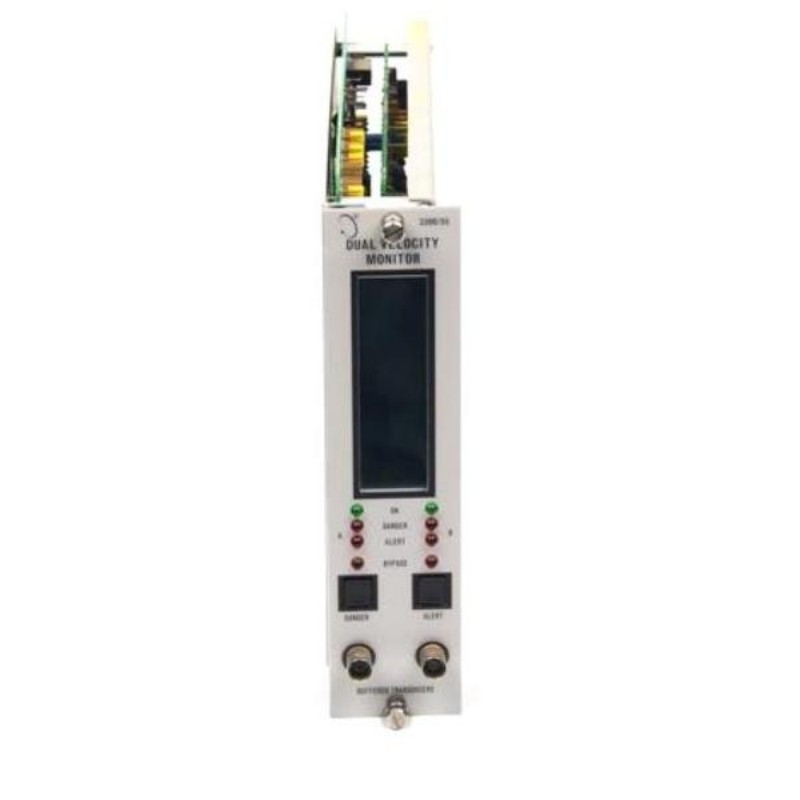

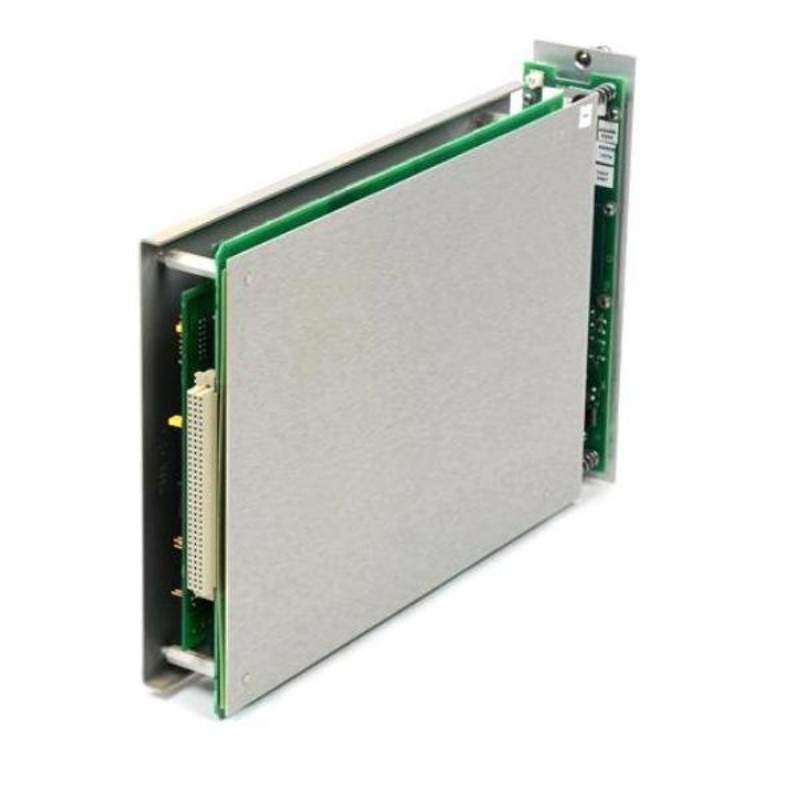

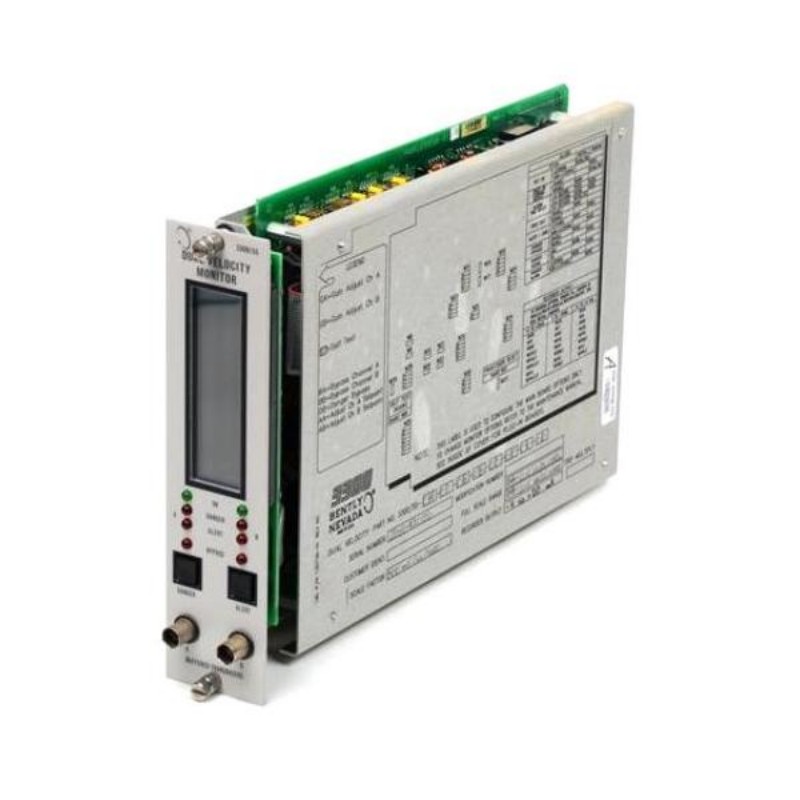

The Bently Nevada 3300/55-04-03-08-08-01-01-00-00 Dual Velocity Monitor is a machinery monitoring device used to monitor vibration velocity on rotating equipment. It is part of the Bently Nevada 3300 monitoring platform and is intended for applications where vibration condition needs to be observed continuously and abnormal mechanical behavior must be identified through dedicated monitoring channels.

Velocity monitoring is commonly used on rotating machinery because vibration velocity provides a useful representation of overall machine vibration severity across a practical operating frequency range. The 3300/55 Dual Velocity Monitor processes signals from associated vibration transducers and presents the resulting measurements for monitoring and alarm functions.

The dual-channel configuration allows two vibration measurement points to be monitored within the same monitor. This can be useful on machines where vibration needs to be observed at two bearing locations, in two directions, or at two mechanically significant positions.

In an installed machinery protection system, the monitor sits between the field vibration transducers and the plant monitoring or control interface. It continuously evaluates the incoming vibration signals against configured operating limits and can provide alarm information when monitored values exceed the established thresholds.

Technical Specifications

Product Features

• Dual-channel vibration velocity monitoring.
• Intended for continuous rotating machinery condition monitoring.
• Supports monitoring of two vibration measurement channels within one monitor.
• Provides local monitoring functions for incoming vibration signals.
• Suitable for machinery alarm and protection architectures.
• Can be used with vibration transducers as part of a complete measurement channel.
• Applicable to turbines, compressors, pumps, motors, fans, and other rotating equipment.

Working Principle

The 3300/55 receives vibration signals from connected velocity transducers and evaluates the incoming measurements for each monitoring channel.

As the monitored machine operates, mechanical vibration causes the associated transducer to generate a signal representing vibration velocity. The monitor receives the signal, processes it, and compares the measured vibration condition with configured monitoring limits.

A simplified signal path is:

Rotating Machine → Vibration Transducer → 3300/55 Dual Velocity Monitor → Alarm / Monitoring Output → Control Room

The two channels can be used to observe separate measurement locations. For example, one channel may monitor vibration at one bearing while the second channel monitors another location. This allows the operator to compare machine behavior across different points rather than relying on a single vibration measurement.

When a monitored value reaches a configured alarm threshold, the monitor can provide the corresponding alarm indication or output to the connected machinery protection and monitoring system.

Role in a 3300 Series Machinery Monitoring Control Architecture

The 3300/55 functions as a signal-processing and monitoring element between field vibration sensors and the plant’s machinery protection or monitoring interface.

Vibration Transducers → 3300/55 Dual Velocity Monitor → Alarm / Relay Outputs → Machinery Protection System → Operator Interface

The monitor can be particularly useful in installations where vibration measurements must remain available independently of the main process control loop. Machinery protection equipment can use the monitor’s outputs to initiate operator alarms or other configured responses when vibration exceeds established limits.

Industrial Applications

Installation and Maintenance

1. Confirm the monitoring channel arrangement
   Verify which field vibration transducers are connected to each monitor channel before commissioning.
2. Check transducer compatibility
   Ensure that the connected vibration sensors match the requirements of the monitoring system and the intended measurement configuration.
3. Verify signal wiring
   Inspect field wiring and termination points for loose connections, damaged conductors, contamination, or other conditions that could affect the vibration signal.
4. Check monitor installation
   Ensure that the monitor is correctly installed in the designated rack or system location and that associated connections are secure.
5. Verify channel identification
   Confirm that Channel 1 and Channel 2 correspond to the intended physical measurement locations and equipment tags.
6. Establish normal operating values
   Record vibration levels under known normal machine operating conditions. These values provide a useful reference when reviewing future changes.
7. Check alarm settings
   Verify that configured alarm thresholds correspond to the machinery monitoring requirements and established protection philosophy.
8. Investigate channel discrepancies
   If one channel behaves differently from the other, compare the transducer, wiring, machine location, and operating conditions before identifying the monitor as the source of the problem.
9. Monitor trends during startup
   Review vibration behavior during machine acceleration and other operating transitions rather than evaluating only steady-state readings.
10. Inspect connections during scheduled maintenance
    Check monitor terminals, connectors, rack interfaces, and associated wiring during planned maintenance activities.
11. Verify after transducer replacement
    When a field vibration transducer is replaced, confirm that the corresponding monitor channel receives a valid signal and displays the expected operating behavior.
12. Perform system-level functional checks
    After replacing the monitor or related hardware, verify measurement, alarm, and output functions across the complete monitoring chain before returning the equipment to normal operation.

Compatible System Components

Recommended Related Models

Key Advantages

• Dual-channel vibration velocity monitoring.
• Suitable for continuous monitoring of rotating machinery.
• Allows two vibration measurement points to be monitored through one device.
• Supports alarm and machinery protection architectures.
• Useful for comparing vibration behavior at different machine locations.
• Integrates field vibration measurements into a centralized monitoring arrangement.

Technical FAQs

What does the Bently Nevada 3300/55 Dual Velocity Monitor measure?

It monitors vibration velocity signals from associated vibration transducers and processes those signals for continuous machinery condition monitoring.

Why use two velocity monitoring channels?

Two channels allow vibration to be monitored at separate machine locations. This can help identify differences in vibration behavior between bearings, housings, or other selected measurement points.

What should be checked if one channel shows an abnormal vibration value?

Check the corresponding vibration transducer, field wiring, mounting condition, channel configuration, and machine operating condition. Comparing the affected channel with the other channel can also help narrow down whether the issue is associated with the sensor, monitoring circuit, or machine.

Can the 3300/55 be used as part of a machinery protection system?

Yes. The monitor can form part of a machinery monitoring and protection architecture in which vibration signals are processed and alarm information is transferred to associated protection or control equipment.
