Product Overview

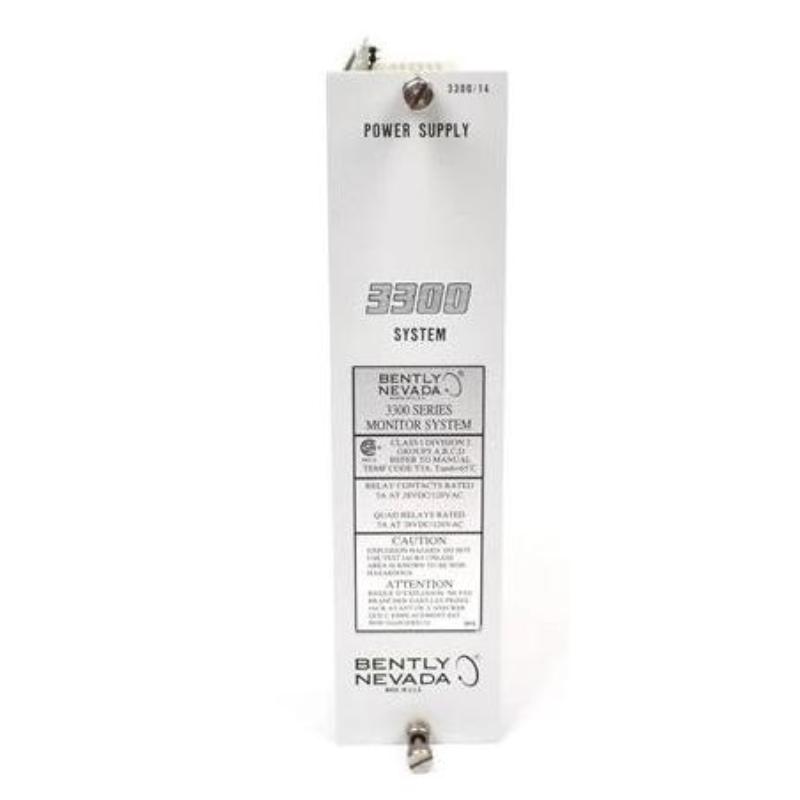

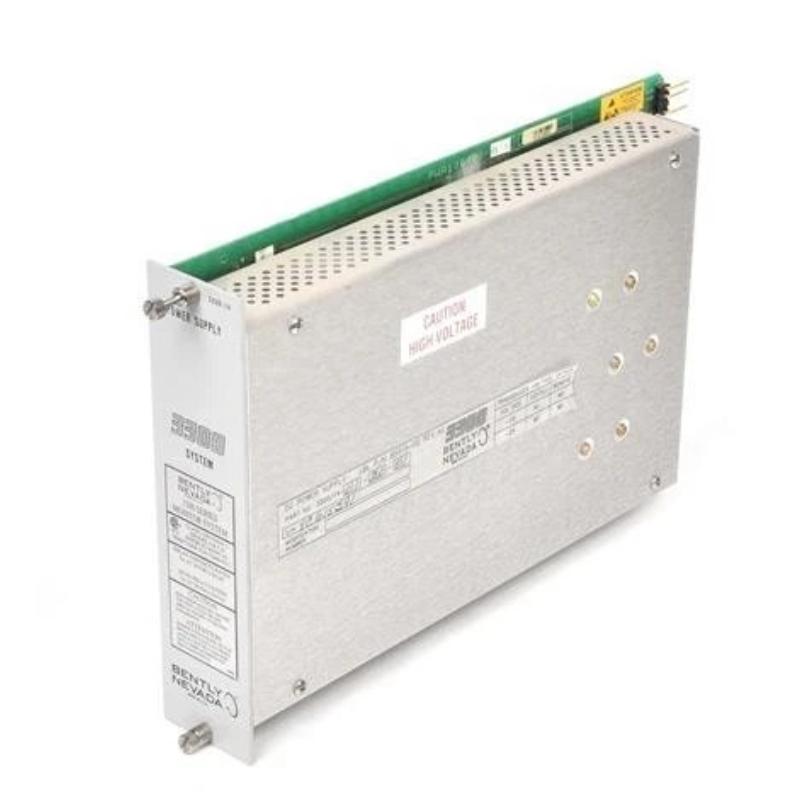

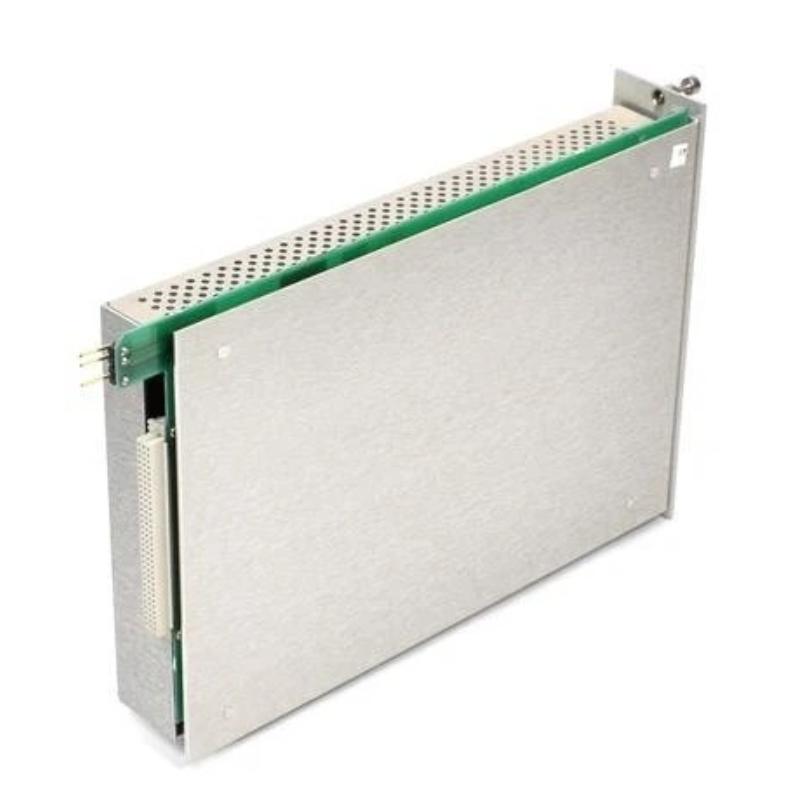

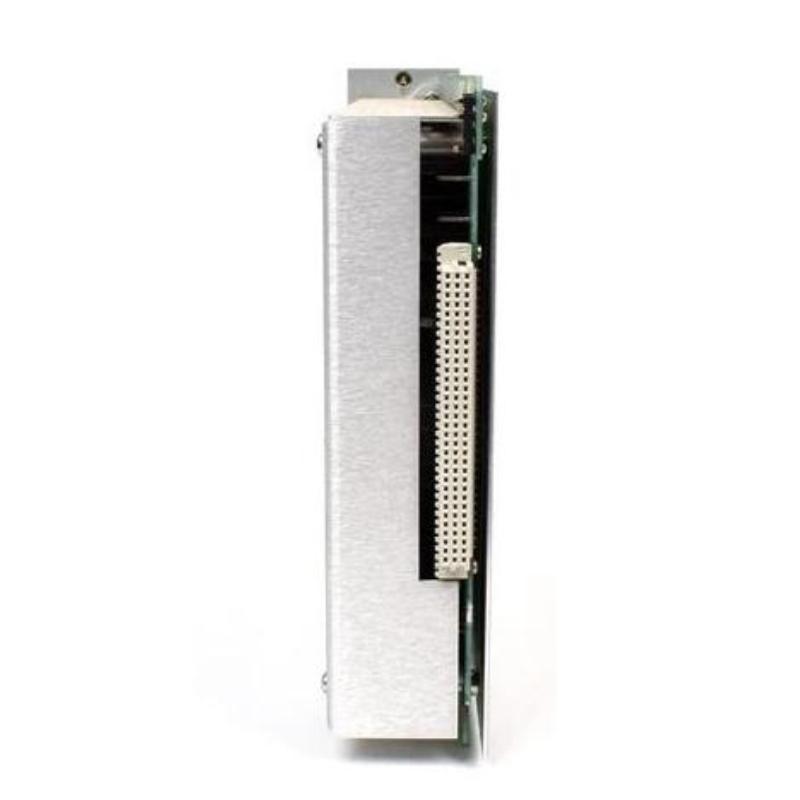

The Bently Nevada 3300/14-01-20-01 DC Power Supply is a power supply module used within the Bently Nevada 3300 machinery monitoring platform. It provides the DC power required by the associated monitoring rack and installed monitoring electronics, forming part of the basic power infrastructure for a 3300 system.
In a typical machinery monitoring installation, vibration monitors, position monitors, system monitors, and related electronic modules depend on a stable DC power source. The 3300/14-01-20-01 supplies this power within the monitoring architecture so that the installed modules can operate continuously while collecting and processing machine condition data.
The power supply is used at the rack level rather than directly as a field measurement device. Its role is therefore different from vibration or proximity monitoring modules: it supports the electronics that acquire, process, display, and communicate machinery condition information.
For maintenance personnel, the condition of the power supply is important when several monitoring channels appear to experience simultaneous faults. A power-related issue can affect multiple modules at the same time, making rack-level power checks an important part of troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3300/14-01-20-01 |
| Product Series | 3300 |
| Product Type | DC Power Supply |
| Application | 3300 machinery monitoring rack power |
| Function | Provides DC power for associated 3300 monitoring electronics |
| Dimensions | 203 × 35 × 100 mm |
| Weight | 2 kg |
Product Features
- DC power supply module for the Bently Nevada 3300 platform.
- Intended for rack-level machinery monitoring system power.
- Supports operation of associated 3300 monitoring modules.
- Forms part of the power infrastructure of a continuous monitoring system.
- Suitable for multi-channel machinery monitoring installations.
- Helps maintain power availability for vibration, position, and system monitoring electronics.
- Can be used in turbine, compressor, pump, motor, and generator monitoring systems.
Working Principle
The 3300/14-01-20-01 operates at the power distribution level of the 3300 monitoring rack. Its function is to receive the applicable system power input and provide the required DC power to the associated monitoring electronics.
A simplified power path is:
System Power Input → 3300/14 DC Power Supply → 3300 Rack Power Distribution → Monitoring Modules → Machinery Monitoring System
The power supply supports the electronic modules that perform measurement processing and monitoring functions. Individual vibration or position modules then handle their assigned measurement channels while the system monitor and other rack components perform their respective functions.
Because the power supply supports multiple electronic modules, its operating condition can affect the behavior of the entire rack. A loss or degradation of rack power may appear as simultaneous faults, communication loss, or abnormal status indications across several modules.
For this reason, power supply status should be checked before replacing multiple monitoring modules when several channels show problems at the same time.
Role in a 3300 Series Machinery Monitoring Control Architecture
The 3300/14-01-20-01 is located at the power infrastructure level of the monitoring architecture. It supports the DC power requirements of the monitoring rack and its installed electronic modules.
System Power → 3300/14 DC Power Supply → 3300 Rack → Monitoring Modules → System Monitor / External Interface
| System Element | Function |
|---|---|
| System Power Input | Supplies the electrical input to the monitoring rack |
| 3300/14-01-20-01 | Converts and supplies the required DC power for the rack |
| 3300 Rack | Distributes power and provides interconnection for monitoring modules |
| Monitoring Modules | Process vibration, position, speed, and other machine measurements |
| 3300 System Monitor | Provides rack-level system monitoring and interface functions |
| External Monitoring System | Receives machinery condition and system information |
| Operator Interface | Displays machine condition and alarm information |
A stable rack power supply is fundamental to the operation of the complete monitoring system. If power is interrupted, measurement channels and communication functions may become unavailable even though the connected field sensors remain physically intact.
Industrial Applications
| Application | Use of the 3300/14-01-20-01 |
|---|---|
| Steam Turbines | Supplying rack power for turbine machinery monitoring electronics |
| Gas Turbines | Supporting continuous monitoring system operation |
| Compressors | Providing DC power to installed vibration and position monitoring modules |
| Pumps | Supporting multi-channel machinery monitoring racks |
| Motors and Generators | Maintaining power for rotating equipment monitoring electronics |
| Power Generation | Supporting 3300 monitoring systems used on critical machinery |
| Process Plants | Providing rack-level power for continuous machinery condition monitoring |
Installation and Maintenance
- Verify the rack power arrangement
Confirm that the power supply is installed in the correct 3300 rack position and matches the intended system configuration. - Check the incoming power connection
Verify that the input wiring is secure and that the supply source matches the requirements of the installed monitoring system. - Inspect rack connections
Check the power supply interface and rack connections for looseness, contamination, corrosion, or physical damage. - Confirm module seating
Make sure the power supply and neighboring monitoring modules are correctly seated in the rack. - Observe system status after startup
Check the rack and connected monitoring modules after energization for abnormal status indications. - Investigate simultaneous module faults
If several monitoring channels become unavailable at the same time, check the rack power supply and distribution before replacing individual monitor modules. - Monitor for intermittent power problems
Unexpected resets, communication interruptions, or repeated module status changes can justify inspection of the rack power path. - Keep the rack environment clean
Prevent excessive dust, moisture, contamination, and other environmental conditions that could affect electronic equipment and electrical connections. - Inspect wiring during scheduled maintenance
Check power terminals, connectors, and associated wiring for signs of overheating, corrosion, looseness, or physical damage. - Verify power after rack modifications
When monitoring modules are added, removed, or replaced, confirm that the rack power system remains correctly configured. - Use appropriate isolation procedures
Before removing the power supply, follow the plant’s electrical isolation and maintenance procedures to prevent accidental energization. - Perform system-level verification after replacement
After replacing the power supply, verify rack operation, module status, communication, and monitoring functions before returning the system to normal service.
Compatible System Components
| Component Type | Typical Role |
|---|---|
| Bently Nevada 3300 System Monitor | Provides rack-level monitoring and system interface functions |
| 3300 Vibration Monitor Modules | Process vibration measurements |
| 3300 Proximity Monitoring Modules | Process shaft displacement and position measurements |
| 3300 Speed Monitoring Modules | Monitor rotational speed and related machine parameters |
| 3300 Rack | Houses and interconnects the monitoring modules |
| Rack Power Distribution | Distributes DC power to installed monitoring electronics |
| External Monitoring System | Receives machinery condition and system status information |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 3300/14 | DC Power Supply | Rack-level power for the 3300 monitoring platform |
| Bently Nevada 3300/03-01-01 | System Monitor | 3300 rack system monitoring and communication |
| Bently Nevada 3300/55 | Dual Velocity Monitor | Dual-channel vibration velocity monitoring |
| Bently Nevada 3300/16 | Dual Vibration Monitor | Rotating machinery vibration monitoring |
| Bently Nevada 3300 Series | Machinery Monitoring System | Continuous machinery monitoring and protection |
Key Advantages
- Provides DC power for the 3300 monitoring rack.
- Supports continuous operation of associated monitoring electronics.
- Suitable for multi-channel machinery monitoring architectures.
- Helps maintain power availability for vibration and position monitoring modules.
- Useful as a rack-level replacement component in 3300 systems.
- Supports centralized machinery monitoring installations.
Technical FAQs
What is the function of the Bently Nevada 3300/14-01-20-01?
The 3300/14-01-20-01 is a DC power supply used within the 3300 machinery monitoring platform to provide power for associated monitoring rack electronics.
What symptoms can indicate a rack power supply problem?
Possible symptoms include multiple monitoring modules becoming unavailable, simultaneous communication loss, unexpected module resets, or abnormal rack status. These symptoms should be checked against the incoming power and rack distribution before replacing individual monitoring modules.
Why should the power supply be checked when several 3300 modules fail at the same time?
Multiple modules sharing the same rack power infrastructure can be affected by a common power problem. Checking the power supply first can help distinguish a rack-level issue from several independent module failures.
What should be verified after replacing the 3300/14 power supply?
Verify the incoming power connection, rack power distribution, module status, system communication, and operation of the connected monitoring channels. The complete monitoring system should be checked before returning the equipment to normal service.
