Product Overview

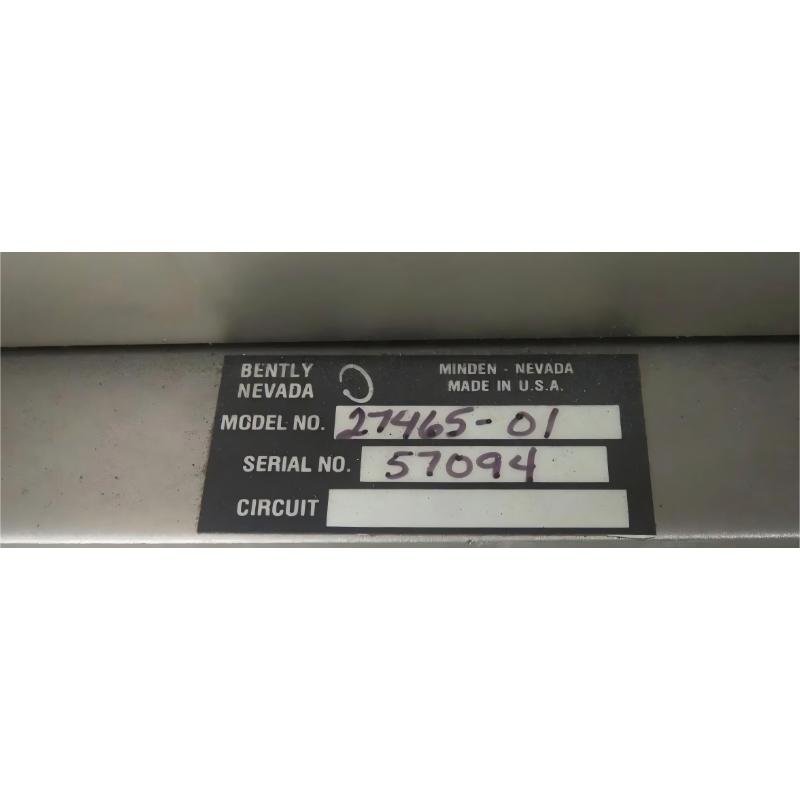

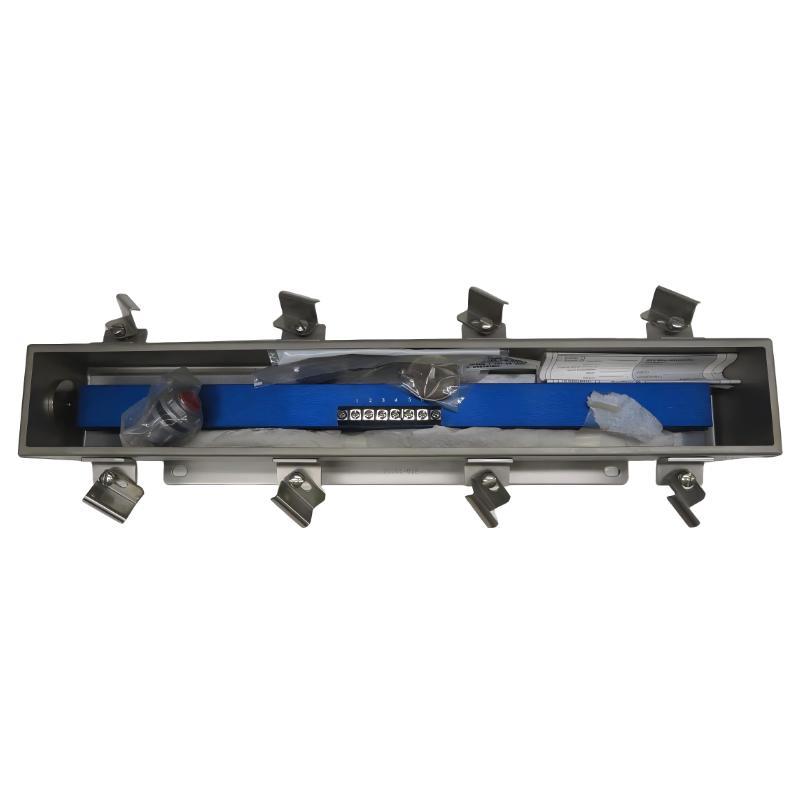

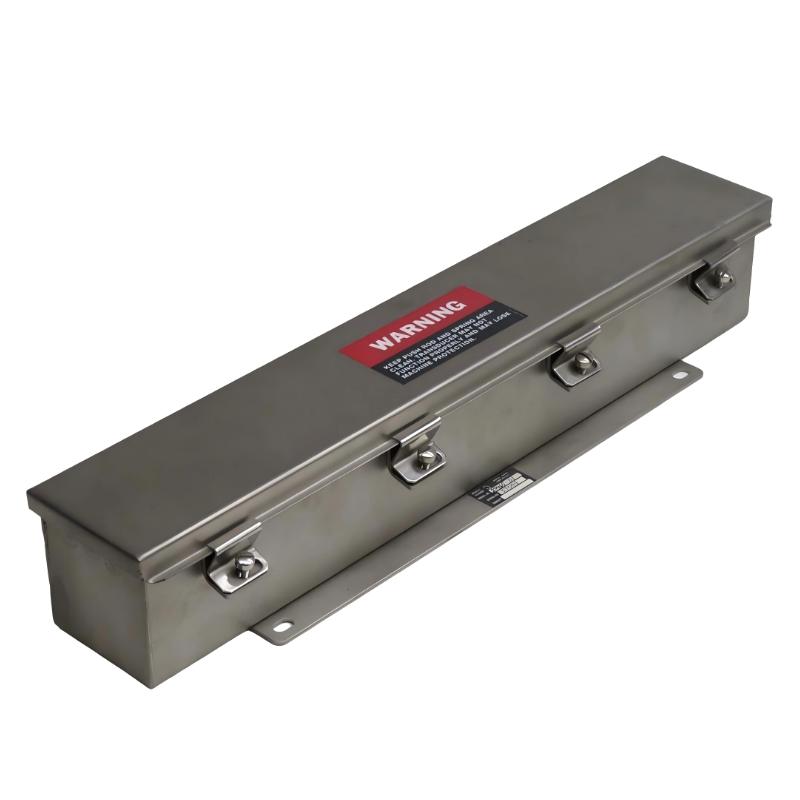

The Bently Nevada 27465-01 is a Valve Position Transducer / Sensor used in industrial automation and condition monitoring systems to measure the linear or mechanical position of a valve stem or actuator.
It is commonly applied in turbine control systems, process valves, and critical flow regulation equipment, where accurate feedback of valve opening percentage is required for safe and stable operation.
This device is part of Bently Nevada’s position measurement and turbine supervisory instrumentation (TSI) portfolio.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 27465-01 |
| Product Type | Valve Position Sensor / Transducer |
| Measurement Type | Linear position (mechanical displacement) |
| Application | Valve stem / actuator position feedback |
| Dimensions | 250 × 35 × 102 mm |
| Weight | 0.8 kg |
| Output Signal | Typically analog (4–20 mA or LVDT-based system depending on configuration) |
| Mounting Type | Mechanical mounting on actuator/valve assembly |
| Operating Environment | Industrial / turbine / process environments |
Function and Working Principle
The 27465-01 is used to convert mechanical movement of a valve into an electrical feedback signal.
Working Principle (typical LVDT-based system)
Most valve position sensors in this class use LVDT (Linear Variable Differential Transformer) technology:
- Valve stem moves linearly (open/close position)
- Sensor core moves inside coil assembly
- Induced voltage changes proportionally
- Signal is converted into standardized output
x∝Vx \propto V
Where valve displacement (x) is proportional to output voltage (V).
Key Functions
- Measures valve opening position (0–100%)
- Provides real-time actuator feedback
- Enables closed-loop control in process systems
- Improves flow regulation accuracy
- Supports turbine and process safety systems
Role in Industrial Control Systems
The 27465-01 functions as a position feedback device in control loops:
- PLC / DCS sends control signal to valve actuator
- Valve moves mechanically
- Sensor measures actual valve position
- Feedback is sent back to controller for correction
This creates a closed-loop control system ensuring precise flow regulation.
Industrial Applications
- Steam turbine control systems
- Gas turbine fuel valves
- Oil & gas pipeline valves
- Compressor anti-surge valves
- Power plant process control systems
- Petrochemical flow regulation systems
- Industrial automation valve positioning
Installation Guidelines
- Mounted directly on valve actuator or stem assembly
- Requires precise mechanical alignment with moving shaft
- Must be calibrated for full stroke (0%–100%)
- Cable routing should minimize EMI interference
- Ensure rigid mounting to avoid measurement drift
- Periodic calibration recommended in critical systems
⚠️ Misalignment can cause incorrect position feedback and unstable control behavior.
Compatible System Components
- Bently Nevada turbine supervisory systems (TSI)
- PLC/DCS control systems
- Valve actuators (electrical/pneumatic)
- Signal conditioning modules
- Industrial process control networks
Recommended Alternative Models
| Model | Type | Key Feature |
|---|---|---|
| 27465-01 | Valve position sensor | Standard configuration |
| LVDT-based industrial sensors | Linear position transducers | Generic alternative |
| 3300 XL displacement systems | Eddy-current position systems | High-precision alternative |
| Siemens / Emerson valve positioners | Smart valve controllers | Integrated control + feedback |
Key Advantages
- Accurate valve position measurement
- Stable operation in harsh industrial environments
- Supports closed-loop control systems
- Improves process efficiency and safety
- Compatible with turbine and process automation systems
- Reliable long-term mechanical feedback
Technical FAQs
Q1: What does this sensor measure?
It measures valve stem or actuator position (opening percentage).
Q2: Is it a control device?
No, it is a feedback sensor, not an actuator.
Q3: What technology does it use?
Typically LVDT or similar linear displacement measurement technology.
Q4: Where is it used?
In turbines, pipelines, compressors, and industrial process valves.
Conclusion
The Bently Nevada 27465-01 Valve Position Sensor is a precision displacement transducer used to monitor valve movement in industrial control systems. It provides accurate position feedback for closed-loop regulation of flow, making it essential for turbine control, process automation, and critical valve applications.
