Product Overview

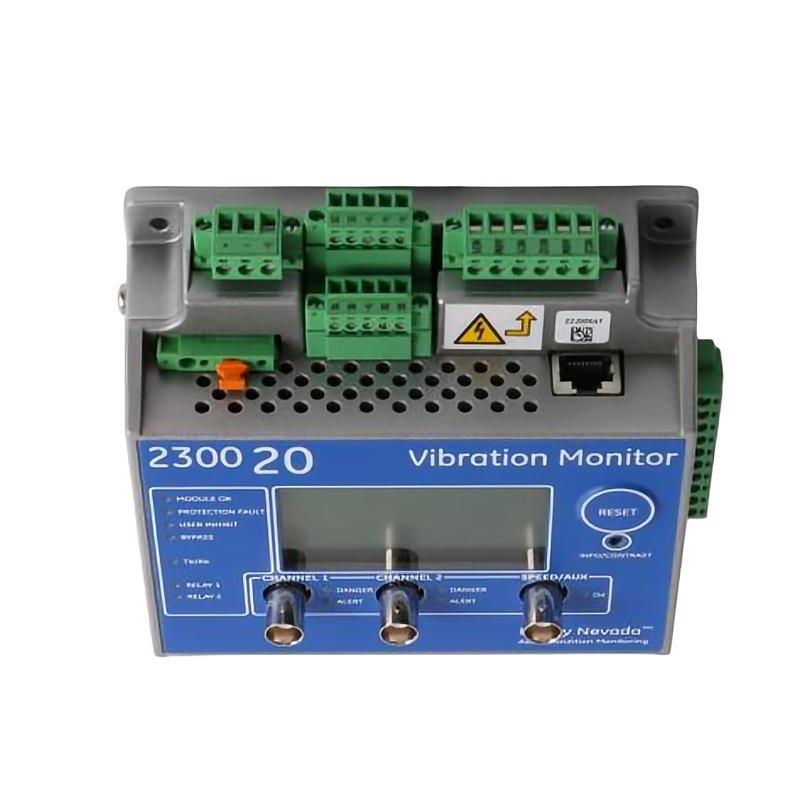

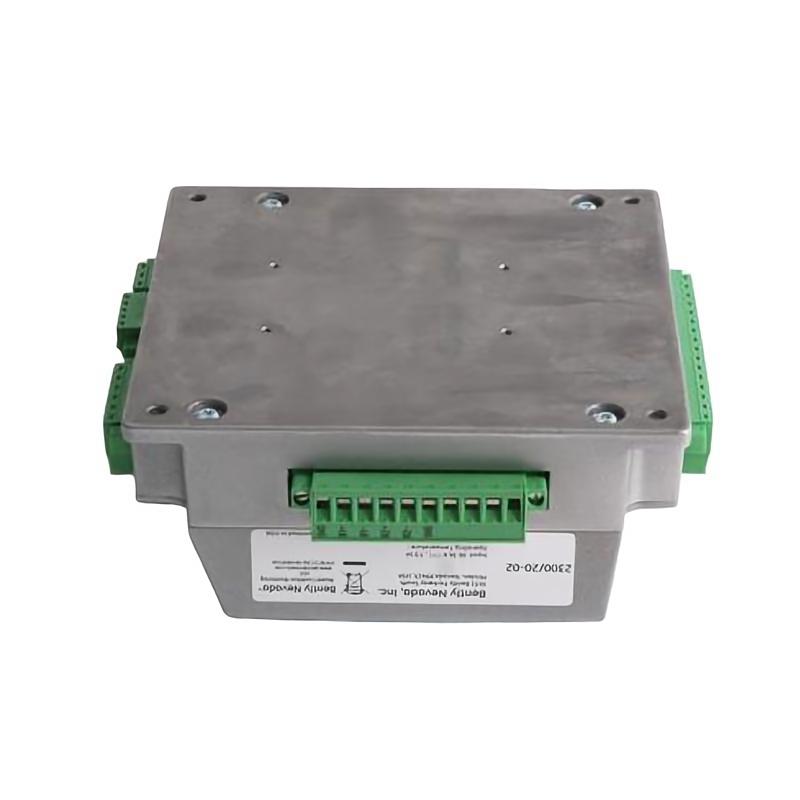

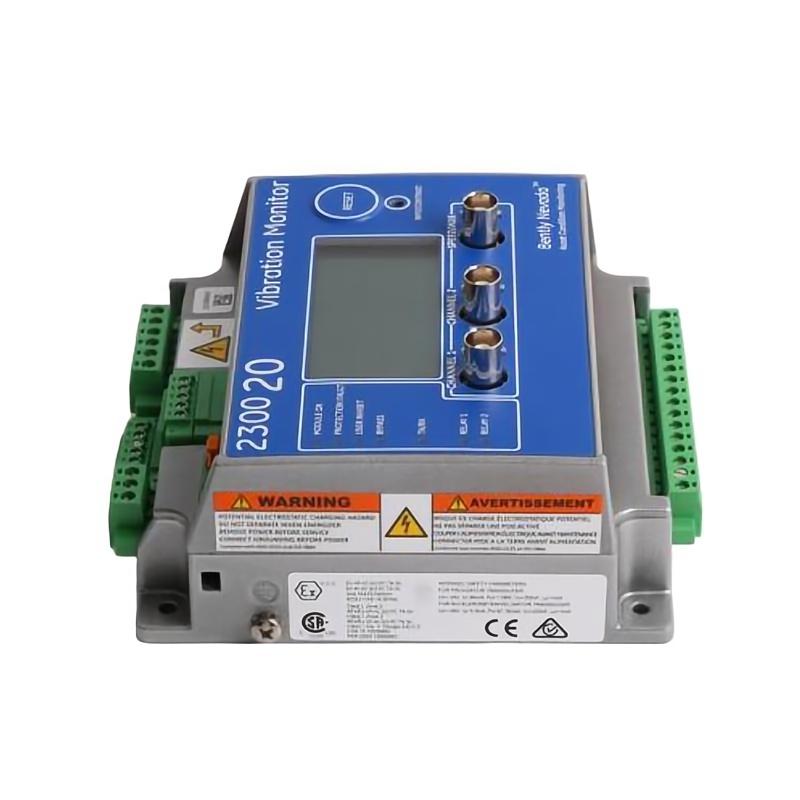

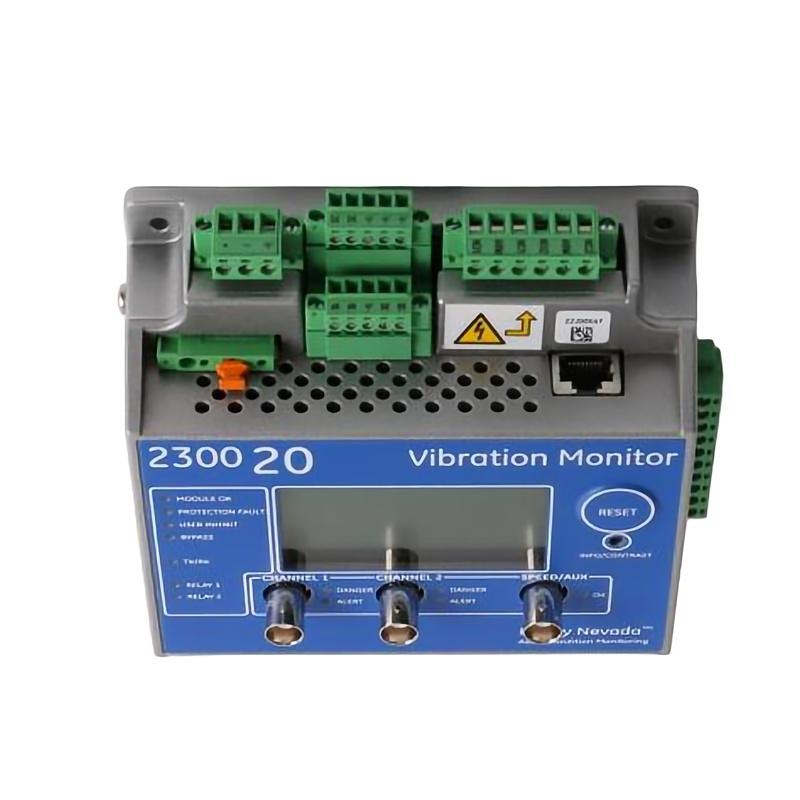

The Bently Nevada 2300/20-02 2300 Series Vibration Monitor is an industrial machinery monitoring device used to track vibration conditions on rotating equipment. It belongs to the Bently Nevada 2300 Series and serves as an interface between compatible vibration sensors and the machinery protection or control architecture.
In a typical installation, sensors mounted on the monitored machine capture vibration behavior and transmit the resulting signals to the 2300/20-02. The monitor evaluates the incoming information against the configured monitoring conditions, allowing abnormal machine behavior to be identified and reported.
This type of monitoring is useful for rotating assets where mechanical condition directly affects equipment availability. Pumps, motors, compressors, fans, blowers, and similar machinery can benefit from continuous vibration supervision as part of a broader maintenance strategy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 2300/20-02 |
| Product Family | 2300 Series |
| Product Type | Vibration Monitor |
| Primary Function | Machinery Vibration Monitoring |
| System Role | Vibration Monitoring / Machinery Protection |
| Application | Rotating Equipment Condition Monitoring |
| Dimensions | 127 × 127 × 76.2 mm |
| Weight | 1.03 kg |
Product Features
The 2300/20-02 is intended for industrial applications where vibration is used as a key indicator of rotating-machine condition.
Key characteristics include:
- Bently Nevada 2300 Series vibration monitor
- Model 2300/20-02
- Suitable for rotating equipment monitoring
- Works with compatible vibration sensing equipment
- Supports continuous observation of machine vibration
- Suitable for machinery protection applications
- Useful for condition-based maintenance programs
- Can form part of an alarm and protection architecture
- Applicable to pumps, motors, compressors, fans, and blowers
- Suitable for industrial maintenance and replacement work
The monitor should be selected together with the appropriate sensor and overall machinery protection configuration.
Working Principle
The 2300/20-02 functions as the monitoring stage within the machinery vibration signal path.
A typical system can be represented as:
Rotating Machine → Vibration Sensor → 2300/20-02 → Alarm / Protection System
As the machine operates, the connected sensor detects vibration produced by the rotating assembly. The sensor sends the resulting signal to the monitor, which evaluates the measured condition according to the configured monitoring requirements.
When the monitored vibration reaches an applicable alarm condition, the monitor can provide the corresponding indication or signal to the connected protection and control architecture.
The monitor therefore converts raw vibration information from the field measurement point into useful machinery-condition information for maintenance and protection purposes.
Role in a Machinery Protection Architecture
The 2300/20-02 sits between the field measurement layer and the plant-level protection system.
Rotating Equipment → Sensor → 2300/20-02 → Alarm / Protection → PLC / HMI
| System Layer | Component | Function |
|---|---|---|
| Mechanical Layer | Motor / Pump / Compressor | Equipment being monitored |
| Measurement Layer | Vibration Sensor | Detects mechanical vibration |
| Monitoring Layer | 2300/20-02 | Evaluates vibration condition |
| Protection Layer | Alarm / Shutdown Circuit | Responds to abnormal conditions |
| Control Layer | PLC / Control System | Integrates equipment status |
| Operator Layer | HMI / SCADA | Displays machine information |
This separation allows vibration monitoring to remain dedicated to machinery condition while the main control system handles process and machine logic.
Industrial Applications
The 2300/20-02 can be used in industrial installations where rotating equipment requires continuous condition supervision.
| Application | Typical Use |
|---|---|
| Pump Stations | Monitoring pump vibration |
| Motor Systems | Identifying changes in mechanical condition |
| Compressor Units | Machinery protection |
| Cooling Fans | Monitoring abnormal vibration |
| Blower Systems | Continuous condition supervision |
| Process Machinery | Vibration-based maintenance |
| Utility Equipment | Rotating asset monitoring |
| Production Equipment | Supporting predictive maintenance |
The monitoring configuration should be matched to the mechanical characteristics and operating conditions of the specific equipment.
Installation and Maintenance
Vibration monitoring accuracy depends on both the electronic monitor and the mechanical installation of the sensing system.
Recommended maintenance checks include:
- Confirm the complete 2300/20-02 model.
- Verify the connected sensor type and compatibility.
- Check sensor mounting condition.
- Inspect sensor cables and connectors.
- Verify monitor power and electrical connections.
- Check configured monitoring parameters.
- Review alarm conditions and historical operating behavior.
- Compare current vibration values with the machine’s normal condition.
- Inspect wiring for loose or damaged connections.
- Verify monitoring outputs during planned maintenance.
- Investigate the machine mechanically when vibration changes unexpectedly.
When troubleshooting, it is important to distinguish between an instrumentation fault and a genuine change in machine vibration. Both can produce abnormal monitoring indications.
Related Components
The 2300/20-02 operates as part of a larger vibration monitoring system.
| Component | Function |
|---|---|
| Bently Nevada Vibration Sensor | Detects machine vibration |
| Eddy Current Probe | Measures shaft vibration or position where applicable |
| Signal Cable | Transfers sensor signals |
| Vibration Monitor | Evaluates vibration conditions |
| Alarm Circuit | Provides abnormal-condition indication |
| PLC / Control System | Integrates monitoring information |
| HMI / SCADA | Displays machinery status |
| Rotating Equipment | Equipment under supervision |
The complete measurement path should be considered when diagnosing vibration-monitoring problems.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 2300/20-02 | 2300 Series Vibration Monitor | Rotating machinery monitoring |
| Bently Nevada 2300/20-00-00 | 2300 Series Vibration Monitor | Machinery vibration monitoring |
| Bently Nevada 2300/20-00-01 | 2300 Series Vibration Monitor | Vibration condition monitoring |
| Bently Nevada 2300/20-00-002 | 2300 Series Vibration Monitor | Machinery protection |
| Bently Nevada AAP1407030-00100 | 3300 XL NSv Eddy Current Probe | Shaft vibration and position measurement |
These products perform different roles within machinery monitoring systems, so selection should follow the original system configuration and required measurement function.
Key Advantages
- Bently Nevada 2300 Series vibration monitoring hardware
- Suitable for rotating machinery applications
- Supports continuous vibration condition monitoring
- Can be incorporated into machinery protection systems
- Applicable to pumps, motors, compressors, fans, and blowers
- Helps identify abnormal changes in machine behavior
- Supports condition-based maintenance strategies
- Can connect vibration monitoring with plant protection architecture
- Suitable for industrial maintenance and replacement applications
Technical FAQs
How does the 2300/20-02 contribute to machinery protection?
It monitors vibration information from compatible sensing equipment and evaluates the machine condition against configured monitoring requirements. Abnormal vibration conditions can then be incorporated into the associated alarm or protection response.
Why should vibration trends be considered instead of looking only at a single reading?
A single vibration value may be influenced by operating speed, load, process conditions, or temporary disturbances. Observing changes over time can make it easier to distinguish normal operating variation from a developing mechanical problem.
Can a sensor installation problem create a false vibration alarm?
Yes. Poor sensor mounting, damaged cables, loose connections, or other problems in the measurement path can affect the signal received by the monitor. The instrumentation should therefore be checked before concluding that the machinery itself has developed a fault.
What equipment should be evaluated when selecting a 2300/20-02 monitoring setup?
The monitored machine, vibration parameter, sensor type, signal cabling, alarm requirements, and connection to the plant control or protection system should all be considered. A suitable monitoring configuration depends on the complete measurement and protection architecture.
