Product Overview

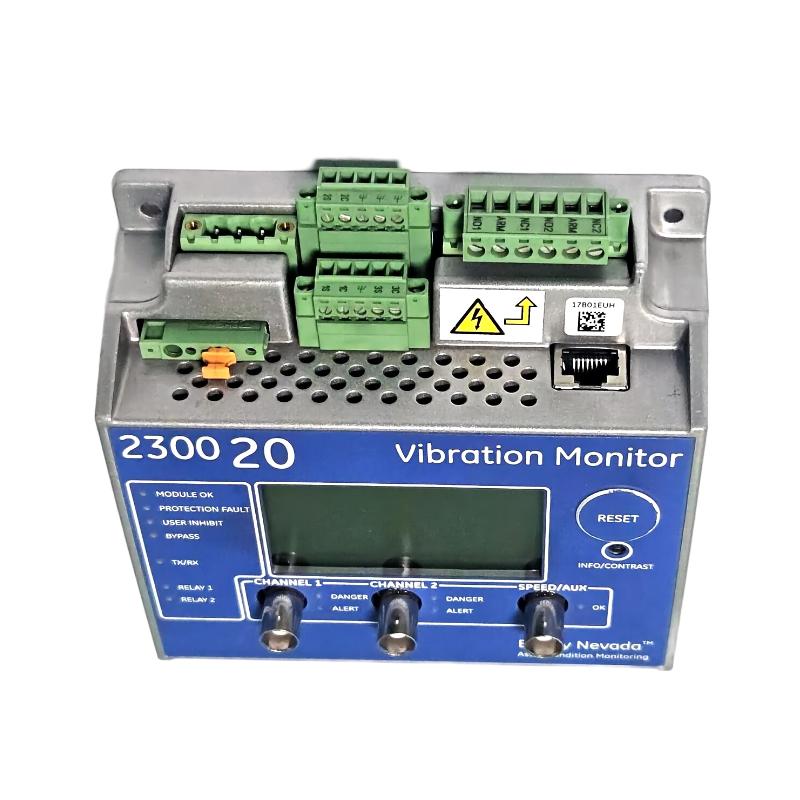

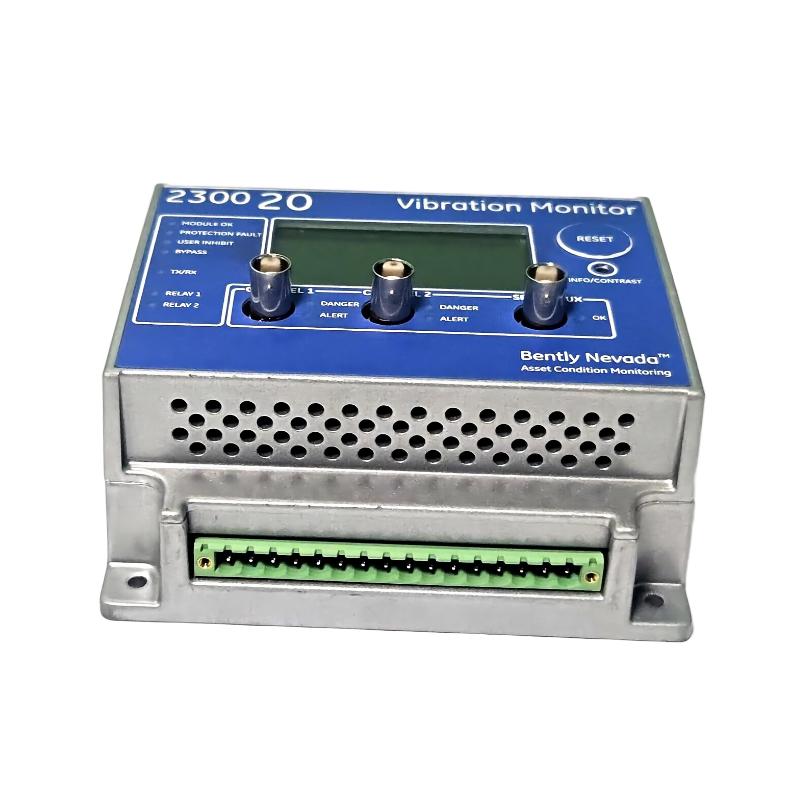

The Bently Nevada 2300/20-00-01 2300 Series Vibration Monitor is an industrial vibration monitoring device used to observe the operating condition of rotating machinery. It forms part of the Bently Nevada 2300 Series and sits within the machinery monitoring path between compatible vibration sensors and the plant’s alarm, protection, or control system.
During normal operation, vibration sensors installed on the monitored equipment capture mechanical movement and transmit the corresponding signals to the monitor. The monitor evaluates these signals against the configured monitoring conditions, allowing abnormal vibration behavior to be identified.
For maintenance applications, the 2300/20-00-01 is useful where machinery condition needs to be monitored continuously. It can be applied to pumps, motors, compressors, fans, blowers, and other rotating equipment where vibration changes may provide an early indication of mechanical deterioration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 2300/20-00-01 |
| Product Family | 2300 Series |
| Product Type | Vibration Monitor |
| Primary Function | Machinery Vibration Monitoring |
| System Role | Vibration Monitoring / Protection |
| Application | Rotating Equipment Condition Monitoring |
| Dimensions | 127 × 127 × 76.2 mm |
| Weight | 1.03 kg |
Product Features
The 2300/20-00-01 is intended for industrial machinery where vibration condition forms part of the equipment monitoring strategy.
Key characteristics include:
- Bently Nevada 2300 Series vibration monitor
- Model 2300/20-00-01
- Intended for rotating machinery monitoring
- Works with compatible vibration sensing equipment
- Supports continuous observation of vibration conditions
- Suitable for machinery protection applications
- Useful for condition-based maintenance
- Can be connected with plant alarm or control architecture
- Applicable to pumps, motors, compressors, fans, and blowers
- Suitable for maintenance and replacement projects
The complete monitoring chain should be considered when configuring the system, including the sensor, cabling, monitor, alarm logic, and monitored machine.
Working Principle
The 2300/20-00-01 functions as the monitoring stage in a vibration measurement chain.
A typical arrangement is:
Rotating Equipment → Vibration Sensor → 2300/20-00-01 → Alarm / Protection / Control System
The vibration sensor detects mechanical movement generated by the rotating machine and sends the resulting signal to the monitor. The monitor processes the incoming vibration information and evaluates the machine condition according to its configured monitoring parameters.
When the monitored condition reaches an applicable alarm threshold, the monitoring system can generate the corresponding indication or output for the connected protection or control equipment.
This arrangement gives the plant a dedicated method of identifying abnormal vibration without requiring the main PLC to perform the primary vibration-monitoring function.
Role in a Machinery Monitoring System
The 2300/20-00-01 occupies the monitoring layer between the machine-mounted sensor and the plant-level control architecture.
Machine → Vibration Sensor → 2300/20-00-01 → Alarm / Protection → PLC / HMI
| System Layer | Component | Function |
|---|---|---|
| Mechanical Layer | Motor / Pump / Compressor | Equipment being monitored |
| Sensor Layer | Vibration Sensor | Detects mechanical vibration |
| Monitoring Layer | 2300/20-00-01 | Evaluates vibration conditions |
| Protection Layer | Alarm / Shutdown Circuit | Responds to abnormal conditions |
| Control Layer | PLC / Control System | Integrates equipment status |
| Operator Layer | HMI / SCADA | Displays machinery information |
The monitor therefore works as part of a complete machinery condition-monitoring architecture rather than as an independent vibration sensor.
Industrial Applications
The 2300/20-00-01 is applicable to industrial rotating assets where vibration information is useful for equipment protection and maintenance.
| Application | Typical Use |
|---|---|
| Pump Systems | Pump vibration monitoring |
| Motor Drives | Mechanical condition monitoring |
| Compressors | Rotating equipment protection |
| Industrial Fans | Abnormal vibration detection |
| Blowers | Continuous condition monitoring |
| Process Equipment | Machinery health supervision |
| Utility Systems | Rotating asset protection |
| Production Machinery | Condition-based maintenance |
The actual monitoring configuration depends on the equipment type and the sensor arrangement used on the machine.
Installation and Maintenance
Proper installation of the monitor and its associated sensor system is important for meaningful vibration measurements.
Recommended maintenance checks include:
- Confirm the complete 2300/20-00-01 part number.
- Verify the connected vibration sensor.
- Check sensor mounting and installation condition.
- Inspect sensor cables and connectors.
- Verify monitor power and wiring.
- Check alarm and monitoring configuration.
- Compare current vibration readings with normal machine behavior.
- Inspect signal connections for looseness or damage.
- Review abnormal alarm indications.
- Verify monitoring outputs during scheduled maintenance.
- Inspect the monitored machine when vibration changes significantly.
When an abnormal vibration alarm occurs, technicians should avoid immediately replacing the monitor. The sensor installation, cable path, electrical connections, and mechanical condition of the equipment should all be checked.
Related Components
The 2300/20-00-01 normally works together with other machinery monitoring components.
| Component | Function |
|---|---|
| Bently Nevada Vibration Sensor | Detects mechanical vibration |
| Eddy Current Probe | Measures shaft vibration or position where applicable |
| Signal / Extension Cable | Transfers sensor signals |
| Vibration Monitor | Evaluates vibration conditions |
| Alarm Circuit | Provides abnormal-condition indication |
| PLC / Control System | Integrates monitoring status |
| HMI / SCADA | Displays equipment condition |
| Rotating Equipment | Machine under monitoring |
The sensor, monitor, wiring, and machine should be treated as one measurement chain during troubleshooting.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 2300/20-00-01 | 2300 Series Vibration Monitor | Rotating machinery monitoring |
| Bently Nevada 2300/20-00-00 | 2300 Series Vibration Monitor | Machinery vibration monitoring |
| Bently Nevada 2300/20-00-002 | 2300 Series Vibration Monitor | Vibration monitoring |
| Bently Nevada 2300/20-00-012 | 2300 Series Vibration Monitor | Machinery condition monitoring |
| Bently Nevada AAP1407030-00100 | 3300 XL NSv Eddy Current Probe | Shaft vibration and position measurement |
These models serve different configurations or measurement functions, so replacement selection should be based on the original system configuration and required monitoring function.
Key Advantages
- Bently Nevada 2300 Series vibration monitoring hardware
- Suitable for rotating machinery condition monitoring
- Supports continuous vibration supervision
- Can form part of a machinery protection architecture
- Applicable to pumps, motors, compressors, fans, and blowers
- Helps identify changes in mechanical operating conditions
- Useful for condition-based maintenance
- Can integrate with plant alarm and control systems
- Suitable for industrial maintenance and replacement applications
Technical FAQs
Why is the 2300/20-00-01 used in rotating machinery monitoring?
The monitor provides a dedicated point for evaluating vibration information from compatible sensors. This allows changes in machinery vibration to be identified and incorporated into the equipment’s alarm or protection strategy.
What mechanical problems can vibration monitoring help identify?
Changes in vibration can be associated with conditions such as imbalance, shaft misalignment, mechanical looseness, bearing deterioration, or other changes in rotating equipment. The vibration reading should always be interpreted together with machine operating conditions.
What is the difference between the vibration sensor and the 2300/20-00-01 monitor?
The sensor physically detects mechanical vibration and converts it into an electrical signal. The 2300/20-00-01 receives and evaluates that signal as part of the monitoring system. The two components therefore perform different but complementary functions.
What should maintenance personnel verify before replacing a 2300/20-00-01?
They should confirm the complete part number and system configuration, then inspect the sensor, cables, connectors, power supply, alarm configuration, and associated machinery. This helps determine whether the monitor is actually responsible for the reported fault.
