Product Overview

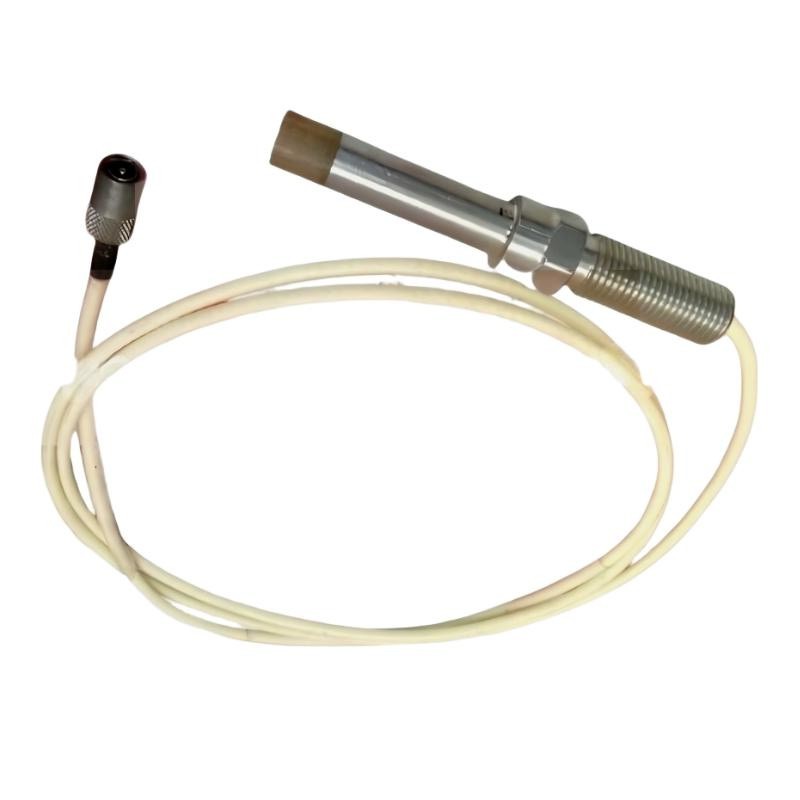

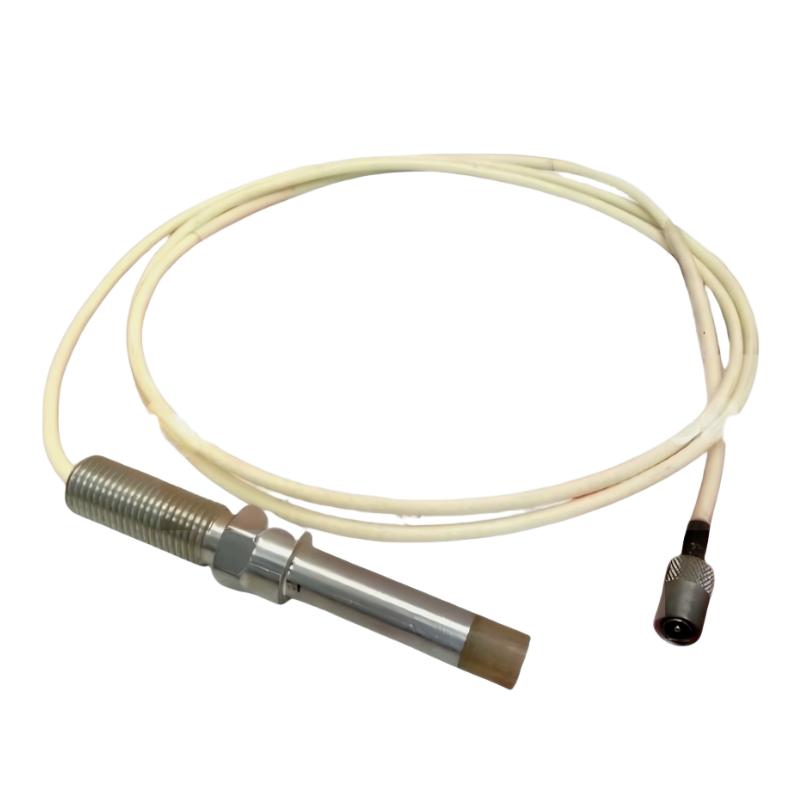

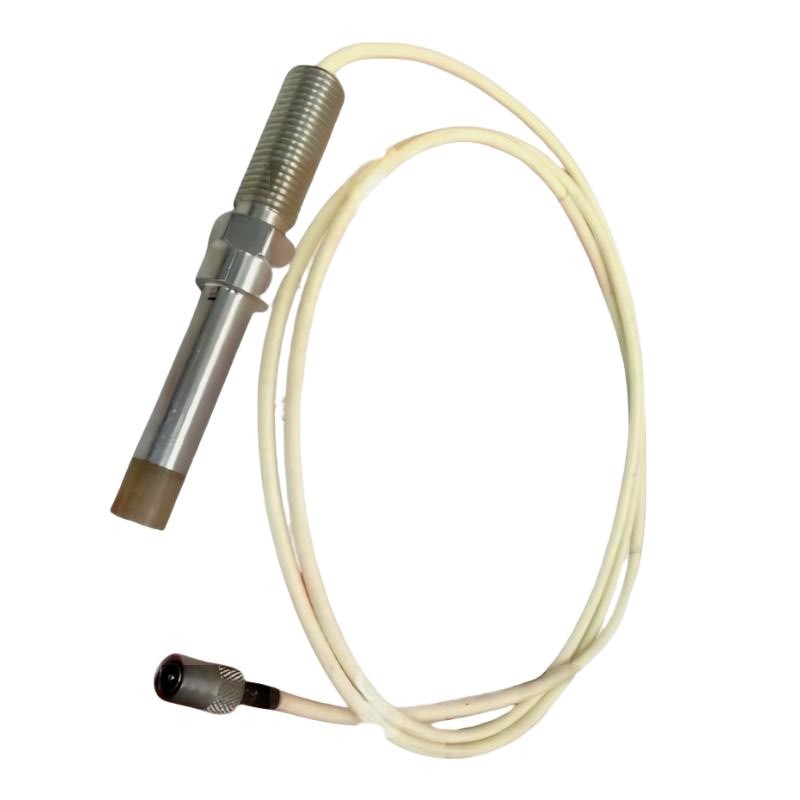

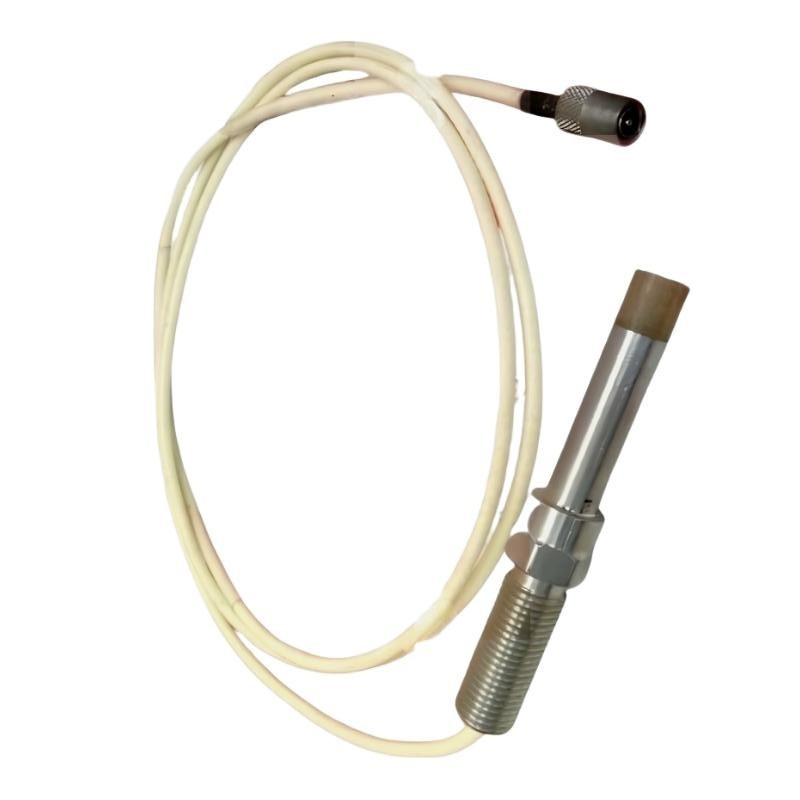

The Bently Nevada 21502-04 is a 7200 Series 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, displacement, and position in industrial rotating machinery.
Part of the 7200 Proximity Transducer System, this probe employs eddy-current sensing technology, ensuring highly accurate and reliable monitoring of critical machine components. Its compact 5 mm probe diameter is ideal for installations with limited space while providing excellent measurement performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21502-04 |
| Product Type | 7200 Series Proximity Probe |
| Series | 7200 |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy-current, non-contact sensing |
| Shipping Weight | 3 kg |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Measurement Range | 2 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Frequency Response | Up to 10 kHz |
| Application | Machinery protection and condition monitoring |
Function and Working Principle
The 21502-04 operates using eddy-current technology:
- The probe tip generates a high-frequency electromagnetic field.
- When positioned near a conductive target, eddy currents are induced in the target surface.
- Changes in the gap between the probe and target alter the electromagnetic field.
- These variations are converted into electrical signals proportional to shaft vibration and displacement.
This non-contact measurement ensures minimal wear and long-term reliable operation.
Key Features
- Compact 5 mm probe diameter
- Non-contact eddy-current sensing technology
- High-accuracy shaft vibration and displacement measurement
- Wide frequency response for dynamic machinery analysis
- Rugged and industrial-grade construction
- Long-term operational stability
- Compatible with 7200 Series monitoring systems
- Supports continuous online monitoring
- Ideal for predictive maintenance programs
Industrial Applications
- Steam turbine shaft monitoring
- Gas turbine protection systems
- Compressor vibration and displacement analysis
- Pump shaft condition monitoring
- Generator vibration and position measurement
- Electric motor diagnostics
- Gearbox condition monitoring
- Oil and gas processing facilities
- Power generation plants
Installation Overview
- Mounted using probe housings or threaded fittings
- Positioned close to the shaft without physical contact
- Connected to extension cable and signal conditioner
- Requires proper probe-to-shaft gap adjustment
- Suitable for radial vibration and axial position measurements
Compatible Components
| Component | Description |
|---|---|
| 7200 Series Extension Cable | Connects probe to Proximitor or signal conditioner |
| Proximitor Sensor | Converts probe signals into electrical outputs |
| Machinery Protection System | Provides alarm and shutdown functionality |
| Probe Housing Assembly | Mechanical mounting and environmental protection |
| Diagnostic Software | Machinery condition monitoring and analysis |
Alternative Models
| Model | Description |
|---|---|
| 21500-00-08-10-02 | 7200 Series 5 mm Probe |
| 21500-00-12-05-02 | 7200 Series 5 mm Probe |
| 21500-00-12-10-02 | 7200 Series 5 mm Probe |
| 21500-04-02-10-02 | 7200 Series 5 mm Probe |
| 21500-04-32-05-02 | 7200 Series 5 mm Probe |
Key Advantages
- Accurate non-contact shaft measurement
- Reliable for critical rotating machinery
- Compact design suitable for tight installations
- Rugged and durable industrial construction
- Supports predictive maintenance and condition monitoring
- Long operational service life
- Reduces unexpected equipment downtime
Conclusion
The Bently Nevada 21502-04 7200 5 mm Probe is a high-performance, compact, and reliable proximity sensing device for continuous monitoring of shaft vibration, displacement, and position. Its eddy-current technology and industrial-grade construction make it ideal for machinery protection and condition monitoring in demanding industrial applications.
