Product Overview

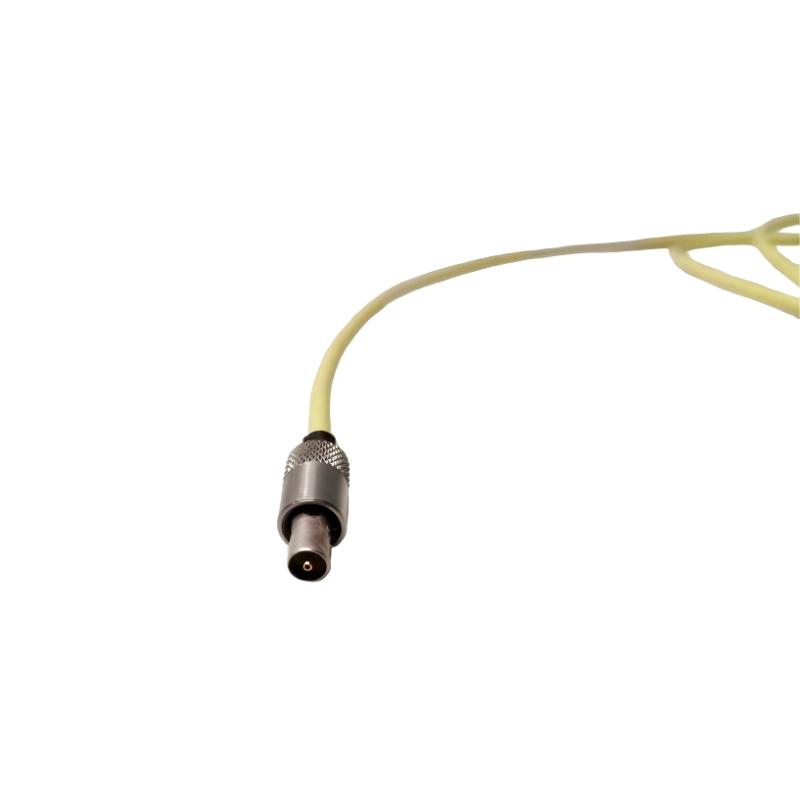

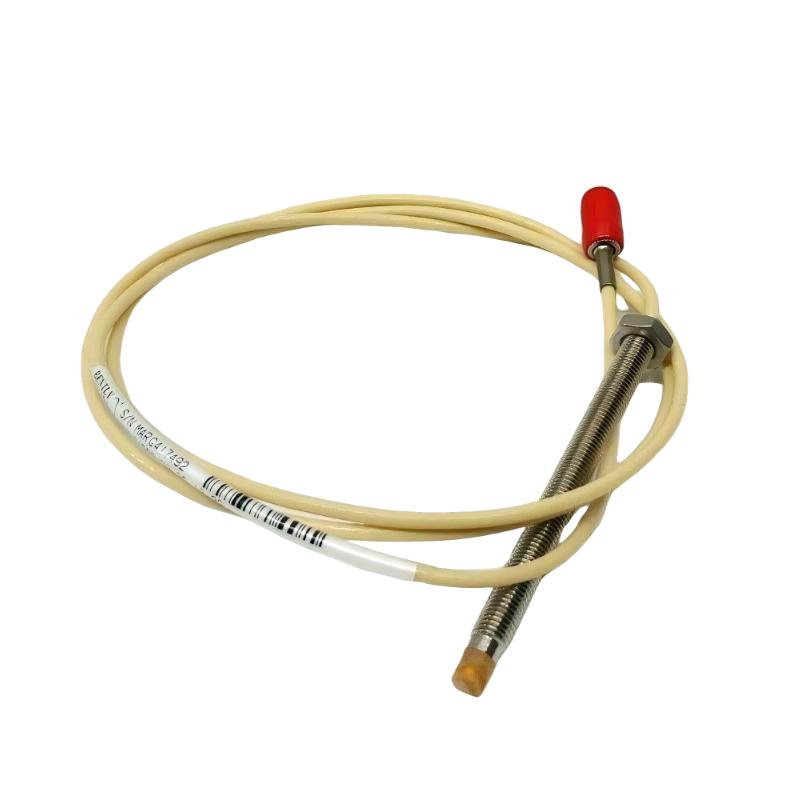

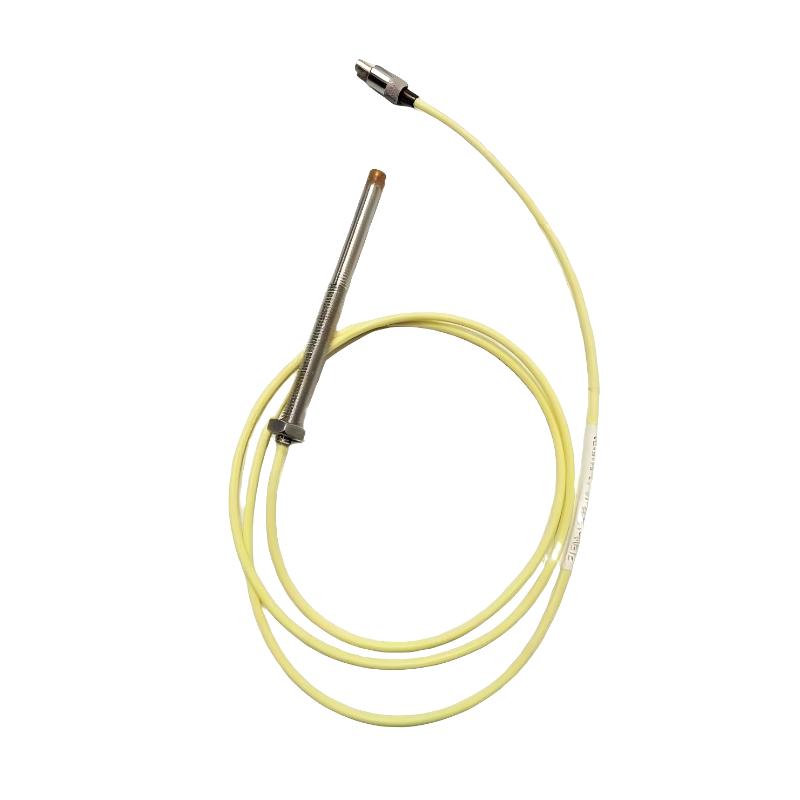

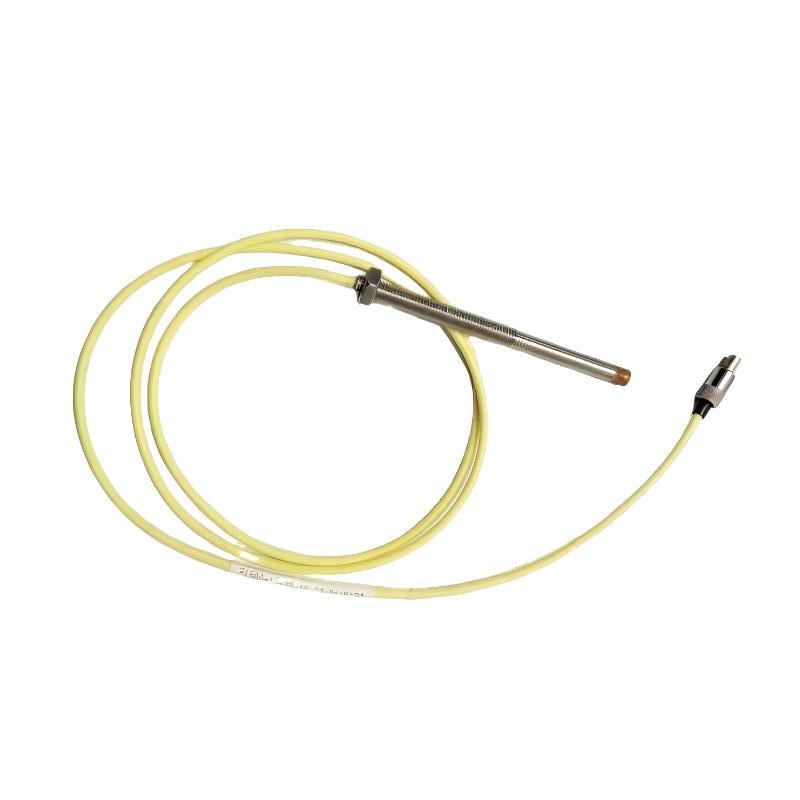

The Bently Nevada 21500-12-26-05-02 is a 7200 Series 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, displacement, and position in industrial rotating machinery.
As part of the 7200 Proximity Transducer System, this probe uses eddy-current sensing technology to provide reliable and precise measurements critical for machinery protection and condition monitoring. Its compact 5 mm probe diameter allows installation in tight spaces while maintaining high accuracy.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21500-12-26-05-02 |
| Product Type | 7200 Series Proximity Probe |
| Series | 7200 |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy-current, non-contact sensing |
| Shipping Weight | 3 kg |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Measurement Range | 2 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Frequency Response | Up to 10 kHz |
| Application | Machinery protection and condition monitoring |
Function and Working Principle
The 21500-12-26-05-02 operates on eddy-current sensing:
- The probe tip generates a high-frequency electromagnetic field.
- When positioned near a conductive target such as a rotating shaft, eddy currents are induced in the target material.
- Variations in the gap between the probe and the target alter the electromagnetic field.
- These changes are converted into electrical signals proportional to shaft displacement and vibration.
This non-contact measurement ensures minimal wear and high reliability for continuous operation.
Key Features
- Compact 5 mm probe diameter
- Non-contact eddy-current sensing technology
- Accurate shaft vibration and displacement measurement
- Wide frequency response
- Rugged industrial construction
- Long-term measurement stability
- Compatible with 7200 Series monitoring systems
- Suitable for continuous online monitoring
- Supports predictive maintenance programs
Industrial Applications
- Steam turbine monitoring
- Gas turbine protection systems
- Compressor shaft vibration analysis
- Pump condition monitoring
- Generator shaft position and vibration monitoring
- Electric motor vibration diagnostics
- Gearbox condition monitoring
- Oil and gas production facilities
- Power generation plants
Installation Overview
- Mounted using threaded fittings or probe housings
- Positioned close to the monitored shaft without contact
- Connected to an extension cable and signal conditioner
- Requires proper probe gap adjustment during installation
- Suitable for radial vibration and axial position measurements
Compatible Components
| Component | Description |
|---|---|
| 7200 Series Extension Cable | Connects probe to Proximitor or signal conditioner |
| Proximitor Sensor | Converts probe signals into usable electrical outputs |
| Machinery Protection System | Provides monitoring, alarms, and shutdown functionality |
| Probe Housing Assembly | Mechanical mounting and protection for the probe |
| Diagnostic Software | Machinery condition monitoring and analysis |
Alternative Models
| Model | Description |
|---|---|
| 21500-00-08-10-02 | 7200 Series 5 mm Probe |
| 21500-00-12-05-02 | 7200 Series 5 mm Probe |
| 21500-00-12-10-02 | 7200 Series 5 mm Probe |
| 21500-00-16-05-02 | 7200 Series 5 mm Probe |
| 21500-00-28-05-02 | 7200 Series 5 mm Probe |
Key Advantages
- High-accuracy non-contact shaft measurement
- Reliable operation for critical rotating equipment
- Compact design for restricted spaces
- Excellent durability in industrial environments
- Supports predictive maintenance and condition monitoring
- Long service life
- Reduces unexpected machinery downtime
Conclusion
The Bently Nevada 21500-12-26-05-02 7200 5 mm Probe is a durable, compact, and precise proximity sensing device engineered for continuous monitoring of shaft vibration, displacement, and position. Its eddy-current technology, rugged construction, and compact design make it an ideal solution for protecting critical rotating machinery in demanding industrial applications.
