Product Overview

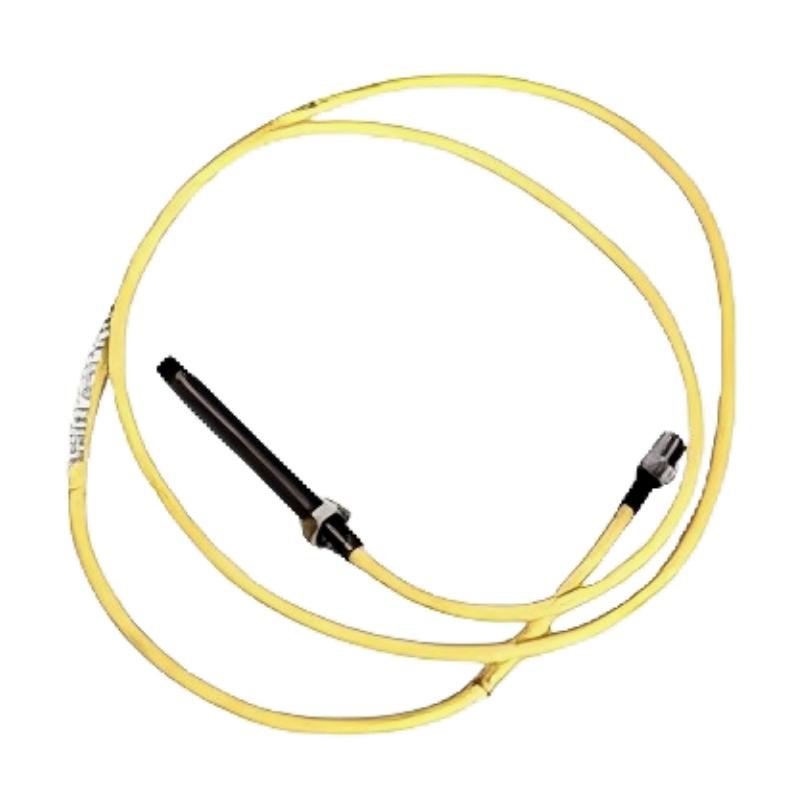

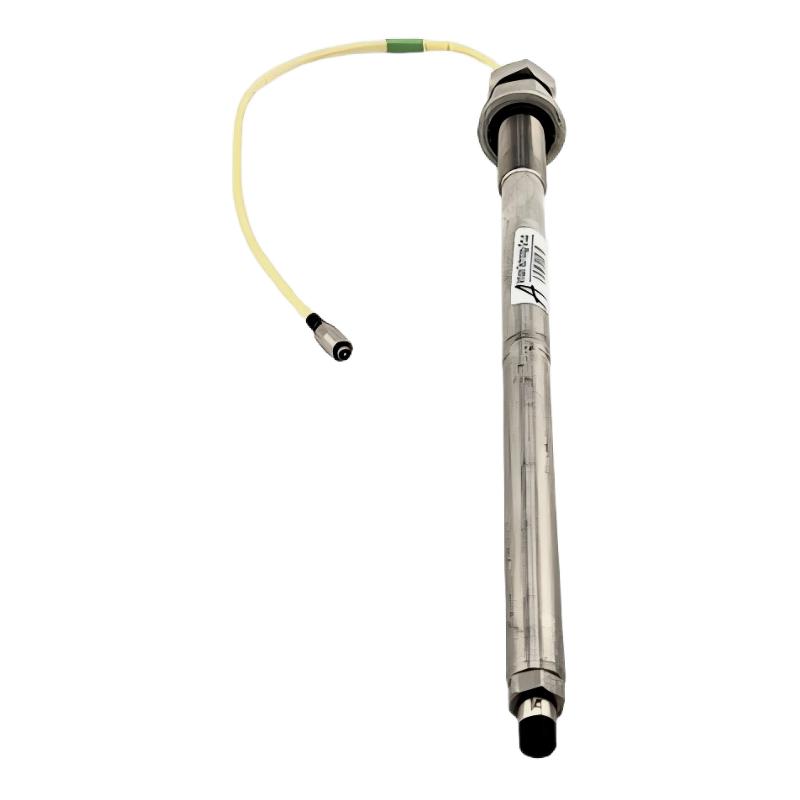

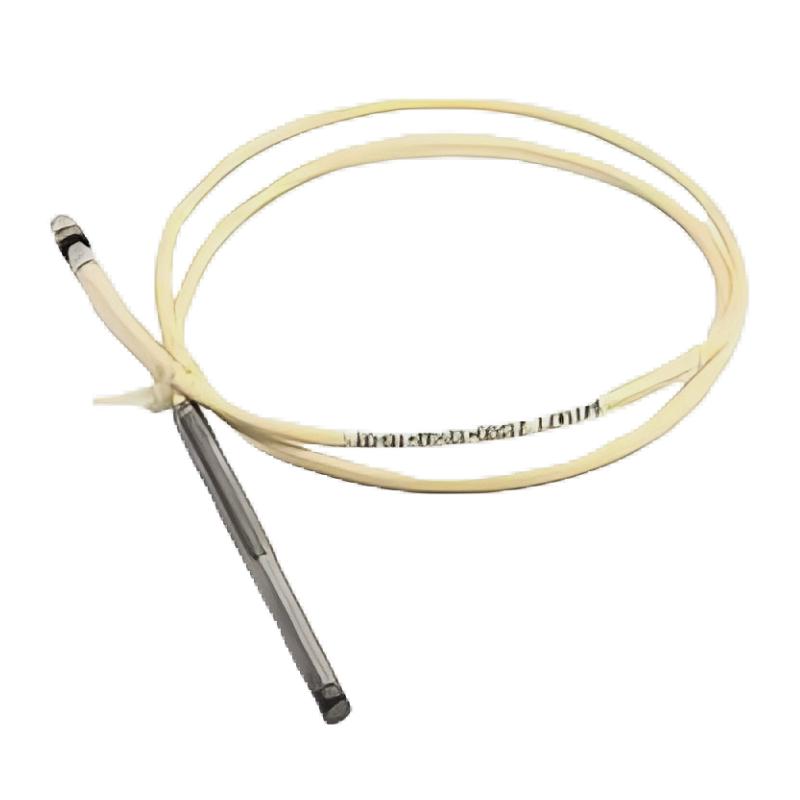

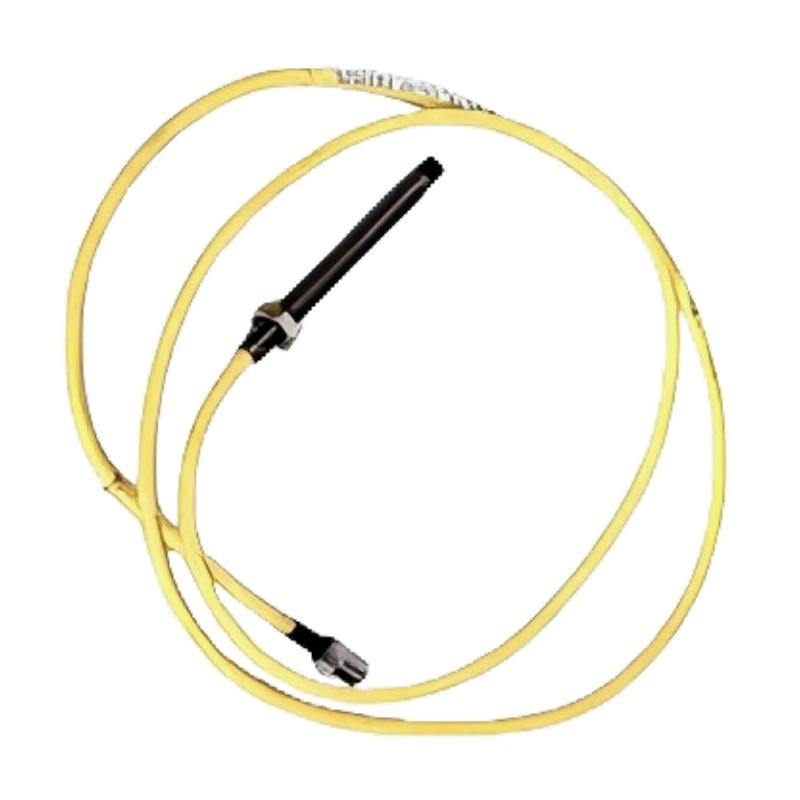

The Bently Nevada 21500-04-32-05-02 is a 7200 Series 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery.
As part of the 7200 Proximity Transducer System, this probe utilizes eddy-current sensing technology to provide precise and reliable monitoring of critical machine components. The compact 5 mm probe diameter allows installation in applications with limited mounting space while maintaining high measurement accuracy.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21500-04-32-05-02 |
| Product Type | 7200 Series Proximity Probe |
| Series | 7200 |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy-current, non-contact sensing |
| Shipping Weight | 3 kg |
| Measurement Type | Shaft vibration, displacement, and position |
| Linear Measurement Range | 2 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Frequency Response | Up to 10 kHz |
| Application | Machinery protection and condition monitoring |
Function and Working Principle
The 21500-04-32-05-02 operates using advanced eddy-current technology:
- The probe tip generates a high-frequency electromagnetic field.
- When placed near a conductive target such as a rotating shaft, eddy currents are induced in the target surface.
- Changes in the probe-to-target distance alter the electromagnetic field characteristics.
- These variations are converted into electrical signals proportional to shaft movement, vibration, and position.
The non-contact measurement principle eliminates mechanical wear and supports long-term reliable operation.
Key Features
- Compact 5 mm probe diameter
- Non-contact eddy-current sensing technology
- High-precision vibration monitoring
- Accurate shaft displacement measurement
- Wide frequency response capability
- Excellent long-term stability
- Rugged industrial construction
- Suitable for continuous online monitoring
- Compatible with 7200 Series monitoring systems
Industrial Applications
- Steam turbine monitoring
- Gas turbine protection systems
- Compressor vibration analysis
- Pump condition monitoring
- Generator shaft position measurement
- Electric motor monitoring
- Gearbox diagnostics
- Oil and gas processing facilities
- Power generation equipment
Installation Overview
- Installed using threaded mounting arrangements or probe housings
- Positioned close to the monitored shaft without physical contact
- Connected to a compatible extension cable and signal conditioning module
- Requires proper probe gap adjustment during commissioning
- Suitable for radial vibration and axial position monitoring
Compatible Components
| Component | Description |
|---|---|
| 7200 Series Extension Cable | Signal transmission between probe and conditioner |
| Proximitor Sensor | Signal conditioning and conversion module |
| Machinery Protection System | Monitoring, alarm, and shutdown platform |
| Probe Housing Assembly | Mechanical mounting and environmental protection |
| Diagnostic Software | Machinery condition monitoring and analysis |
Alternative Models
| Model | Description |
|---|---|
| 21500-00-08-10-02 | 7200 Series 5 mm Probe |
| 21500-00-08-35-02 | 7200 Series 5 mm Probe |
| 21500-00-12-05-02 | 7200 Series 5 mm Probe |
| 21500-00-12-10-02 | 7200 Series 5 mm Probe |
| 21500-00-16-05-02 | 7200 Series 5 mm Probe |
Key Advantages
- Accurate non-contact shaft measurement
- High reliability in critical rotating machinery
- Compact design for restricted installation spaces
- Excellent resistance to industrial environments
- Supports predictive maintenance programs
- Long operational service life
- Reduces unexpected equipment downtime
Conclusion
The Bently Nevada 21500-04-32-05-02 7200 5 mm Probe is a high-performance proximity sensing device designed for continuous monitoring of shaft vibration, displacement, and position. Its compact 5 mm design, durable construction, and reliable eddy-current technology make it an ideal solution for machinery protection and condition monitoring in demanding industrial applications.
