Product Overview

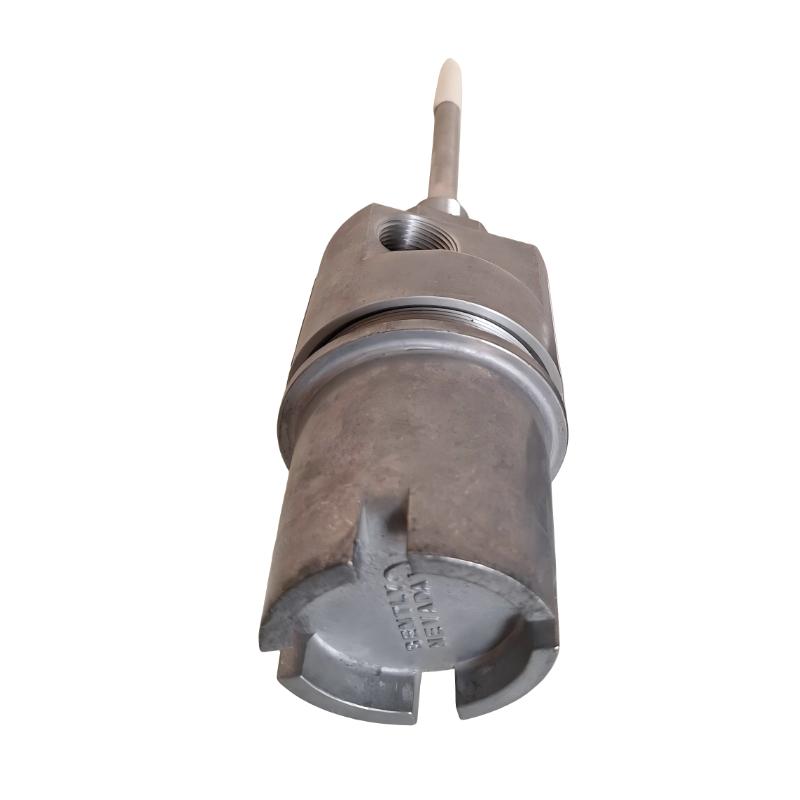

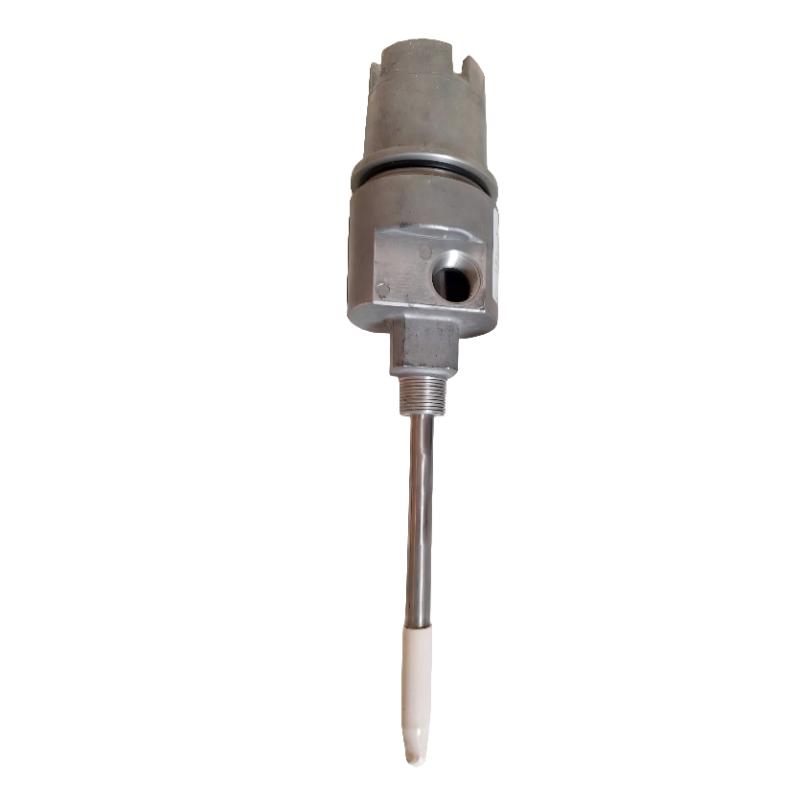

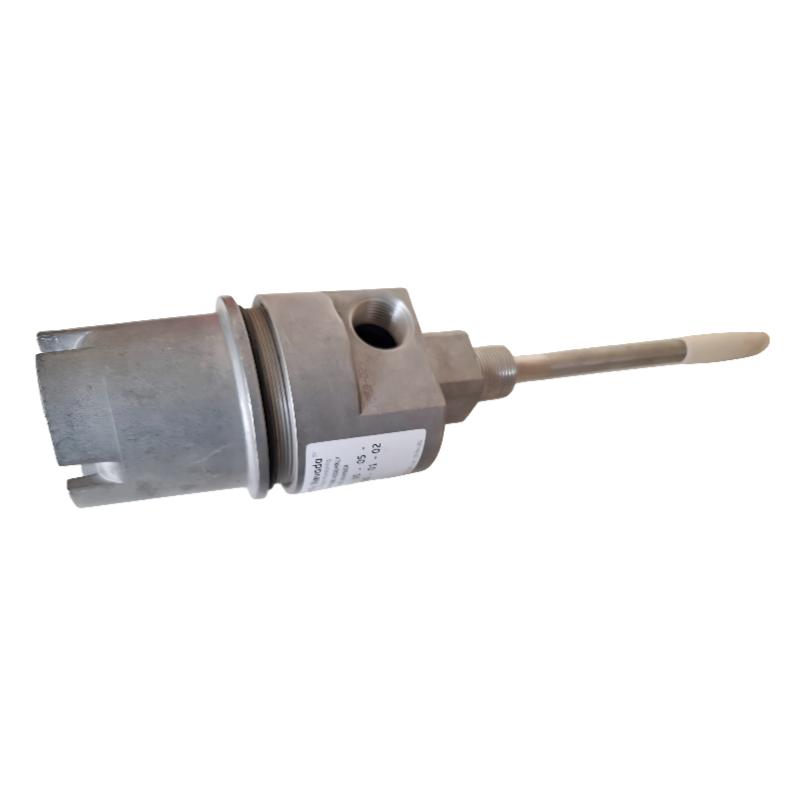

The Bently Nevada 21000-28-05-40-028-04-02 21000 Series Proximity Probe Housing Assembly is a mechanical installation component for proximity probe systems used on rotating machinery. It establishes the physical mounting arrangement around the proximity probe and helps maintain the probe in its intended position relative to the monitored shaft.

In a machinery monitoring installation, the proximity probe normally operates without touching the rotating shaft. The probe must remain mechanically secure and correctly positioned while the machine is running. The housing assembly forms part of that mechanical interface, supporting the probe installation and helping protect the sensing assembly from the surrounding mechanical environment.

This type of component can be encountered on equipment such as steam turbines, compressors, pumps, expanders, and other rotating machinery where shaft movement is monitored. For example, a probe installed around a bearing location may be used to observe radial shaft movement. The housing establishes the mechanical reference from which the probe can observe the shaft.

The 21000-28-05-40-028-04-02 should not be confused with the electronic Proximitor portion of the monitoring system. It belongs to the mechanical installation side. The complete measurement chain normally includes the housing, compatible proximity probe, extension cable, Proximitor, and machinery monitoring equipment.

For maintenance engineers, this distinction matters when diagnosing abnormal readings. A change in probe position, damaged mounting hardware, or mechanical looseness can influence the proximity signal even when the electronic monitoring components are functioning normally.

Technical Specifications

Product Features

The 21000-28-05-40-028-04-02 belongs to the mechanical portion of a proximity monitoring installation.

• Bently Nevada 21000 Series Proximity Probe Housing Assembly
• Model 21000-28-05-40-028-04-02
• Used for proximity probe mechanical installation
• Supports the physical positioning of the probe
• Helps protect the installed sensing assembly
• Suitable for rotating machinery instrumentation
• Applicable to shaft-position and vibration-monitoring installations
• Used with compatible proximity probes
• Relevant to turbine and compressor monitoring systems
• Suitable for maintenance and replacement work

The mounting arrangement should be checked against the machine’s original instrumentation configuration before installation.

Working Principle

The housing assembly itself does not convert shaft movement into an electrical signal. Its function is to maintain the mechanical relationship required by the proximity probe.

The physical arrangement can be simplified as:

Machine Structure → Housing Assembly → Proximity Probe → Measurement Gap → Rotating Shaft

The probe detects changes in the distance between its sensing tip and the conductive shaft surface. The associated electronics then process that information.

A complete proximity measurement chain can be represented as:

Rotating Shaft

↓

Proximity Probe

↓

Extension Cable

↓

Proximitor

↓

Machinery Monitoring System

The 21000-28-05-40-028-04-02 sits around the probe installation on the mechanical side of this chain.

Its condition matters because the probe’s measurement reference must remain physically consistent. If the housing is loose, damaged, incorrectly installed, or mechanically displaced, the probe may no longer maintain its intended position relative to the shaft.

In practice, this means that a sudden change in a proximity measurement should not automatically be attributed to shaft movement. Engineers should also consider the mechanical condition of the probe installation.

Mechanical Installation in a Proximity Monitoring System

The housing assembly creates the physical interface between the machine structure and the proximity probe.

A typical arrangement is:

Machine / Bearing Structure → 21000 Series Housing → Proximity Probe → Shaft

The housing and probe should be treated as a matched mechanical installation rather than independent parts.

Why Housing Condition Matters

In rotating machinery monitoring, small mechanical changes can have a noticeable effect on the measurement relationship.

For example, if the housing remains rigid while the shaft moves, the proximity system can distinguish the relative movement between the two. If the housing itself moves, the probe’s reference point changes.

This can create a measurement path such as:

Actual Shaft Movement + Probe Installation Movement → Measured Relative Displacement

That is why engineers investigating unexpected proximity readings should inspect:

• Housing condition
• Probe mounting
• Probe position
• Mechanical looseness
• Cable routing
• Probe-to-shaft relationship
• Associated electronic components

A mechanically sound housing helps maintain the intended geometry of the measurement point.

Industrial Applications

The actual application depends on the machinery design and the associated proximity monitoring system.

Installation and Maintenance

Because the housing is part of the probe’s mechanical reference, installation quality should be checked whenever the proximity system is serviced.

Recommended practices include:

• Confirm the complete 21000-28-05-40-028-04-02 model.
• Verify the replacement housing against the existing machine configuration.
• Check the housing body for deformation or physical damage.
• Inspect mounting surfaces.
• Check fastening and mechanical security.
• Verify the probe mounting arrangement.
• Confirm the probe is positioned correctly.
• Inspect the probe for damage.
• Check cable routing and strain on the probe connection.
• Inspect for contamination around the measurement point.
• Verify the probe-to-shaft relationship.
• Compare the measurement with established operating data.
• Follow the approved machine isolation procedure.
• Replace the housing according to the equipment maintenance procedure.
• Reinstall the compatible proximity probe.
• Verify probe positioning after installation.
• Check the extension cable connection.
• Check the associated Proximitor.
• Confirm the monitoring channel receives the expected signal.
• Verify normal measurement behavior.
• Check configured alarms and protection functions.

If an abnormal proximity reading appears immediately after housing or probe maintenance, the mechanical installation should be checked before replacing electronic components.

Compatible System Components

The 21000-28-05-40-028-04-02 is normally integrated into a broader proximity monitoring arrangement.

Compatibility should be evaluated across the entire proximity measurement system.

Recommended Related Models

For SEO and product-category expansion, the following models are selected around Bently Nevada proximity measurement and machinery monitoring applications.

Key Advantages

• Bently Nevada 21000 Series Proximity Probe Housing Assembly.
• Model 21000-28-05-40-028-04-02.
• Supports mechanical installation of a proximity probe.
• Maintains the probe’s mechanical reference position.
• Suitable for rotating machinery monitoring.
• Applicable to turbine, compressor, pump, and similar equipment.
• Useful for replacement of existing 21000 Series housing hardware.
• Forms part of a complete proximity measurement system.

Technical FAQs

What is the primary purpose of the 21000-28-05-40-028-04-02?

Its primary purpose is mechanical. It forms part of the installation structure for a proximity probe, helping maintain the probe in the required position relative to the rotating machinery target.

Can a damaged housing cause a false shaft-vibration indication?

Yes. If the housing or its mounting arrangement allows the probe to move, the monitoring system can detect a change in the probe-to-shaft relationship. That change may appear as an abnormal proximity measurement even when the actual shaft movement has not changed by the same amount.

Is the housing assembly an electronic sensor?

No. The housing is mechanical hardware. The actual non-contact measurement is performed by the compatible proximity probe, with the associated Proximitor and monitoring equipment handling the electrical signal.

What should be checked when installing a replacement housing?

The engineer should verify the exact housing model, mounting arrangement, probe compatibility, mechanical security, probe position, cable routing, and final measurement. The completed installation should then be checked through the associated monitoring channel before the machine returns to normal service.
