Product Overview

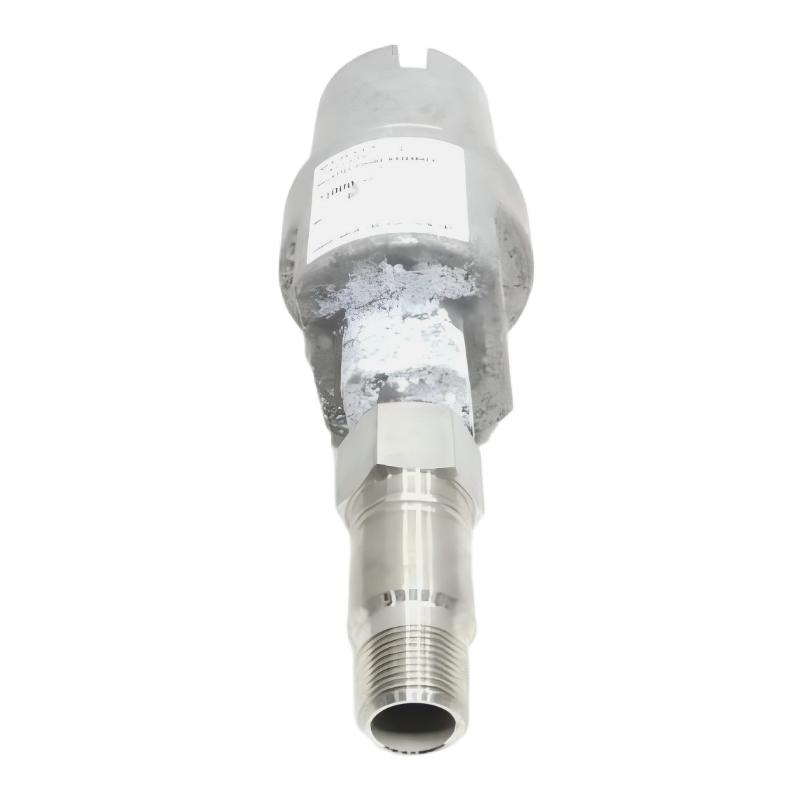

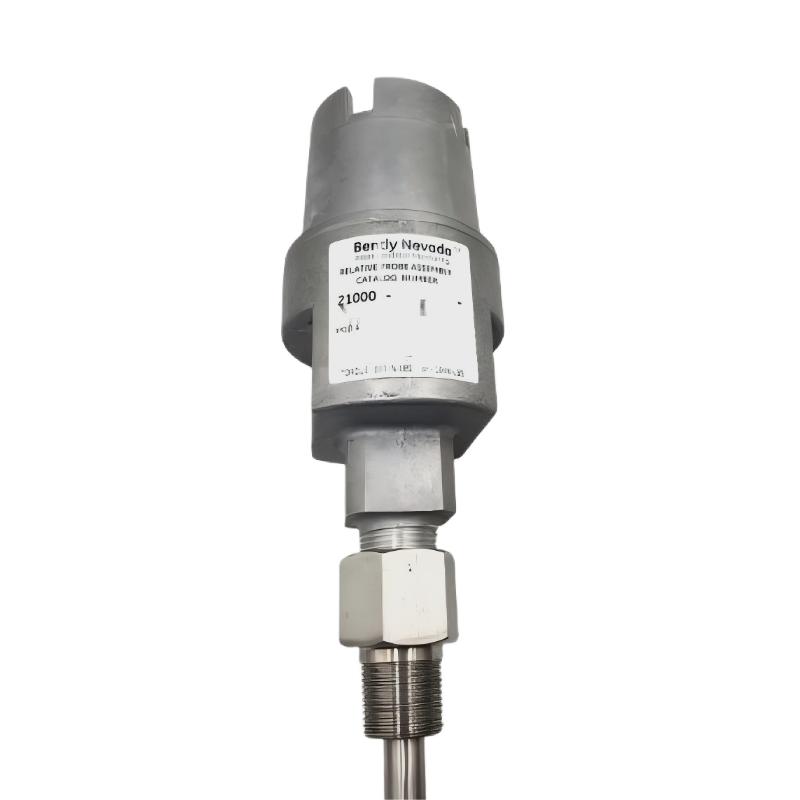

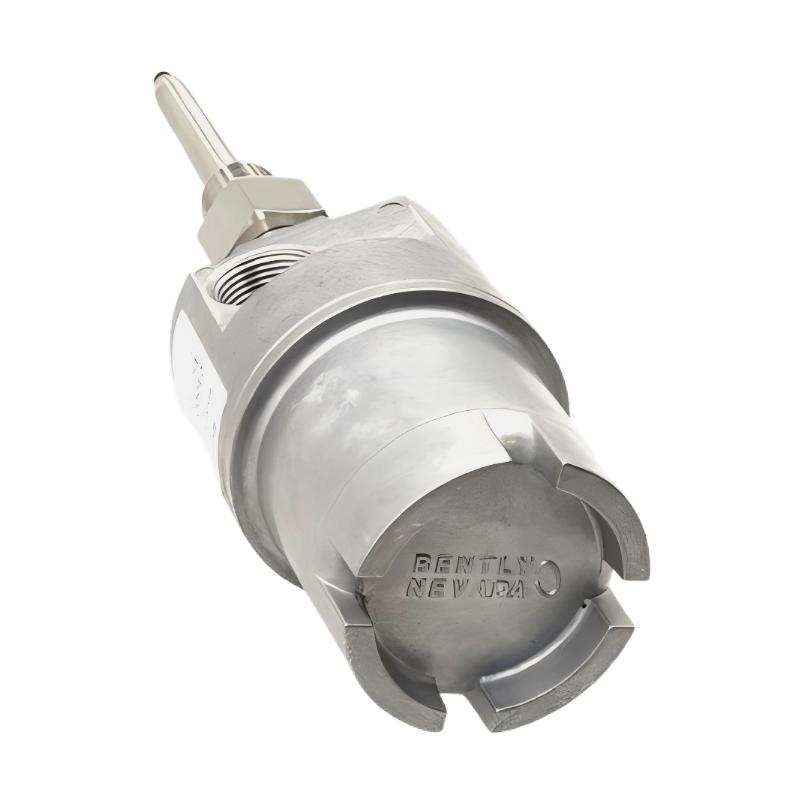

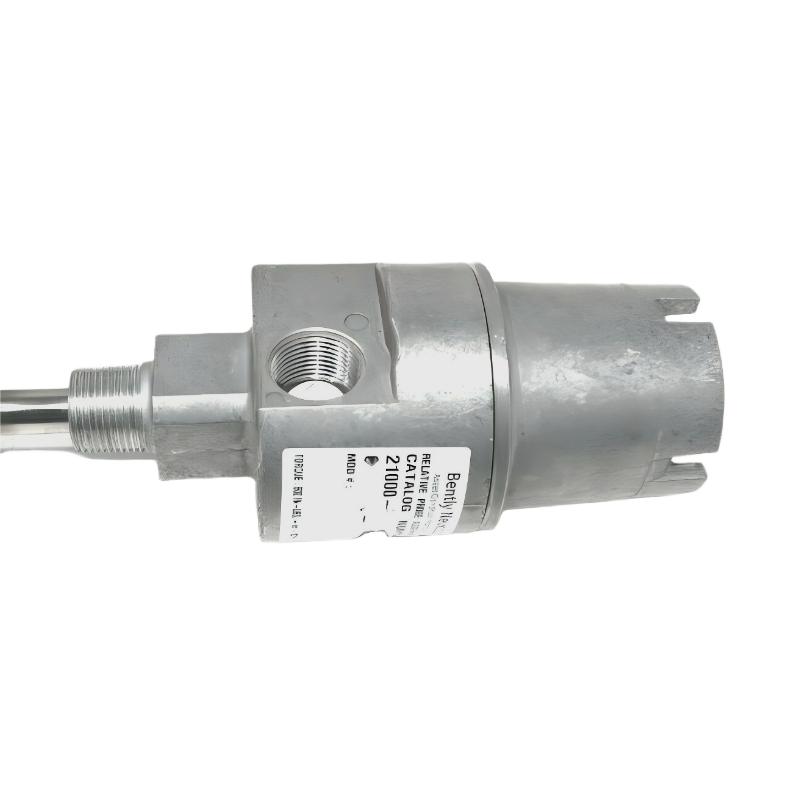

The Bently Nevada 21000-28-05-20-035-04-02 is a Proximity Probe Housing Assembly designed for the 3300 XL Proximity Transducer System. It provides a robust, precise, and durable mounting solution for proximity probes, ensuring accurate monitoring of rotating machinery vibration, shaft displacement, and rotor position.
This housing assembly is ideal for industrial environments including power generation, petrochemical, oil & gas, and heavy machinery operations.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21000-28-05-20-035-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Compatible System | 3300 XL Proximity Transducer System |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Mounting Type | External machine or bearing housing installation |
| Housing Material | Industrial-grade metal alloy |
| Probe Compatibility | 3300 XL proximity probes |
| Cable Entry Type | Threaded conduit connection |
| Measurement Functions | Shaft vibration, shaft displacement, rotor position |
| Application Category | Machinery protection and condition monitoring |
| Environmental Suitability | Industrial operating environments |
Function and Working Principle
The housing assembly acts as a protective enclosure and alignment platform for proximity probes.
Working Principle
- Install a 3300 XL proximity probe inside the housing.
- Position the probe close to the rotating shaft without contact.
- Shaft vibration, displacement, and rotor movements are detected by the probe.
- Signals are transmitted to monitoring and protection systems.
- The housing ensures stable alignment and protection from mechanical and environmental stress.
This setup ensures accurate and continuous monitoring of rotating machinery.
Role in Condition Monitoring Systems
- Provides secure and stable mounting for proximity probes
- Maintains precise alignment for reliable measurements
- Protects probes from dust, moisture, and mechanical impacts
- Supports continuous monitoring of vibration and displacement
- Enhances reliability of machinery protection systems
- Reduces maintenance and recalibration efforts
Industrial Applications
- Steam turbines
- Gas turbines
- Hydroelectric turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Gearboxes
- Power generation plants
- Oil and gas processing facilities
- Petrochemical plants
Installation Guidelines
- Securely mount the housing on machine casing or bearing housing
- Maintain proper probe-to-shaft clearance
- Route cables through threaded conduit connections
- Verify probe alignment before commissioning
- Confirm stable signal output in the monitoring system
- Follow standard industrial installation and safety practices
Correct installation ensures long-term reliability and accurate measurements.
Compatible Components
- 3300 XL proximity probes
- Proximitor sensor systems
- Extension cables and connectors
- Machinery protection systems
- Turbine supervisory instrumentation (TSI) systems
- Industrial vibration monitoring platforms
Alternative Models
| Model | Description |
|---|---|
| 21000-28-05-20-035-04-02 | Standard 3300 XL probe housing assembly (this model) |
| 21000 Series Variants | Other mounting and configuration options |
| 24701 Series | Stainless steel housing assemblies |
| Compact Housing Assemblies | Space-constrained installations |
| Heavy-Duty Housing Assemblies | For harsh industrial environments |
Key Advantages
- Rugged industrial-grade construction
- Stable and precise probe positioning
- Protection against environmental and mechanical damage
- Supports accurate vibration and displacement measurements
- Reduces maintenance and alignment efforts
- Fully compatible with 3300 XL systems
- Long operational service life
Technical FAQs
What is the purpose of this housing assembly?
It provides secure mounting, precise alignment, and protection for 3300 XL proximity probes.
Does the housing measure vibration itself?
No, the installed proximity probe performs measurements; the housing ensures accurate positioning.
Which equipment typically uses this assembly?
Turbines, compressors, pumps, motors, and other critical rotating machinery.
Why is probe alignment important?
Proper alignment ensures reliable readings of vibration, displacement, and rotor position.
Is it suitable for harsh industrial environments?
Yes, it is designed for continuous operation in demanding industrial conditions.
Conclusion
The Bently Nevada 21000-28-05-20-035-04-02 Proximity Probe Housing Assembly is a durable and precision-engineered solution for mounting 3300 XL proximity probes. Its robust design and stable alignment capabilities make it essential for effective machinery protection and condition monitoring applications.
