Product Overview

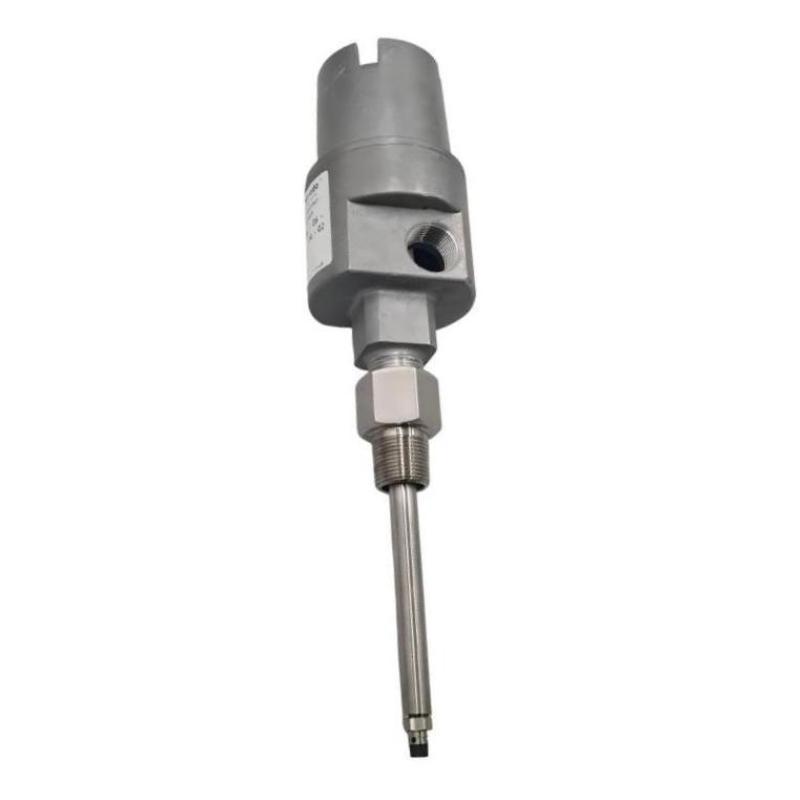

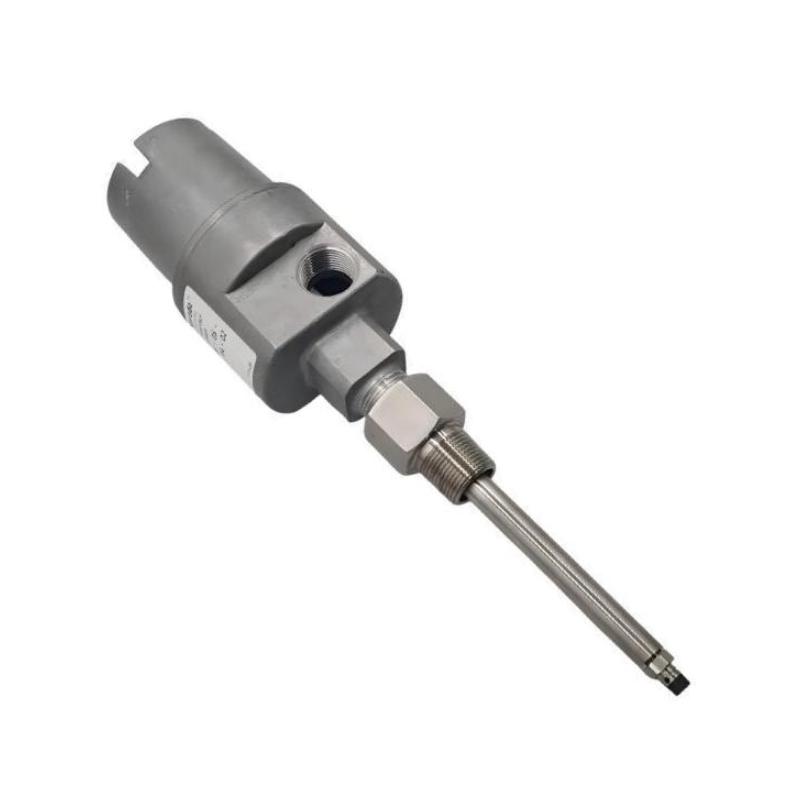

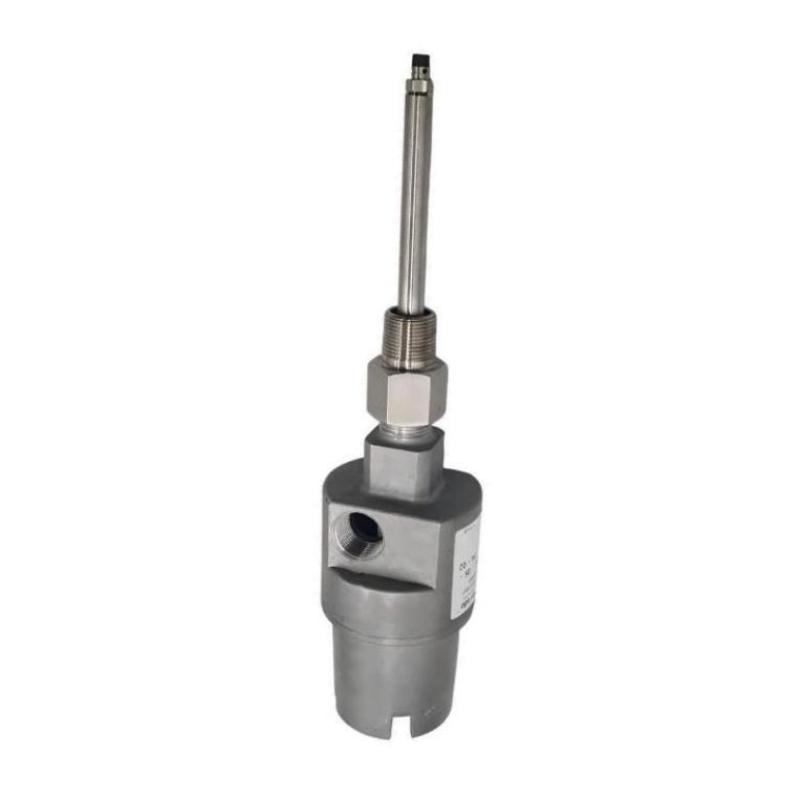

The Bently Nevada 21000-28-05-00-064-04-02 is a Proximity Probe Housing Assembly designed for the 3300 XL Proximity Transducer System. It provides a secure and precisely aligned mounting enclosure for proximity probes used in rotating machinery condition monitoring and protection systems.
The assembly ensures accurate measurement of shaft vibration, shaft displacement, and rotor position, making it suitable for critical industrial applications in power generation, oil & gas, petrochemical, and heavy industry sectors.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21000-28-05-00-064-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Compatible System | 3300 XL Proximity Transducer System |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Mounting Type | External machine or bearing housing installation |
| Housing Material | Industrial-grade metal alloy |
| Probe Compatibility | 3300 XL proximity probes |
| Cable Entry Type | Threaded conduit connection |
| Measurement Functions | Shaft vibration, shaft displacement, rotor position |
| Application Category | Machinery protection and condition monitoring |
| Environmental Suitability | Industrial operating environments |
Function and Working Principle
The housing assembly acts as a protective mechanical support and alignment structure for proximity probes.
Working Principle
- A 3300 XL proximity probe is installed inside the housing.
- The probe is positioned close to the rotating shaft without physical contact.
- Shaft movement, vibration, and displacement are detected by the probe.
- Signals are transmitted to monitoring and protection systems.
- The housing maintains stable probe alignment and protects the probe and cabling from environmental and mechanical stress.
This enables continuous and reliable machinery condition monitoring.
Role in Condition Monitoring Systems
- Provides secure and stable probe mounting
- Maintains precise alignment for accurate measurements
- Protects probes from dust, moisture, and mechanical damage
- Supports continuous vibration and displacement monitoring
- Enhances reliability of machinery protection systems
- Reduces maintenance and recalibration needs
Industrial Applications
- Steam turbines
- Gas turbines
- Hydroelectric turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Gearboxes
- Power generation facilities
- Oil and gas processing plants
- Petrochemical plants
Installation Guidelines
- Mount securely on machine casing or bearing housing
- Maintain correct probe-to-shaft clearance
- Use threaded conduit entry for cable protection
- Verify probe alignment after installation
- Confirm stable signal output in monitoring system
- Follow proper ESD handling procedures
Proper installation ensures long-term measurement accuracy and reliability.
Compatible Components
- 3300 XL proximity probes
- Proximitor sensor systems
- Extension cables and connectors
- Machinery protection systems
- Turbine supervisory instrumentation (TSI) systems
- Industrial vibration monitoring platforms
Alternative Models
| Model | Description |
|---|---|
| 21000-28-05-00-064-04-02 | Standard 3300 XL probe housing assembly (this model) |
| 21000 Series Variants | Alternative mounting and configuration options |
| 24701 Series | Stainless steel housing assemblies |
| Compact Housing Assemblies | Space-limited installations |
| Heavy-Duty Housing Assemblies | Severe industrial environments |
Key Advantages
- Rugged industrial-grade construction
- Stable and precise probe positioning
- Strong protection against environmental stress
- Supports accurate vibration monitoring
- Reduces maintenance and alignment effort
- Fully compatible with 3300 XL systems
- Long operational service life
Technical FAQs
What is the purpose of this housing assembly?
It provides secure mounting and protection for 3300 XL proximity probes in rotating machinery.
Does the housing measure vibration directly?
No. The proximity probe performs measurement; the housing ensures correct positioning and protection.
Which machinery uses this assembly?
Turbines, compressors, pumps, motors, and other rotating equipment.
Why is probe alignment important?
Accurate alignment ensures reliable vibration, displacement, and rotor position readings.
Is it suitable for industrial environments?
Yes. Designed for continuous operation in harsh industrial conditions.
Conclusion
The Bently Nevada 21000-28-05-00-064-04-02 Proximity Probe Housing Assembly is a durable and precision-engineered mounting solution for 3300 XL proximity probes. Its robust construction and stable alignment capability make it essential for accurate condition monitoring and protection of critical rotating machinery in industrial environments.
