Product Overview

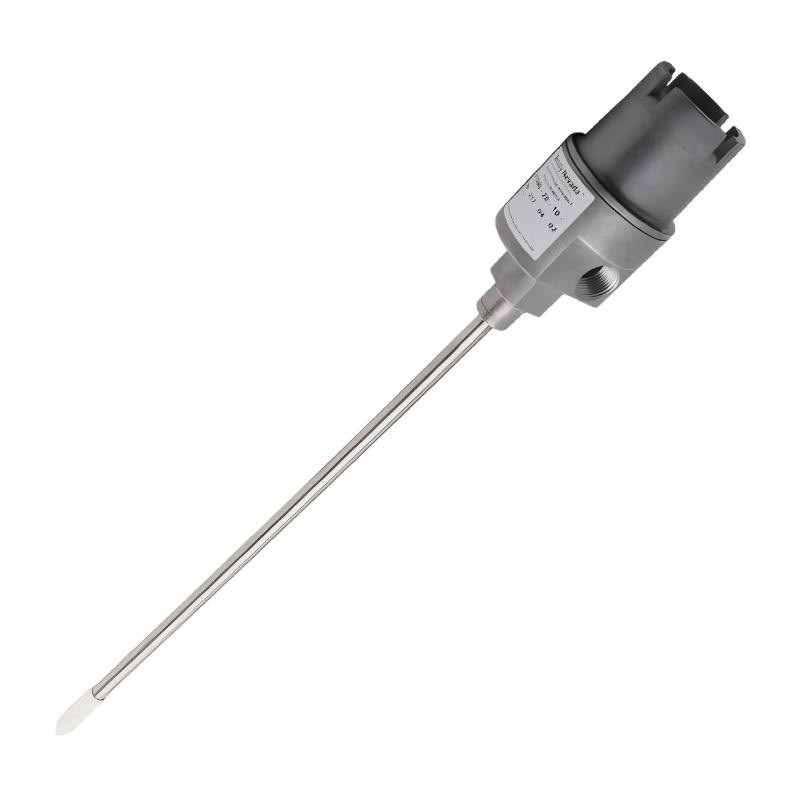

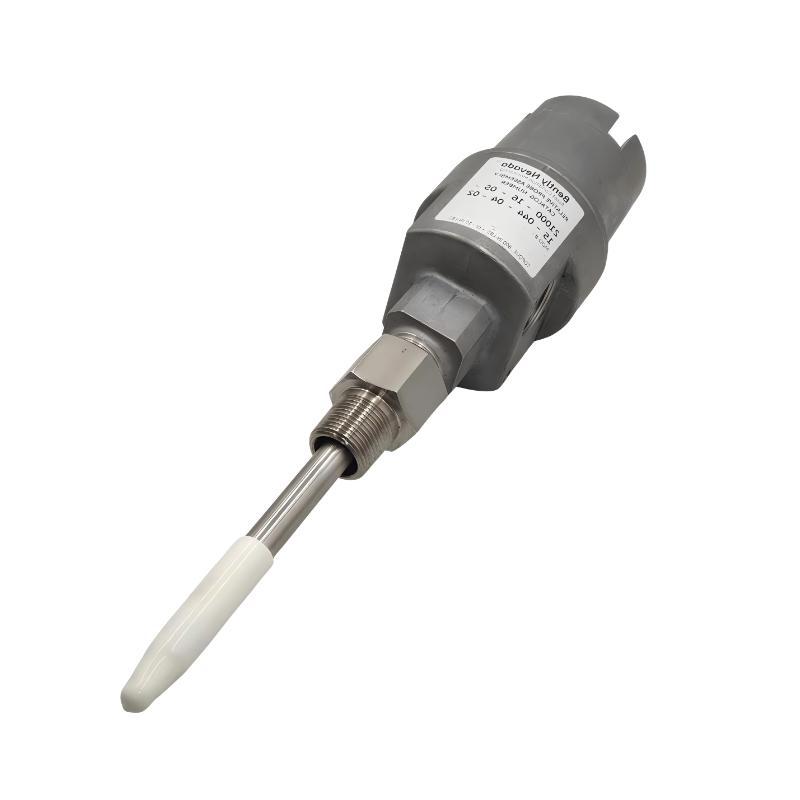

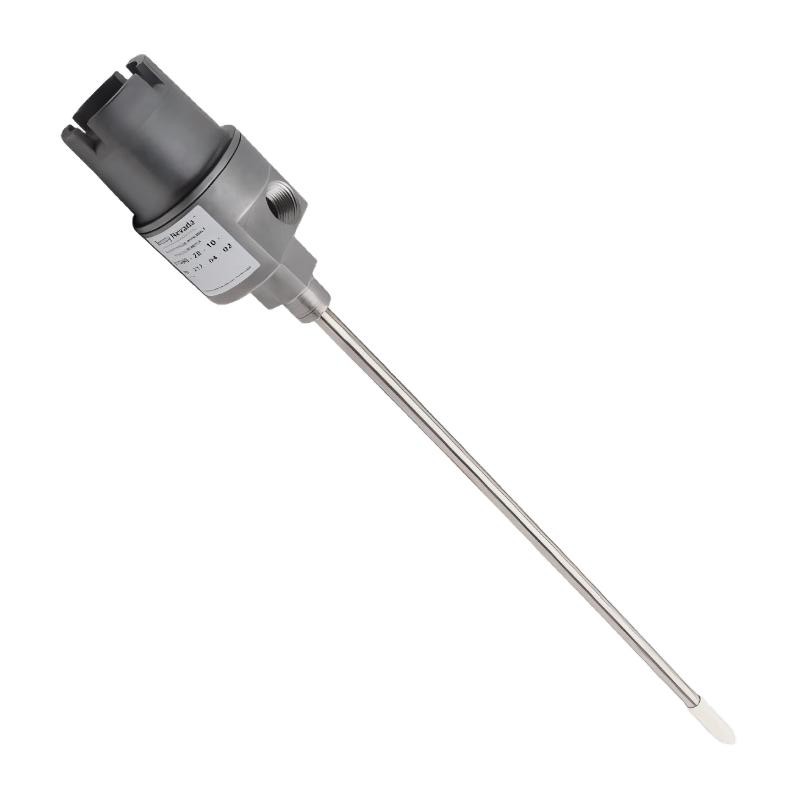

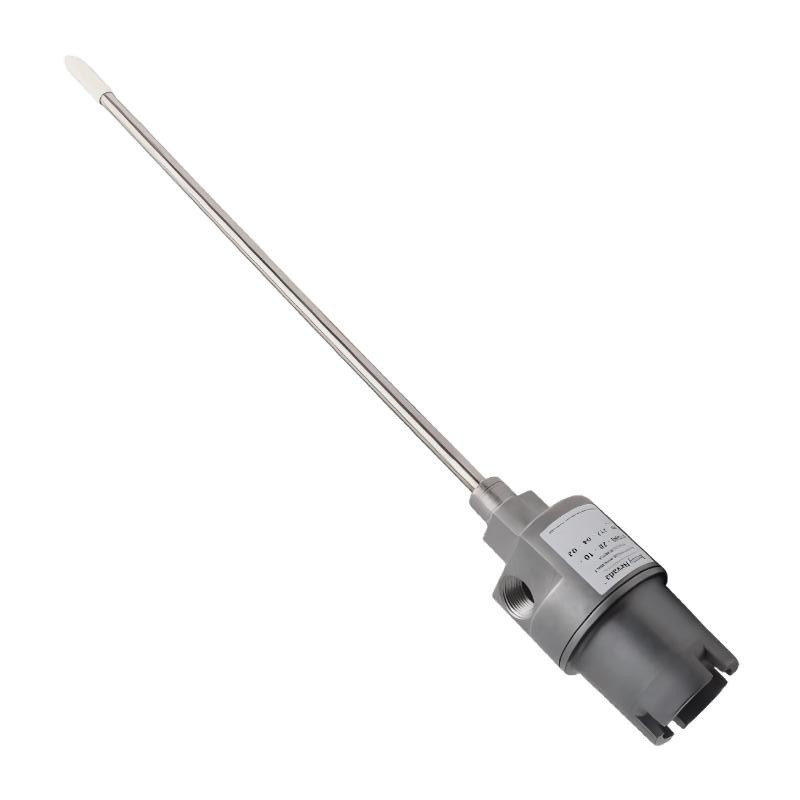

The Bently Nevada 21000-28-05-00-028-03-02 is a Proximity Probe Housing Assembly designed for the 3300 XL Proximity Transducer System. This housing provides secure, stable, and precise mounting for proximity probes used in critical machinery monitoring and protection applications.
The assembly ensures accurate probe positioning for shaft vibration, shaft displacement, and rotor position measurements, making it ideal for power generation, petrochemical, and oil & gas industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21000-28-05-00-028-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Compatible System | 3300 XL Proximity Transducer System |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Mounting Type | External machine or bearing housing installation |
| Housing Material | Industrial-grade metal alloy |
| Probe Compatibility | 3300 XL proximity probes |
| Cable Entry Type | Threaded conduit connection |
| Measurement Functions | Shaft vibration, shaft displacement, rotor position |
| Application Category | Machinery protection and condition monitoring |
| Environmental Suitability | Harsh industrial environments |
Function and Working Principle
The housing assembly acts as a protective enclosure and mounting support for proximity probes.
Working Principle
- Install a 3300 XL proximity probe inside the housing.
- Position the probe near the rotating shaft without physical contact.
- Shaft vibration, displacement, and rotor position are detected by the probe.
- Signals are transmitted to monitoring and protection systems.
- The housing maintains stable probe alignment and protects the probe and cabling from environmental and mechanical stresses.
This ensures continuous and accurate machinery condition monitoring.
Role in Condition Monitoring Systems
- Provides stable and secure probe mounting
- Maintains precise alignment for accurate readings
- Protects probes from dust, moisture, and mechanical impact
- Supports continuous vibration and displacement monitoring
- Enhances reliability of machinery protection systems
- Reduces maintenance and recalibration needs
Industrial Applications
- Steam turbines
- Gas turbines
- Hydroelectric turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Gearboxes
- Power generation facilities
- Oil and gas processing plants
- Petrochemical plants
Installation Guidelines
- Mount securely on machine casing or bearing housing
- Maintain proper probe-to-shaft clearance
- Route cables through threaded conduit entries
- Verify probe alignment after installation
- Confirm stable signal output in monitoring system
- Follow ESD-safe installation procedures
Correct installation ensures long-term reliability and measurement accuracy.
Compatible Components
- 3300 XL proximity probes
- Proximitor sensor systems
- Extension cables and connectors
- Machinery protection systems
- Turbine supervisory instrumentation (TSI) systems
- Industrial vibration monitoring platforms
Alternative Models
| Model | Description |
|---|---|
| 21000-28-05-00-028-03-02 | Standard 3300 XL probe housing assembly (this model) |
| 21000 Series Variants | Different mounting and configuration options |
| 24701 Series | Stainless steel housing assemblies |
| Compact Housing Assemblies | Space-constrained installations |
| Heavy-Duty Housing Assemblies | Designed for harsh industrial environments |
Key Advantages
- Rugged, industrial-grade construction
- Stable and precise probe positioning
- Protects probes and cabling from environmental and mechanical damage
- Supports accurate vibration and displacement monitoring
- Reduces maintenance and realignment efforts
- Fully compatible with 3300 XL systems
- Long operational service life
Technical FAQs
What is the purpose of this housing assembly?
Provides secure mounting and protection for 3300 XL proximity probes in rotating machinery.
Does the housing measure vibration directly?
No. Measurement is performed by the proximity probe; the housing ensures correct positioning and protection.
Which machinery uses this assembly?
Turbines, compressors, pumps, motors, and other rotating equipment.
Why is probe alignment important?
Correct alignment ensures reliable vibration, displacement, and rotor position measurements.
Is it suitable for industrial environments?
Yes. Designed for continuous operation in harsh industrial conditions.
Conclusion
The Bently Nevada 21000-28-05-00-028-03-02 Proximity Probe Housing Assembly is a robust and precision-engineered solution for mounting 3300 XL proximity probes. Its durable design and reliable alignment make it essential for accurate monitoring and protection of critical rotating machinery in industrial environments.
