Product Overview

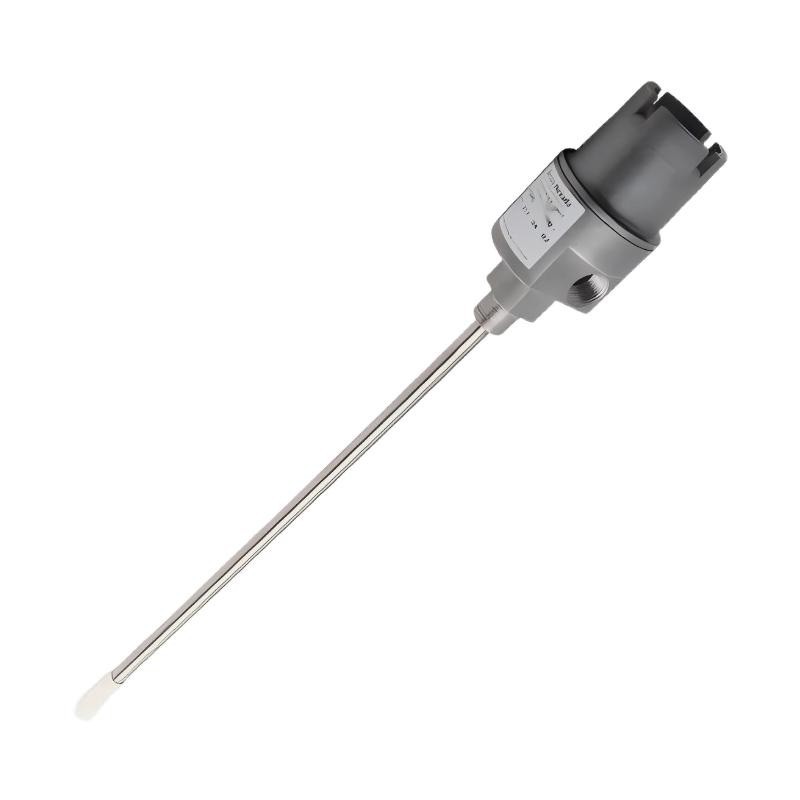

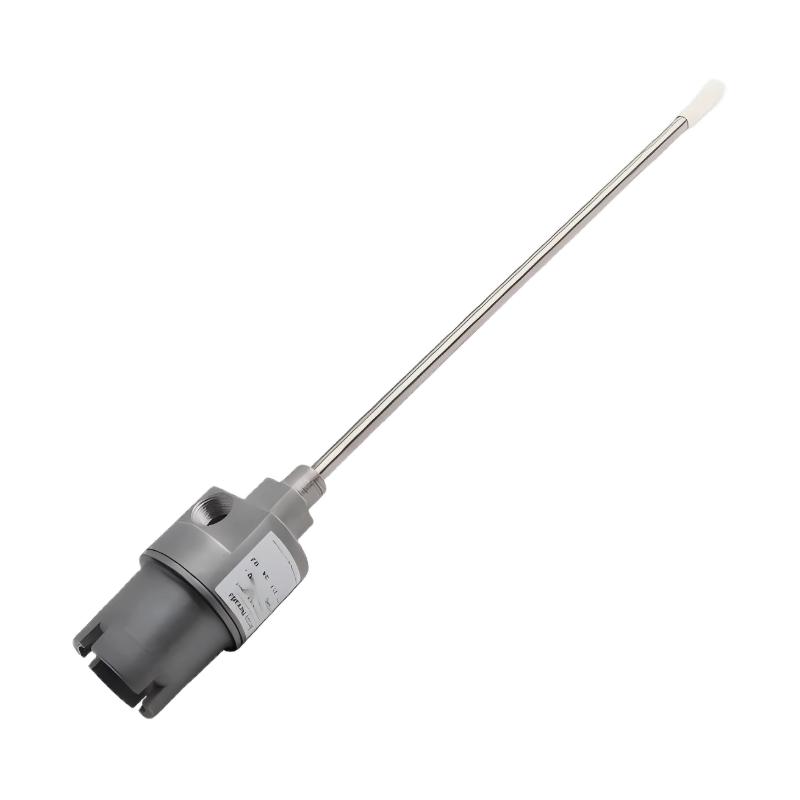

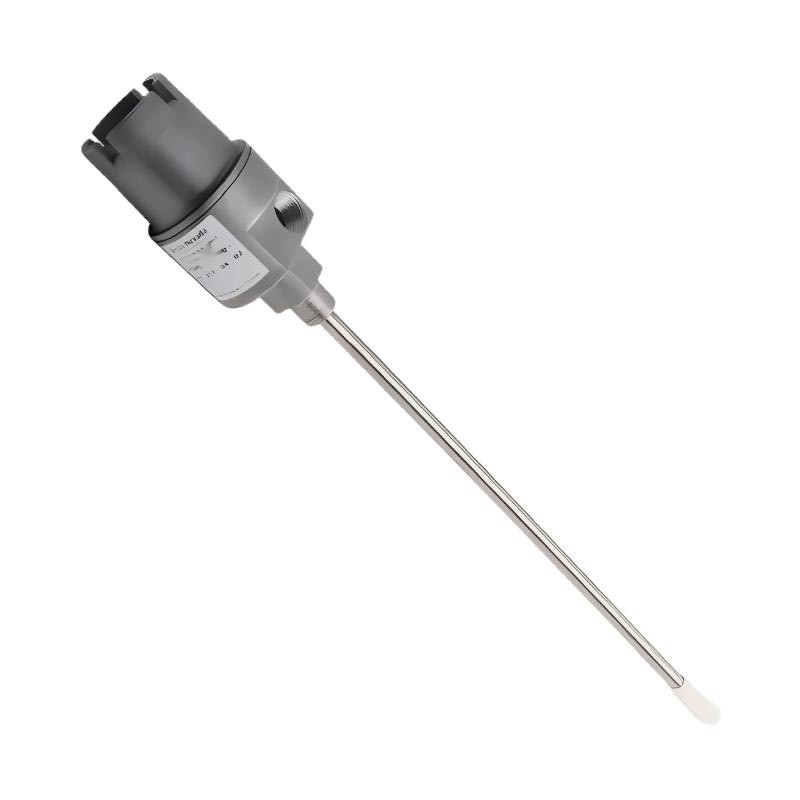

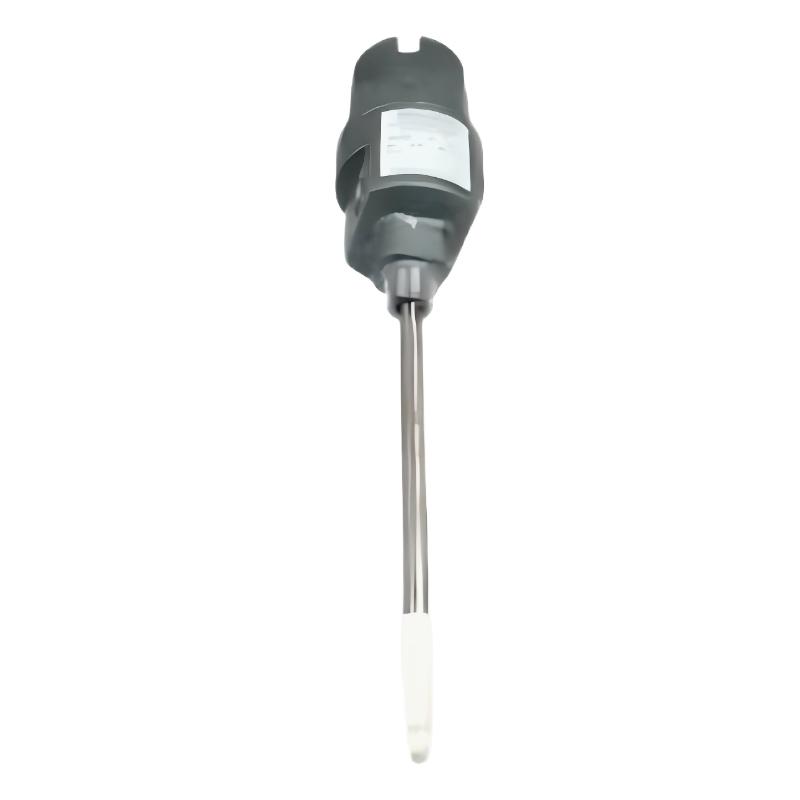

The Bently Nevada 21000-16-10-00-124-03-02 is a Proximity Probe Housing Assembly designed for the 3300 XL Proximity Transducer System. It provides a secure, stable, and protective mounting structure for proximity probes used in machinery protection and condition monitoring.
The housing ensures accurate probe positioning relative to rotating shafts, enabling reliable measurement of shaft vibration, shaft displacement, and rotor position. It is built for continuous operation in demanding industrial environments such as power generation, oil & gas, and petrochemical facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21000-16-10-00-124-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Compatible System | 3300 XL Proximity Transducer System |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Mounting Type | External machine or bearing housing installation |
| Housing Material | Industrial-grade metal alloy |
| Probe Compatibility | 3300 XL proximity probes |
| Cable Entry Type | Threaded conduit connection |
| Measurement Functions | Shaft vibration, shaft displacement, rotor position |
| Application Category | Machinery protection and condition monitoring |
| Environmental Suitability | Industrial operating conditions |
Function and Working Principle
The housing assembly acts as a mechanical support and protective enclosure for proximity probes.
Working Principle
- A 3300 XL proximity probe is installed inside the housing.
- The probe is positioned close to the rotating shaft without physical contact.
- Shaft vibration, displacement, and rotor position are detected by the probe.
- Signals are transmitted to monitoring and protection systems.
- The housing maintains stable probe alignment and protects the probe and cable from environmental and mechanical stress.
This ensures continuous and accurate monitoring of rotating machinery health.
Role in Condition Monitoring Systems
- Provides secure and stable probe mounting
- Maintains precise alignment for accurate measurements
- Protects probes from dust, moisture, and mechanical damage
- Supports continuous vibration and displacement monitoring
- Enhances reliability of machinery protection systems
- Reduces maintenance and alignment requirements
Industrial Applications
- Steam turbines
- Gas turbines
- Hydroelectric turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Gearboxes
- Power generation facilities
- Oil and gas processing plants
- Petrochemical plants
Installation Guidelines
- Mount securely on machine casing or bearing housing
- Maintain proper probe-to-shaft clearance
- Use threaded conduit for safe cable routing
- Verify probe alignment after installation
- Confirm signal stability in monitoring system
- Follow proper ESD handling procedures
Correct installation ensures high measurement accuracy and long-term reliability.
Compatible Components
- 3300 XL proximity probes
- Proximitor sensor systems
- Extension cables and connectors
- Machinery protection systems
- Turbine supervisory instrumentation (TSI) systems
- Industrial vibration monitoring platforms
Alternative Models
| Model | Description |
|---|---|
| 21000-16-10-00-124-03-02 | Standard 3300 XL probe housing assembly (this model) |
| 21000 Series Variants | Alternative configurations for different mounting needs |
| 24701 Series | Stainless steel housing assemblies |
| Compact Housing Assemblies | Space-limited applications |
| Heavy-Duty Housing Assemblies | Severe industrial environments |
Key Advantages
- Rugged industrial-grade construction
- Stable and precise probe alignment
- Strong protection for probes and cables
- Supports accurate vibration monitoring
- Reduces maintenance and recalibration needs
- Fully compatible with 3300 XL systems
- Long operational lifespan in industrial environments
Technical FAQs
What is the purpose of this housing assembly?
It provides secure mounting and protection for 3300 XL proximity probes in rotating machinery systems.
Does the housing measure vibration?
No. The proximity probe performs measurement; the housing ensures correct positioning and protection.
Which equipment uses this assembly?
Turbines, compressors, pumps, motors, and other rotating machinery.
Why is probe alignment important?
Accurate alignment ensures reliable vibration, displacement, and rotor position measurements.
Is it suitable for industrial environments?
Yes. It is designed for continuous use in harsh industrial conditions.
Conclusion
The Bently Nevada 21000-16-10-00-124-03-02 Proximity Probe Housing Assembly is a durable and precision-engineered mounting solution for 3300 XL proximity probes. Its robust structure and reliable alignment capability make it essential for accurate condition monitoring and protection of critical rotating machinery in industrial applications.
