Product Overview

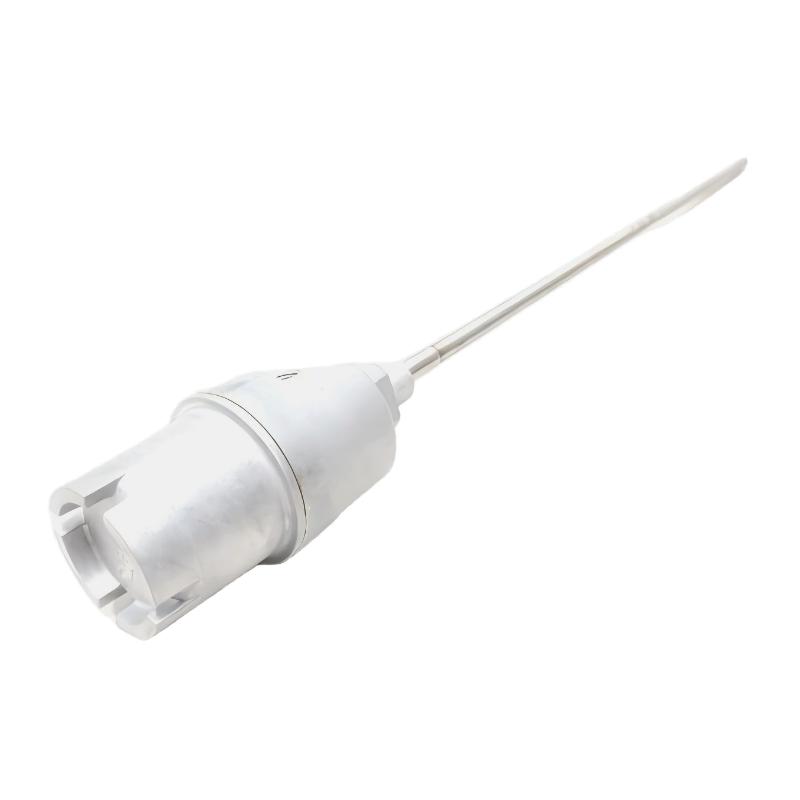

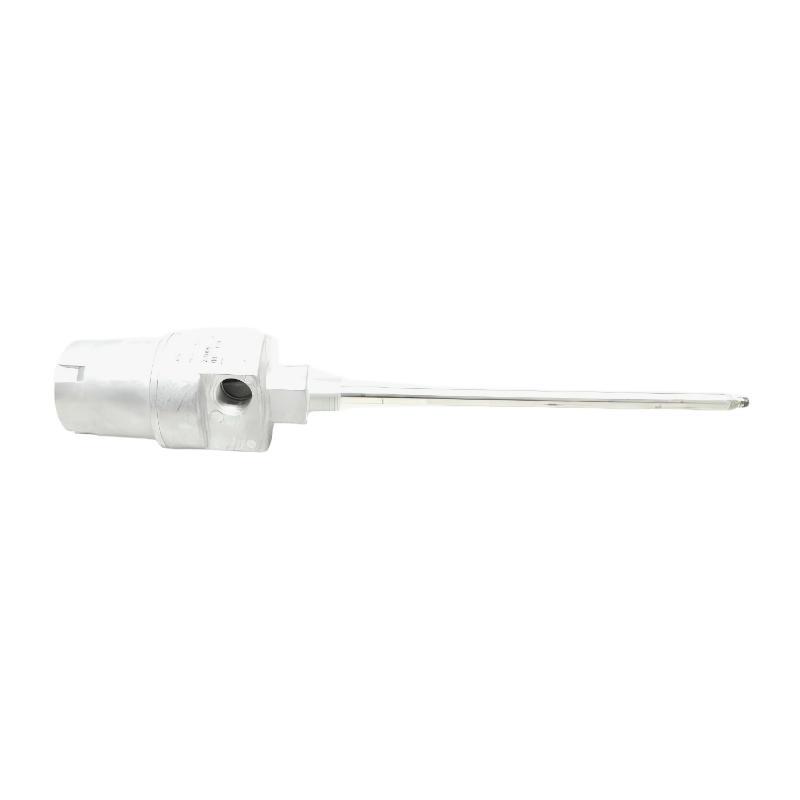

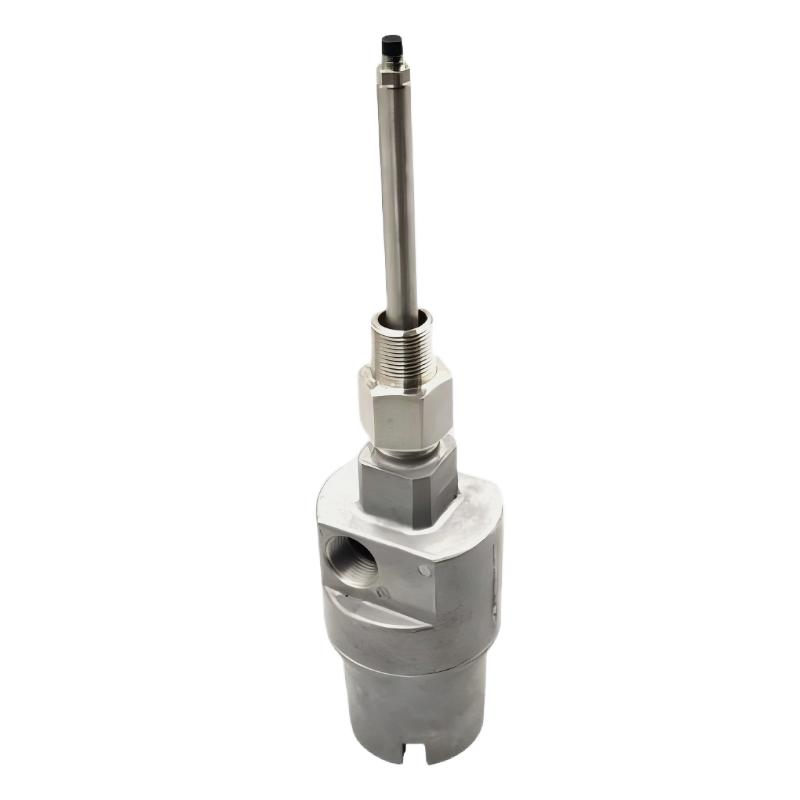

The Bently Nevada 21000-16-10-00-088-00-02 is a Proximity Probe Housing Assembly designed for use with the 3300 XL Proximity Transducer System. This housing provides a secure and protective mounting solution for proximity probes, ensuring precise positioning relative to rotating shafts for accurate monitoring of shaft vibration, shaft displacement, and rotor position.
Its rugged construction allows operation in harsh industrial environments, making it suitable for applications in power generation, oil & gas, and petrochemical facilities.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21000-16-10-00-088-00-02 |
| Product Type | Proximity Probe Housing Assembly |
| Compatible System | 3300 XL Proximity Transducer System |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Mounting Type | External machine or bearing housing installation |
| Housing Material | Industrial-grade metal alloy |
| Probe Compatibility | 3300 XL proximity probes |
| Cable Entry Type | Threaded conduit connection |
| Measurement Functions | Shaft vibration, shaft displacement, rotor position |
| Application Category | Machinery protection and condition monitoring |
| Environmental Suitability | Industrial operating environments |
Function and Working Principle
The housing assembly acts as a mechanical support and protective enclosure for proximity probes.
Working Principle
- A 3300 XL proximity probe is mounted inside the housing assembly.
- The probe is positioned near the rotating shaft without making physical contact.
- Shaft movement, vibration, and displacement are detected by the probe.
- Signals are sent to monitoring and protection systems.
- The housing maintains precise probe alignment and protects probes and cables from environmental hazards.
This ensures reliable and continuous machinery monitoring.
Role in Condition Monitoring Systems
- Provides stable and secure probe mounting
- Maintains accurate probe alignment for precise measurements
- Protects probes and cables from dust, moisture, and mechanical damage
- Enables continuous vibration and shaft displacement monitoring
- Improves machinery protection system reliability
Industrial Applications
- Steam turbines
- Gas turbines
- Hydroelectric turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Gearboxes
- Power generation plants
- Oil and gas processing facilities
- Petrochemical plants
Installation Guidelines
- Mount securely on machine casing or bearing housing
- Maintain proper probe-to-shaft gap
- Route cables through threaded conduit to prevent damage
- Verify probe alignment and signal integrity after installation
- Follow ESD-safe handling procedures
- Regularly inspect housing for wear or damage
Correct installation ensures long-term monitoring accuracy and reliability.
Compatible Components
- 3300 XL proximity probes
- Proximitor sensor systems
- Extension cables and connectors
- Machinery protection systems
- Turbine supervisory instrumentation (TSI) systems
- Industrial vibration monitoring platforms
Alternative Models
| Model | Description |
|---|---|
| 21000-16-10-00-088-00-02 | Standard 3300 XL probe housing assembly (this model) |
| 21000-16-10-00 Variants | Alternative housing configurations for specific mounting needs |
| 24701 Series | Stainless steel housing assemblies |
| Compact Housing Assemblies | Space-constrained installations |
| Heavy-Duty Housing Assemblies | Severe industrial environments |
Key Advantages
- Rugged industrial construction
- Stable and precise probe positioning
- Protects probes and cables from damage
- Simplifies maintenance and replacement
- Fully compatible with 3300 XL monitoring systems
- Long operational life in industrial environments
Technical FAQs
What is the primary purpose of this housing assembly?
To securely mount and protect 3300 XL proximity probes in industrial machinery applications.
Does the housing perform measurements?
No. The installed proximity probe performs vibration and displacement measurements; the housing ensures correct positioning.
Which equipment commonly uses this assembly?
Turbines, compressors, pumps, motors, and other rotating machinery.
Why is proper probe alignment critical?
Alignment ensures accurate vibration, displacement, and rotor position measurements.
Is this housing suitable for harsh industrial environments?
Yes. It is designed for continuous operation under industrial conditions.
Conclusion
The Bently Nevada 21000-16-10-00-088-00-02 Proximity Probe Housing Assembly provides a robust, reliable, and precise mounting solution for 3300 XL proximity probes. Its industrial-grade design and secure installation features make it essential for accurate shaft vibration and displacement monitoring, ensuring machinery protection and operational reliability in critical industrial applications.
