- Bently Nevada
- 21000-16-05-00-065-04-02
- Proximity Probe Housing Assembly(3300XL)
- USA
- 83.3 mm
- 1.1 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 29
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

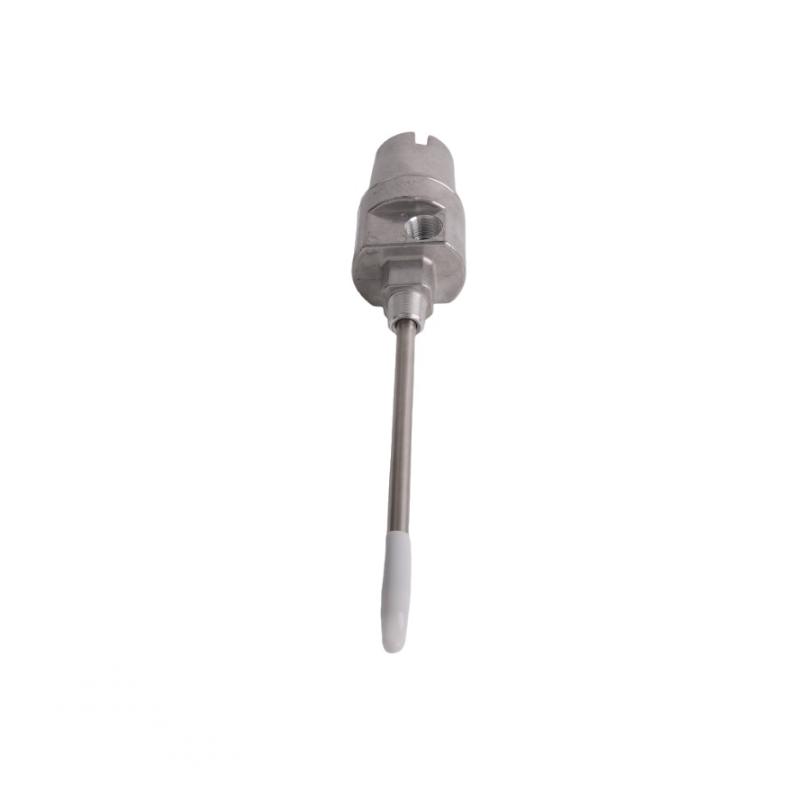

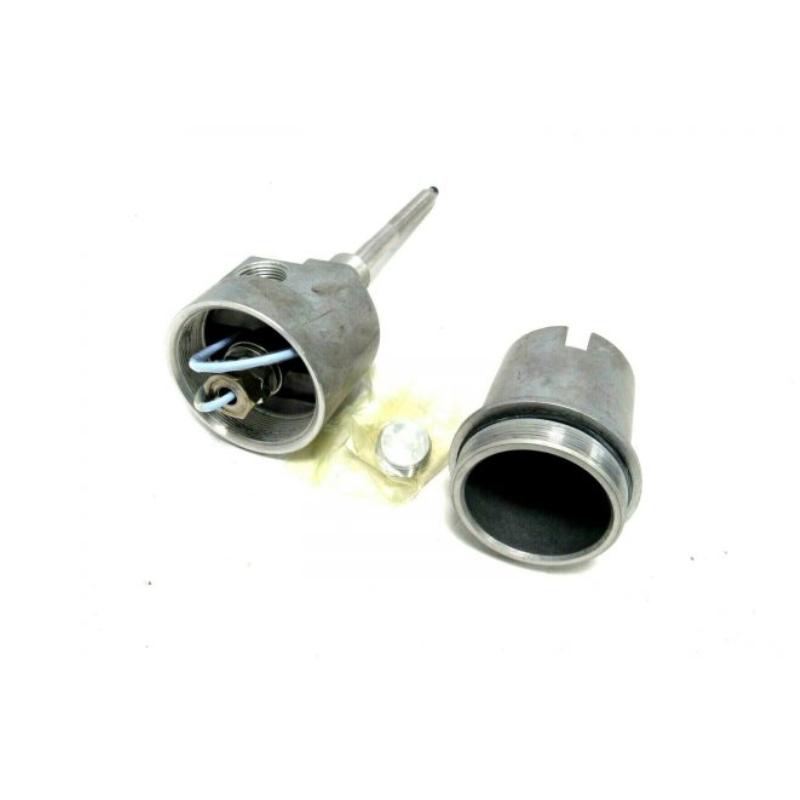

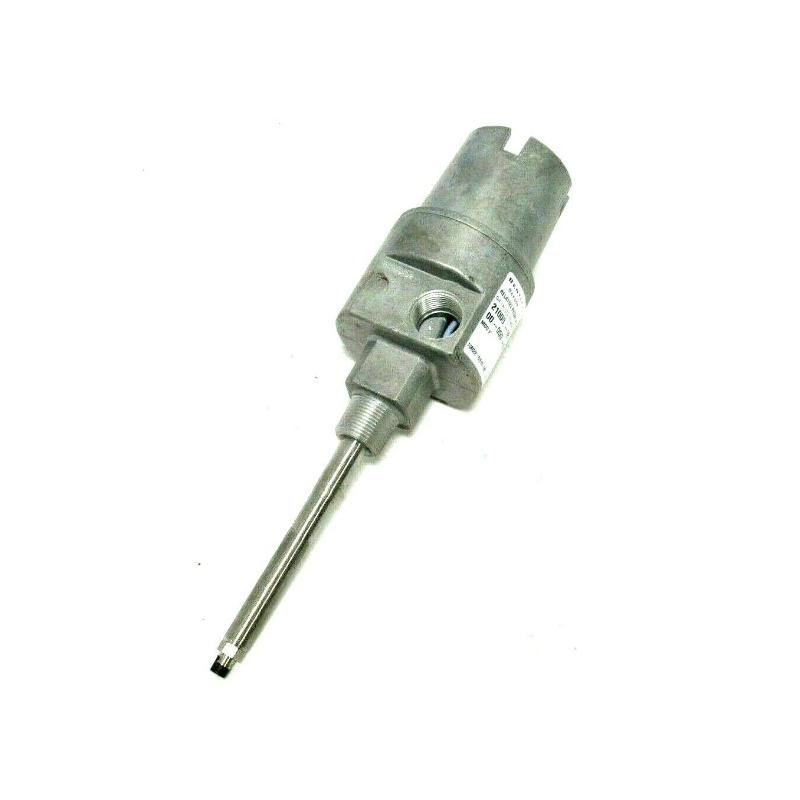

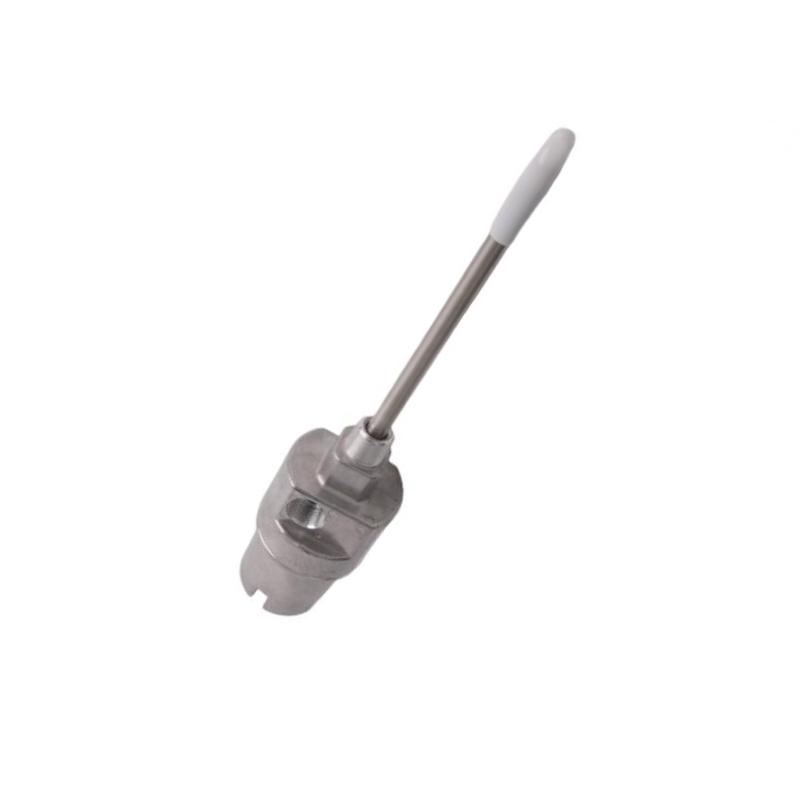

The Bently Nevada 21000-16-05-00-065-04-02 is a Proximity Probe Housing Assembly engineered for use with 3300 XL proximity probe systems. It provides a secure and protective mounting solution for proximity probes used in machinery condition monitoring applications, helping ensure accurate measurement of shaft vibration, shaft position, and displacement in critical rotating equipment.
Designed for long-term industrial service, the housing assembly protects probe components from environmental exposure while maintaining precise probe alignment for reliable monitoring performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 21000-16-05-00-065-04-02 |
| Product Type | Proximity Probe Housing Assembly |
| Compatible System | 3300 XL Proximity Transducer System |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Mounting Type | External machine mounting |
| Housing Construction | Industrial-grade metal housing |
| Probe Compatibility | 3300 XL proximity probes |
| Cable Entry Type | Threaded conduit connection |
| Monitoring Functions | Shaft vibration, shaft displacement, rotor position |
| Application Category | Machinery protection and condition monitoring |
| Environmental Rating | Industrial operating environments |
Function and Working Principle
The housing assembly serves as a mechanical support and protective enclosure for proximity probes.
Working Principle
- A 3300 XL proximity probe is installed within the housing assembly.
- The probe is positioned close to the rotating shaft without making contact.
- Shaft movement and position changes are detected by the probe.
- Signals are transmitted to monitoring and protection systems.
- The housing maintains proper alignment and protects the probe and cable connections.
This arrangement enables accurate and continuous monitoring of machine operating conditions.
Role in Condition Monitoring Systems
The housing assembly contributes to system reliability by:
- Providing secure probe mounting
- Maintaining measurement accuracy
- Supporting shaft vibration monitoring
- Enabling shaft displacement measurement
- Protecting probes from contaminants and mechanical damage
- Reducing maintenance requirements
Industrial Applications
- Steam turbines
- Gas turbines
- Hydroelectric turbines
- Centrifugal compressors
- Industrial pumps
- Electric motors
- Gearboxes
- Power generation facilities
- Oil and gas processing plants
- Petrochemical manufacturing facilities
Installation Guidelines
Installation Requirements
- Secure mounting on machine casing or bearing housing
- Proper probe-to-shaft alignment
- Maintenance of specified probe gap settings
- Protected cable routing through conduit fittings
- Prevention of excessive vibration on wiring
- Compliance with machinery monitoring installation standards
Correct installation ensures optimal measurement accuracy and long-term operational reliability.
Compatible Components
- 3300 XL proximity probes
- Extension cables
- Proximitor sensor systems
- Machinery protection systems
- Turbine supervisory instrumentation (TSI) systems
- Industrial vibration monitoring platforms
Alternative Models
| Model | Description |
|---|---|
| 21000-16-05-00-065-04-02 | Standard 3300 XL probe housing assembly |
| 21000 Series Variants | Alternative housing configurations |
| 24701 Series | Stainless steel housing assemblies |
| Compact Housing Assemblies | Space-restricted installations |
| Heavy-Duty Housing Assemblies | Harsh industrial environments |
Key Advantages
- Robust industrial construction
- Reliable probe protection
- Accurate probe positioning
- Simplified maintenance procedures
- Compatibility with 3300 XL monitoring systems
- Suitable for critical rotating equipment
- Long service life in industrial applications
Technical FAQs
What is the purpose of this housing assembly?
It provides a secure mounting location and environmental protection for 3300 XL proximity probes.
Does the housing measure vibration directly?
No. The housing supports and protects the probe, while the probe performs the measurement.
What machinery commonly uses this assembly?
Turbines, compressors, pumps, motors, gearboxes, and other rotating machinery.
Why is probe alignment important?
Proper alignment ensures accurate vibration and displacement measurements.
Is this assembly designed for industrial environments?
Yes. It is specifically engineered for continuous operation in demanding industrial applications.
Conclusion
The Bently Nevada 21000-16-05-00-065-04-02 Proximity Probe Housing Assembly provides a durable and dependable mounting solution for 3300 XL proximity probes. Its rugged construction, secure installation design, and compatibility with machinery monitoring systems make it an essential component for protecting probes and ensuring accurate vibration and position monitoring in critical industrial equipment.
