Product Overview

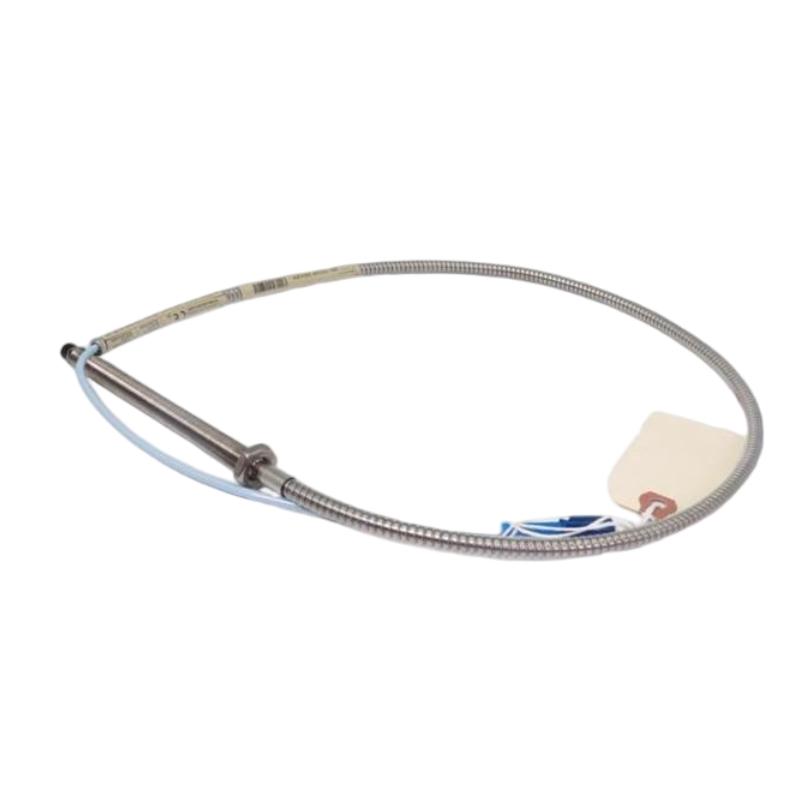

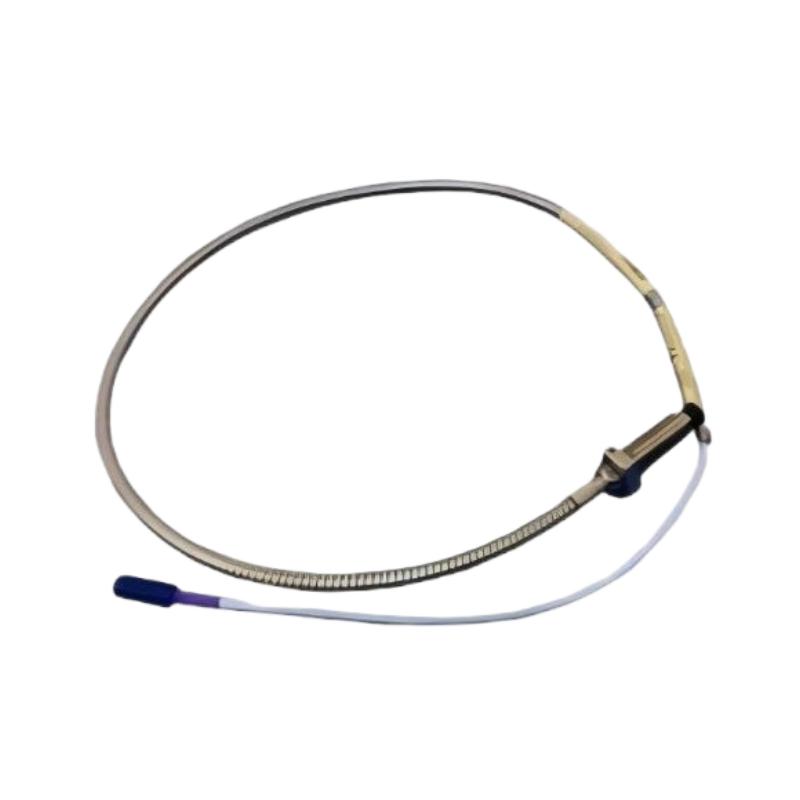

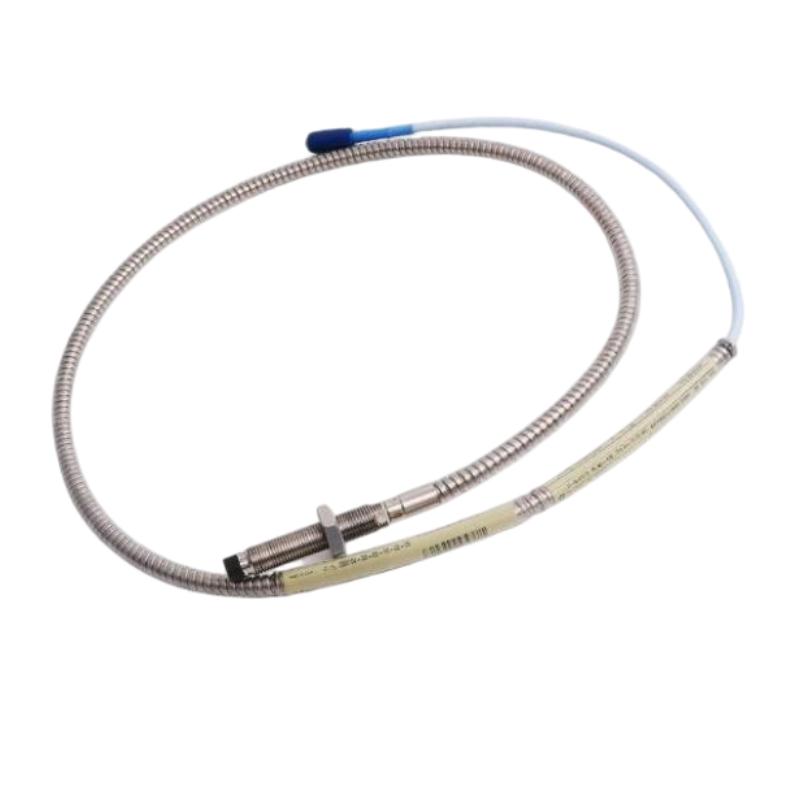

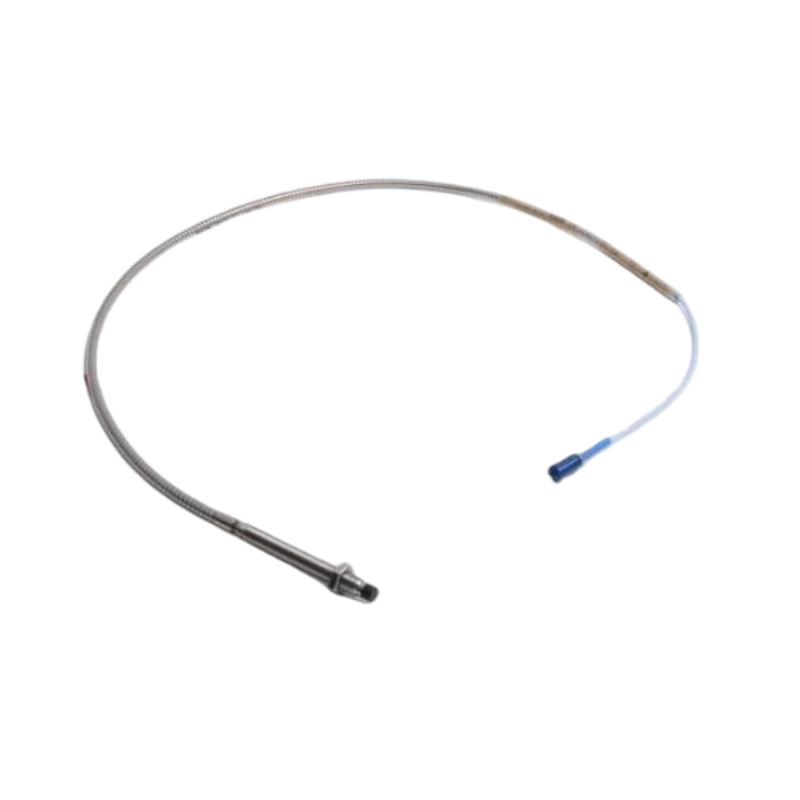

The Bently Nevada 164517-025-10-02-00 3300 Ceramic Cap Near Field Probe is a specialized vibration probe designed for condition monitoring and predictive maintenance of industrial machinery. This probe features a ceramic cap, which enhances its durability and sensitivity to vibrations. The total length of 1.0 meter provides flexibility for installation, making it suitable for monitoring a wide range of industrial equipment.

Part of the 3300 series, this probe is engineered to operate in harsh environments where high precision is needed to monitor vibration levels in critical equipment such as turbines, compressors, pumps, and generators. With its non-invasive design, the Ceramic Cap Near Field Probe ensures early detection of machinery faults, helping prevent costly downtime and extend equipment life.

Technical Specifications

Function and Working Principle

The Bently Nevada 164517-025-10-02-00 Ceramic Cap Near Field Probe works by detecting vibrations within a specific near field range, typically close to the machine components. The key principles behind its function include:

• Near Field Measurement: The probe measures vibrations generated by machinery in close proximity, providing high-precision data on machine health. The ceramic cap enhances the probe’s sensitivity to subtle vibration changes.
• Magnetic Field Induction: The probe senses vibrations via an inductive coupling, which measures the electromagnetic field generated by the moving parts of the machinery. This process allows for precise measurement of vibrations without making direct contact with the equipment.
• Durability and Accuracy: The ceramic cap ensures the probe can withstand harsh operating conditions, such as high temperature, moisture, and vibration, while maintaining high levels of accuracy in measuring the vibration frequencies.
• Seamless Integration: The probe is designed to seamlessly integrate with Bently Nevada’s monitoring systems, like the 3500 series, providing actionable insights into the condition of machinery, which aids in early fault detection.

Role in Industrial Systems

The Bently Nevada 164517-025-10-02-00 Ceramic Cap Near Field Probe plays a critical role in maintaining the health of industrial equipment by providing continuous and real-time vibration measurements. It helps to:

• Detect Early Faults: The probe identifies potential issues such as misalignment, imbalance, bearing failures, and looseness, allowing for early intervention before the problem escalates.
• Predictive Maintenance: By measuring vibration in real-time, the probe supports a predictive maintenance strategy, which optimizes repair schedules and prevents unnecessary downtime.
• Monitor High-Speed Equipment: It is ideal for monitoring high-speed rotating machinery, which is often subject to dynamic changes in vibration that can be indicative of performance issues.
• Improve Equipment Reliability: By providing continuous, accurate vibration data, the probe helps enhance equipment reliability and extend the life of critical machinery.

Industrial Applications

The Bently Nevada 164517-025-10-02-00 Ceramic Cap Near Field Probe is used in various industries that require vibration monitoring for machinery and equipment:

• Power Generation: In power plants, this probe is used to monitor turbines, generators, and pumps, ensuring these critical components remain in optimal working condition.
• Oil and Gas: In refineries, offshore platforms, and gas compressor stations, the probe helps monitor pumps, compressors, and other high-performance machinery, detecting faults early to minimize downtime.
• Manufacturing: This probe is essential in production lines where equipment like motors, conveyors, and robotic arms must operate efficiently and reliably.
• Mining: In mining equipment, including drills and excavators, the probe detects vibration anomalies that could lead to equipment failure, reducing costly repair needs and maintaining production uptime.

Installation and System Integration

The Bently Nevada 164517-025-10-02-00 Ceramic Cap Near Field Probe is designed for easy installation and seamless integration into existing monitoring systems:

1. Installation Location: The probe is installed in locations where vibrations are most critical to detect, such as bearing housings, machine casings, or turbine shafts.
2. System Integration: It integrates with Bently Nevada’s 3300 series monitoring systems and is compatible with other condition monitoring equipment that supports vibration measurement.
3. Calibration: The probe should be calibrated regularly to ensure accurate measurements, especially if there are changes in the operating environment or machinery settings.

Compatible System Components

The Bently Nevada 164517-025-10-02-00 Ceramic Cap Near Field Probe is compatible with the following Bently Nevada products:

• Bently Nevada 3300 XL Vibration Monitoring Systems
• 3500 Series Condition Monitoring Systems
• Signal Processors
• Real-Time Monitoring Software

Recommended Alternative Models

Key Advantages

• High Sensitivity: The ceramic cap provides enhanced sensitivity, enabling the detection of even small vibration changes, which is crucial for early fault detection.
• Durable and Robust Design: The probe’s ceramic cap ensures longevity and durability in harsh industrial environments, providing reliable performance in high-vibration and high-temperature conditions.
• Seamless Integration: It easily integrates with Bently Nevada monitoring systems, ensuring continuous data collection and real-time monitoring.
• Non-Invasive Measurement: The probe operates without direct contact with the equipment, minimizing the risk of electrical or mechanical issues while still providing accurate vibration measurements.

Technical FAQs

What is the maximum length of the Bently Nevada 164517-025-10-02-00 probe?
The total length of this probe is 1.0 meter, which provides ample flexibility for installation in various industrial machinery setups.

Can this probe be used for high-speed rotating machinery?
Yes, this probe is designed to monitor high-speed machinery such as turbines, generators, and compressors, where precision vibration measurements are essential.

How often should the probe be calibrated?
Calibration should be performed periodically, particularly if there are significant changes in operating conditions or machinery settings. Regular calibration ensures accurate readings for optimal performance.

Conclusion

The Bently Nevada 164517-025-10-02-00 Ceramic Cap Near Field Probe is a high-performance tool for vibration monitoring in critical industrial equipment. Its ceramic cap design ensures high durability and sensitivity, making it ideal for predictive maintenance and early fault detection. By integrating with Bently Nevada monitoring systems, this probe helps detect potential issues before they escalate, improving equipment reliability and minimizing downtime.
