Product Overview

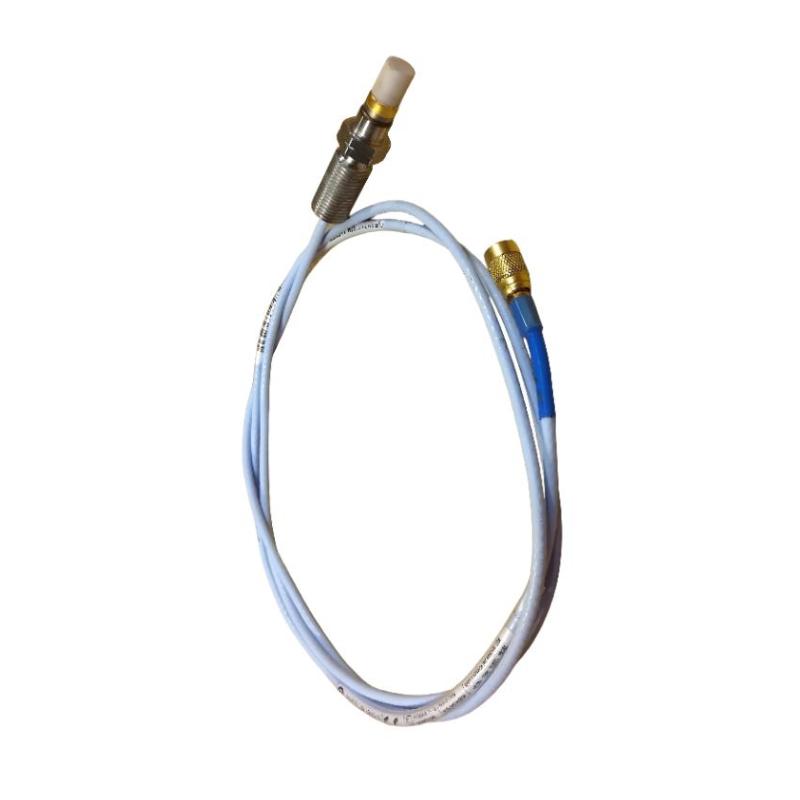

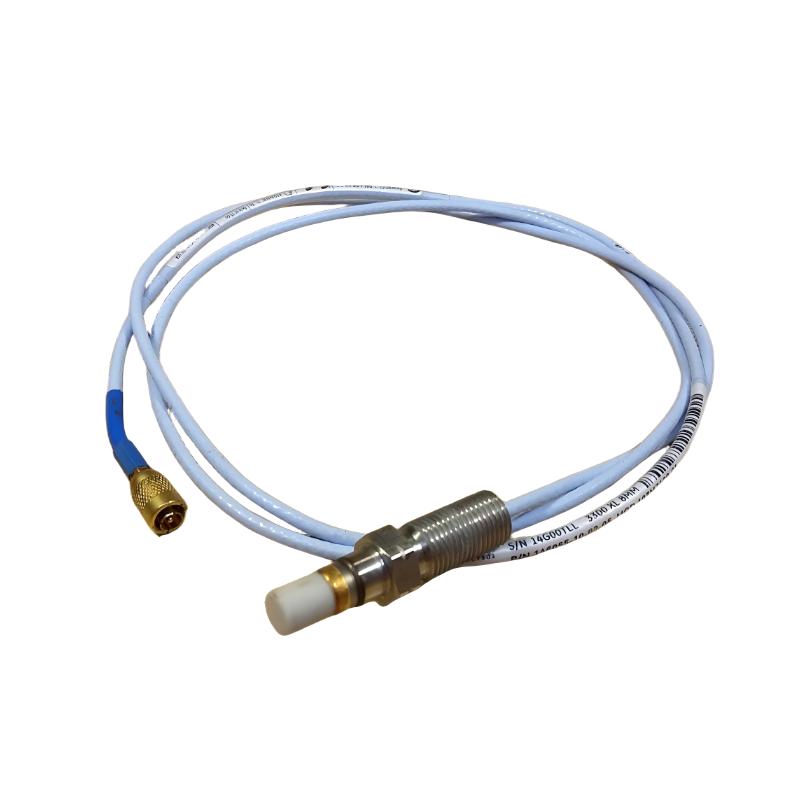

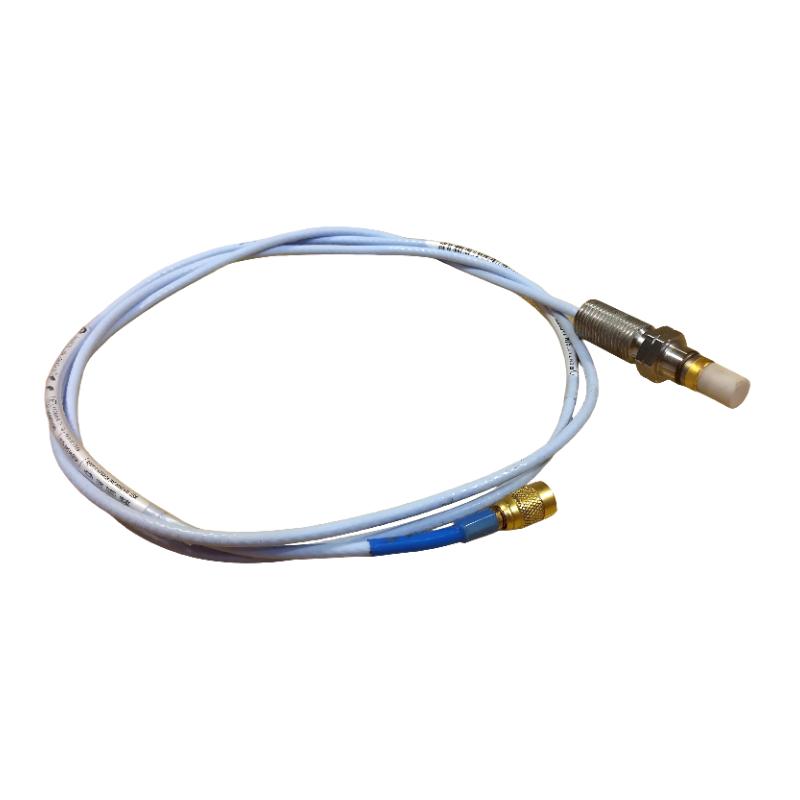

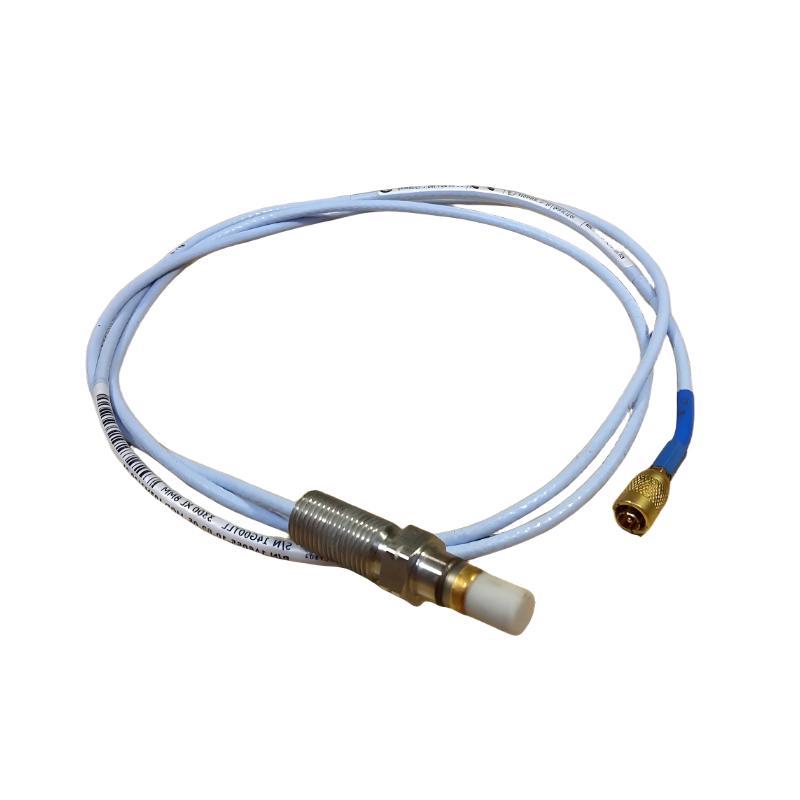

The Bently Nevada 146055-05-02-05 3300 XL Ceramic Cap Reverse Mounting Probe is a specialized vibration sensor designed for condition monitoring in rotating machinery. This ceramic cap probe is specifically engineered for reverse mounting, providing enhanced protection and reliability in challenging environments. The probe’s 0.5-meter total length and ceramic cap construction ensure it delivers high-precision measurements of shaft displacement and vibration for accurate fault detection.

The 3300 XL Ceramic Cap Reverse Mounting Probe is ideal for use in industries where machinery condition must be monitored continuously to prevent failure, extend the life of equipment, and reduce maintenance costs. It is designed for environments requiring high vibration monitoring accuracy, such as in turbines, pumps, compressors, and other rotating machinery.

Technical Specifications

Function and Working Principle

The Bently Nevada 146055-05-02-05 Ceramic Cap Reverse Mounting Probe utilizes reverse mounting combined with ceramic cap technology to provide highly accurate and durable vibration and displacement measurements:

• Reverse Mounting: The probe’s reverse mounting configuration allows it to be installed in tight spaces or in positions where traditional mounting methods would not be effective. This ensures accurate measurements despite challenging installation environments.
• Ceramic Cap: The ceramic cap protects the probe from exposure to extreme temperatures, moisture, and physical wear. It is especially useful in high-temperature or high-heat environments, ensuring long-term reliability in critical monitoring applications.
• Signal Output: The probe outputs an analog signal proportional to the displacement or vibration of the rotating machinery. This signal is sent to a monitoring system for real-time analysis, enabling early detection of faults such as misalignment or imbalance.
• Non-Contact Measurement: The probe uses eddy current technology to measure the distance between the probe and the target without direct contact, minimizing wear and ensuring consistent performance over time.

Role in Industrial Monitoring Systems

The Bently Nevada 146055-05-02-05 probe is a key component of industrial vibration monitoring systems, playing a crucial role in the early detection of machinery issues:

• Early Fault Detection: By continuously monitoring shaft displacement and vibration, the probe detects early signs of faults such as misalignment, imbalance, or bearing wear. Early detection allows for proactive maintenance, preventing costly breakdowns and unplanned downtime.
• Predictive Maintenance: The data from the probe can be analyzed to predict when maintenance will be required, optimizing repair schedules and extending the life of machinery.
• Enhanced Durability: The reverse mounting and ceramic cap construction make this probe suitable for harsh environments, ensuring reliable performance in applications where durability is critical.
• Monitoring Integration: The probe integrates seamlessly with Bently Nevada’s monitoring systems such as the 3300 XL or 3500 Series, providing accurate data that feeds into comprehensive condition monitoring systems for real-time decision-making.

Industrial Applications

The Bently Nevada 146055-05-02-05 Ceramic Cap Reverse Mounting Probe is used in various industries to monitor the condition of critical rotating equipment:

• Power Generation: In turbines, generators, and compressors, the probe is used to measure vibration and shaft displacement to ensure safe and efficient operation of equipment.
• Oil and Gas: For pumps, compressors, and drilling equipment, this probe helps monitor machinery health in environments where reliability is key to operations.
• Aerospace: The probe provides vibration and displacement data for aircraft engines, ensuring the reliability and performance of critical equipment.
• Manufacturing: In automated production lines and other manufacturing machinery, the probe detects vibration issues and misalignments that could lead to equipment failure.
• Marine: The probe is used in marine turbines and engines, ensuring proper performance and minimizing downtime in mission-critical systems.

Installation and System Integration

The Bently Nevada 146055-05-02-05 Ceramic Cap Reverse Mounting Probe is designed for straightforward installation and integration into existing monitoring systems:

1. Mounting: The probe is designed for reverse mounting, meaning it can be installed in situations where traditional mounting configurations are difficult or inefficient. Ensure proper alignment for accurate measurements.
2. Signal Connection: Once mounted, the probe’s analog output is connected to a monitoring system such as Bently Nevada’s 3300 XL or 3500 Series. This system will collect and analyze the data provided by the probe.
3. Environmental Protection: The IP67 rating ensures the probe remains operational even in dusty and moist environments, making it ideal for harsh industrial settings.
4. Calibration: Calibration is essential after installation to ensure that the probe’s measurements are accurate. Calibration processes will depend on the type of monitoring system in use.

Compatible System Components

The Bently Nevada 146055-05-02-05 Ceramic Cap Reverse Mounting Probe is fully compatible with Bently Nevada’s comprehensive vibration monitoring systems, including:

• Bently Nevada 3300 XL Vibration Sensors
• Bently Nevada 3500 Series Condition Monitoring Systems
• 3300 XL Preamplifiers
• PLC, SCADA, and DCS systems for real-time analysis and control

Recommended Alternative Models

Key Advantages

• Reverse Mounting Configuration: The reverse mounting design offers flexibility for installations where traditional mounting methods might not be feasible.
• Ceramic Cap Durability: The ceramic cap provides high protection against high temperatures, corrosion, and physical damage, extending the probe’s lifespan.
• IP67 Protection: The probe’s IP67 rating ensures protection from dust and moisture, enabling it to operate effectively in tough industrial environments.
• Accurate Fault Detection: The probe provides precise vibration and displacement data, enabling early detection of mechanical failures and improving predictive maintenance.
• Seamless Integration: It integrates easily with Bently Nevada‘s advanced monitoring systems, ensuring comprehensive machinery health monitoring.

Technical FAQs

What is the significance of reverse mounting for the probe?
Reverse mounting allows the probe to be installed in locations where traditional mounting configurations are impractical, enhancing flexibility and accuracy of measurements.

How does the ceramic cap benefit the probe?
The ceramic cap protects the internal components from extreme temperatures, moisture, and mechanical wear, making the probe more durable and reliable in harsh industrial environments.

What is the operating temperature range of the probe?
The probe operates within a temperature range of -40°C to +120°C, ensuring reliable performance in diverse industrial conditions.

Conclusion

The Bently Nevada 146055-05-02-05 3300 XL Ceramic Cap Reverse Mounting Probe is a highly durable and accurate solution for vibration and displacement monitoring in industrial machinery. Its reverse mounting design and ceramic cap construction make it ideal for applications where traditional mounting configurations are not suitable. This probe is an essential tool for industries such as power generation, oil and gas, aerospace, and manufacturing, enabling predictive maintenance and early fault detection to reduce downtime and extend the lifespan of critical equipment.
