Product Overview

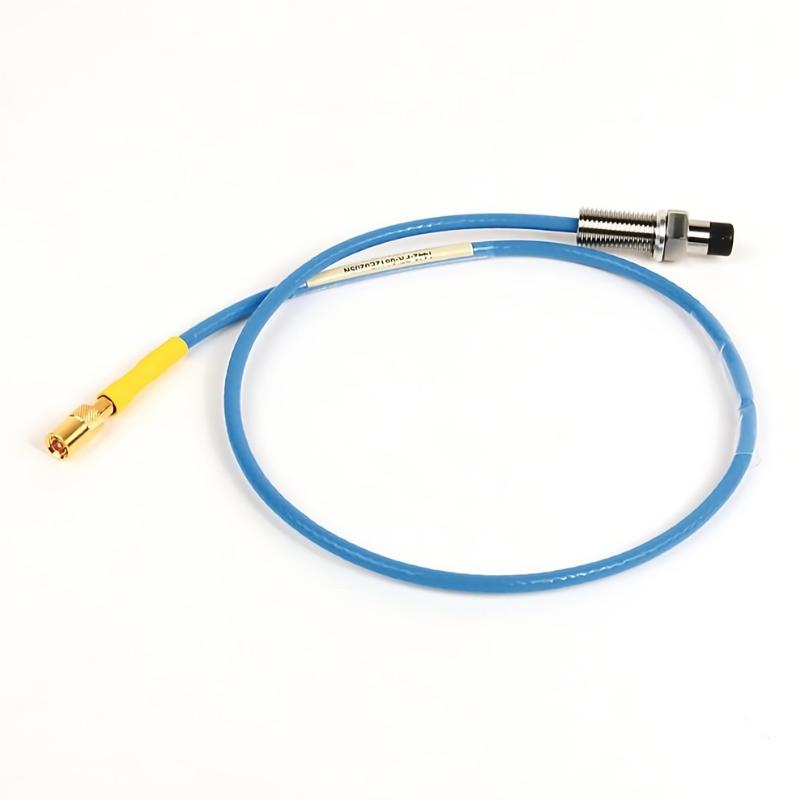

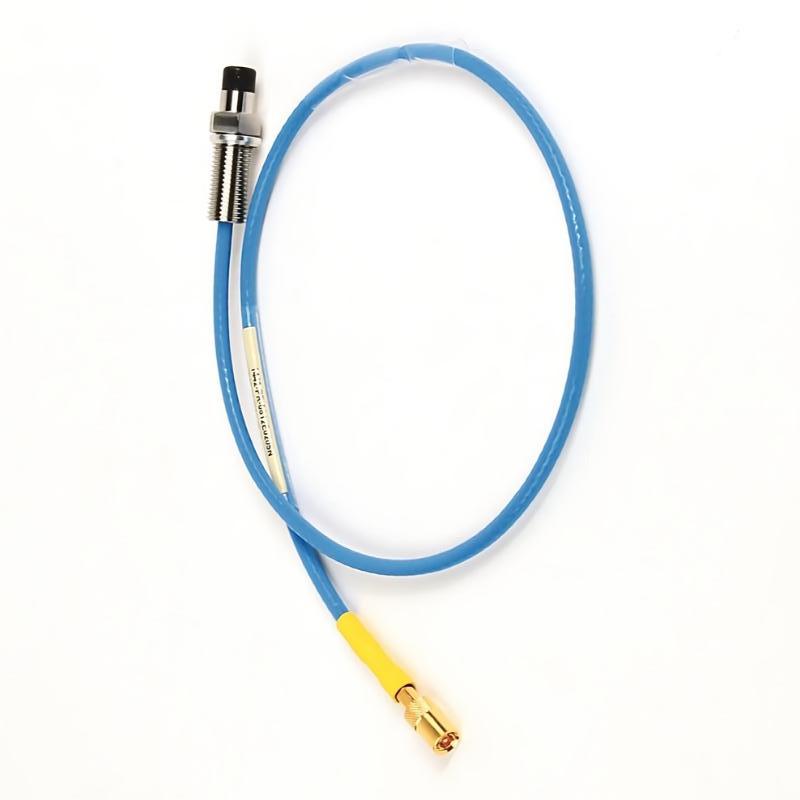

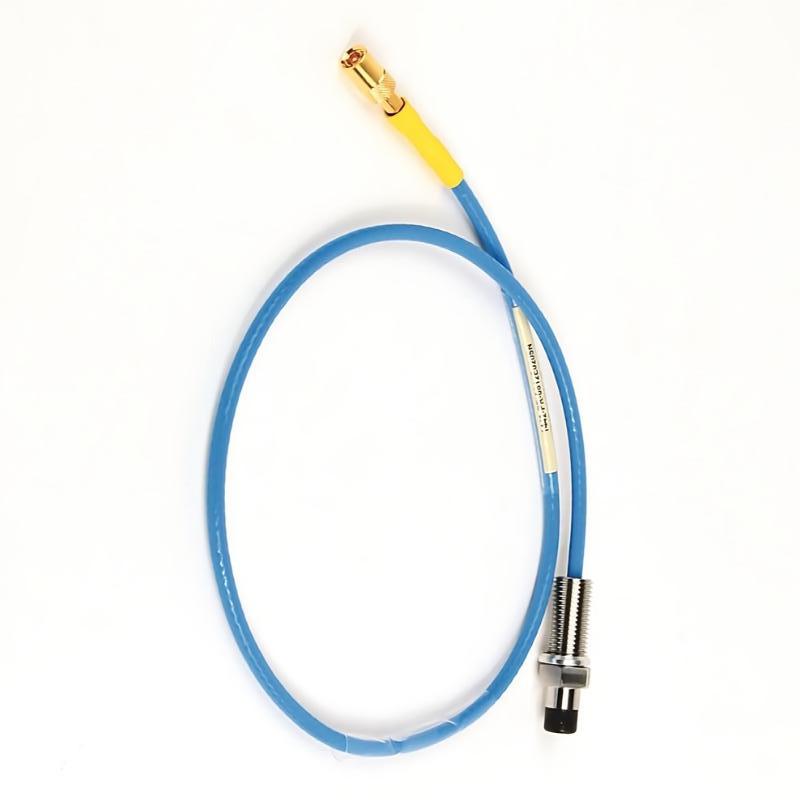

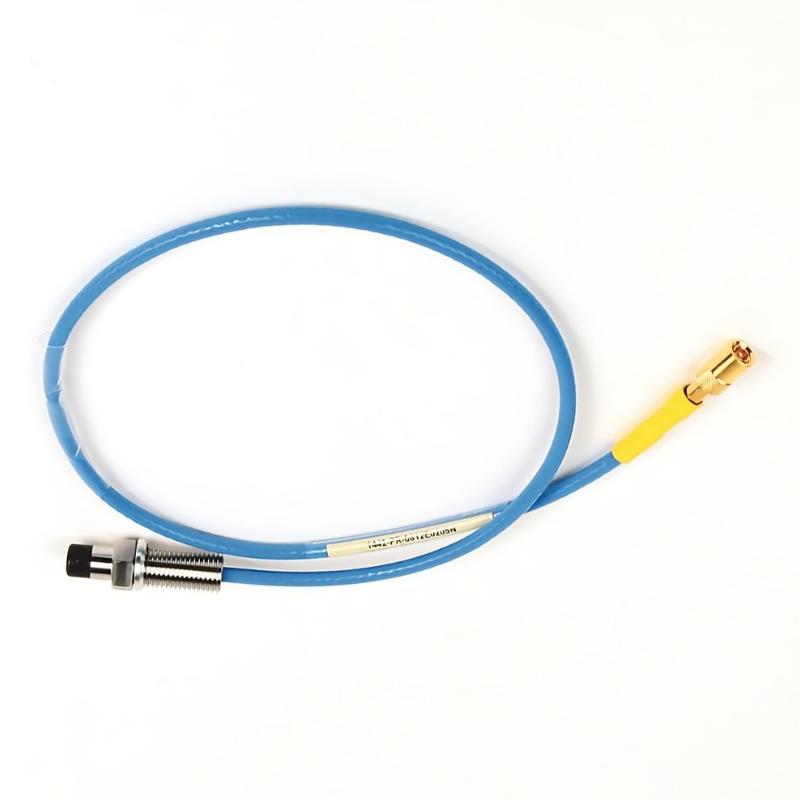

The Bently Nevada 1442-PR-0812E0205N 1442 Eddy Current Probe is a high-performance vibration and displacement sensor used for monitoring the health of rotating machinery in industrial settings. This eddy current probe is designed to measure shaft displacement and vibration by detecting changes in the distance between the probe and the target. It is an essential part of any condition monitoring or predictive maintenance system, providing critical data to detect issues such as misalignment, imbalance, or bearing wear before they lead to costly failures.

With a 500 mm cable length and the ability to operate in a variety of industrial environments, the 1442 Eddy Current Probe provides reliable and accurate measurements for machinery condition monitoring. The sensor’s eddy current technology ensures precise and interference-free signal transmission, even in harsh environments where traditional sensors may struggle.

Technical Specifications

Function and Working Principle

The Bently Nevada 1442-PR-0812E0205N Eddy Current Probe operates on the principle of eddy current technology to detect changes in the distance between the probe and a conductive target (such as a rotating shaft or bearing). The probe generates a magnetic field and detects variations in the field as the target moves, providing precise measurements of displacement or vibration.

• Eddy Current Measurement: The probe uses an eddy current principle to generate a magnetic field that interacts with the conductive material of the target. As the target moves, the impedance of the magnetic field changes, and the probe measures these changes to determine the displacement or vibration of the target.
• Signal Output: The measured displacement or vibration is converted into an analog output signal, which is then sent to a monitoring system (e.g., PLC, SCADA, or DCS) for analysis.
• Accurate and Interference-Free: The eddy current technology ensures that the probe provides high accuracy in its measurements, with minimal interference from external factors such as vibration or electromagnetic noise.
• Protection and Durability: The IP67 protection rating ensures that the probe is dustproof and water-resistant, making it suitable for operation in harsh industrial environments, such as those found in power plants, oil rigs, and manufacturing facilities.

Role in Industrial Monitoring Systems

The 1442 Eddy Current Probe is an essential part of a vibration monitoring or condition monitoring system, providing critical measurements of shaft displacement and vibration that allow for early fault detection and predictive maintenance:

• Shaft Displacement Measurement: The probe accurately measures the movement of rotating components, detecting any misalignment, shaft vibration, or unbalance that could indicate potential failures.
• Fault Detection: By continuously monitoring the displacement or vibration of machinery, the probe helps detect issues such as bearing wear, misalignment, or imbalance in the early stages, allowing for corrective action before equipment failure occurs.
• Condition Monitoring: The 1442 Eddy Current Probe works as part of a condition monitoring system, where the data is analyzed to assess the overall health of machinery. It helps in extending the service life of equipment and minimizing unexpected downtime.
• Integration with Monitoring Systems: The probe integrates easily with various Bently Nevada monitoring systems, providing real-time data to systems such as the 3500 Series for further analysis and reporting.

Industrial Applications

The Bently Nevada 1442-PR-0812E0205N Eddy Current Probe is widely used in industries where rotating machinery needs to be monitored for vibrations and displacement:

• Power Generation: In turbines, generators, and compressors, the probe monitors shaft displacement and vibration to ensure smooth and efficient operation.
• Oil and Gas: Used to monitor rotating equipment such as pumps, compressors, and drill rigs, where precise displacement measurements are essential for early fault detection and maintenance.
• Automotive: In engines and automated assembly lines, the probe detects vibration and misalignment, helping ensure the longevity and performance of critical machinery.
• Aerospace: Used for monitoring aircraft engines, compressors, and turbines, the probe provides crucial data on shaft displacement and vibration to prevent failure during operation.
• Manufacturing: In production lines and automated systems, the probe ensures that rotating components operate within specified limits, preventing costly breakdowns.

Installation and System Integration

The Bently Nevada 1442 Eddy Current Probe is designed for simple installation and easy integration into existing machinery monitoring systems:

1. Mounting: The probe can be easily mounted on rotating machinery, such as shafts or bearings, using standard mounting techniques. Ensure that the probe is properly aligned with the target to get accurate measurements.
2. Signal Connection: The probe is connected to a monitoring system through its shielded cable. The cable length is customizable, but the standard length is 500 mm.
3. Environmental Protection: The IP67 protection rating ensures that the probe is resistant to dust and moisture, making it suitable for use in harsh industrial environments, but should be protected from extreme mechanical stress.
4. Calibration: Calibration is important to ensure accurate readings. Once installed, ensure that the system is calibrated for the correct displacement or vibration range for the equipment being monitored.

Compatible System Components

The 1442 Eddy Current Probe is designed to work seamlessly with Bently Nevada equipment, such as:

• Bently Nevada 3300 XL Vibration Sensors
• Bently Nevada 3500 Series Condition Monitoring Systems
• Bently Nevada 3300 XL Preamplifiers
• PLC, SCADA, and DCS systems for real-time data acquisition and analysis

Recommended Alternative Models

Key Advantages

• High Accuracy: The eddy current technology provides high-precision displacement and vibration measurements, ensuring reliable data for condition monitoring.
• Durability: With an IP67 protection rating, the probe is highly resistant to dust and moisture, making it ideal for demanding industrial environments.
• Simple Integration: The probe integrates easily with other Bently Nevada monitoring systems, providing seamless operation for continuous monitoring.
• Early Fault Detection: By detecting subtle changes in shaft displacement and vibration, the probe enables early detection of potential failures, minimizing downtime and maintenance costs.
• Flexible Cable Length: The standard 500 mm cable length can be extended based on the installation requirements, offering flexibility in deployment.

Technical FAQs

What is the operating temperature range for the 1442 Eddy Current Probe?
The probe operates within a temperature range of -40°C to +120°C, making it suitable for a variety of industrial environments.

Can this probe be used for both vibration and displacement measurement?
Yes, the 1442 Eddy Current Probe measures both displacement and vibration, making it ideal for comprehensive machine health monitoring.

Is the cable length adjustable?
Yes, the 1442 Eddy Current Probe comes with a standard 500 mm cable, but it can be customized to suit specific installation needs.

Conclusion

The Bently Nevada 1442-PR-0812E0205N Eddy Current Probe is an essential tool for vibration monitoring and condition monitoring in industrial environments. Offering precise and reliable measurements of shaft displacement and vibration, this probe helps ensure early fault detection and predictive maintenance, preventing costly downtime. Ideal for use in industries such as power generation, oil and gas, automotive, and aerospace, the 1442 Eddy Current Probe ensures the continuous health of critical machinery and components.
