Product Overview

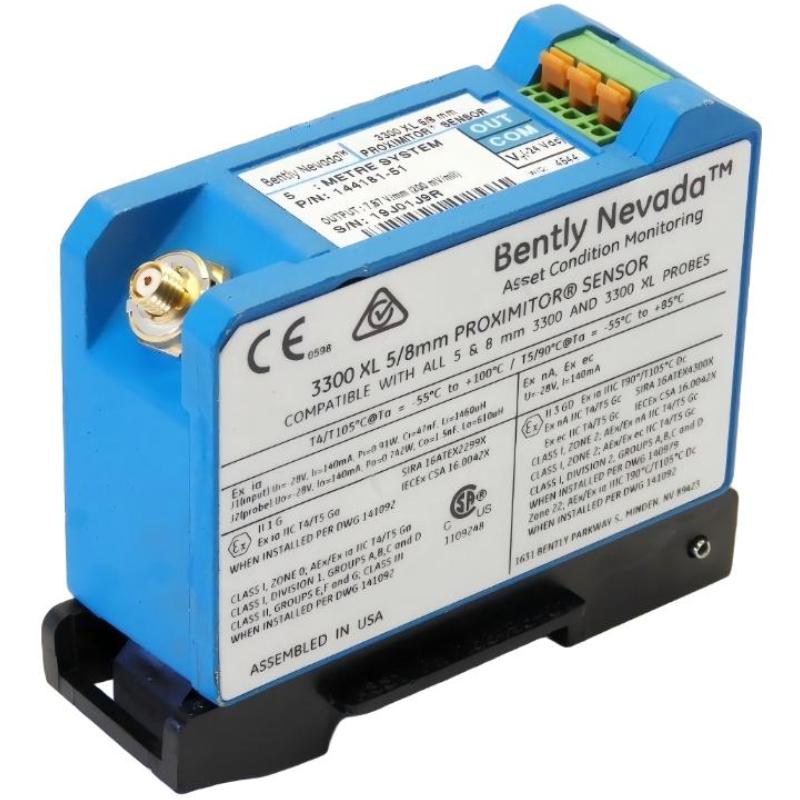

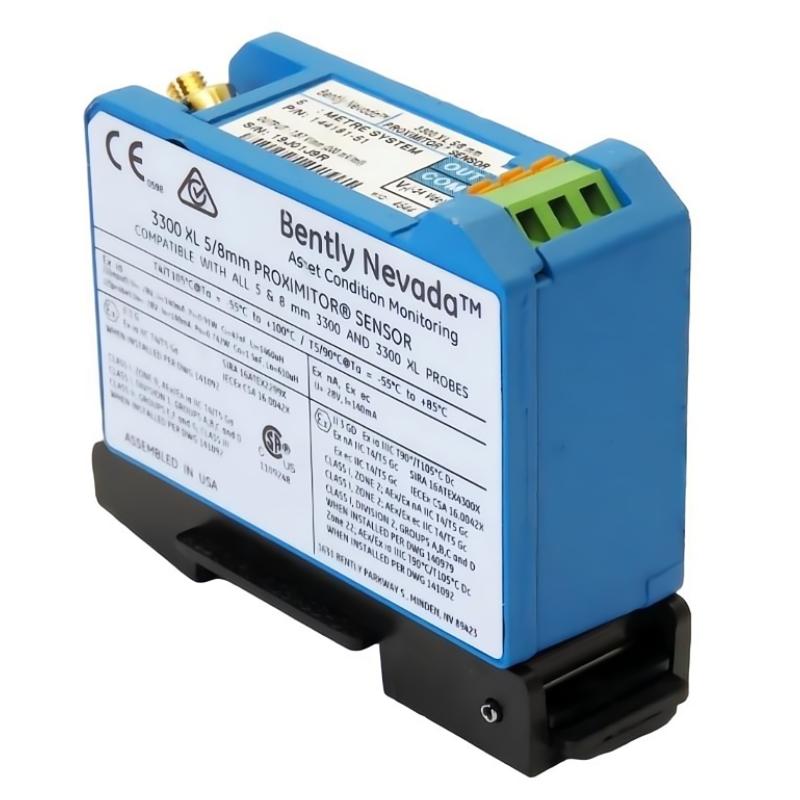

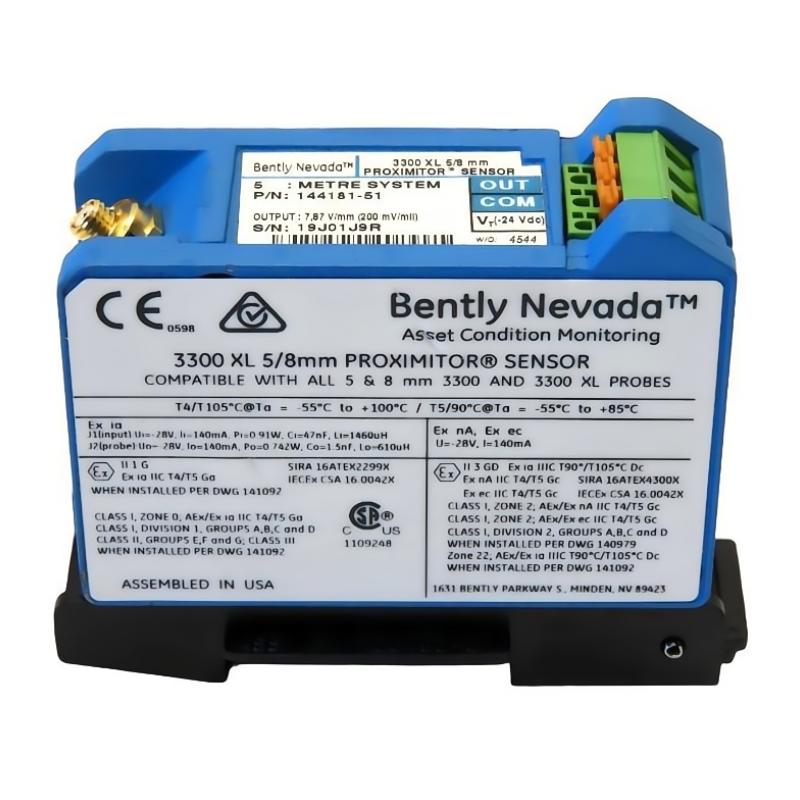

The Bently Nevada 144181-51 3300 XL 5/8 mm Proximity Sensor is a highly precise and reliable sensor designed to monitor machine health by detecting proximity to rotating machinery or other critical components. This 5/8 mm sensor is an integral part of vibration monitoring and condition monitoring systems, ensuring accurate detection and measurement of vibration, displacement, and movement. The 3300 XL Proximity Sensor offers robust performance, even in the most demanding industrial environments, providing critical insights for predictive maintenance and real-time diagnostics.

With its compact design and high sensitivity, the 144181-51 is an essential tool for industries such as power generation, oil and gas, automotive, and manufacturing, where precision in vibration and movement measurement is crucial for preventing failures and minimizing downtime.

Technical Specifications

Function and Working Principle

The Bently Nevada 144181-51 Proximity Sensor works by detecting the distance between the sensor and a rotating or moving component (e.g., a shaft, rotor, or bearing). The sensor measures the proximity of the target and provides valuable data for condition monitoring systems.

• Proximity Detection: The 5/8 mm sensor provides precise proximity measurements, detecting minute changes in the position of rotating machinery. This enables early detection of misalignments, shaft displacement, or changes in position that could indicate impending mechanical issues.
• Signal Generation: When the sensor detects changes in proximity, it generates an analog signal that is transmitted to a monitoring system (e.g., PLC, SCADA, or DCS) for further analysis.
• Accuracy and Sensitivity: With its high sensitivity and compact size, the sensor can detect small displacements and variations, making it ideal for monitoring machinery in real-time.
• Protection: The IP67 protection rating ensures that the sensor is protected from dust and moisture, making it suitable for harsh industrial environments.

Role in Industrial Monitoring Systems

The 144181-51 Proximity Sensor plays a key role in monitoring the health of industrial machinery. It provides essential data that is used in predictive maintenance and condition monitoring programs to ensure the continuous and safe operation of equipment:

• Machine Monitoring: The sensor detects proximity changes in rotating machinery, which could indicate problems such as misalignment, imbalance, or wear on critical components.
• Data Transmission: The sensor transmits the measured signal to a monitoring system for real-time analysis, allowing operators to assess the condition of equipment and take necessary actions before a failure occurs.
• Fault Prevention: By detecting early signs of wear or misalignment, the 144181-51 Sensor helps prevent unexpected breakdowns, which could lead to costly repairs or production downtime.
• System Integration: It integrates easily with existing vibration monitoring systems, working in conjunction with other sensors, preamplifiers, and monitoring units for a comprehensive approach to machine health.

Industrial Applications

The Bently Nevada 144181-51 Proximity Sensor is widely used in various industrial applications where accurate proximity detection is crucial for equipment monitoring:

• Power Generation: Used to monitor turbines, motors, and other critical rotating machinery for misalignment, vibration, and shaft movement.
• Oil and Gas: Essential in offshore rigs, compressors, and pumps, where monitoring the proximity of rotating components is critical for preventing failures.
• Manufacturing: In automated production lines, this sensor provides real-time data on machinery performance and condition, enabling predictive maintenance strategies.
• Aerospace: Used to monitor engine health and detect potential issues with rotating components such as compressors and turbines.
• Automotive: In engine testing and assembly, the sensor detects shaft displacement and misalignments, contributing to quality control and machine performance optimization.

Installation and System Integration

The Bently Nevada 144181-51 Proximity Sensor is designed for easy integration into existing vibration and condition monitoring systems. The steps for installation are straightforward:

1. Mounting: The sensor is mounted directly onto the equipment being monitored, typically on a bearing housing, shaft, or rotor. Ensure the sensor is properly aligned with the target component to guarantee accurate proximity readings.
2. Signal Connection: Once mounted, the sensor transmits the proximity signal to a monitoring system or data acquisition unit. The signal can be routed through a cable (length is customizable depending on the installation setup).
3. Environmental Protection: The IP67 rating ensures that the sensor is dustproof and water-resistant, making it suitable for use in harsh industrial environments. It should still be protected from extreme mechanical stress or exposure to corrosive substances.
4. Calibration: After installation, ensure that the sensor is calibrated to correctly measure the proximity of the target component. Calibration ensures that the sensor’s output remains accurate and reliable for condition monitoring applications.

Compatible System Components

The 144181-51 Proximity Sensor is designed to work seamlessly with a range of Bently Nevada equipment, including:

• Bently Nevada 3300 XL Vibration Sensors
• Bently Nevada 3500 Series Condition Monitoring Systems
• Bently Nevada 3300 XL Preamplifiers
• PLC, SCADA, and DCS Systems for real-time data acquisition and analysis

Recommended Alternative Models

Key Advantages

• High Sensitivity: The 5/8 mm sensor is highly sensitive and can detect small displacements and proximity changes, making it ideal for early fault detection.
• Durability: Built with an IP67 protection rating, the sensor is dustproof and water-resistant, making it ideal for harsh industrial environments.
• Easy Integration: It works seamlessly with other Bently Nevada sensors and monitoring systems, allowing for easy integration into existing setups.
• Prevention of Downtime: By detecting early signs of misalignment or mechanical failure, the sensor helps prevent equipment breakdowns, ensuring continuous and reliable machine performance.
• Compact Design: Its small size makes it suitable for tight spaces, and its direct mounting system simplifies installation.

Technical FAQs

What is the operating temperature range for the 144181-51 Proximity Sensor?
The sensor operates within a temperature range of -40°C to +100°C, making it suitable for a wide variety of industrial environments.

Can the 144181-51 Sensor be used outdoors?
Yes, with its IP67 rating, the sensor is protected from dust and moisture, making it suitable for outdoor and challenging environments.

What monitoring systems are compatible with the 144181-51 Proximity Sensor?
The sensor is compatible with Bently Nevada 3300 XL series and 3500 series condition monitoring systems, as well as PLC, SCADA, and DCS systems.

Conclusion

The Bently Nevada 144181-51 3300 XL 5/8 mm Proximity Sensor is a high-precision tool designed for vibration monitoring and condition monitoring applications. With its ability to detect minute proximity changes, it ensures that misalignment, vibration, and shaft displacement are monitored accurately. Ideal for industries such as power generation, oil and gas, manufacturing, and aerospace, this sensor helps in early fault detection, predictive maintenance, and minimizing downtime, ensuring the continuous health of machinery.
