Product Overview

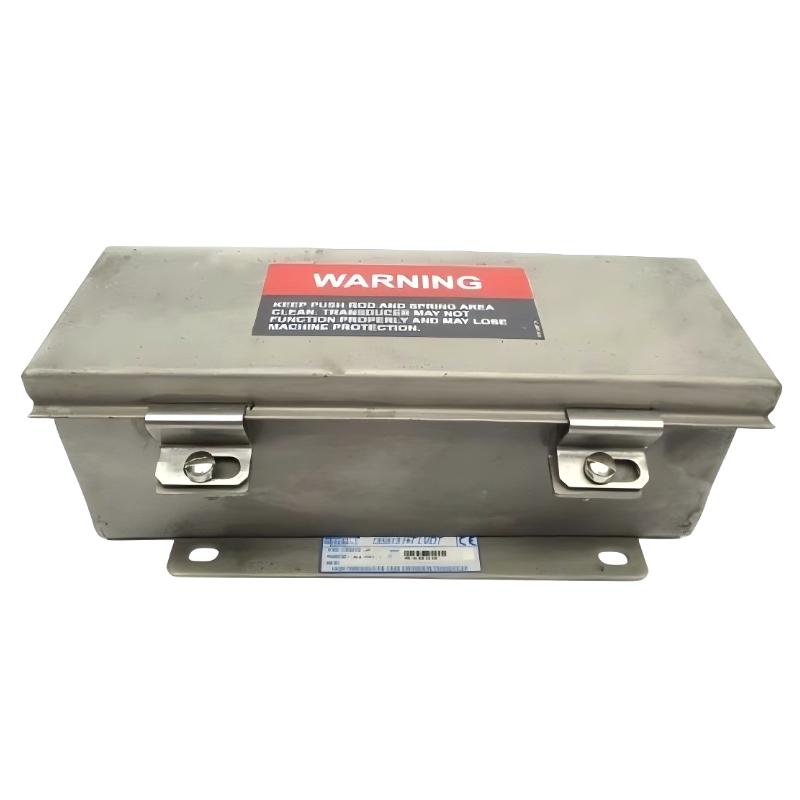

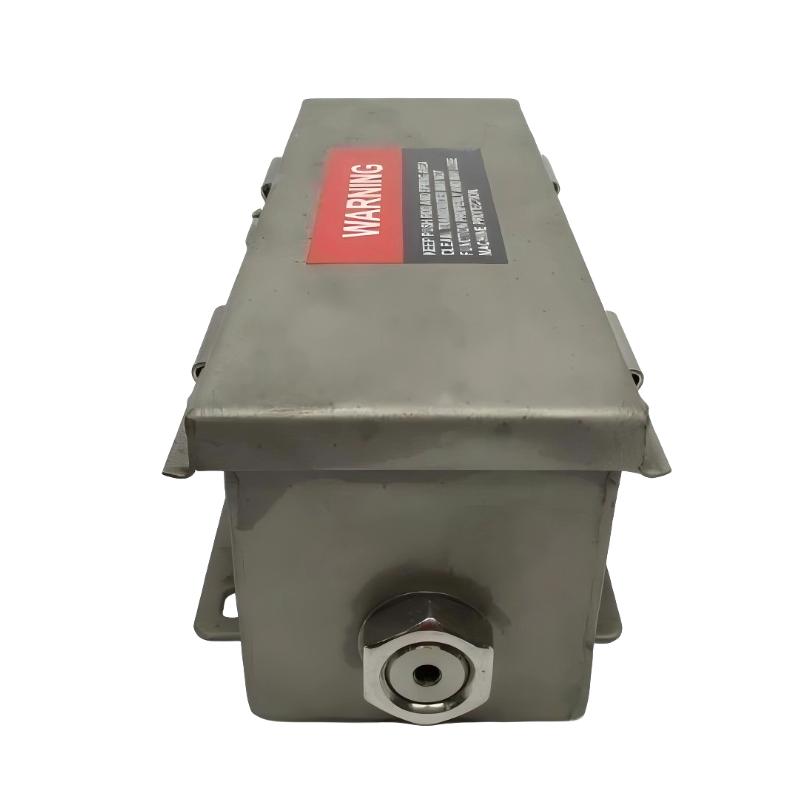

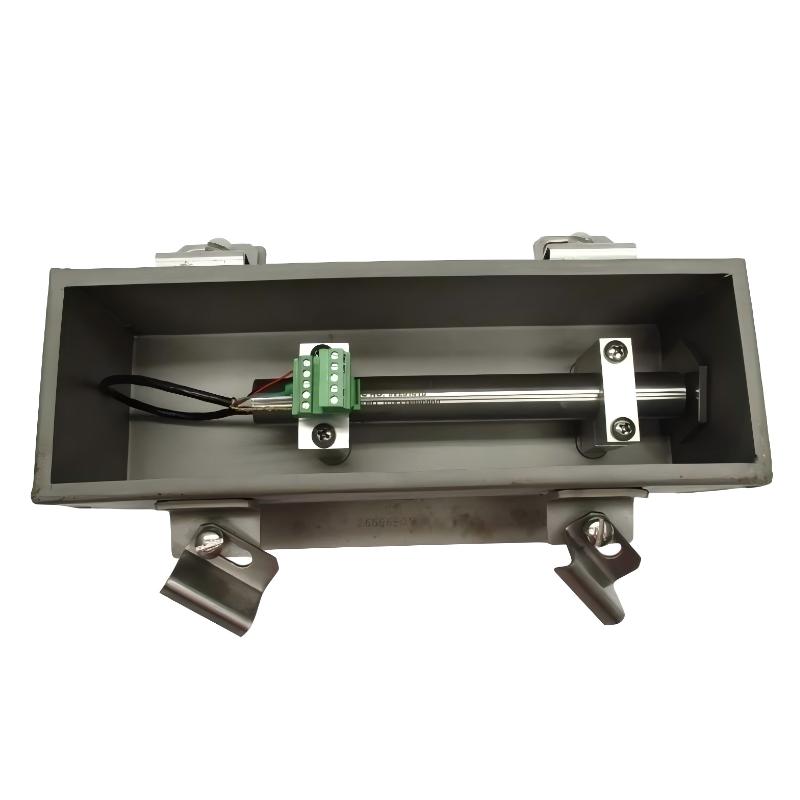

The Bently Nevada 135613-01-00 High Temperature Case Expansion Transducer Assembly is a machinery monitoring component used to measure case expansion in rotating equipment operating under elevated-temperature conditions. It belongs to the measurement side of a vibration and condition-monitoring system, where changes in machine casing position can provide useful information about thermal growth and mechanical behavior.

Case expansion monitoring is particularly relevant for large rotating machines. As equipment heats up during startup and normal operation, different machine sections can expand at different rates. Monitoring this movement helps engineers evaluate whether the machine is following its expected thermal behavior.

The 135613-01-00 is therefore different from a conventional shaft vibration probe. Instead of primarily observing shaft motion, the assembly is associated with machine casing displacement caused by thermal expansion.

For maintenance and replacement applications, the transducer assembly should be considered together with its mounting arrangement, signal wiring, monitoring electronics, and the machinery being monitored. Correct mechanical installation and sensor positioning are important because the measured movement represents the relationship between the transducer and machine casing.

Technical Specifications

Product Features

The 135613-01-00 is intended for applications where monitoring thermal movement of machine casing is necessary.

Key characteristics include:

• Bently Nevada case expansion transducer assembly
• Model 135613-01-00
• High-temperature machinery monitoring application
• Intended for case expansion measurement
• Used for monitoring thermal movement of rotating machinery
• Suitable for condition-monitoring systems
• Provides displacement-related measurement information
• Can support startup and operating-condition assessment
• Useful for machinery protection and diagnostic applications
• Suitable for maintenance and replacement of existing monitoring installations

Case expansion measurements are especially useful when evaluating large rotating machines whose casing movement changes as operating temperature rises.

Working Principle

The 135613-01-00 monitors movement associated with the expansion of a machine casing.

A simplified measurement chain is:

Machine Temperature Increase → Thermal Expansion → Casing Movement → Transducer Measurement → Monitoring System

During operation, the machine casing experiences dimensional changes as temperature changes. The transducer assembly detects the resulting mechanical displacement relative to its installation reference.

The monitoring process can be understood in several stages:

1. Machine Heating

   During startup or changing operating conditions, the rotating machine reaches higher temperatures.

2. Thermal Growth

   The casing and associated machine structures expand according to their mechanical and thermal characteristics.

3. Mechanical Displacement

   This expansion produces measurable movement at the monitored casing location.

4. Transducer Response

   The transducer assembly responds to the relative movement between the machine and the measurement reference.

5. Monitoring

   The resulting measurement can be evaluated by the machinery monitoring system to determine whether casing expansion follows the expected operating behavior.

6. Condition Assessment

   Abnormal or unexpected expansion trends can provide an additional diagnostic indication when evaluated together with vibration, temperature, speed, and other machine measurements.

The important point is that the transducer does not measure temperature directly. It measures mechanical movement associated with case expansion.

Role in a Machinery Condition Monitoring System

The 135613-01-00 occupies the case expansion measurement layer of a rotating-machinery monitoring system.

A practical arrangement can be represented as:

Rotating Machine → Case Expansion Transducer → Monitoring Electronics → Protection / Control System

Case expansion information can complement other machinery measurements.

Using several measurement types together gives engineers a broader view of machine behavior. For example, an unusual casing expansion trend becomes more meaningful when compared with machine temperature, startup time, vibration behavior, and operating load.

Industrial Applications

The actual installation depends on the monitored machine design, measurement location, and condition-monitoring architecture.

Installation and Maintenance

Because case expansion measurement depends on mechanical displacement, installation accuracy is particularly important.

Recommended practices include:

• Confirm the complete 135613-01-00 model.
• Verify the intended machinery measurement point.
• Check the transducer mounting arrangement.
• Inspect the mounting surface for damage or contamination.
• Verify mechanical alignment.
• Ensure the sensing relationship is consistent with the monitoring design.
• Inspect signal cables and connections.
• Check cable routing around high-temperature areas.
• Protect wiring from excessive mechanical movement.
• Inspect connectors for contamination or damage.
• Verify monitoring-system channel assignment.
• Compare the measurement with expected startup behavior.
• Monitor expansion trends during commissioning.
• Record baseline operating measurements.
• Recheck the installation after maintenance involving the machine casing or mounting structure.

When an expansion reading appears abnormal, do not immediately assume the transducer has failed. The investigation should also include mounting conditions, mechanical reference points, cable integrity, monitoring electronics, machine temperature, and actual casing movement.

Related Components

Recommended Related Models

Key Advantages

• Bently Nevada high-temperature case expansion transducer assembly.
• Model 135613-01-00.
• Intended for machine casing expansion measurement.
• Suitable for rotating machinery condition monitoring.
• Helps monitor thermal movement during startup and operation.
• Complements vibration and temperature measurements.
• Useful for large rotating machinery applications.
• Supports machinery diagnostic and protection strategies.
• Suitable for maintenance and replacement of existing monitoring installations.

Technical FAQs

What does case expansion measurement tell an engineer about a rotating machine?

It indicates how the machine casing moves as operating conditions and temperature change. Comparing the measured expansion with expected thermal behavior can help identify unusual mechanical movement or changes in machine operating characteristics.

Why is the transducer mounting reference important for case expansion measurement?

The measurement represents relative mechanical movement. If the mounting point, reference structure, or alignment changes, the measured value can be affected even when the actual machine expansion has not changed. Mechanical installation is therefore a critical part of measurement accuracy.

How should an abnormal case expansion trend be investigated?

Start by comparing the trend with machine temperature, startup sequence, speed, load, and other condition-monitoring measurements. Then inspect the transducer mounting, wiring, monitoring channel, and mechanical reference before determining whether the machine itself is experiencing abnormal thermal movement.

How does case expansion monitoring differ from shaft vibration monitoring?

Case expansion monitoring focuses on movement of the machine casing associated with thermal growth, whereas shaft vibration monitoring evaluates dynamic movement of the rotating shaft. The two measurements describe different aspects of machine behavior and are often more useful when interpreted together.
