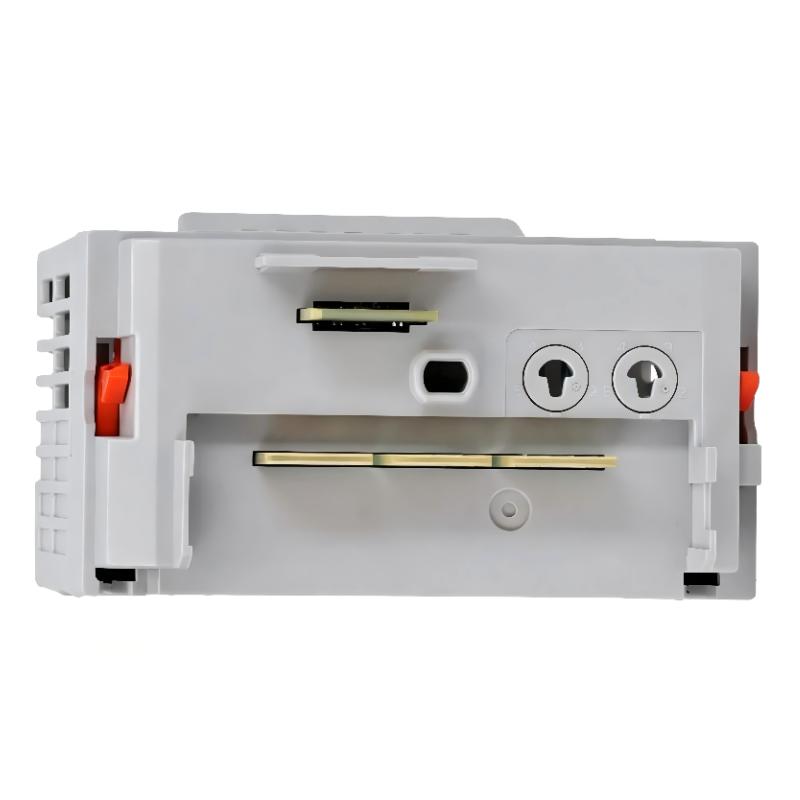

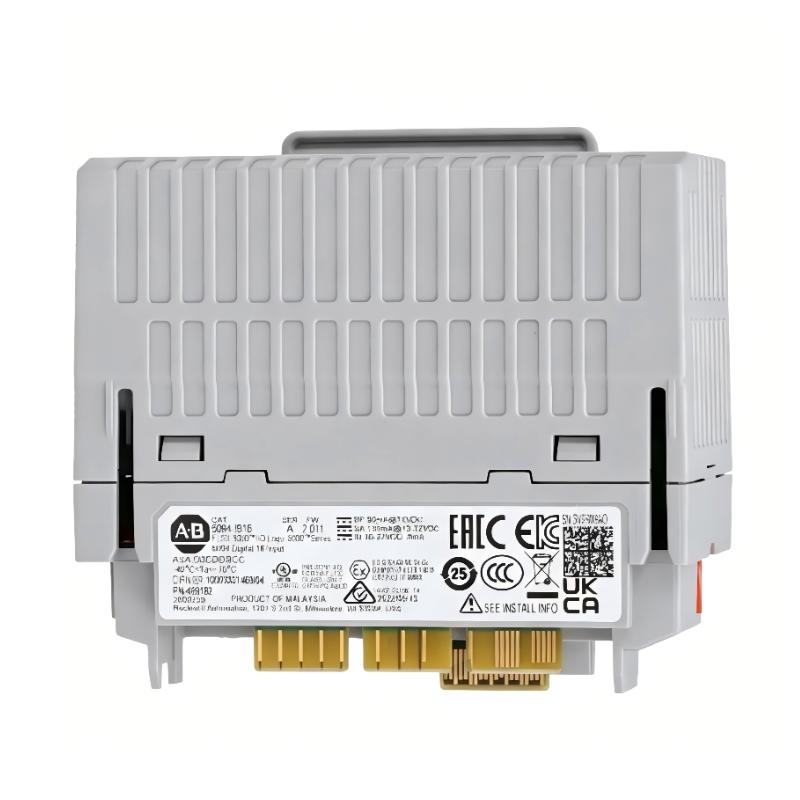

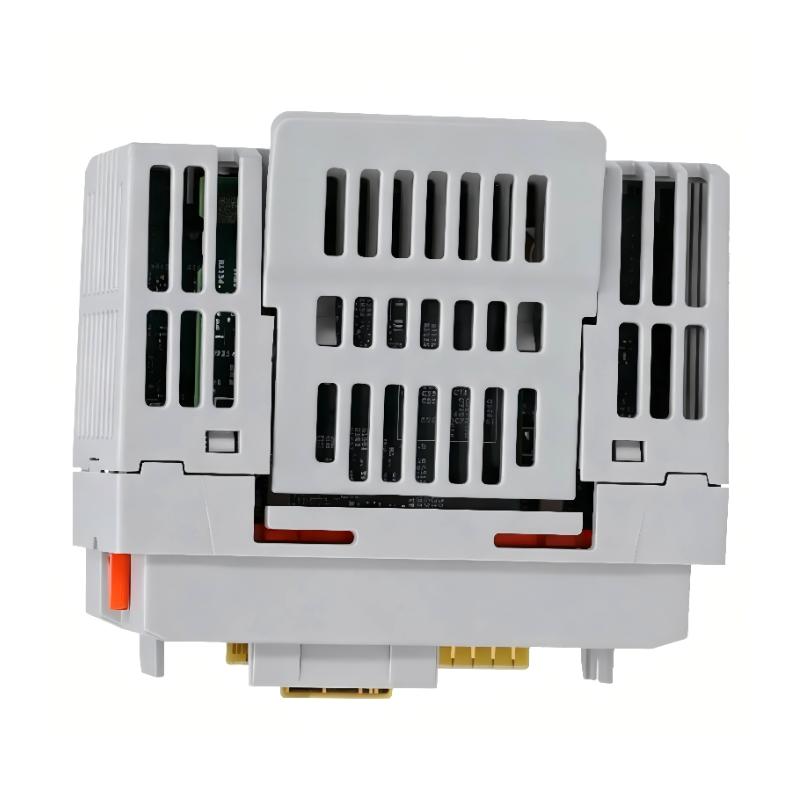

Allen-Bradley 5094-IB32 — FLEX 5000 32-Point Digital Input Module

1. Product Introduction

The Allen-Bradley 5094-IB32 is a 32-point digital input module in the FLEX 5000 distributed I/O family. It is designed to receive discrete electrical signals from industrial field devices and make their states available to a compatible controller through a FLEX 5000 EtherNet/IP adapter.

Digital input signals represent two primary states: ON and OFF. Typical sources include proximity sensors, photoelectric sensors, limit switches, push buttons, relay contacts, and other compatible field devices. The module detects these signals and transfers their status to the controller, where the information can be used for machine sequencing, process monitoring, alarms, and interlocks.

The 5094-IB32 is intended for distributed automation systems in which I/O modules can be installed close to the machinery or process they serve. This arrangement can simplify field wiring, reduce the need to route every signal to a central control cabinet, and make it easier to organize large control systems into separate I/O stations.

As a 32-point input module, it is particularly useful where many discrete signals need to be collected in a relatively compact installation. Before selecting it for a project, verify the exact input voltage rating, input-current characteristics, channel configuration, compatible adapter, and module revision.

2. Technical Specifications

Important installation note: The 5094-IB32 module is normally supplied separately from its mounting base and removable terminal block. The module-only weight is therefore not the same as the weight of the complete installed assembly.

3. Main Functions and Operating Characteristics

3.1 Thirty-Two Digital Input Channels

The 5094-IB32 provides 32 digital input points in a single group. Each point reads a compatible field signal and reports its state to the controller through the FLEX 5000 I/O system.

For example, a machine may use separate inputs for part detection, cylinder-position confirmation, guard-door monitoring, motor status, and operator push buttons. The module can collect many of these signals in one location, provided their electrical characteristics are compatible with the input specification.

3.2 12/24 V DC Input Compatibility

The module is designed for compatible DC signals within a 10–32 V input range. This makes it suitable for many common industrial sensors and switching devices operating from nominal 12 V or 24 V DC supplies.

The voltage range must be observed at the module terminals. A sensor described as a “24 V device” is not automatically compatible in every wiring arrangement; its output type, ON-state voltage, OFF-state leakage, and common wiring must also be checked.

3.3 Configurable Input Filtering

Input filtering helps prevent very short electrical disturbances from being interpreted as genuine changes in field-device state. The module provides a selectable filter time from 0 to 50 ms, in addition to its hardware delay.

A longer filter can be useful for mechanical switches that may bounce when operated. However, a long filter can also delay the recognition of a real input change. The setting should therefore be selected according to the signal source and the response time required by the application.

3.4 Fast Input Response

At 25°C, the maximum specified input delay from the terminal to the backplane is 150 microseconds in either direction. This supports responsive detection of normal digital transitions within the module’s operating limits.

The actual application response time also depends on the filter setting, controller task period, network update interval, and the program logic. The module’s input delay alone does not determine the full end-to-end response time.

3.5 Input Status and Diagnostics

The module provides individual status indicators for its 32 I/O points, as well as module-status and sensor/actuator power-status indicators.

These indicators can help maintenance personnel distinguish between an inactive field signal, a wiring problem, a power issue, and a broader module or network fault. Correct diagnosis still requires checking the controller, network adapter, terminal base, and field wiring.

3.6 Pulse Latching and Selected Counter Functions

The 5094-IB32 supports pulse latching and selected event and counter functions. Simple counters are supported on channels 0–15, with a maximum counter frequency of 4 kHz. The module does not support every high-speed measurement feature available on specialized input modules.

This distinction is important: the 5094-IB32 is primarily a digital input module, not a dedicated high-speed counter or encoder interface. For high-speed position feedback or demanding pulse measurement, verify the required functionality before selecting it.

4. Product Applications

4.1 Factory Automation

The 5094-IB32 is suitable for factory automation systems that need to collect a large number of discrete signals from sensors, switches, and machine components.

Typical signals include part-present sensors, conveyor-position switches, machine-ready contacts, motor-running feedback, and operator push buttons. The controller can use these input states to coordinate machine sequences and determine when a process step is ready to begin.

By grouping 32 input points in one module, engineers can organize field signals by machine section, production station, or functional area.

4.2 Packaging Machinery

Packaging equipment commonly uses many digital signals to detect products, confirm actuator positions, monitor machine doors, and coordinate individual stations.

The 5094-IB32 can collect these signals in a compatible FLEX 5000 I/O assembly. For example, a packaging line may use photoelectric sensors to detect containers, limit switches to confirm mechanical positions, and auxiliary contacts to report equipment status.

The PLC program processes these signals to control sequencing, detect abnormal conditions, and coordinate the operation of the packaging line.

4.3 Conveyor and Material Handling Systems

Conveyor installations often contain many distributed sensing points, including product-detection sensors, end-of-travel switches, jam-detection sensors, and equipment-status contacts.

A 32-point input module can reduce the number of separate modules required at a remote I/O location, depending on the electrical requirements and overall system design.

This arrangement can also make troubleshooting easier because signals from a particular conveyor section can be grouped together and identified in the controller program.

4.4 Automotive and Assembly Equipment

Assembly systems may use proximity sensors, fixture-position switches, part-presence detectors, and machine-status signals to verify that each production step is complete.

The 5094-IB32 can gather compatible discrete signals from these devices and communicate their states to a controller over the FLEX 5000 I/O architecture.

It is useful where a machine has many digital feedback signals and the control design calls for a compact, distributed I/O arrangement.

4.5 Process Equipment and Pumping Systems

Pumping stations, water-treatment equipment, and other process installations use digital signals to indicate pump status, valve position, pressure-switch state, tank-level switch state, and equipment alarms.

The 5094-IB32 can collect these signals when their electrical characteristics match the module’s input specifications.

For process applications, the module should be selected according to the required response time, environmental conditions, electrical isolation requirements, and control-system architecture.

4.6 Building and Facility Equipment

Compatible industrial control systems may use digital inputs to monitor ventilation equipment, access switches, auxiliary contacts, and general equipment status.

The 5094-IB32 can provide a high point count for these applications, provided the connected devices use suitable DC signals and the installation meets the relevant electrical and environmental requirements.

It should not be assumed to be a certified fire-alarm, life-safety, or building-security input device solely because it can monitor discrete signals.

4.7 Distributed I/O Installations

The FLEX 5000 architecture allows compatible I/O modules to be placed near the equipment they serve. The 5094-IB32 can be installed as part of a remote I/O assembly connected to a suitable network adapter.

This can help reduce long field-wiring runs and keep local signals organized around individual machines or process areas. The controller still manages the application logic, while the adapter and network transfer I/O data between the remote assembly and the control system.

5. Product Advantages

5.1 High Input Point Density

The module provides 32 digital input channels in a compact form factor. This is useful in installations where many discrete signals must be collected without dedicating a separate module to each small group of inputs.

A higher point count can simplify panel layout and reduce the number of module positions needed for a given collection of compatible signals.

5.2 Broad Compatibility with Common DC Sensors

The 10–32 V DC input range supports many industrial sensors and switching devices designed for nominal 12 V or 24 V DC operation.

This makes the module practical for a wide range of machine-monitoring and general automation tasks, provided the actual output characteristics of each field device meet the module requirements.

5.3 Configurable Input Filtering

The adjustable input filter allows engineers to balance noise rejection against response time.

Mechanical contacts may benefit from additional filtering, while faster sensor signals may require a shorter setting. Selecting an appropriate filter can improve signal reliability without adding unnecessary delay to the control sequence.

5.4 Individual Point Status Indicators

The 32 I/O indicators provide a convenient way to check whether input points are being recognized.

During maintenance, a technician can compare the physical sensor state with the module indicator and the controller’s input data. This can help narrow down whether a problem lies in the sensor, wiring, terminal connection, module, or network path.

5.5 Integration with FLEX 5000 Systems

The module is designed for the FLEX 5000 distributed I/O family. It can be used in compatible I/O assemblies with a supported adapter, mounting base, terminal block, and controller configuration.

This modular structure allows input capacity to be designed around the requirements of each machine or installation.

5.6 Compact DIN-Rail-Based Installation

The module’s compact dimensions support installations where space is limited. The mounting base and terminal block form part of the complete installation, so their dimensions and wiring clearance should be considered when planning a panel.

5.7 Support for Selected Input Events

The module supports pulse latching, input timestamps, pattern matching, and selected event and counter functions. These features can be useful in applications that need more than a basic snapshot of the input state.

However, the supported functions have specific limits. The module should not be chosen as a replacement for a dedicated high-speed counter or specialized motion input without checking the detailed requirements.

5.8 Clear Separation Between Field Wiring and Control Logic

The module collects field signals, while the controller interprets them and executes the application logic. This separation helps engineers organize the system and troubleshoot it in stages.

It also makes it easier to document which physical input corresponds to each sensor, switch, or equipment status point.

6. Brand and Product Series

The 5094-IB32 is an input module, not a standalone controller or an Ethernet adapter. It depends on the appropriate FLEX 5000 mounting base, terminal block, power arrangement, and network adapter to operate as part of a complete I/O station.

7. Five Related FLEX 5000 Models

The following models are related through the FLEX 5000 product family or similar I/O functions. Their channel counts, electrical characteristics, and supported functions differ, so they should not be treated as direct replacements without a compatibility check.

Model selection notes:

• 5094-IB32XT is the closest related model in terms of input point count and function. Its extended-temperature characteristics should be checked against the actual installation environment.

• 5094-IB16 may suit a smaller installation, but its input count and electrical configuration should be verified before selecting it.

• 5094-OB16 is for output control rather than input monitoring. It is useful when the system must drive compatible field loads.

• 5094-IF8 is intended for analog measurement, such as supported process transmitter signals, rather than ordinary ON/OFF inputs.

• 5094-OF8 provides analog output functions for compatible devices and is not a substitute for a digital input module.

The dimensions and weights of related models should be confirmed for the exact catalog number and revision. In particular, module-only dimensions and weight may not include the separate mounting base or removable terminal block.

8. Five Popular Allen-Bradley Models for Broader Automation Applications

These models cover common controller, communication, and I/O functions. They are examples of products from the broader automation portfolio and are not direct replacements for the 5094-IB32.

These products serve different roles in an automation system:

• A controller executes the application program and coordinates the process.

• An Ethernet communication module or adapter connects compatible devices to the industrial network.

• A digital input module collects discrete field signals.

If the objective is to replace a 5094-IB32, a compatible FLEX 5000 input module is generally the most relevant starting point. If the objective is to migrate to a different controller or I/O platform, the replacement should be selected as part of a complete system design rather than by matching the input point count alone.

9. Installation and Compatibility Considerations

9.1 Select the Correct Mounting Base and Terminal Block

The 5094-IB32 uses a compatible FLEX 5000 mounting base and removable terminal block. These components may need to be ordered separately.

Check the exact terminal-block arrangement before purchasing, particularly if the module is being added to an existing installation or replacing a damaged unit.

9.2 Verify the Field Signal Voltage

Confirm that every connected sensor or switch supplies a signal compatible with the 10–32 V DC input range.

Check the ON-state voltage, OFF-state leakage current, polarity, and common wiring. Incorrect wiring or an incompatible signal can cause unreliable input states or damage to the equipment.

9.3 Configure the Input Filter

Choose the input filter according to the field device and required control response.

For example, a mechanical switch may need additional filtering to reduce contact bounce, while a rapidly changing sensor signal may require a shorter filter. A long filter can delay input recognition and should not be used without considering the application’s timing requirements.

9.4 Confirm the Network Adapter and Controller

The module must be installed in a supported FLEX 5000 I/O assembly and connected through a compatible adapter. Confirm controller support, firmware compatibility, and the correct I/O configuration in the engineering software.

A module that fits physically may still be unsuitable if its firmware or supported profile does not match the system.

9.5 Check Power and Isolation Requirements

The module uses 15 V DC backplane power, with a maximum backplane current of 90 mA. Its sensor/actuator power requirements are separate and must be considered when designing the complete assembly.

The specified 250 V continuous isolation rating applies to system-to-field basic insulation. There is no isolation between individual input ports or between sensor/actuator power and the input ports. This distinction is important when evaluating grounding, external supplies, and electrical noise.

9.6 Test the Input Points Before Commissioning

After installation, test representative field signals and confirm that the module indicators and controller input data match the actual sensor states.

Also verify the filter configuration, diagnostics, network communication, and any event or counter functions used by the application. Complete the commissioning checks before returning the equipment to normal production.

10. Purchasing and Spare-Part Checklist

Before ordering the 5094-IB32, confirm the following:

• Full catalog number and hardware revision.

• Required input count and electrical input range.

• Compatibility with the intended controller and FLEX 5000 adapter.

• Firmware and engineering-software compatibility.

• Correct mounting base and removable terminal block.

• Availability of the required 18–32 V DC sensor/actuator supply.

• Total backplane and field-power requirements for the I/O assembly.

• Suitability of the module’s isolation characteristics for the installation.

• Physical dimensions for the module and complete assembly.

• Whether the quoted weight includes the mounting base, terminal block, or packaging.

• Condition and functional test status if purchasing used or refurbished equipment.

11. Summary

The Allen-Bradley 5094-IB32 is a 32-point DC digital input module in the FLEX 5000 distributed I/O family. It accepts compatible 10–32 V DC field signals and communicates their states to a controller through a supported FLEX 5000 network adapter.

Its principal advantages include high input point density, configurable input filtering, individual channel status indicators, compact installation, and integration with a modular distributed I/O architecture. These features make it suitable for factory automation, packaging machinery, conveyor systems, assembly equipment, and general process monitoring.

The closest related model is the 5094-IB32XT, which provides a corresponding 32-point input function in an extended-temperature version. Other related FLEX 5000 models can provide fewer digital inputs, digital outputs, or analog signal handling, depending on the application.

The approximate dimensions of the 5094-IB32 module are 9.4 × 5.4 × 8.7 cm (W × H × D), and its approximate module-only weight is 0.133 kg. The mounting base and removable terminal block are separate components, so their dimensions and weight should be included when planning the complete installation.
